Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#155358) — 26 parça

428 115 337 59 115 84 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH	8-98244-685-0	01	1	1501-	●
12	SILENCER ASM; EXH	8-98216-962-1	01	1	1501-		●
59	BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1501-	●	●
84	GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1501-	●	●
115	RUBBER; MTG,SILENCER (A)	8-97289-169-0	01	1	1501-	●	●
115	RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1501-	●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1501-	●	●
428	RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1501-	●	●

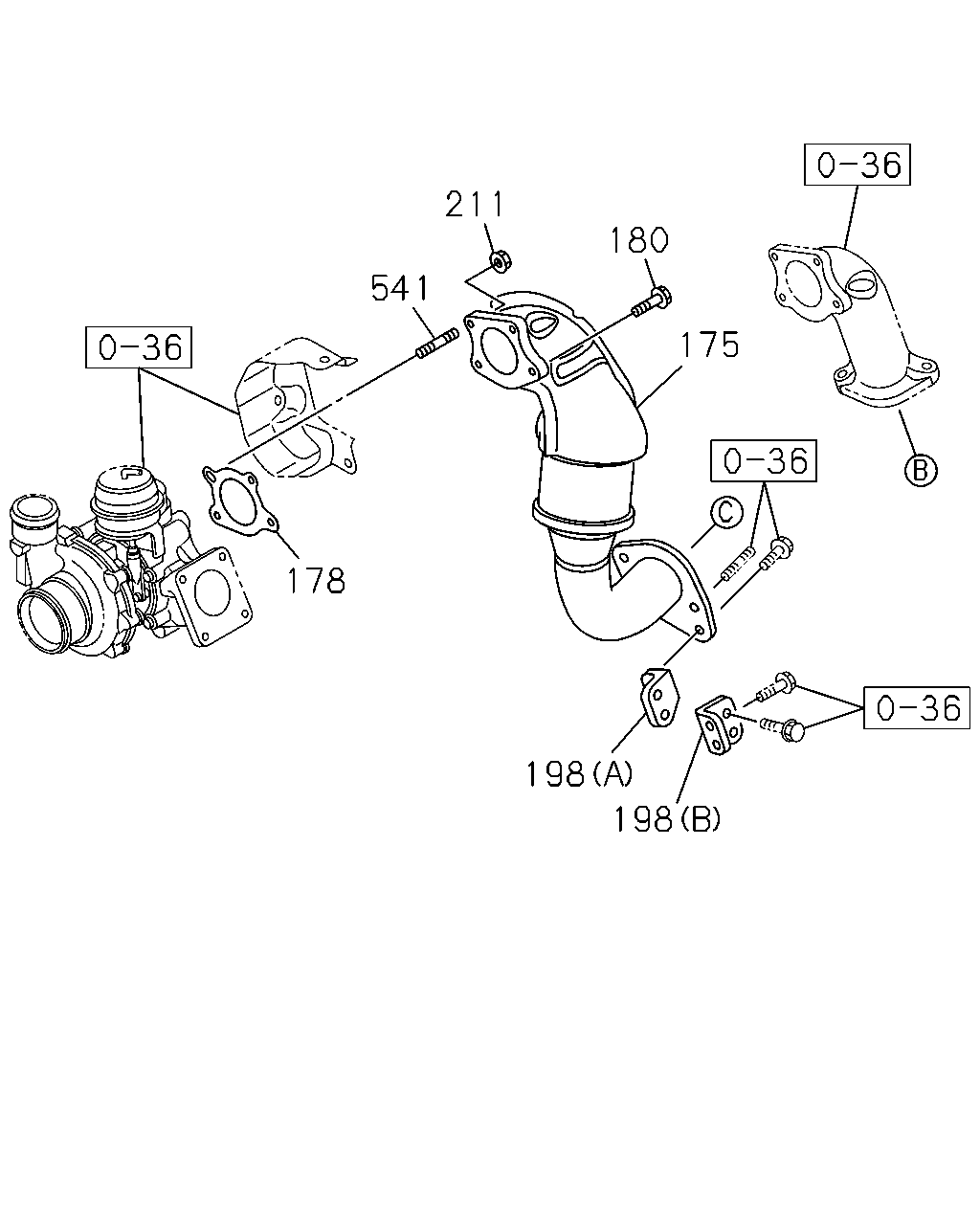

211 180 175 198 198 178 541

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
175	CONVERTER; CATALYST	8-98228-311-0	01	1	1501-		●
178	GASKET; CONV TO MANIF	8-98132-538-0	01	1	1501-	●	●
180	BOLT; CONV TO PIPE M8X23 FLANGE	8-97378-077-0	02	1	1501-	●	●
198	BRACKET; CONV MTG (B)	8-98196-696-1	01	1	1501-		●
198	BRACKET; CONV MTG (A)	8-98203-739-0	01	1	1501-		●
211	NUT; CONV M8 FLANGE	8-97161-607-0	02	1	1501-	●
211	NUT; CONV M8 FLANGE	8-97379-384-0	02	1	1501-		●
541	STUD; CONV TO PIPE M8X25 L=36	8-97378-062-0	02	1	1501-	●	●

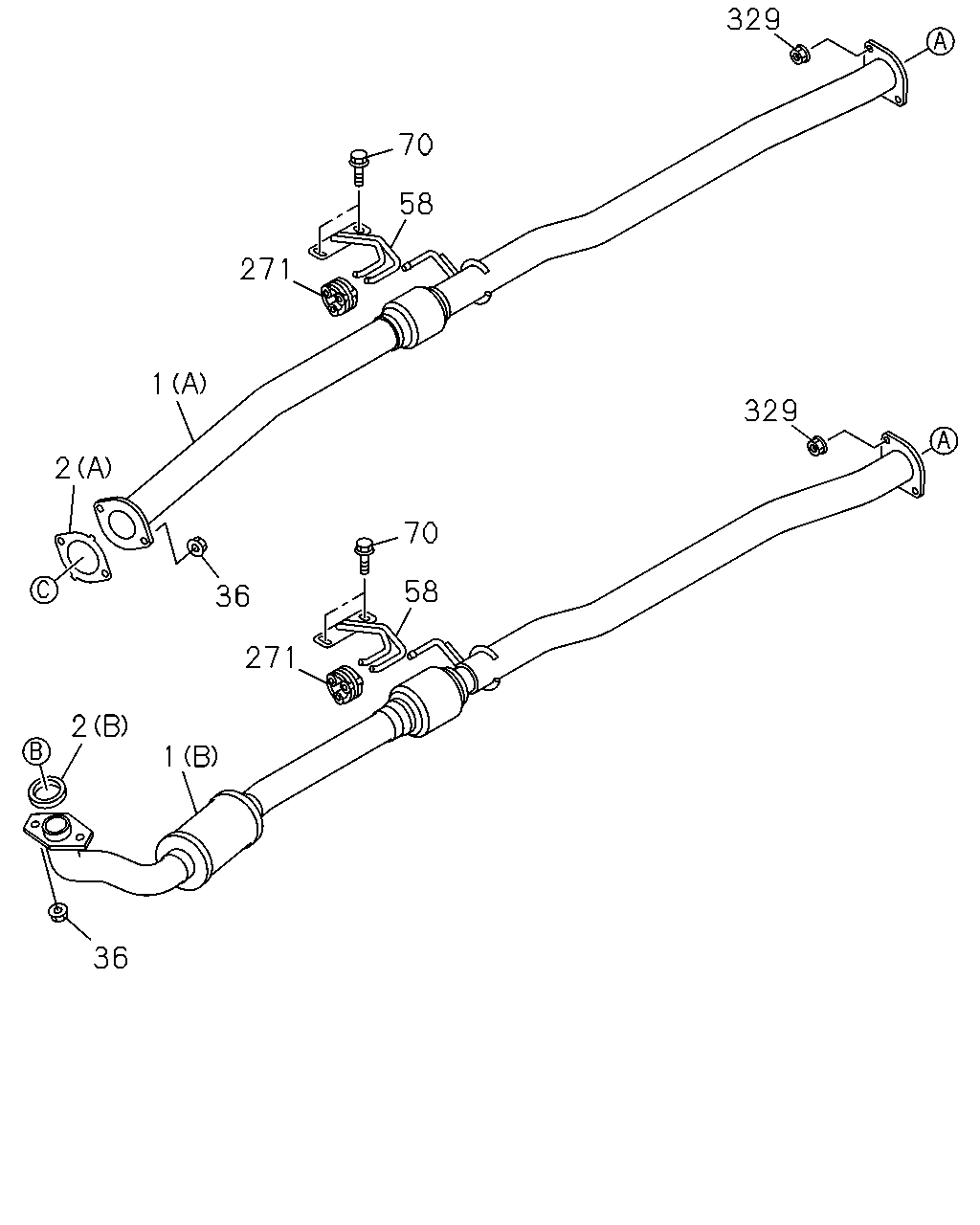

329 70 58 271 1 2 36 271 70 58 1 2 36 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (B)	8-98276-228-1	01	1	1501-1502	●
1	PIPE; EXH (B)	8-98288-052-0	01	1	1503-	●
1	PIPE; EXH (A) MAL	8-98140-583-1	01	1	1501-		●
2	GASKET; PIPE TO MANIF (B)	8-98017-270-0	01	1	1501-	●
2	GASKET; PIPE TO MANIF (A) ID=65	8-97263-052-0	01	1	1501-		●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1501-	●	●
58	BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1501-	●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1501-	●	●
271	RUBBER; HANGER,RR PIPE	8-97289-169-0	01	1	1501-	●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE	0-91180-110-0	02	1	1501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
