1-41 — FUEL PIPING; CHASSIS (#155357) — 47 parça

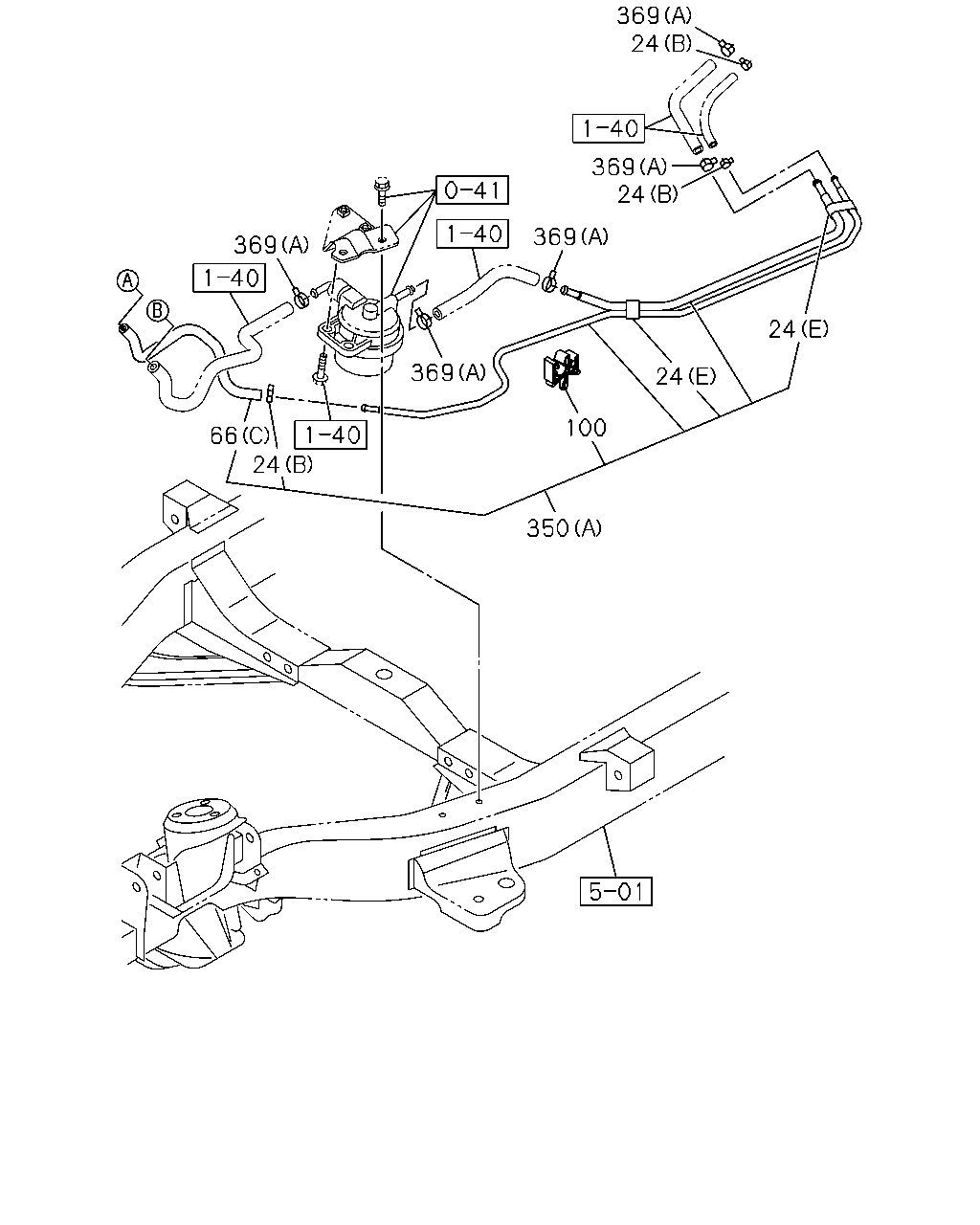

çizim 464201
369 24 369 24 369 24 24 100 350 24 66 369 369
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(C) ID=16 		8-98030-682-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 06 1 1501- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 		8-98052-395-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(E) 		8-98233-886-0 02 1 1501- ● ●
24 CLIP; FUEL HOSE
RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13 		8-98150-357-0 02 1 1501- ● ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98248-703-0 01 1 1501- ● ●
66 HOSE; FUEL,RETURN PIPE
RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) 		8-98100-725-2 01 1 1501- ● ●
66 HOSE; FUEL,RETURN PIPE
EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) 		8-98100-720-2 01 1 1501- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1501- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
4X2(TFB***) (A) 		8-98248-685-0 01 1 1501- ●
350 PIPE; FUEL,DEL & RET
(D) 		8-98113-293-6 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) 		8-98248-692-0 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) 		8-98248-691-0 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
4X4(TFS***) (A) 		8-98248-686-0 01 1 1501- ●
350 PIPE; FUEL,DEL & RET
(A) 		8-98248-686-0 01 1 1501- ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 		8-98052-395-0 09 1 1501- ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 		8-98186-048-0 01 1 1501- ● ●

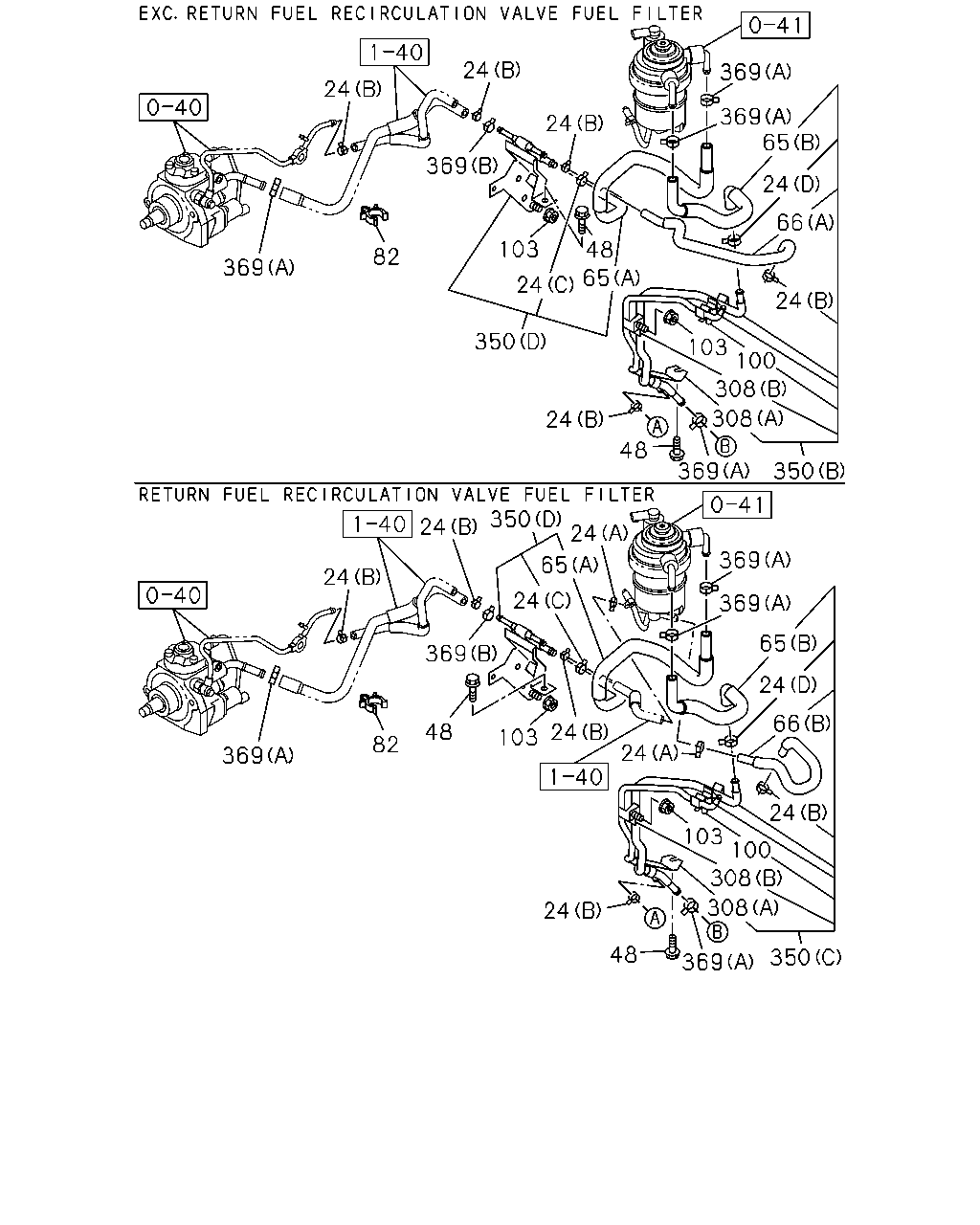

çizim 464586
24 24 369 24 103 350 65 24 48 369 369 24 65 66 24 100 103 308 308 24 369 48 350 369 369 65 24 66 24 103 100 308 308 24 24 24 103 48 82 369 65 24 24 350 24 24 369 82 369 350 48 369
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(C) ID=16 		8-98030-682-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 06 1 1501- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 		8-98052-395-0 01 1 1501- ● ●
24 CLIP; FUEL HOSE
(E) 		8-98233-886-0 02 1 1501- ● ●
24 CLIP; FUEL HOSE
RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13 		8-98150-357-0 02 1 1501- ● ●
48 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1501- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-98100-729-4 01 1 1501- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) 		8-98100-731-2 01 1 1501- ● ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98248-703-0 01 1 1501- ● ●
66 HOSE; FUEL,RETURN PIPE
RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) 		8-98100-725-2 01 1 1501- ● ●
66 HOSE; FUEL,RETURN PIPE
EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) 		8-98100-720-2 01 1 1501- ● ●
82 CLIP; FUEL HOSE
ID=17 		8-94382-792-1 01 1 1501- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1501- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1501- ● ●
103 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1501- ● ●
308 BRACKET; FUEL PIPE
(B) 		8-98233-889-0 01 1 1501- ● ●
308 BRACKET; FUEL PIPE
(A) 		8-98233-890-0 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
4X2(TFB***) (A) 		8-98248-685-0 01 1 1501- ●
350 PIPE; FUEL,DEL & RET
(D) 		8-98113-293-6 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) 		8-98248-692-0 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) 		8-98248-691-0 01 1 1501- ● ●
350 PIPE; FUEL,DEL & RET
4X4(TFS***) (A) 		8-98248-686-0 01 1 1501- ●
350 PIPE; FUEL,DEL & RET
(A) 		8-98248-686-0 01 1 1501- ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 		8-98052-395-0 09 1 1501- ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 		8-98186-048-0 01 1 1501- ● ●
