Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#155356) — 73 parça

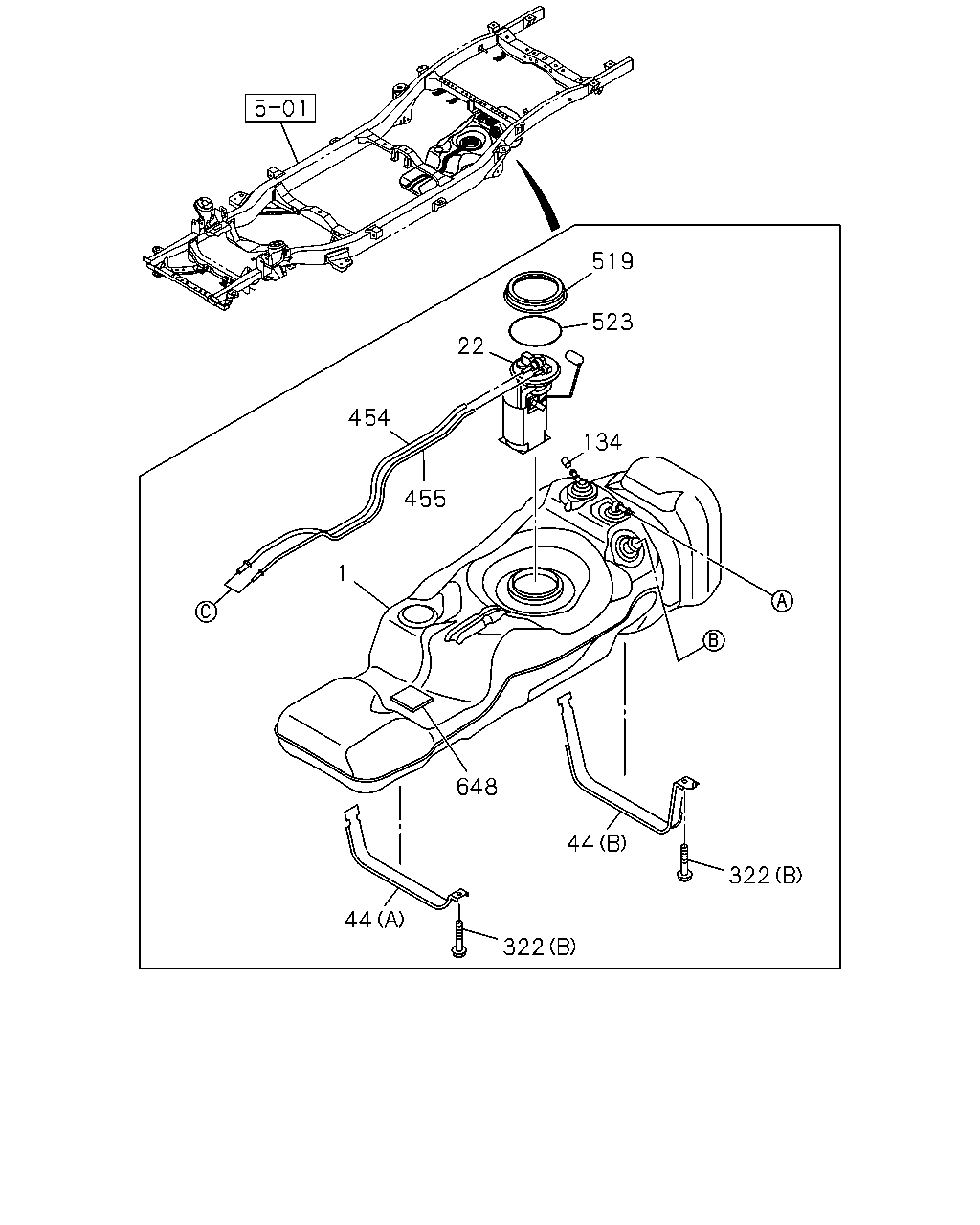

523 519 22 454 455 134 322 44 322 648 1 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL 76L	8-97947-077-3	01	1	1501-	●	●
22	UNIT; FUEL TANK	8-97947-151-3	01	1	1501-	●	●
44	BAND; FUEL TANK (A)	8-97947-085-4	01	1	1501-	●	●
44	BAND; FUEL TANK (B)	8-97947-086-2	01	1	1501-	●	●
134	CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1501-	●	●
322	BOLT; BRKT FIX (B) M10X50 FLANGE	8-97301-165-0	02	1	1501-	●	●
322	BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1501-1505	●
322	BOLT; BRKT FIX REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1501-1505		●
322	BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1506-	●	●
322	BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A) M12X40 FLANGE	0-28051-240-0	01	1	1501-1505	●
322	BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A) M12X40 FLANGE	0-28051-240-0	01	1	1506-	●	●
454	PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1501-	●	●
455	PIPE; FUEL,RETURN	8-97947-153-0	01	1	1501-	●	●
519	RETAINER; FUEL PUMP	8-97947-157-0	01	1	1501-	●	●
523	SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1501-	●	●
648	RUBBER	8-98191-468-0	01	1	1501-	●	●

422

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	422	PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-98154-084-0	01	1	1501-	●	●

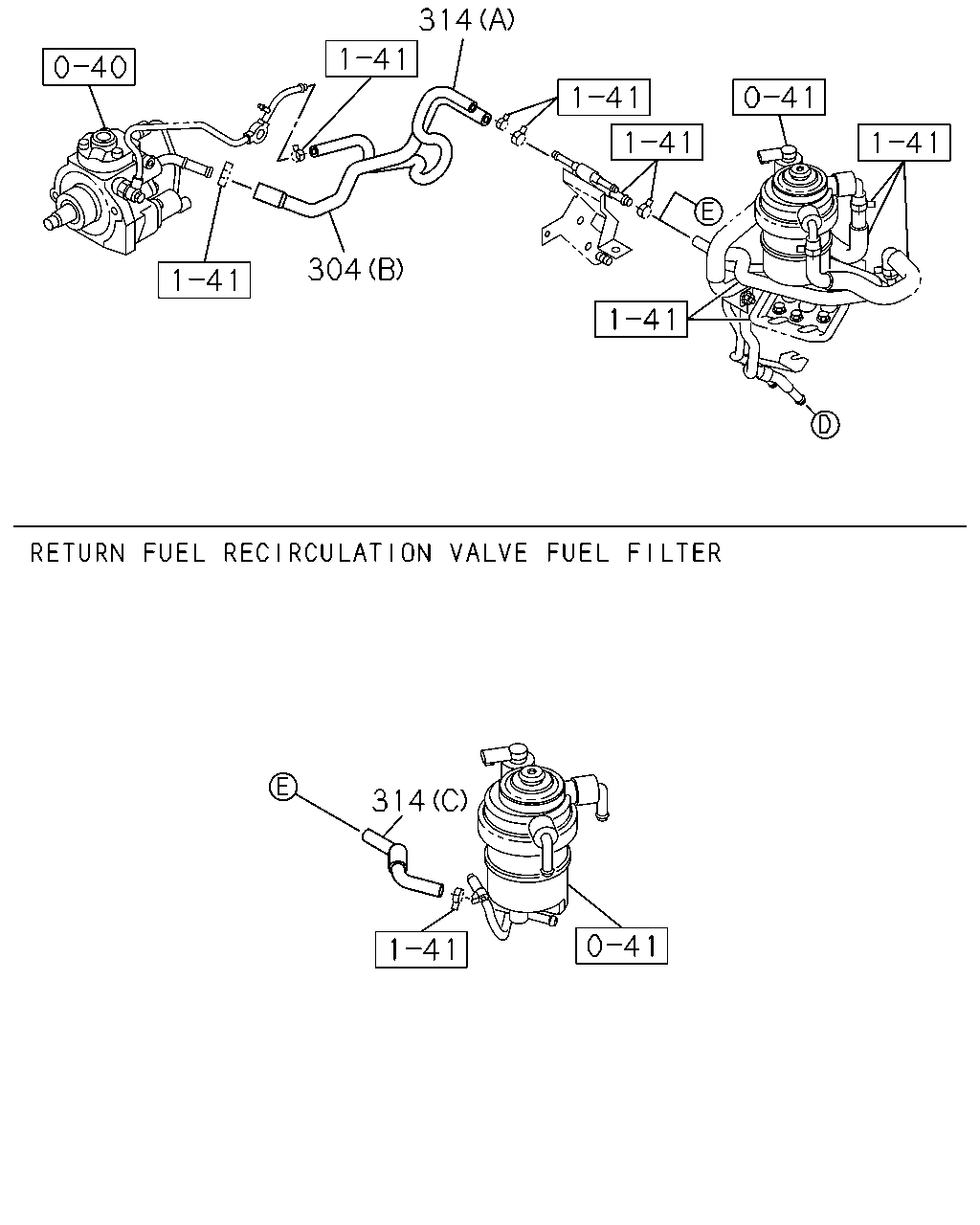

304 314 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X2(TFB***) (C)	8-98196-949-0	01	1	1501-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B)	8-98222-042-1	01	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (D)	8-98248-704-0	01	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X4(TFS***) (C)	8-97351-313-0	01	1	1501-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (C)	8-97351-313-0	01	1	1501-		●
314	HOSE; RUBBER,FUEL RETURN (A)	8-98222-040-0	01	1	1501-	●	●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1501-	●	●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-723-2	01	1	1501-	●	●

304 314 304 304 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	BOLT; BRKT TO BODY M8X30 FLANGE	0-28650-830-0	02	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X2(TFB***) (C)	8-98196-949-0	01	1	1501-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B)	8-98222-042-1	01	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (D)	8-98248-704-0	01	1	1501-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X4(TFS***) (C)	8-97351-313-0	01	1	1501-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (C)	8-97351-313-0	01	1	1501-		●
314	HOSE; RUBBER,FUEL RETURN (A)	8-98222-040-0	01	1	1501-	●	●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1501-	●	●
314	HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-723-2	01	1	1501-	●	●

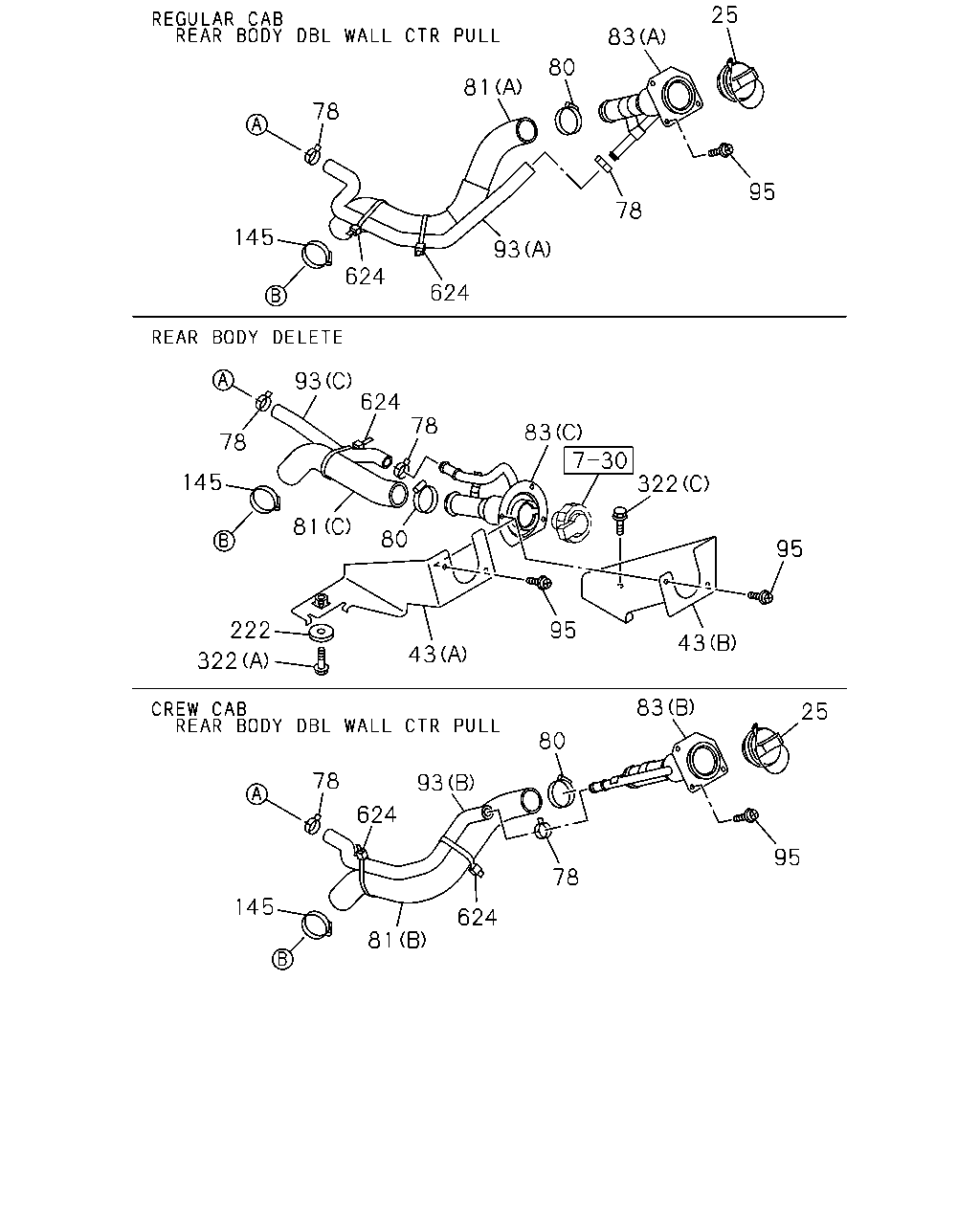

95 43 95 25 95 78 80 83 93 624 78 145 81 624 222 81 80 43 322 145 78 93 624 78 83 322 78 95 83 25 80 81 78 145 624 624 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98088-024-0	01	1	1501-1510	●	●
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98327-664-0	01	1	1511-	●	●
43	BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1501-1505	●
43	BRACKET; FUEL TANK REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1501-1505		●
43	BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1506-	●	●
43	BRACKET; FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1501-1505	●
43	BRACKET; FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1506-	●	●
78	CLIP; BREATHER HOSE ID=20.8	8-97944-127-0	01	1	1501-	●	●
78	CLIP; BREATHER HOSE ID=20.8	8-97944-127-0	01	1	1501-	●	●
80	CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1501-	●	●
81	HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1501-	●
81	HOSE; FUEL FILLER REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1501-		●
81	HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1501-	●
81	HOSE; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1501-		●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1501-	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1501-	●
83	NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1501-	●
83	NECK; FUEL FILLER REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1501-		●
83	NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1501-	●	●
83	NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1501-	●
93	HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1501-	●
93	HOSE; BREATHER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1501-		●
93	HOSE; BREATHER,FUEL TANK REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1501-	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1501-	●
95	SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63)	8-98139-595-0	03	1	1501-	●	●
95	SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1501-	●	●
145	CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1501-	●	●
222	WASHER; BRKT,FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1501-1505	●
222	WASHER; BRKT,FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1506-	●	●
322	BOLT; BRKT FIX (B) M10X50 FLANGE	8-97301-165-0	02	1	1501-	●	●
322	BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1501-1505	●
322	BOLT; BRKT FIX REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1501-1505		●
322	BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1506-	●	●
322	BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A) M12X40 FLANGE	0-28051-240-0	01	1	1501-1505	●
322	BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A) M12X40 FLANGE	0-28051-240-0	01	1	1506-	●	●
624	CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) L=330	5-09709-118-0	02	1	1501-	●	●
624	CLIP; BAND REAR BODY DELETE(8HH) L=330	5-09709-118-0	01	1	1501-	●	●
