◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#155355) — 26 parça

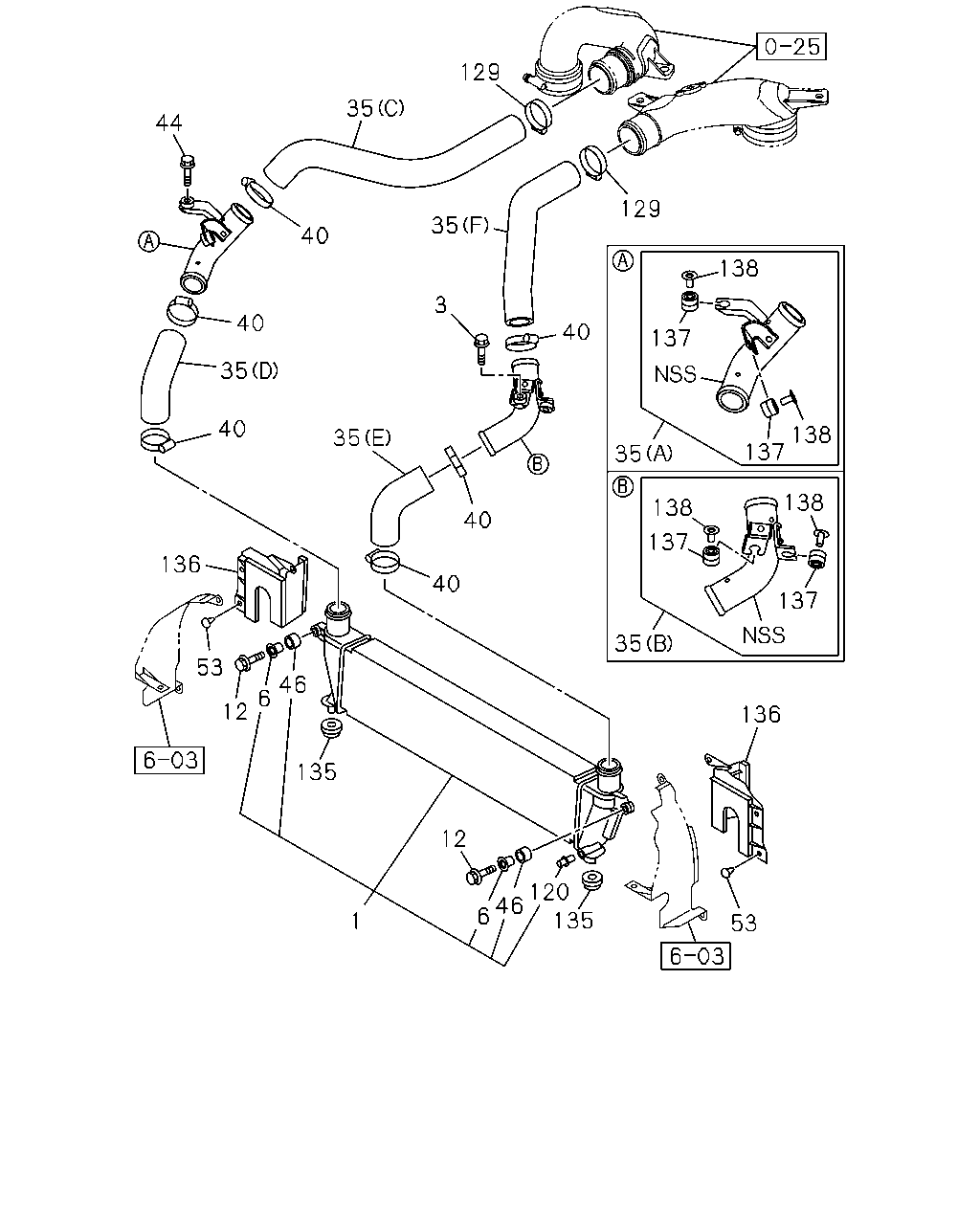

çizim 464617
44 129 35 35 40 40 35 40 35 40 40 136 53 12 6 46 135 12 46 120 6 1 135 53 136 137 137 138 138 137 138 35 137 138 129 40 3 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
EURO2 SPECIFICATION<NT2> 		8-98090-627-4 01 1 1501- ●
1 COOLER; CHARGE AIR 8-98090-627-4 01 1 1501- ●
1 COOLER; CHARGE AIR
EURO3 SPECIFICATION<NT3> 		8-98093-027-4 01 1 1501- ●
3 BOLT; CHARGE AIR COOLER
M6X33 W/PL WASHER 		8-98048-997-0 02 1 1501- ● ●
6 COLLAR; MTG,CHARGE AIR COOLER 8-97942-932-0 02 1 1501- ● ●
12 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1501- ● ●
35 HOSE; CONNECTING
(A) 		8-98065-553-1 01 1 1501- ● ●
35 HOSE; CONNECTING
(B) 		8-98065-554-1 01 1 1501- ● ●
35 HOSE; CONNECTING
(C) 		8-98065-695-2 01 1 1501- ● ●
35 HOSE; CONNECTING
(D) 		8-98065-696-2 01 1 1501- ● ●
35 HOSE; CONNECTING
(E) 		8-98065-697-2 01 1 1501- ● ●
35 HOSE; CONNECTING
(F) 		8-98065-698-2 01 1 1501- ● ●
40 CLIP; RUBBER HOSE
ID=45-65 		8-98133-396-0 02 1 1501- ● ●
40 CLIP; RUBBER HOSE
ID=45-65 		8-98133-396-0 04 1 1501- ● ●
44 BOLT; PIPE
M6X33 W/PL WASHER 		8-98048-997-0 02 1 1501- ● ●
46 RUBBER; MTG,CHARGE AIR COOLER 8-97942-930-0 02 1 1501- ● ●
53 CLIP; AIR DUCT
OD=22 L=10.7 		8-94215-211-0 06 1 1501- ● ●
120 PIPE; WATER DRAIN 8-98189-894-0 01 1 1501- ● ●
129 CLAMP; HOSE
ID=45-65 		8-98133-396-0 02 1 1501- ● ●
135 RUBBER; CUSHION 8-97249-541-1 02 1 1501- ● ●
136 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1501- ● ●
136 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1501- ● ●
137 RUBBER; PIPE 8-98137-144-0 02 1 1501- ● ●
137 RUBBER; PIPE 8-98137-144-0 02 1 1501- ● ●
138 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1501- ● ●
138 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1501- ● ●
