◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#155353) — 40 parça

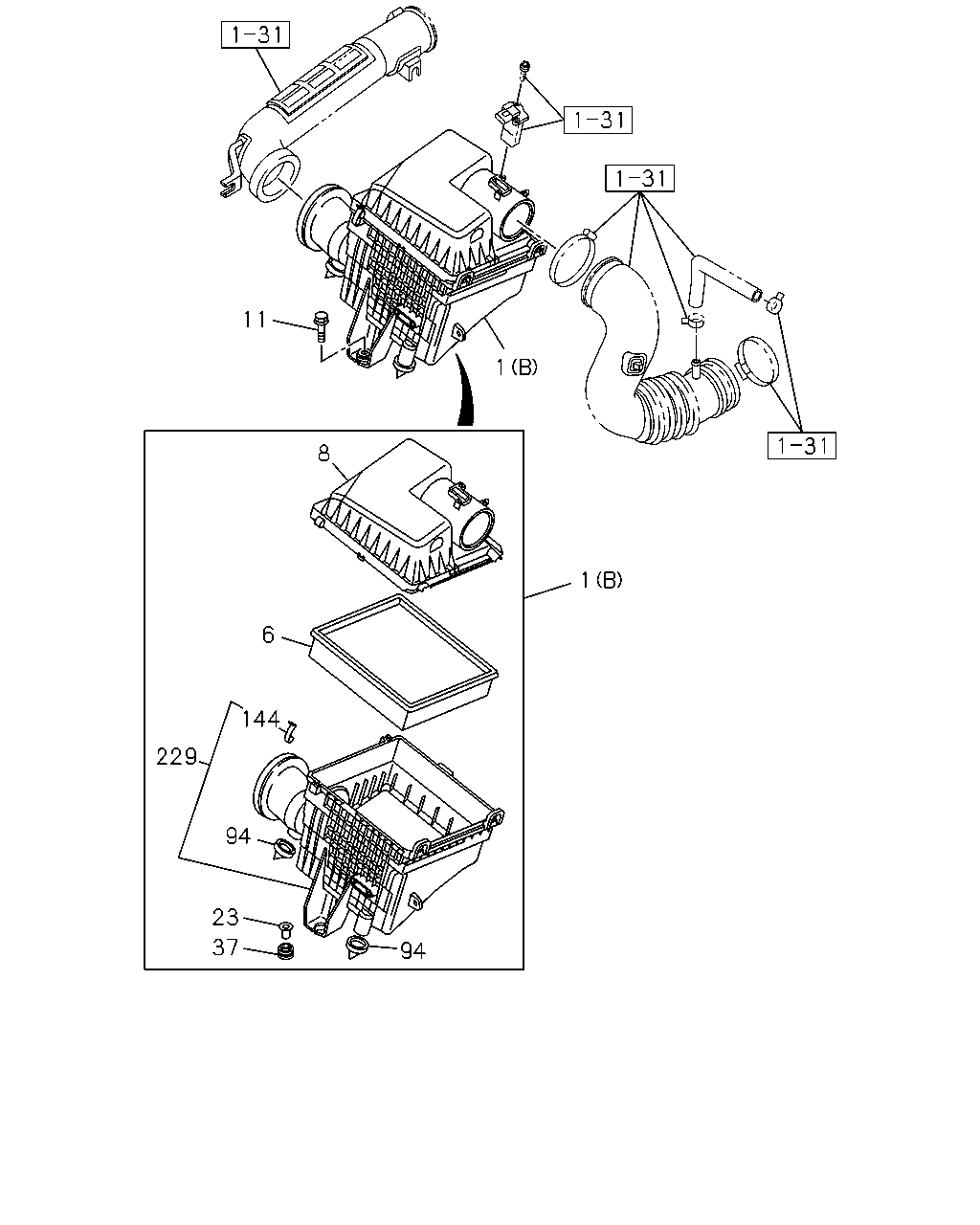

çizim 464599
11 1 1 8 6 144 229 94 23 37 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1501- ●
1 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1501- ●
1 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1501- ●
1 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1501- ●
6 FILTER; ACL 8-98140-266-0 01 1 1501- ●
6 FILTER; ACL 8-98140-265-0 01 1 1501- ●
8 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1501- ●
8 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1501- ●
8 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1501- ●
8 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1501- ●
11 BOLT; ACL
M8X35 FLANGE 		0-28650-835-0 03 1 1501- ● ●
23 COLLAR; ACL STAY 8-98140-270-0 03 1 1501- ● ●
37 RUBBER; MTG,ACL 8-98140-269-0 03 1 1501- ● ●
94 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1501- ● ●
94 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501- ● ●
144 CLIP; ACL 8-97324-624-0 02 1 1501- ● ●
229 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1501- ●
229 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1501- ●
229 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1501- ●
229 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1501- ●
çizim 464697
11 1 1 6 8 144 229 23 37 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98114-220-4 01 1 1501- ●
1 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98114-219-5 01 1 1501- ●
1 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98104-506-4 01 1 1501- ●
1 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98104-505-5 01 1 1501- ●
6 FILTER; ACL 8-98140-266-0 01 1 1501- ●
6 FILTER; ACL 8-98140-265-0 01 1 1501- ●
8 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-388-0 01 1 1501- ●
8 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98141-385-0 01 1 1501- ●
8 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-387-0 01 1 1501- ●
8 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-261-0 01 1 1501- ●
11 BOLT; ACL
M8X35 FLANGE 		0-28650-835-0 03 1 1501- ● ●
23 COLLAR; ACL STAY 8-98140-270-0 03 1 1501- ● ●
37 RUBBER; MTG,ACL 8-98140-269-0 03 1 1501- ● ●
94 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 02 1 1501- ● ●
94 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 1501- ● ●
144 CLIP; ACL 8-97324-624-0 02 1 1501- ● ●
229 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-391-0 01 1 1501- ●
229 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-267-0 01 1 1501- ●
229 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-98141-392-0 01 1 1501- ●
229 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98140-268-0 01 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
