Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#155345) — 94 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
◀

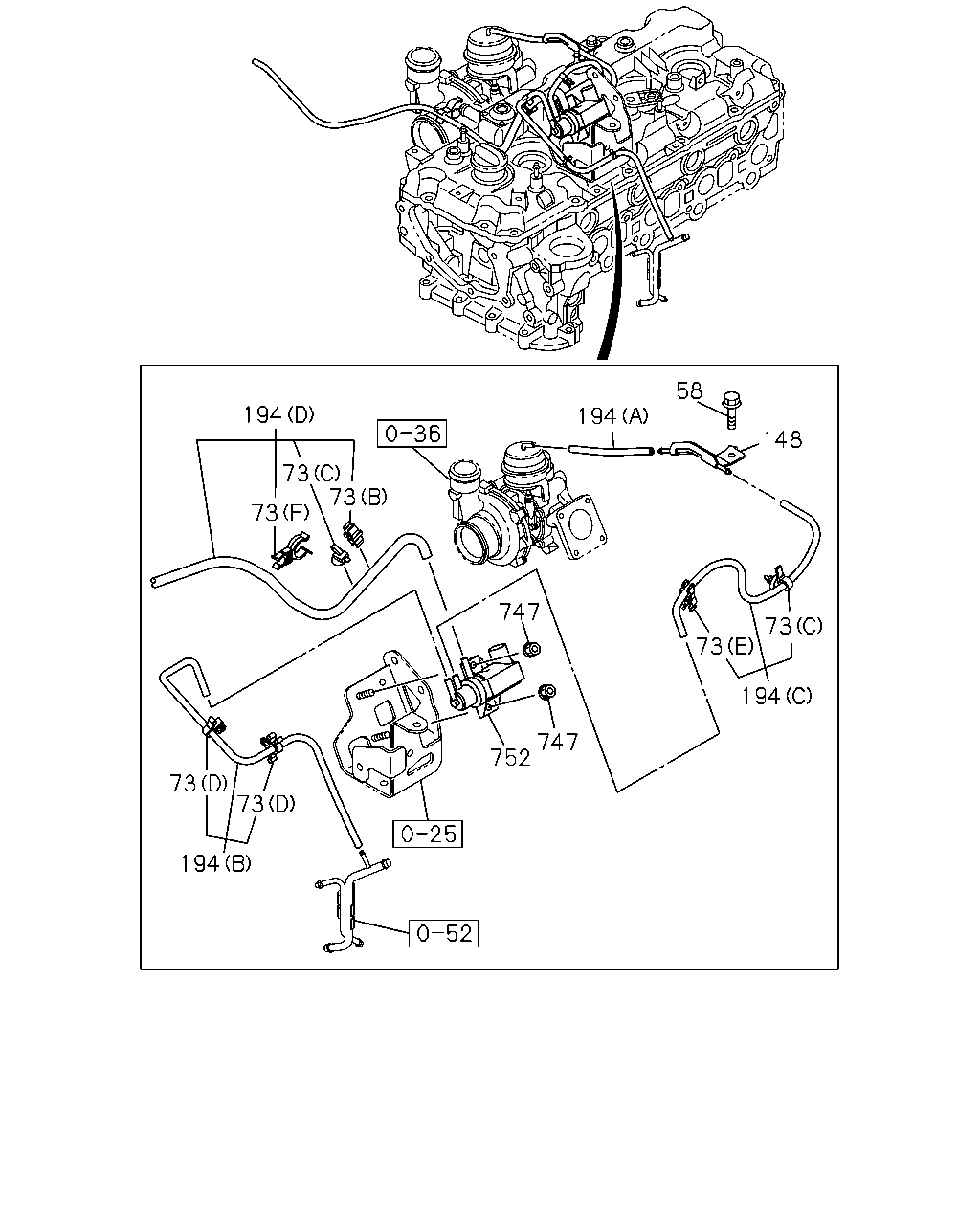

[057A] EVRV AND VACUUM HOSE;4JK1 (20 parça)

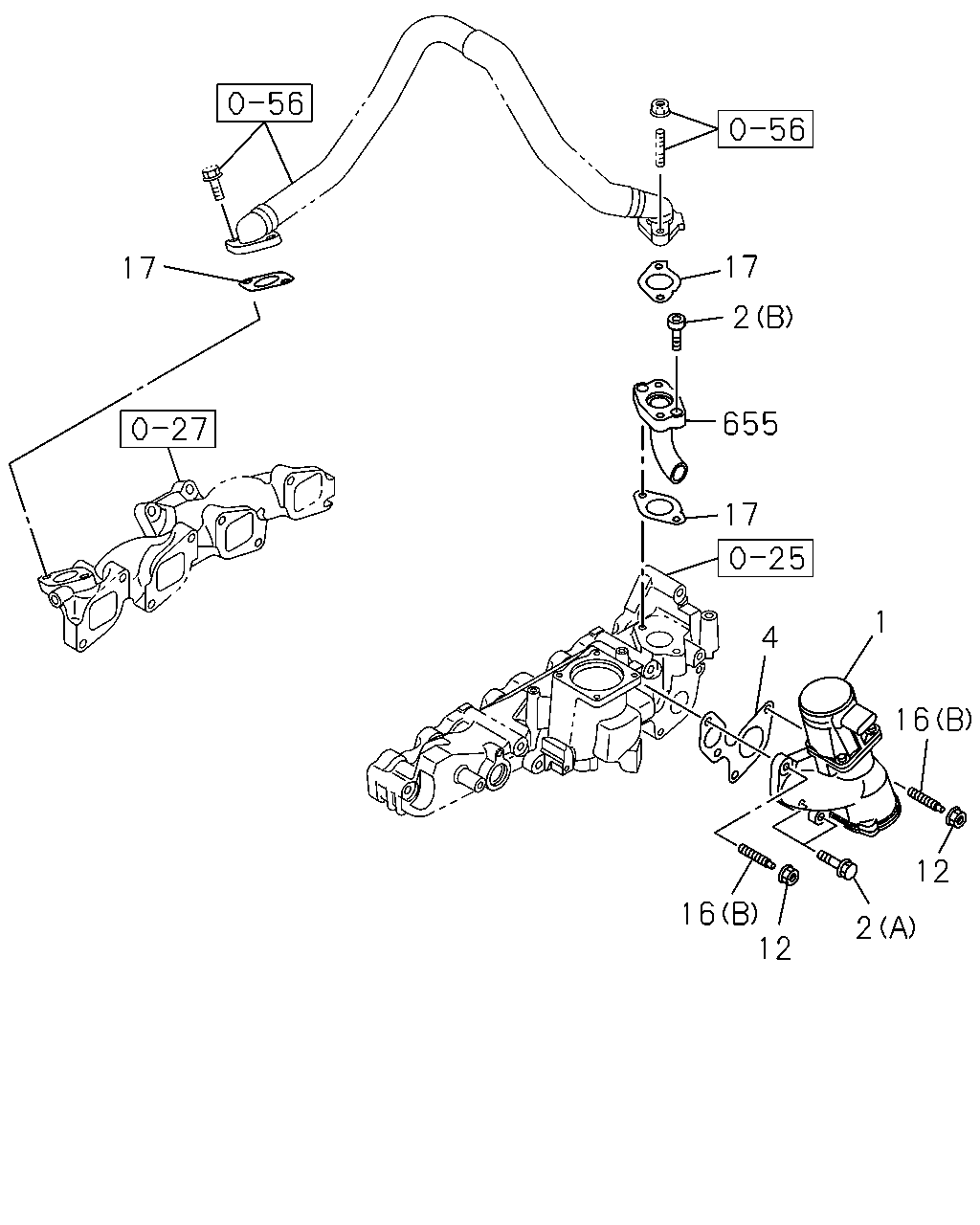

[057A] EGR VALVE;4JK1 (20 parça)

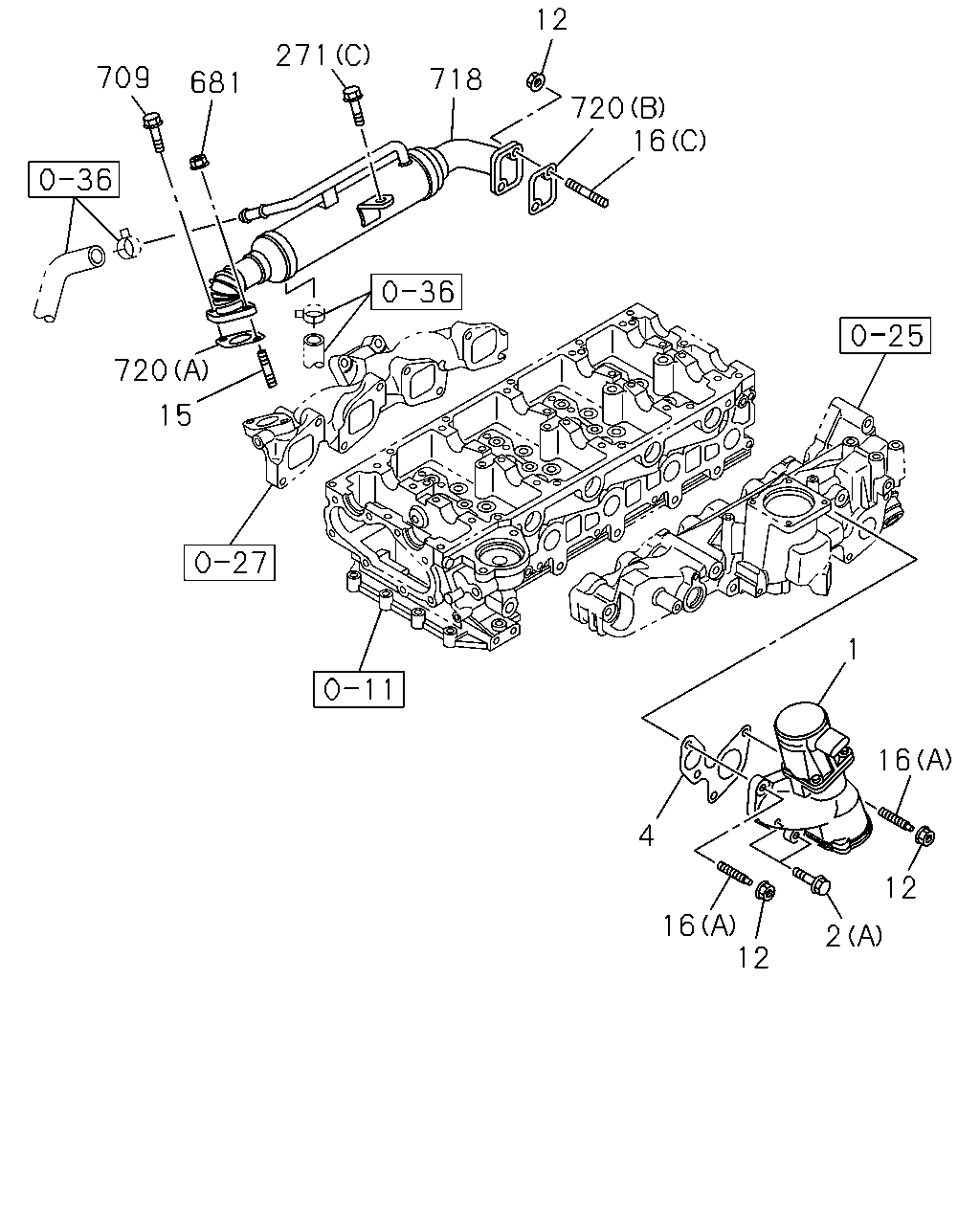

[057A] EGR VALVE;4JJ1 (24 parça)

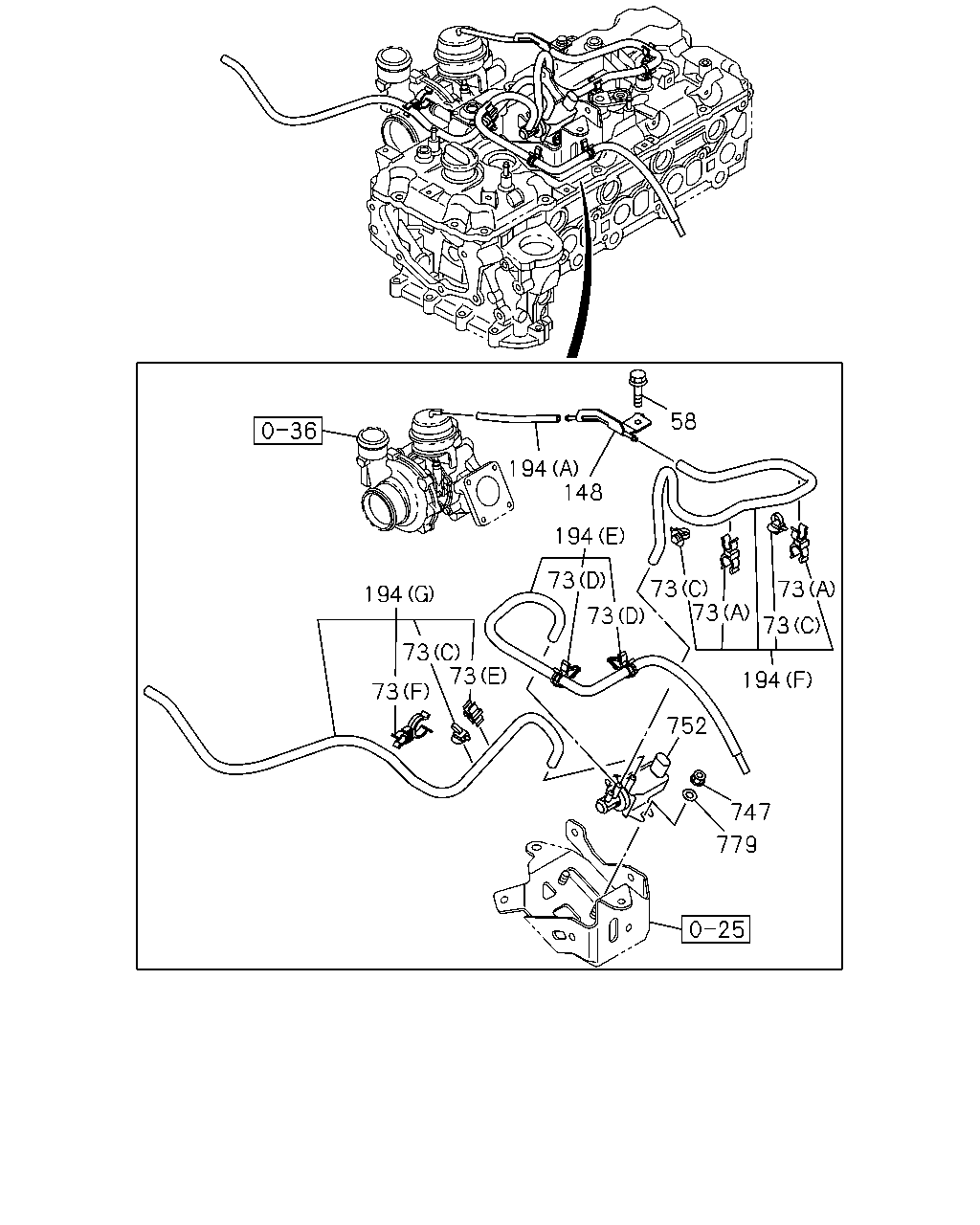

[057A] EVRV AND VACUUM HOSE;4JJ1 (21 parça)

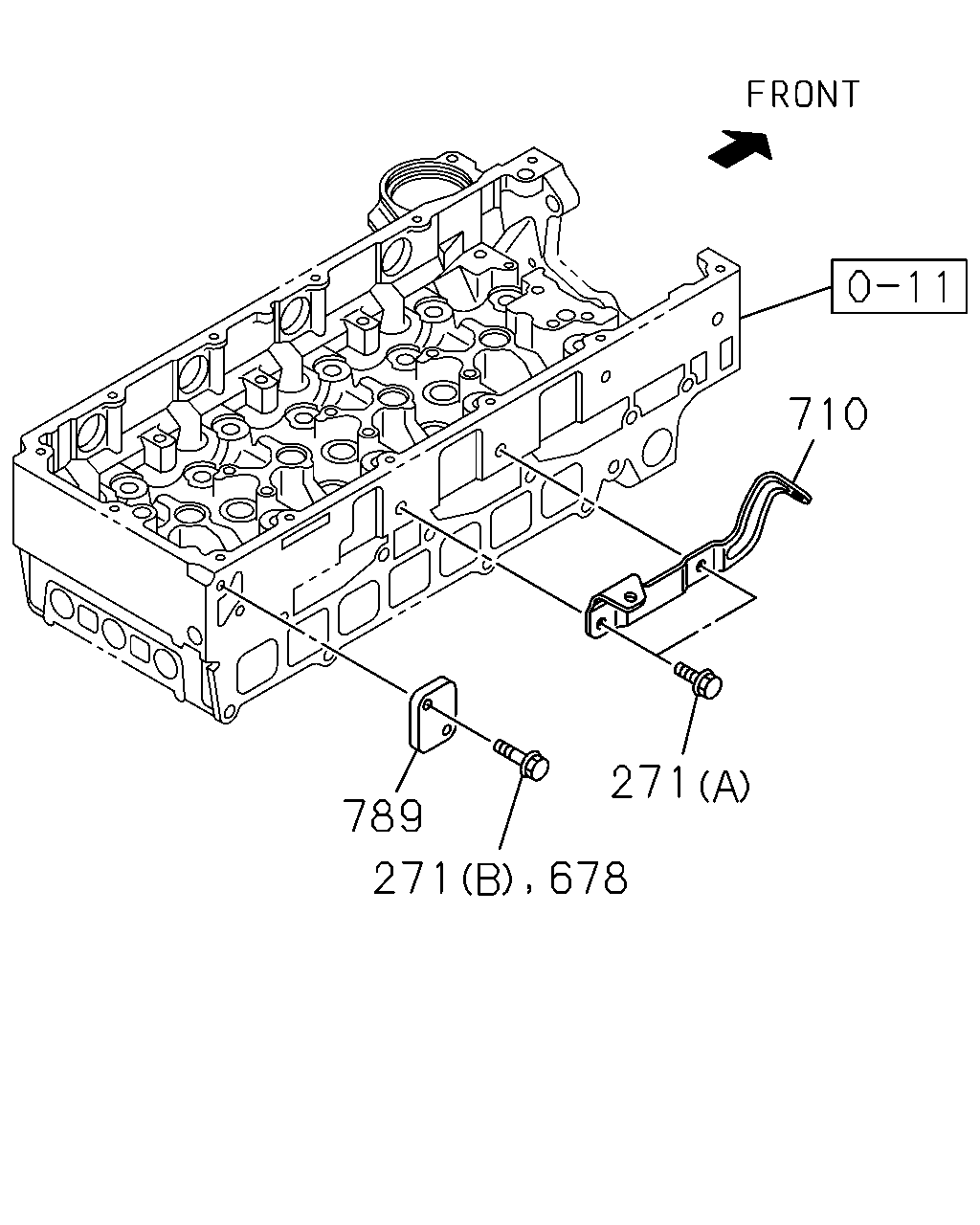

[057A] EGR COOLER BRACKET AND COVER (9 parça)
▶
194
73
73
73
73
73
194
752
747
747
194
58
148
73
194
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
01
1
1501-
●
●
73
CLIP; VAC HOSE
(B) ID=11.8 & 7.5
1-09709-182-0
01
1
1506-
●
73
CLIP; VAC HOSE
(C)
8-98324-179-0
02
1
1506-
●
73
CLIP; VAC HOSE
(D) ID=6.5
8-94257-639-0
02
1
1506-
●
●
73
CLIP; VAC HOSE
(E) ID=7.5 & 7.5
8-97019-084-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(F) ID=21 & 9.8
8-97309-945-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(A) ID=8.3 & 12
8-94155-469-0
02
1
1506-
●
73
CLIP; VAC HOSE
(C)
8-98324-179-0
03
1
1506-
●
148
PIPE; VAC
8-98132-082-0
01
1
1501-
●
●
194
HOSE; VAC
(B)
8-98228-439-0
01
1
1501-
●
194
HOSE; VAC
(C)
8-98239-037-0
01
1
1501-
●
194
HOSE; VAC
(D)
8-98239-038-1
01
1
1501-
●
194
HOSE; VAC
(A)
0-14040-110-0
01
1
1501-
●
●
194
HOSE; VAC
(E)
8-98239-331-0
01
1
1501-
●
194
HOSE; VAC
(F)
8-98239-332-1
01
1
1501-
●
194
HOSE; VAC
(G)
8-98239-333-0
01
1
1501-
●
747
NUT; VAC REG VALVE
M6 FLANGE
0-91180-106-0
02
1
1501-
●
747
NUT; VAC REG VALVE
M8 FLANGE
0-91180-108-0
02
1
1501-
●
752
VALVE; EVRV
8-98239-935-0
01
1
1501-
●
752
VALVE; EVRV
8-98116-260-0
01
1
1501-
●
17
17
2
655
17
1
4
16
12
2
12
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-98133-202-3
01
1
1501-
●
●
2
BOLT; EGR VLV
(B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1501-1503
●
2
BOLT; EGR VLV
(B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1504-
●
2
BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> (B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1504-
●
2
BOLT; EGR VLV
(A) M8X25 FLANGE
0-28650-825-0
02
1
1501-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-711-3
01
1
1501-
●
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
03
1
1503-1503
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
01
1
1504-
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1501-1502
●
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1503-1503
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1504-
●
●
16
STUD; EGR VLV
(B) M8X25 L=41
0-40210-825-0
02
1
1501-
●
16
STUD; EGR VLV
(A) M8X22 L=40
0-49140-822-0
02
1
1501-
●
16
STUD; EGR VLV
(C) M8X22 L=33
8-94257-319-0
02
1
1501-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97357-684-3
03
1
1501-1503
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97357-684-3
03
1
1504-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>
8-97357-684-3
03
1
1504-
●
655
PIPE; EGR VLV
8-98132-053-0
01
1
1501-1503
●
655
PIPE; EGR VLV
8-98132-053-0
01
1
1504-
●
655
PIPE; EGR VLV
EURO2 SPECIFICATION<NT2>
8-98132-053-0
01
1
1504-
●
12
720
16
718
271
681
709
720
15
1
16
12
4
16
12
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-98133-202-3
01
1
1501-
●
●
2
BOLT; EGR VLV
(B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1501-1503
●
2
BOLT; EGR VLV
(B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1504-
●
2
BOLT; EGR VLV
EURO2 SPECIFICATION<NT2> (B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1504-
●
2
BOLT; EGR VLV
(A) M8X25 FLANGE
0-28650-825-0
02
1
1501-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-711-3
01
1
1501-
●
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
03
1
1503-1503
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
01
1
1504-
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1501-1502
●
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1503-1503
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1504-
●
●
15
STUD; EGR PIPE
M8X22 L=33
8-94257-319-0
01
1
1501-
●
16
STUD; EGR VLV
(B) M8X25 L=41
0-40210-825-0
02
1
1501-
●
16
STUD; EGR VLV
(A) M8X22 L=40
0-49140-822-0
02
1
1501-
●
16
STUD; EGR VLV
(C) M8X22 L=33
8-94257-319-0
02
1
1501-
●
271
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1501-
●
271
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1501-
●
●
271
BOLT; BRKT
(C) M8X12 FLANGE
0-28050-812-0
01
1
1501-1502
●
271
BOLT; BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
1503-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91180-208-0
01
1
1501-
●
709
BOLT; EGR COOLER
M8X23 FLANGE
8-97378-077-0
02
1
1503-
●
718
COOLER; EGR
8-98228-361-0
01
1
1501-
●
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97357-684-3
01
1
1501-
●
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98228-303-0
01
1
1501-
●
58
194
194
73
73
73
73
148
194
73
752
747
779
194
73
73
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
01
1
1501-
●
●
73
CLIP; VAC HOSE
(B) ID=11.8 & 7.5
1-09709-182-0
01
1
1506-
●
73
CLIP; VAC HOSE
(C)
8-98324-179-0
02
1
1506-
●
73
CLIP; VAC HOSE
(D) ID=6.5
8-94257-639-0
02
1
1506-
●
●
73
CLIP; VAC HOSE
(E) ID=7.5 & 7.5
8-97019-084-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(F) ID=21 & 9.8
8-97309-945-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(A) ID=8.3 & 12
8-94155-469-0
02
1
1506-
●
73
CLIP; VAC HOSE
(C)
8-98324-179-0
03
1
1506-
●
148
PIPE; VAC
8-98132-082-0
01
1
1501-
●
●
194
HOSE; VAC
(B)
8-98228-439-0
01
1
1501-
●
194
HOSE; VAC
(C)
8-98239-037-0
01
1
1501-
●
194
HOSE; VAC
(D)
8-98239-038-1
01
1
1501-
●
194
HOSE; VAC
(A)
0-14040-110-0
01
1
1501-
●
●
194
HOSE; VAC
(E)
8-98239-331-0
01
1
1501-
●
194
HOSE; VAC
(F)
8-98239-332-1
01
1
1501-
●
194
HOSE; VAC
(G)
8-98239-333-0
01
1
1501-
●
747
NUT; VAC REG VALVE
M6 FLANGE
0-91180-106-0
02
1
1501-
●
747
NUT; VAC REG VALVE
M8 FLANGE
0-91180-108-0
02
1
1501-
●
752
VALVE; EVRV
8-98239-935-0
01
1
1501-
●
752
VALVE; EVRV
8-98116-260-0
01
1
1501-
●
779
WASHER; VALVE
ID=8.4 OD=18
0-91610-608-0
02
1
1501-
●
789
271
678
271
710
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
271
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1501-
●
271
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1501-
●
●
271
BOLT; BRKT
(C) M8X12 FLANGE
0-28050-812-0
01
1
1501-1502
●
271
BOLT; BRKT
(C) M8X16 FLANGE
0-28050-816-0
01
1
1503-
●
678
BOLT; PLATE
EURO2 SPECIFICATION<NT2> M8X16 FLANGE
0-28050-816-0
02
1
1504-
●
710
BRACKET; EGR COOLER
8-98230-108-0
01
1
1501-
●
●
789
COVER; COOLER,EGR
8-98228-434-0
01
1
1501-1503
●
789
COVER; COOLER,EGR
8-98228-434-0
01
1
1504-
●
789
COVER; COOLER,EGR
EURO2 SPECIFICATION<NT2>
8-98228-434-0
01
1
1504-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
