0-52 — OIL AND VACUUM PIPING; ENGINE (#155343) — 50 parça

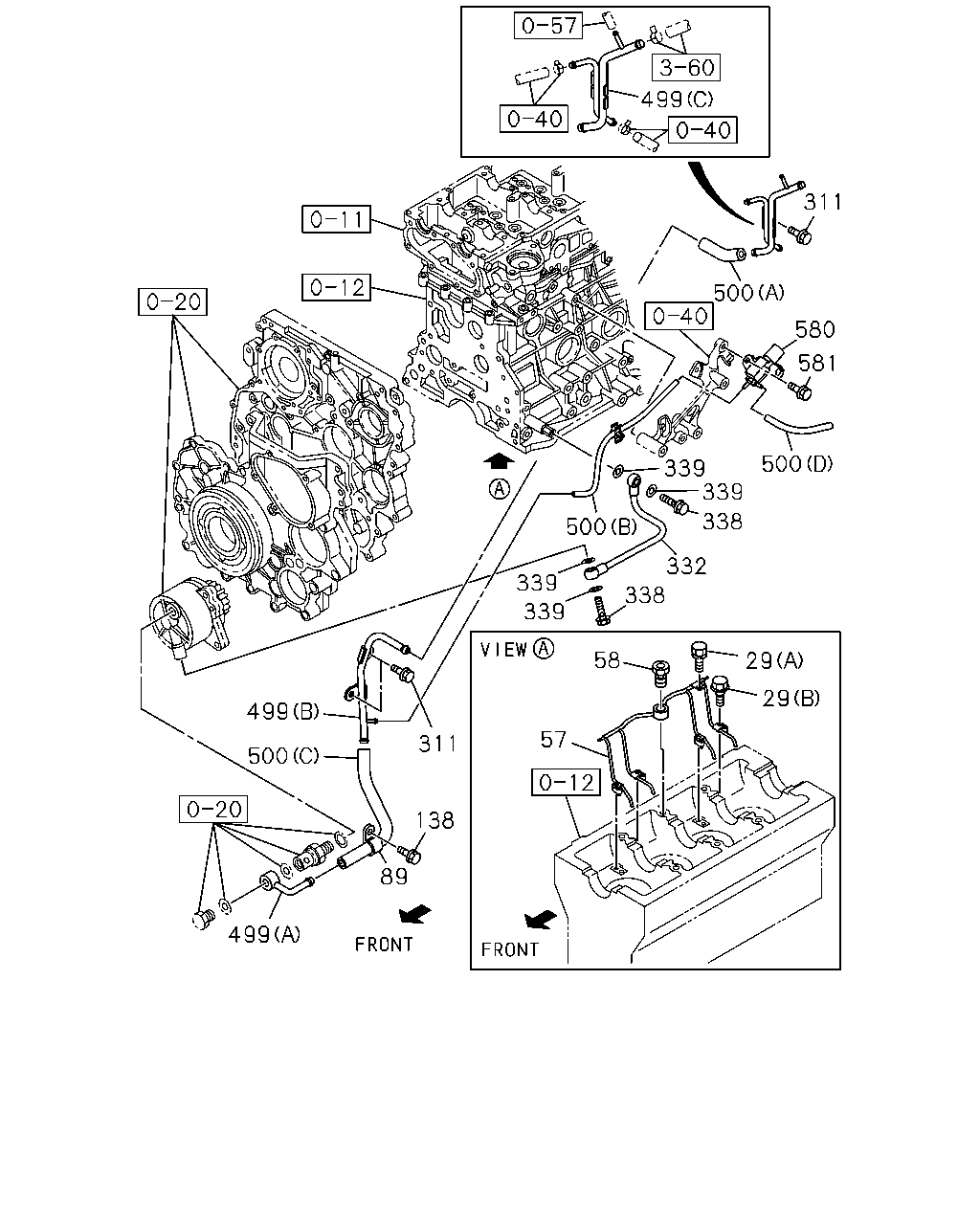

çizim 464109
311 500 580 581 500 339 338 339 332 338 339 339 499 29 29 58 57 311 138 499 500 499 500 89
BalonParca AdiParca NoAdetTipApplied Date A B
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1501- ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE 		0-28050-810-0 01 1 1501- ● ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE 		8-97380-673-1 04 1 1501- ●
57 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1501- ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-98285-334-0 01 1 1501- ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-97379-464-0 01 1 1501- ●
89 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 1501- ● ●
138 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 01 1 1501- ● ●
311 BOLT; PIPE FIX
M8X16 FLANGE 		0-28050-816-0 03 1 1501- ● ●
332 PIPE; OIL,C/BL TO VAC PUMP 8-98201-785-0 01 1 1501- ●
332 PIPE; OIL,C/BL TO VAC PUMP 8-98233-768-0 01 1 1501- ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 1501- ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 1501- ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.3 OD=15.0 		8-98065-992-0 04 1 1501-1507 ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.3 OD=15.0 		8-98065-992-0 02 1 1508- ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1501- ●
499 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 1501- ● ●
499 PIPE; VACUUM
(C) 		8-98132-058-2 01 1 1501- ● ●
499 PIPE; VACUUM
(B) 		8-98228-436-0 01 1 1501- ● ●
500 HOSE; VACUUM
(A) 		0-08508-090-0 01 1 1501- ● ●
500 HOSE; VACUUM
(D) 		8-98228-430-0 01 1 1501- ● ●
500 HOSE; VACUUM
(C) 		8-98228-437-0 01 1 1501- ● ●
500 HOSE; VACUUM
(B) 		8-98228-438-0 01 1 1501- ● ●
580 VALVE; VAC SW 8-97352-145-0 01 1 1501- ● ●
581 BOLT; VSV
M8X16 FLANGE 		0-28050-816-0 01 1 1501- ● ●

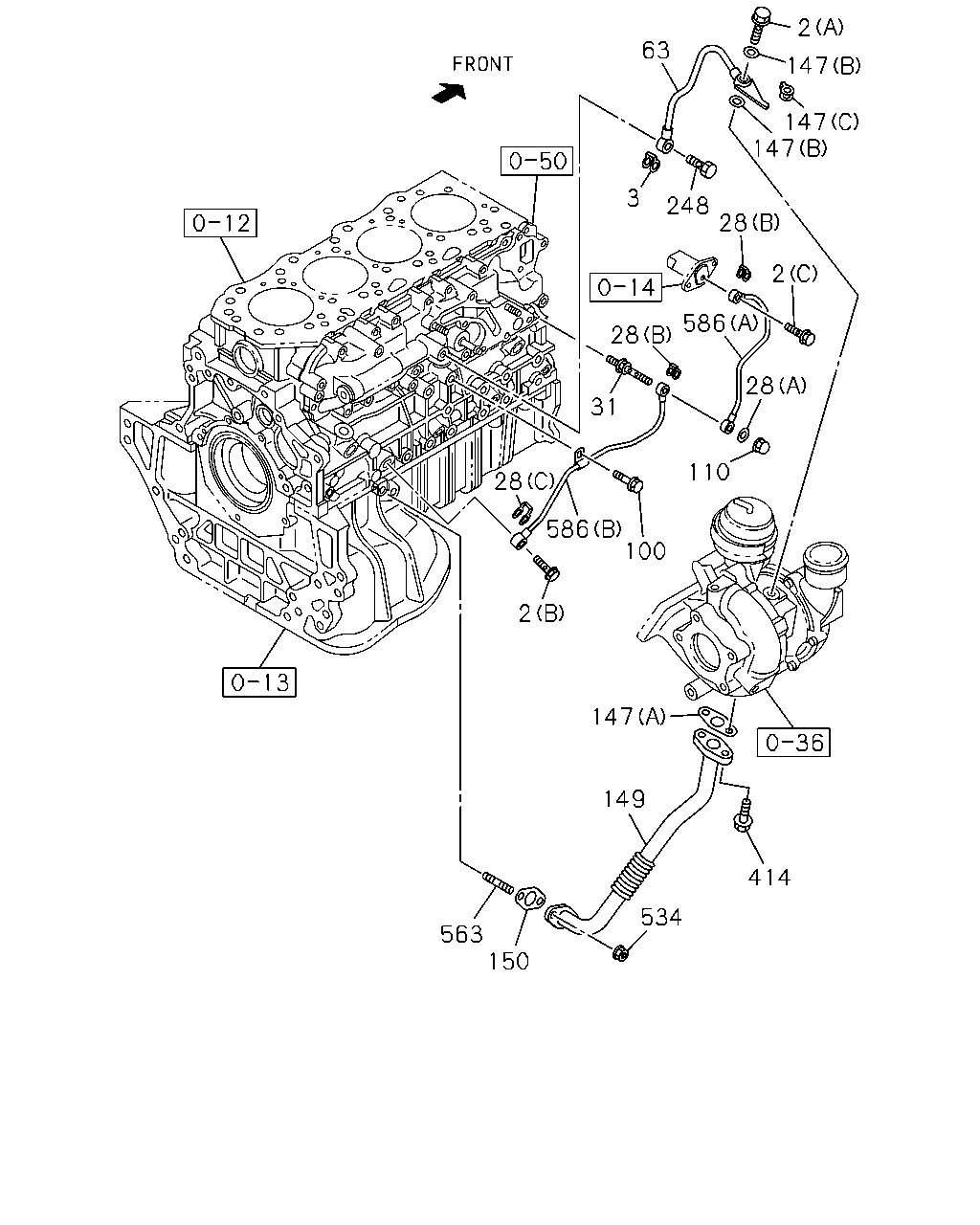

çizim 464110
63 2 147 147 147 28 248 3 2 586 28 28 31 110 586 100 28 2 147 149 414 534 150 563
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1501- ● ●
2 BOLT; EYE,OIL PIPE
(C) M8X23 FLANGE 		8-98108-689-0 01 1 1501- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE 		8-98151-063-1 01 1 1501- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 		8-98136-142-0 01 1 1501- ● ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1501- ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=8.2 		8-97251-046-0 02 1 1501- ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1501- ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1501- ● ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 1501- ●
31 NIPPLE; OIL PIPE 8-98186-104-0 01 1 1501- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-98132-014-1 01 1 1501- ● ●
100 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1501- ● ●
110 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 		8-98136-142-0 01 1 1501- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98132-017-0 01 1 1501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1501- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1501- ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98132-018-1 01 1 1501- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 		9-09906-205-1 01 1 1501- ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 		8-97944-505-1 01 1 1501- ●
414 BOLT; OIL PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1501- ● ●
534 NUT; OIL PIPE
M8 FLANGE 		0-91180-208-0 02 1 1501- ● ●
563 STUD; OIL PIPE
M8X20 L=32 		0-41010-820-0 02 1 1501- ● ●
586 PIPE; OIL,TENSIONER
(B) 		8-98228-274-0 01 1 1501- ● ●
586 PIPE; OIL,TENSIONER
(A) 		8-98251-165-0 01 1 1501- ● ●
