◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#155341) — 15 parça

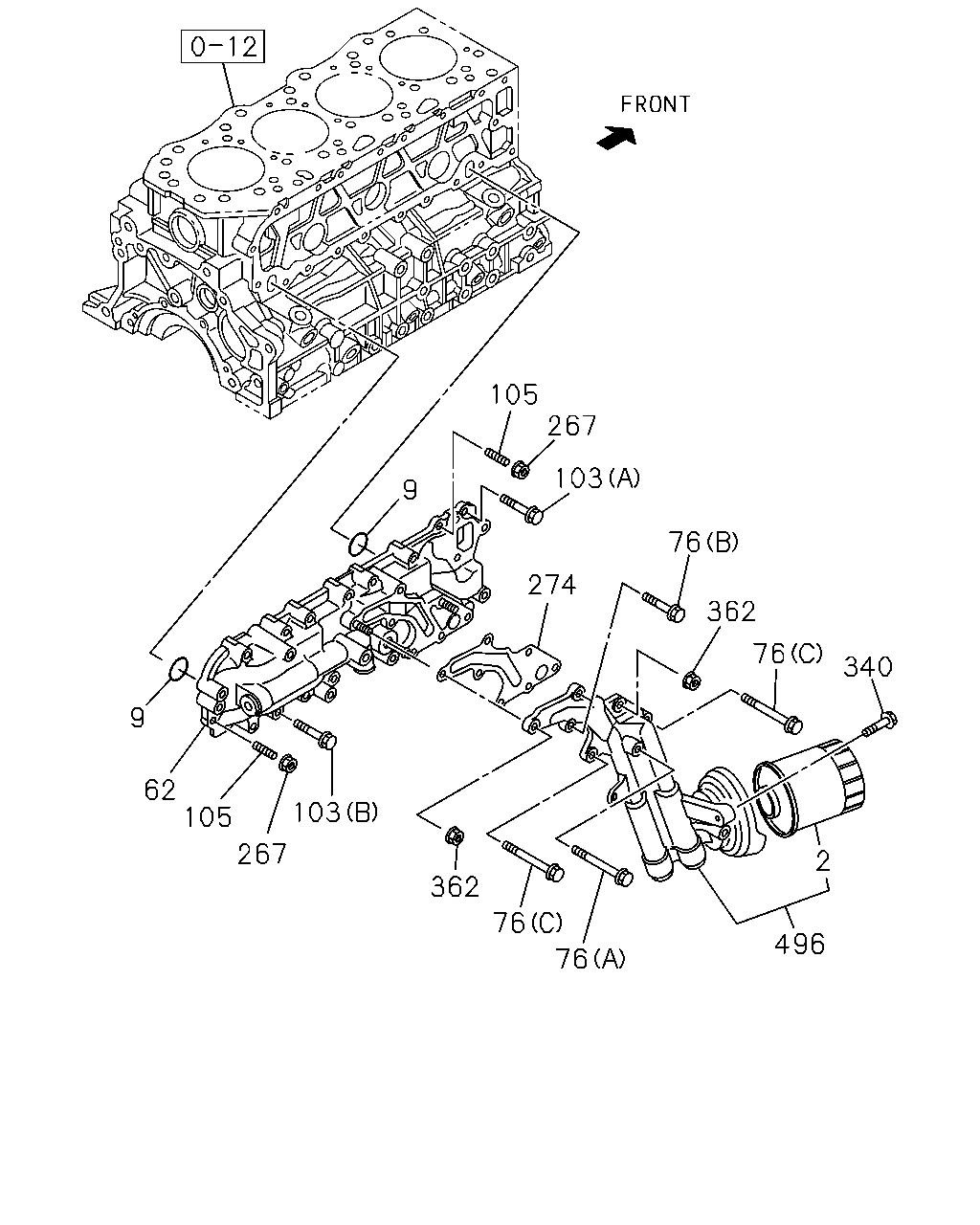

çizim 464099
105 103 267 76 362 76 340 496 76 76 362 103 267 105 62 9 9 274 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 8-98165-071-0 01 1 1501- ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.2 		9-09566-226-0 02 1 1501- ● ●
62 COOLER ASM; OIL 8-98226-843-0 01 1 1501- ● ●
76 BOLT; OIL FILTER
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1501- ● ●
76 BOLT; OIL FILTER
(B) M8X25 FLANGE 		0-28050-825-0 02 1 1501- ● ●
76 BOLT; OIL FILTER
(C) M8X80 FLANGE 		0-28050-880-0 02 1 1501- ● ●
103 BOLT; OIL COOLER
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
103 BOLT; OIL COOLER
(B) M8X45 FLANGE 		0-28050-845-0 13 1 1501- ● ●
105 STUD; OIL COOLER
M8X20 L=32 		0-41010-820-0 02 1 1501- ● ●
267 NUT; OIL COOLER
M8 FLANGE 		0-91180-208-0 02 1 1501- ● ●
274 GASKET; OIL FILTER 8-98226-841-0 01 1 1501- ● ●
340 BOLT; BRKT
M8X40 FLANGE 		0-28650-840-0 01 1 1501- ● ●
362 NUT; OIL FILTER
M8 FLANGE 		0-91180-208-0 02 1 1501- ● ●
496 FILTER ASM; OIL 8-98226-423-1 01 1 1501- ● ●

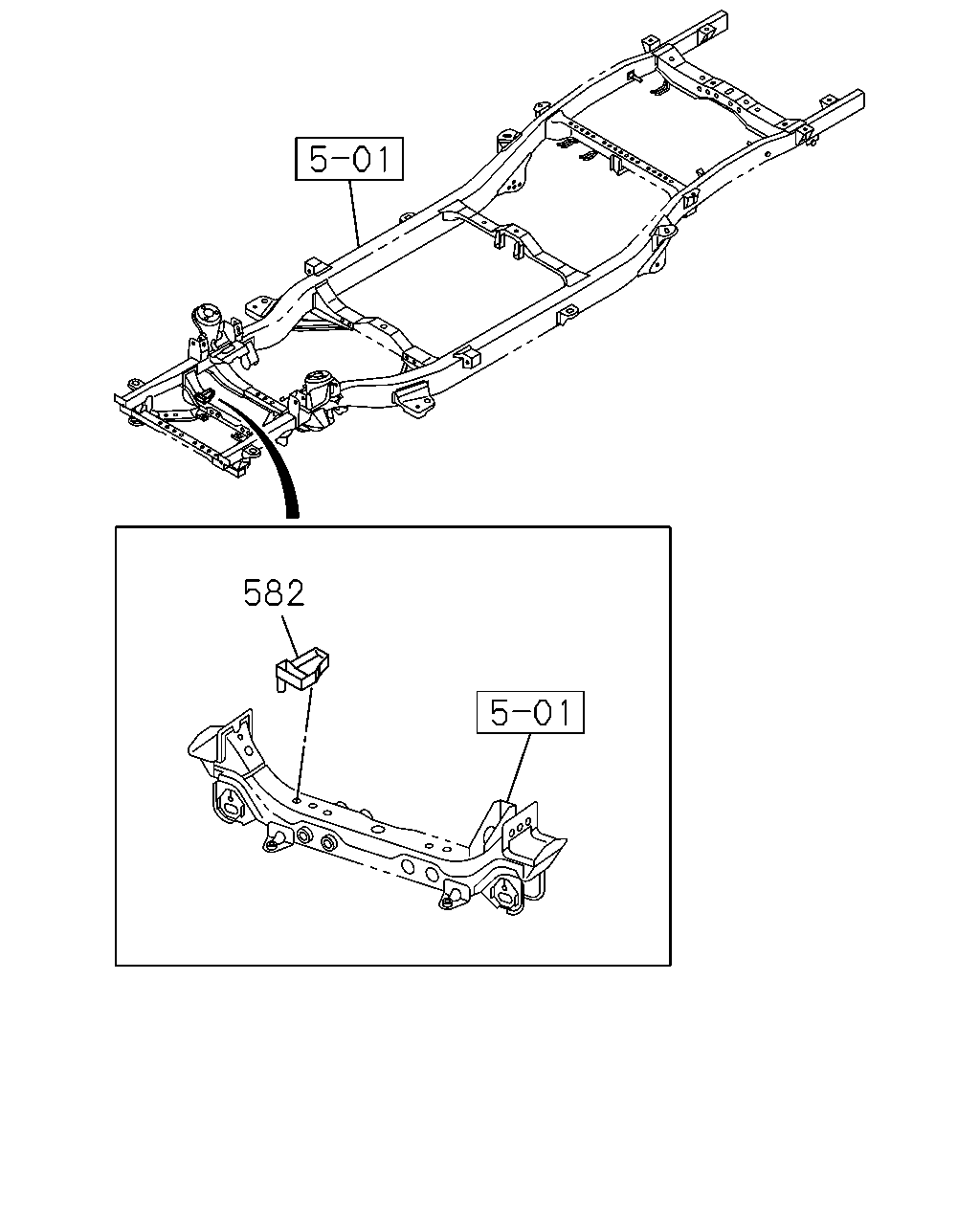

çizim 464569
582
BalonParca AdiParca NoAdetTipApplied Date A B
582 TRAY; OIL 8-98235-616-3 01 1 1501- ● ●
