◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#155339) — 50 parça

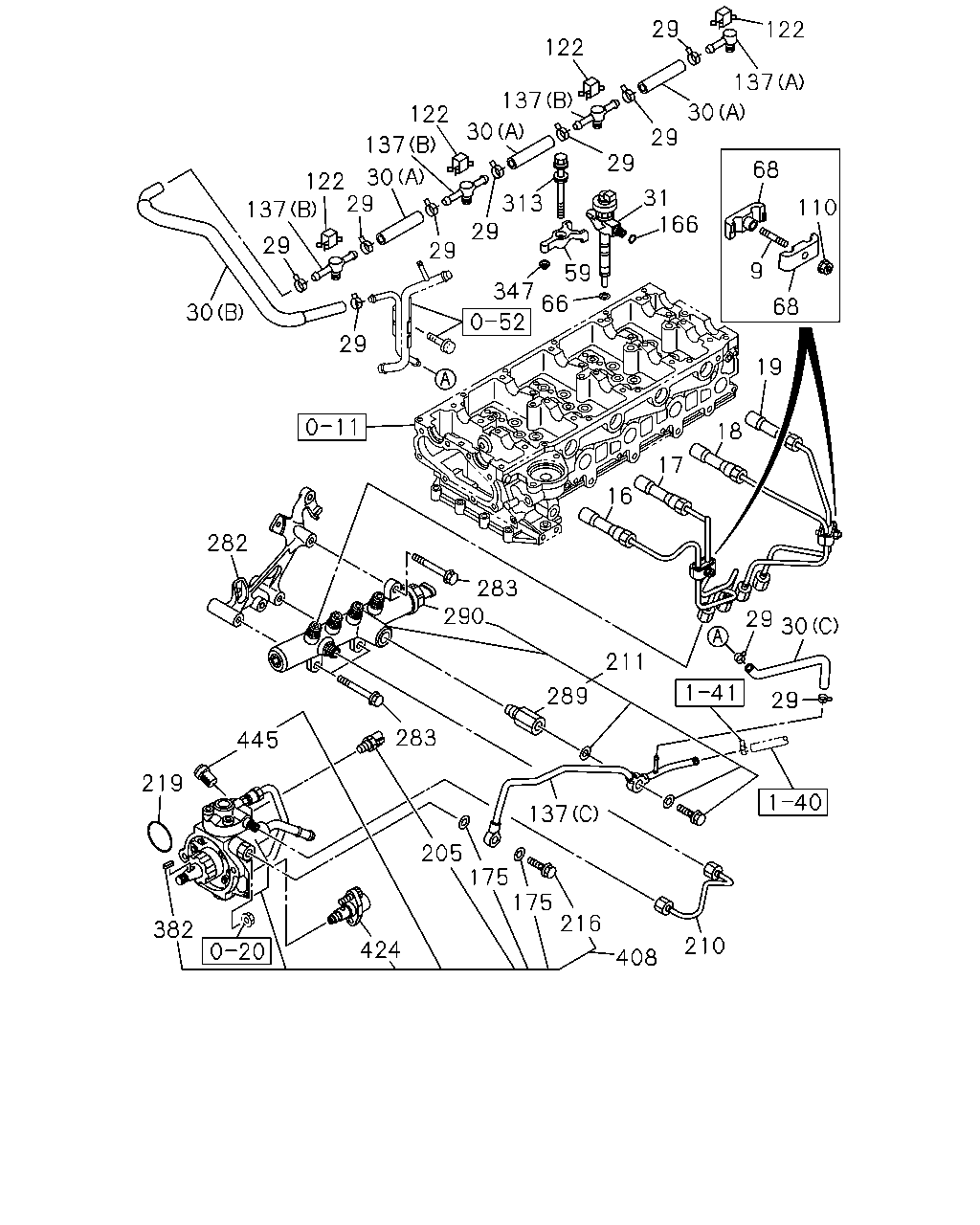

çizim 464416
210 408 216 175 175 205 137 29 211 289 283 290 283 445 219 382 424 30 29 282 16 17 18 19 68 110 9 68 122 137 29 30 29 122 29 137 30 122 137 30 29 122 137 29 29 29 313 31 166 59 66 347 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1501- ● ●
16 PIPE; INJ NO.1 8-98296-204-0 01 1 1501- ●
16 PIPE; INJ NO.1 8-98223-194-0 01 1 1501- ●
17 PIPE; INJ NO.2 8-98296-205-0 01 1 1501- ●
17 PIPE; INJ NO.2 8-98223-195-1 01 1 1501- ●
18 PIPE; INJ NO.3 8-98296-206-0 01 1 1501- ●
18 PIPE; INJ NO.3 8-98223-196-0 01 1 1501- ●
19 PIPE; INJ NO.4 8-98296-207-0 01 1 1501- ●
19 PIPE; INJ NO.4 8-98223-197-0 01 1 1501- ●
29 CLIP; HOSE
ID=10.5 		8-97019-473-0 10 1 1501- ●
29 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1501- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=98 		8-97354-652-0 03 1 1501- ●
30 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1501- ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1501- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1501- ●
31 NOZZLE ASM; INJ 8-98246-130-0 04 1 1501- ●
31 NOZZLE ASM; INJ 8-98106-693-2 04 1 1501- ●
59 CLAMP; NOZZLE HOLDER 8-98113-691-0 04 1 1501- ●
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1501- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1501- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1501- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 1501- ● ●
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1501- ● ●
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1501- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1501- ●
137 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1501- ● ●
137 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1501- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1501- ●
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 		9-09566-111-0 04 1 1501- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1501-1505 ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1506-1509 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-508-0 02 1 1506-1509 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-508-0 02 1 1510- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1501- ● ●
210 PIPE; INJ,C/R 8-98296-208-0 01 1 1501- ●
210 PIPE; INJ,C/R 8-98233-237-0 01 1 1501- ●
211 RAIL ASM; COMMON 8-98228-475-0 01 1 1501- ● ●
216 BOLT; EYE 8-98209-777-0 01 1 1501- ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1501- ● ●
282 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1501- ● ●
283 BOLT; COMMON RAIL
M8X66 FLANGE 		8-98228-566-0 03 1 1501- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1501- ● ●
290 SENSOR; PRESS 8-98181-616-0 01 1 1501- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98212-021-0 04 1 1501- ●
313 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1501- ●
347 PIN 8-98165-035-0 04 1 1501- ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1501- ● ●
408 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1501- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1501- ● ●
445 SCREW; FILTER,INLET 8-98209-778-0 01 1 1501- ● ●
