51608 - TFR/TFS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#155338) — 35 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
◀

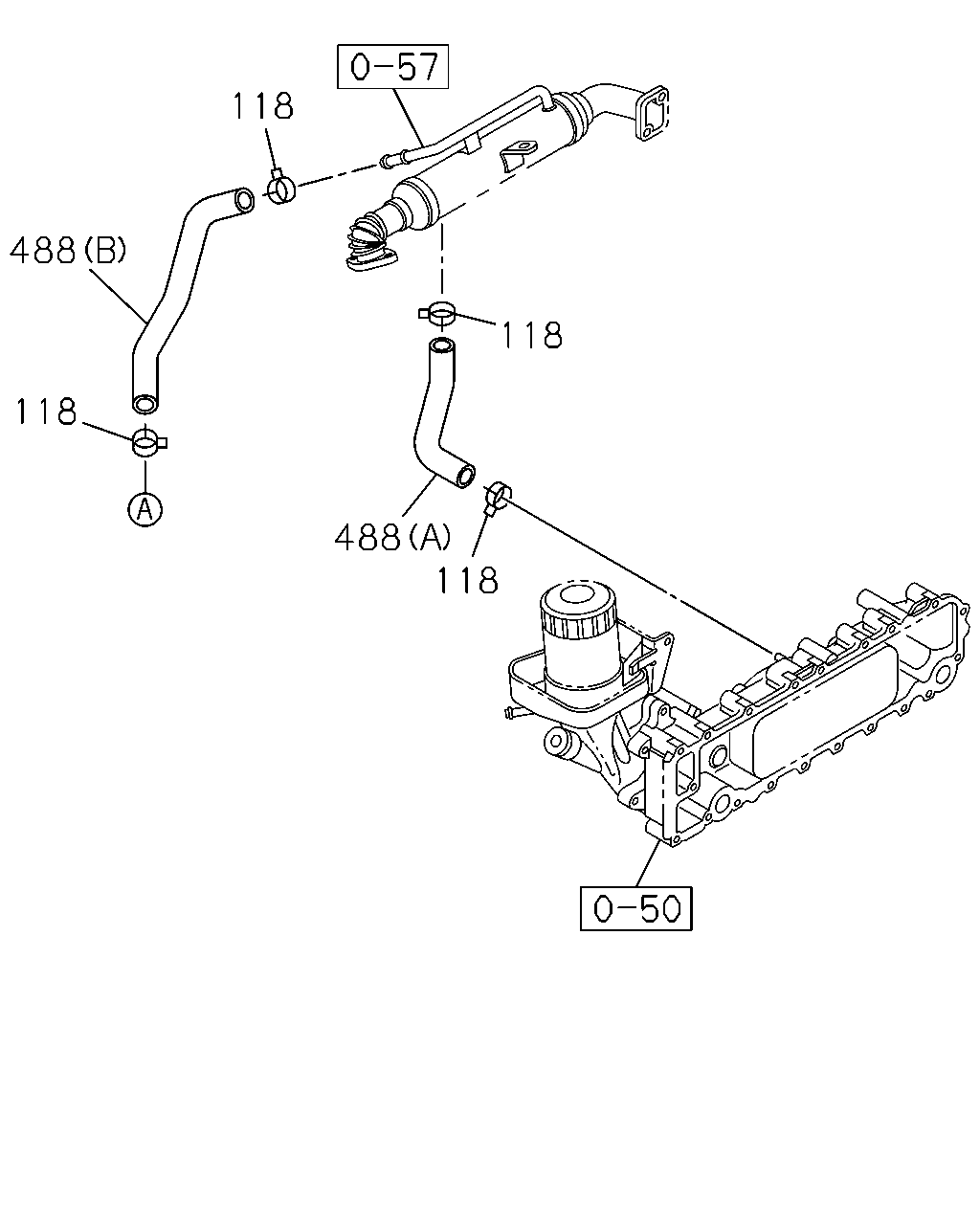

[036A] NO.2 (6 parça)

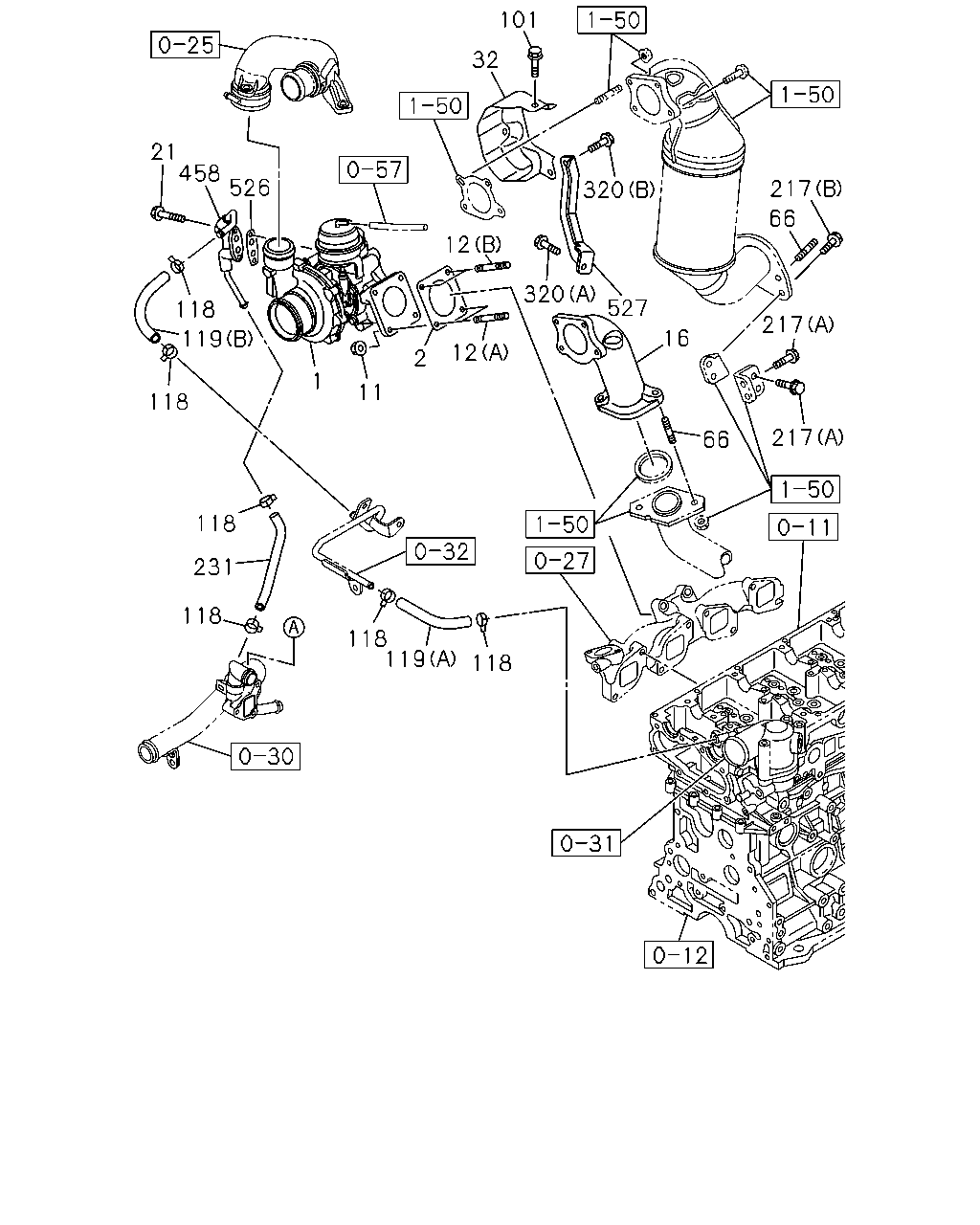

[036A] NO.1 (29 parça)
▶
118
118
488
488
118
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
06
1
1501-1503
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
06
1
1504-
●
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
10
1
1501-1503
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
04
1
1504-
●
488
HOSE; RUBBER
(A)
8-98132-445-2
01
1
1501-
●
488
HOSE; RUBBER
(B)
8-98225-142-0
01
1
1501-
●
32
21
12
526
458
118
1
119
118
11
2
12
320
527
66
217
217
66
217
118
119
118
118
231
118
101
16
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
8-98235-628-1
01
1
1501-
●
1
TURBOCHARGER ASM
8-98235-627-1
01
1
1501-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98132-073-0
01
1
1501-
●
●
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
1501-
●
11
NUT; TURBOCHARGER
M8 FLANGE
8-97379-384-0
04
1
1501-
●
12
STUD; TURBOCHARGER
(A) M8X25 L=36
8-97378-062-0
02
1
1501-
●
●
12
STUD; TURBOCHARGER
(B) M8X30 L=41
8-97378-064-0
02
1
1501-
●
●
16
ADAPTER; EXH PIPE
8-98250-275-0
01
1
1501-1503
●
16
ADAPTER; EXH PIPE
8-98250-275-0
01
1
1504-
●
16
ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2>
8-98250-275-0
01
1
1504-
●
21
BOLT; PIPE
M6X45 FLANGE
0-28050-645-0
02
1
1501-
●
●
32
PROTECTOR; HEAT,TURBOCHARGER
8-98156-389-0
01
1
1501-
●
●
66
STUD; EXH PIPE
M10X25 L=45
0-43211-025-0
02
1
1501-
●
66
STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
02
1
1501-
●
101
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1501-
●
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
06
1
1501-1503
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
06
1
1504-
●
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
10
1
1501-1503
●
118
CLIP; WATER HOSE
ID=15.1
8-98179-581-0
04
1
1504-
●
119
HOSE; WATER,TURBOCHARGER
(B)
8-98179-580-0
01
1
1501-
●
●
119
HOSE; WATER,TURBOCHARGER
(A)
8-98239-061-0
01
1
1501-
●
●
217
BOLT; BRKT
(A) M12X30 FLANGE
0-28661-230-0
03
1
1501-
●
217
BOLT; BRKT
(B) M12X35 FLANGE
0-28661-235-0
02
1
1501-
●
231
HOSE; RUBBER,TURBOCHARGER OUT
8-98228-462-0
01
1
1501-
●
●
320
BOLT; BRKT,TURBOCHARGER
(A) M8X20 FLANGE
0-28650-820-0
01
1
1501-
●
●
320
BOLT; BRKT,TURBOCHARGER
(B) M8X18 FLANGE
8-97378-076-0
01
1
1501-
●
●
458
PIPE; WATER,TURBOCHARGER
8-98184-505-0
01
1
1501-
●
●
526
GASKET; PLATE
8-97352-985-0
01
1
1501-
●
●
527
BRACKET; TURBOCHARGER
8-98156-388-0
01
1
1501-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
