0-25 — INLET MANIFOLD (#155332) — 28 parça

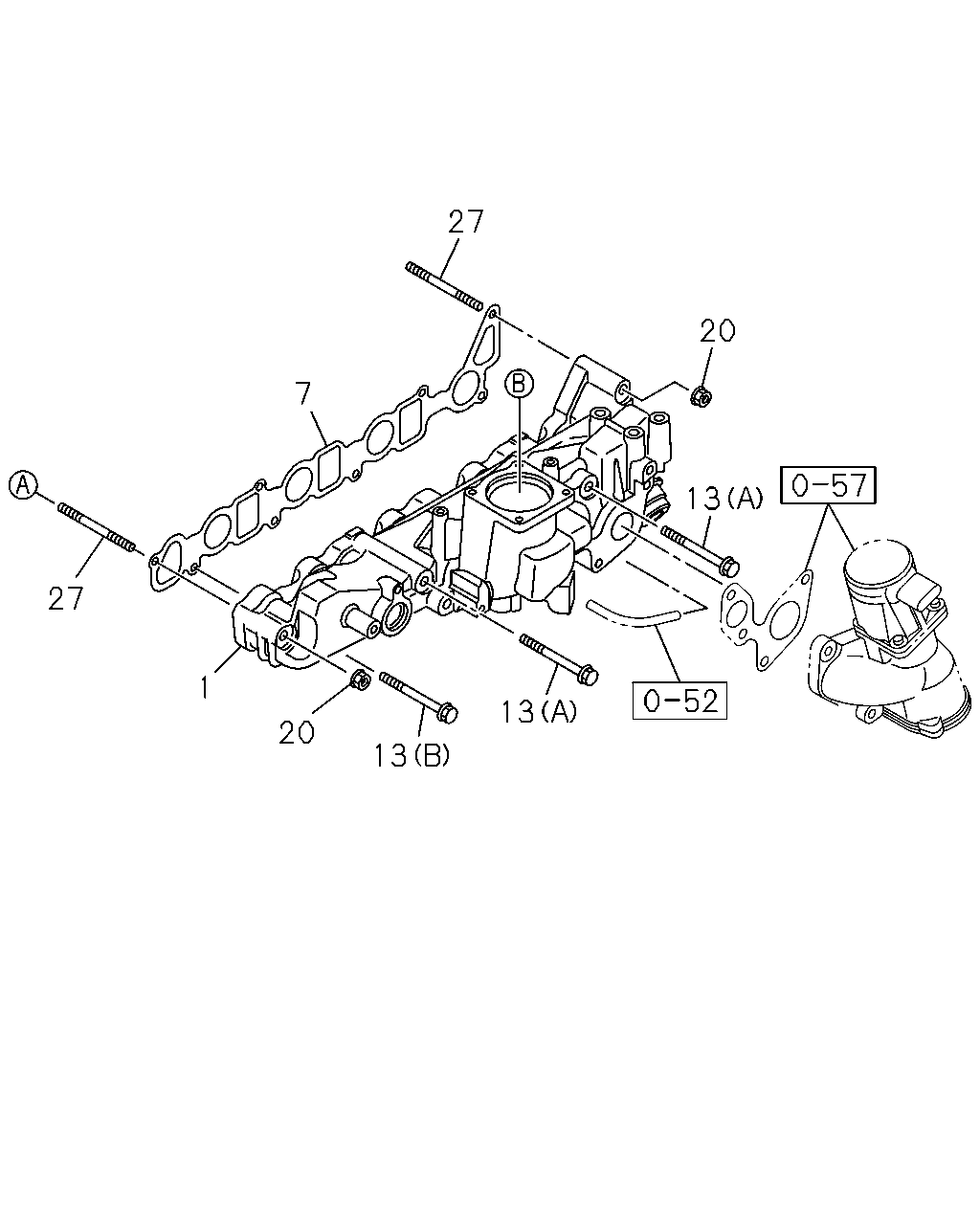

çizim 464043
27 20 13 13 13 20 1 27 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL 8-98228-252-0 01 1 1501-1503 ●
1 MANIFOLD; INL 8-98228-252-0 01 1 1504- ●
1 MANIFOLD; INL
EURO2 SPECIFICATION<NT2> 		8-98228-252-0 01 1 1504- ●
1 MANIFOLD; INL 8-98228-251-0 01 1 1501- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98212-999-0 01 1 1501- ● ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE 		0-28055-811-0 02 1 1501- ● ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1501- ● ●
20 NUT; INL MANIF
M8 FLANGE 		0-91180-208-0 02 1 1501- ● ●
27 STUD; INL MANIF
M8X71 L=83 		8-98017-063-0 02 1 1501- ●
27 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 1501- ●

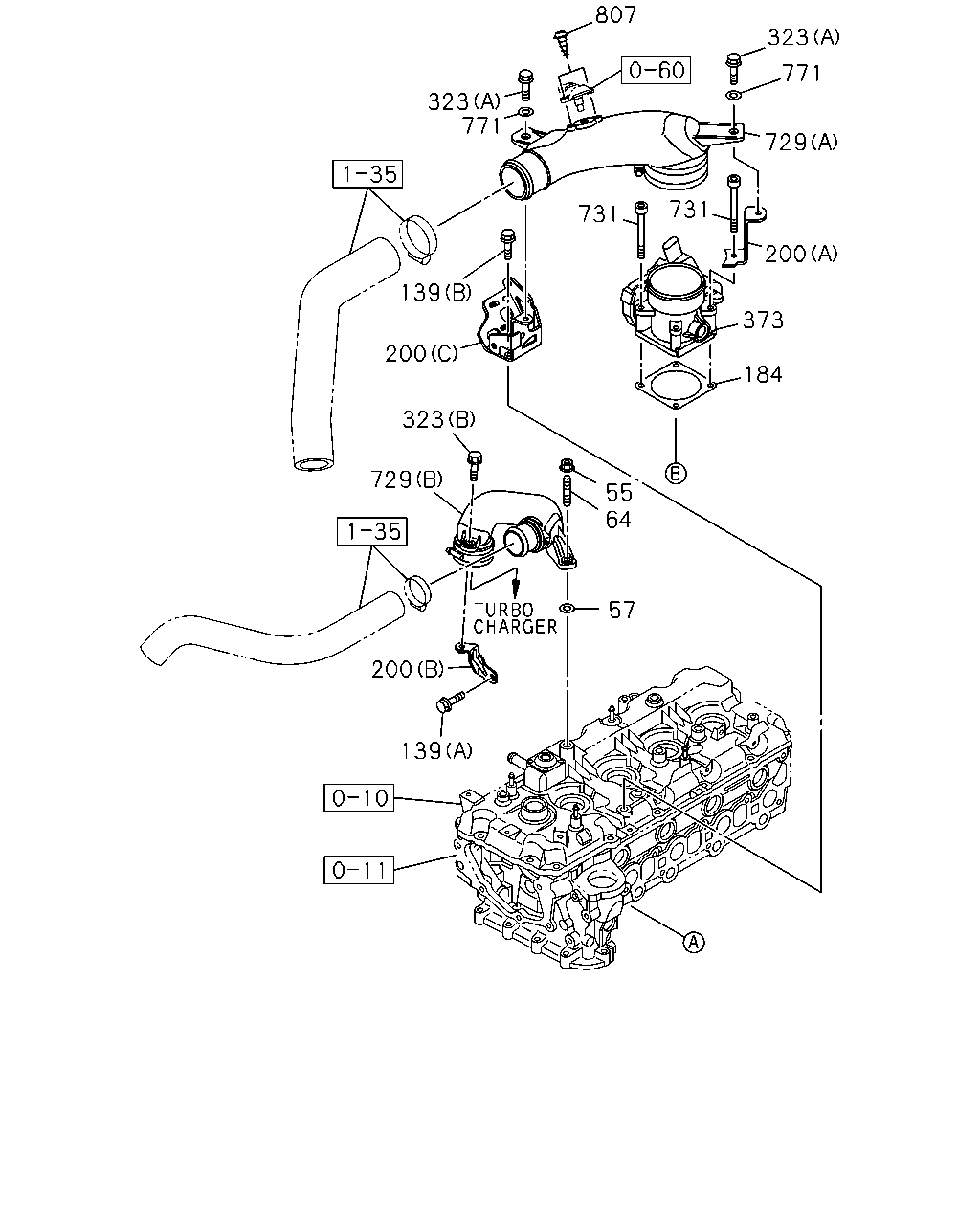

çizim 464050
323 731 807 323 771 729 200 373 184 55 64 57 200 139 729 323 200 139 771 731
BalonParca AdiParca NoAdetTipApplied Date A B
55 NUT; INL PIPE
M8 FLANGE 		0-91180-208-0 01 1 1501- ● ●
57 WASHER; PL
ID=8.4 OD=22 		0-91614-708-0 01 1 1501- ● ●
64 STUD; INL PIPE
M8X30 L=41 		0-41010-830-0 01 1 1501- ● ●
139 BOLT; BRKT FIX
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1501- ● ●
139 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1501- ● ●
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98096-968-0 01 1 1501- ● ●
200 BRACKET; AIR DUCT
(C) 		8-98228-445-2 01 1 1501- ●
200 BRACKET; AIR DUCT
(A) 		8-98154-158-2 01 1 1501- ● ●
200 BRACKET; AIR DUCT
(B) 		8-98228-262-0 01 1 1501- ● ●
200 BRACKET; AIR DUCT
(C) 		8-98239-288-1 01 1 1501- ●
323 BOLT; DUCT
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1501- ● ●
323 BOLT; DUCT
(B) M8X25 FLANGE 		0-28050-825-0 01 1 1501- ● ●
373 THROTTLE ASM; INT 8-98131-738-3 01 1 1501- ● ●
729 DUCT; INLET
(A) 		8-98117-651-1 01 1 1501- ● ●
729 DUCT; INLET
(B) 		8-98228-260-1 01 1 1501- ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1501- ● ●
771 WASHER; DUCT
ID=6.4 OD=18 		0-91610-706-0 02 1 1501- ● ●
807 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1501- ● ●
