0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#155330) — 70 parça

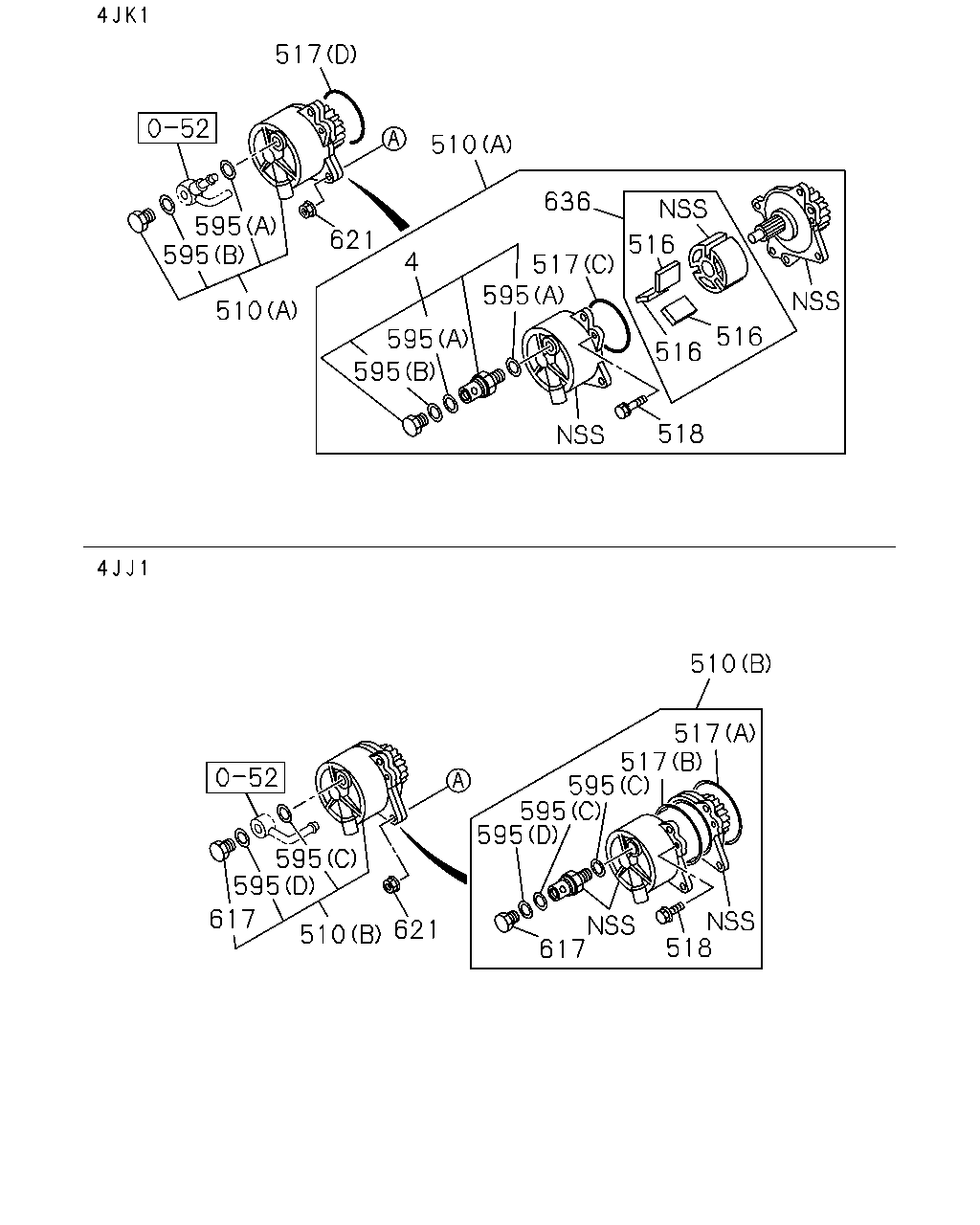

517 510 636 517 595 595 595 518 516 516 516 4 621 510 595 595 595 595 617 510 621 510 517 517 595 595 595 617 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	VALVE ASM; CHECK	8-98049-521-0	01	1	1501-	●
510	PUMP ASM; VACUUM (A)	8-98251-764-0	01	1	1501-	●
510	PUMP ASM; VACUUM (B)	8-98251-765-0	01	1	1501-		●
516	VANE; VAC PUMP	8-98051-275-0	03	1	1501-	●
517	GASKET; VAC PUMP (D) ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-271-0	01	1	1501-	●
517	GASKET; VAC PUMP (C)	8-98251-769-0	01	1	1501-	●
517	GASKET; VAC PUMP (A)	0-95690-271-0	01	1	1501-		●
517	GASKET; VAC PUMP (B)	8-98251-768-0	01	1	1501-		●
518	BOLT; VAC PUMP	8-98049-523-0	03	1	1501-	●
518	BOLT; VAC PUMP	8-97184-180-0	03	1	1501-		●
595	GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1501-	●
595	GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1501-	●
595	GASKET; VLV (C) ID=18 OD=24	5-19679-002-0	02	1	1501-		●
595	GASKET; VLV (D) ID=12 OD=24	5-19679-003-0	01	1	1501-		●
617	BOLT; CHECK VLV	8-97376-402-0	01	1	1501-		●
621	NUT; VAC PUMP M8 FLANGE	0-91180-208-0	03	1	1501-	●	●
636	ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	1501-	●

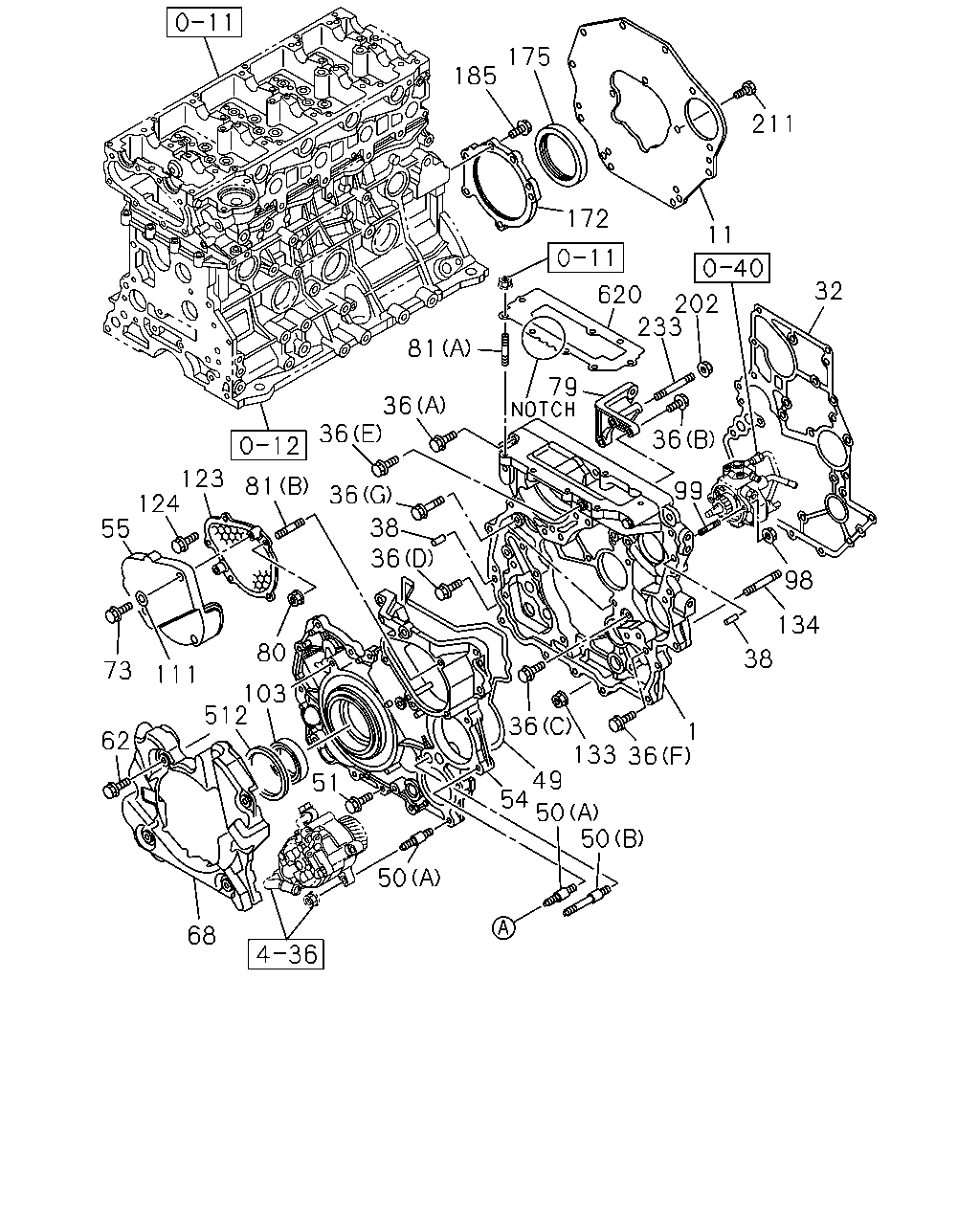

185 175 172 211 11 32 202 620 233 36 99 98 134 38 1 36 133 36 49 54 50 50 36 38 36 36 36 81 79 80 81 123 124 55 73 111 512 103 51 62 68 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-98217-735-0	01	1	1501-	●	●
11	PLATE; RR,C/BL A/T 5 SPEED-AISIN(MA1)	8-98132-021-0	01	1	1501-	●
11	PLATE; RR,C/BL	8-98132-021-0	01	1	1501-		●
11	PLATE; RR,C/BL M/T MUA 5 SPEED 5H(MWQ)	8-98162-657-1	01	1	1501-	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98181-198-1	01	1	1501-	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98228-292-0	01	1	1501-		●
36	BOLT; GEAR CASE (G) M8X20 FLANGE	0-28050-820-0	13	1	1501-	●
36	BOLT; GEAR CASE (D) M8X25 FLANGE	0-28650-825-0	01	1	1501-	●
36	BOLT; GEAR CASE (C) M8X16 FLANGE	0-28050-816-0	01	1	1501-	●	●
36	BOLT; GEAR CASE (E) M8X35 FLANGE	0-28050-835-0	01	1	1501-	●	●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	1501-	●	●
36	BOLT; GEAR CASE (A) M8X60 FLANGE	0-28050-860-0	01	1	1501-	●	●
36	BOLT; GEAR CASE (B) M8X30 FLANGE	0-28650-830-0	03	1	1501-	●	●
36	BOLT; GEAR CASE (D) M8X25 FLANGE	0-28650-825-0	16	1	1501-		●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	1501-	●
38	PIN; GEAR CASE COVER OD=10 L=20	9-08151-020-0	02	1	1501-		●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1501-	●	●
50	STUD (A) M8X27,M8X14 L=64.5	8-97354-808-2	05	1	1501-	●	●
50	STUD (B) M8X70,M8X14 L=107.5	8-98134-221-0	01	1	1501-	●	●
51	BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1501-	●	●
54	COVER; GEAR CASE	8-98228-336-1	01	1	1501-	●	●
55	COVER; NOISE SHIELD	8-97375-190-1	01	1	1501-	●	●
62	BOLT; COVER M6X20 FLANGE	0-28650-620-0	04	1	1501-	●	●
68	COVER ASM; GEAR CASE COVER	8-98228-636-0	01	1	1501-	●	●
73	BOLT; COVER FIX M6X12 FLANGE	0-28050-612-0	02	1	1501-	●	●
79	BRACKET; GEAR CASE COVER	8-98107-106-0	01	1	1501-	●	●
80	NUT; COVER M6 FLANGE	0-91180-206-0	02	1	1501-	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1501-	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48	0-49140-830-0	02	1	1501-	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE	0-91180-208-0	02	1	1501-	●	●
99	STUD; INJ PUMP M8X30 L=41	8-97369-449-0	02	1	1501-1510	●
99	STUD; INJ PUMP M8X30 L=41	8-98336-983-0	02	1	1511-	●
99	STUD; INJ PUMP M8X30 L=48	0-49140-830-0	02	1	1501-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1501-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	1501-		●
111	WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	1501-	●	●
123	COVER; TIMING,LWR	8-97371-720-1	01	1	1501-	●	●
124	BOLT; TIMING COVER M6X16 FLANGE	0-28050-616-0	03	1	1501-	●	●
133	NUT; TIMING GEAR CASE M8 FLANGE	0-91180-208-0	02	1	1501-	●
134	STUD; TIMING GEAR CASE M8X20 L=32	0-41010-820-0	02	1	1501-	●
172	RETAINER; CR/SHF	8-97379-826-0	01	1	1501-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1501-	●	●
185	BOLT; RET TO C/BL M8X25 FLANGE	0-28650-825-0	05	1	1501-	●	●
202	NUT; BRKT M8 FLANGE	0-91180-208-0	01	1	1501-	●	●
211	BOLT; HSG M12X25	5-09000-227-0	03	1	1501-	●
211	BOLT; HSG M12X25	8-97916-324-1	03	1	1501-		●
233	STUD; BRKT M8X71 L=83	8-98017-063-0	01	1	1501-	●
233	STUD; BRKT M8X71 L=83	8-97367-083-0	01	1	1501-		●
512	RUBBER; SPACE	8-97322-675-1	01	1	1501-	●
512	RUBBER; SPACE	8-97373-716-0	01	1	1501-		●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.40 1-NOTCH	8-97328-828-2	01	1	1501-	●	●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.45 2-NOTCH	8-97331-631-2	01	1	1501-	●	●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.50 3-NOTCH	8-97331-632-2	01	1	1501-	●	●
