0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#155329) — 68 parça

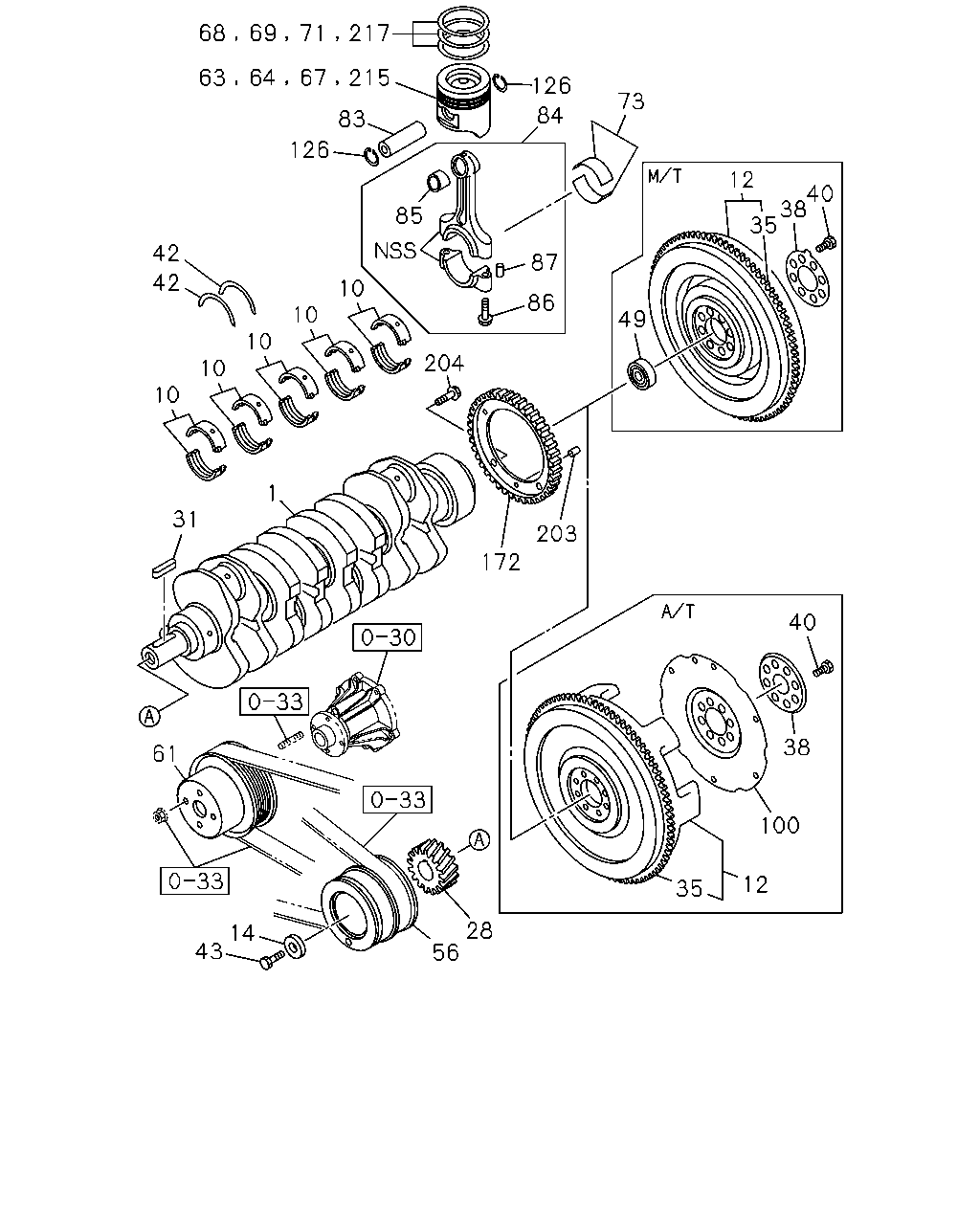

çizim 464613
68 69 71 217 63 64 67 215 83 126 42 42 10 10 10 10 10 1 31 61 43 14 56 28 35 12 100 38 40 172 204 203 86 87 85 126 84 73 12 40 38 35 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-98131-999-1 01 1 1501- ●
1 CRANKSHAFT 8-97311-632-1 01 1 1501- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97388-502-0 05 1 1501- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97388-503-0 05 1 1501- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97388-504-0 05 1 1501- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-97388-505-0 05 1 1501- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
RED 		8-97388-506-0 05 1 1501- ● ●
12 FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98132-505-0 01 1 1501- ● ●
12 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1501-1502 ●
12 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) W/RING GEAR 		8-97021-401-2 01 1 1503- ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-98283-475-0 01 1 1501- ●
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1501- ● ●
28 GEAR; CR/SHF
Z=44 		8-97386-232-1 01 1 1504- ●
28 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1501-1503 ● ●
28 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1504- ●
31 KEY; FEATHER,CR/SHF 9-08030-743-0 01 1 1501- ● ●
35 GEAR; RING
A/T 5 SPEED-AISIN(MA1) Z=122 		8-94364-395-1 01 1 1501- ●
35 GEAR; RING
Z=122 		8-94364-395-1 01 1 1501- ●
35 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ) Z=108 		8-97912-516-1 01 1 1501-1502 ●
35 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ) Z=108 		8-94419-602-1 01 1 1503- ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98195-090-0 01 1 1501-1502 ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98195-090-0 01 1 1501-1502 ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98195-090-0 01 1 1503- ● ●
38 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) ID=50.5 OD=97 		8-98171-700-0 01 1 1501- ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) 		8-98132-506-0 01 1 1501-1502 ●
38 WASHER; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) 		8-94133-970-1 01 1 1501- ●
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) M13X36 		8-97065-984-1 08 1 1501- ●
40 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) M13X78 		8-97080-561-1 08 1 1501- ● ●
40 BOLT; FLYWHEEL
M/T MUX 5 SPEED 5S(MZJ) M13X36 		8-97941-069-0 08 1 1501- ●
42 WASHER; THRUST,CR/SHF 8-98040-704-0 02 1 1501- ●
42 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1501- ●
43 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 1501- ●
43 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1501- ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ) NSK 		9-00090-679-0 01 1 1501- ●
49 BEARING; PILOT
M/T MUX 5 SPEED 5S(MZJ) NSK 		8-97920-344-2 01 1 1501- ●
49 BEARING; PILOT
M/T MUX 5 SPEED 5S(MZJ) NACHI 		8-97922-552-1 01 1 1501- ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98183-902-0 01 1 1501- ● ●
61 PULLEY; FAN DRIVE
1-GROOVE 		8-98131-628-0 01 1 1501- ● ●
63 PISTON
GRADE=A 		8-98132-548-1 04 1 1501- ●
63 PISTON
GRADE=B 		8-98132-549-1 04 1 1501- ●
63 PISTON
GRADE=C 		8-98132-550-1 04 1 1501- ●
63 PISTON
GRADE=A 		8-98133-458-1 04 1 1501- ●
63 PISTON
GRADE=B 		8-98133-459-1 04 1 1501- ●
63 PISTON
GRADE=C 		8-98133-460-1 04 1 1501- ●
64 PISTON; O/S=0.50 8-98132-708-1 04 1 1501- ●
64 PISTON; O/S=0.50 8-98132-711-1 04 1 1501- ●
67 PISTON; O/S=0.25 8-98132-707-1 04 1 1501- ●
67 PISTON; O/S=0.25 8-98132-710-1 04 1 1501- ●
68 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1501- ●
69 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1501- ●
71 RING SET; PISTON,O/S=0.25 8-98171-045-0 04 1 1501- ●
73 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1501- ●
83 PIN; PISTON 8-98015-193-1 04 1 1501- ●
83 PIN; PISTON 8-98150-333-0 04 1 1501- ●
84 ROD ASM; CONN 8-97388-921-2 04 1 1501- ●
84 ROD ASM; CONN 8-97357-716-3 04 1 1501- ●
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1501- ● ●
86 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1501- ● ●
87 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1501- ● ●
100 PLATE; FLEX
A/T 5 SPEED-AISIN(MA1) 		8-98192-379-0 01 1 1501- ● ●
126 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1501- ● ●
172 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1501- ● ●
203 PIN; ROTOR
OD=5 L=8 		9-08160-508-0 01 1 1501- ● ●
204 BOLT; ROTOR
M6X10 		8-98038-343-0 03 1 1501- ●
204 BOLT; ROTOR 8-97944-142-1 03 1 1501- ●
215 PISTON; O/S=0.75 8-98132-709-1 04 1 1501- ●
215 PISTON; O/S=0.75 8-98132-712-1 04 1 1501- ●
217 RING SET; PISTON,O/S=0.75 8-98171-047-0 04 1 1501- ●
