0-11 — CYLINDER HEAD (#155325) — 41 parça

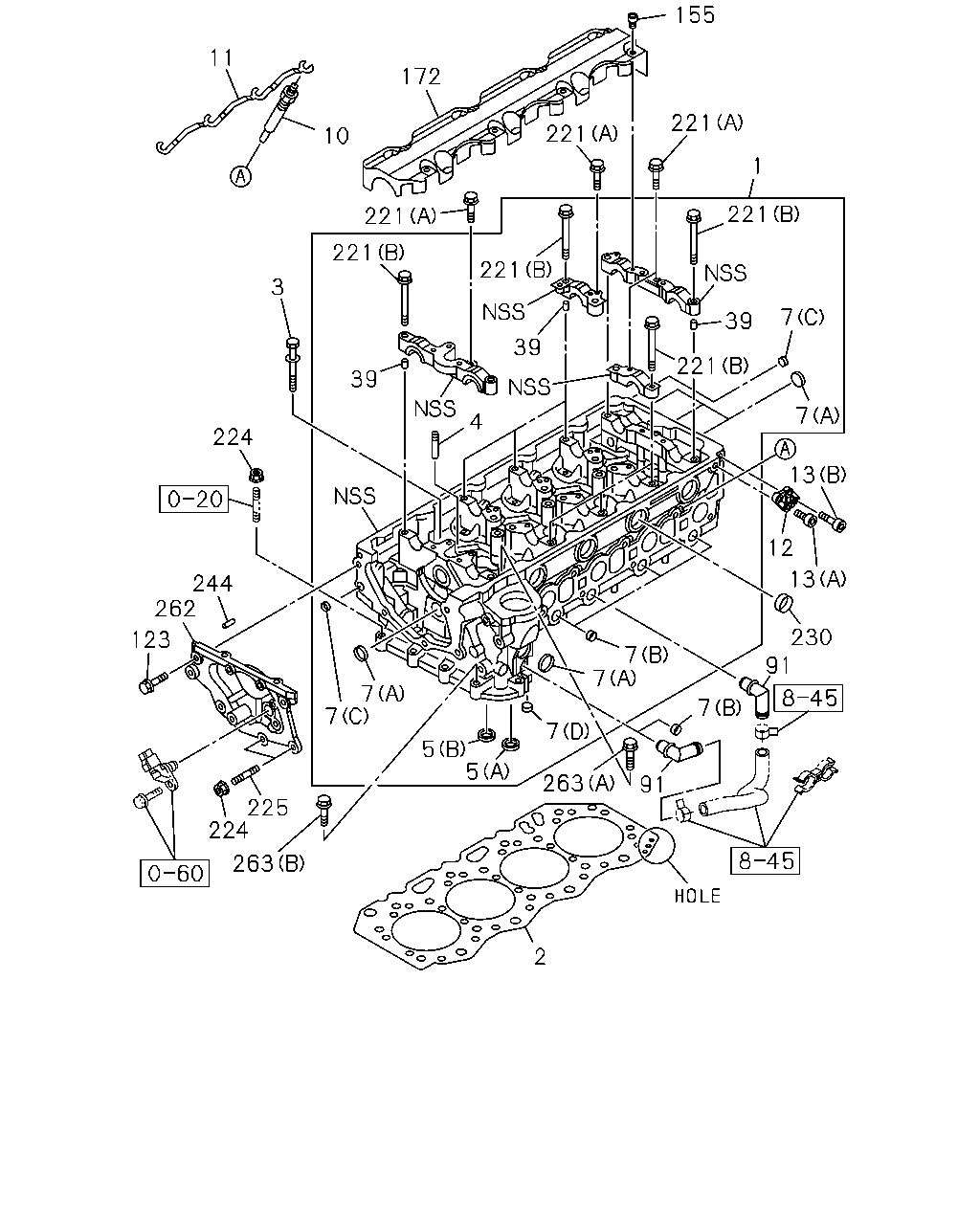

çizim 464419
11 10 172 155 221 1 221 39 7 221 7 13 12 13 230 91 7 91 263 7 7 7 5 5 7 7 4 39 221 221 221 221 3 39 224 244 262 123 225 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98270-378-1 01 1 1501- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.14 1-HOLE 		8-98261-318-0 01 1 1501- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.19 2-HOLE 		8-98261-319-0 01 1 1501- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.24 3-HOLE 		8-98261-320-0 01 1 1501- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.14 1-HOLE 		8-98261-311-0 01 1 1501- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.19 2-HOLE 		8-98261-312-0 01 1 1501- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.24 3-HOLE 		8-98261-313-0 01 1 1501- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OVER SIZE 		8-97388-314-0 01 1 1501- ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER 		8-98201-019-0 18 1 1501- ● ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1501- ● ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1501- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1501- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 06 1 1501- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 		5-11219-011-0 02 1 1501- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=8 		8-97233-429-0 01 1 1501- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=24 		8-97333-120-0 05 1 1501- ● ●
7 CUP; SEALING,CYL HEAD
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) OD=18 		5-11219-008-0 01 1 1501- ● ●
10 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1501- ● ●
11 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1501- ● ●
12 HANGER; ENG,RR 8-98239-364-0 01 1 1501- ● ●
13 BOLT; HANGER
(A) M8X20 HEX SOCKET 		0-58330-820-0 01 1 1501- ● ●
13 BOLT; HANGER
(B) M8X30 HEX SOCKET 		0-58330-830-0 01 1 1501- ● ●
39 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1501- ● ●
91 PIPE; HTR
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65), COOLER WO/FRESH AIR(8NF) 		8-98228-414-0 02 1 1501- ● ●
91 PIPE; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98228-414-0 01 1 1501- ● ●
123 BOLT; COVER
M8X20 FLANGE 		0-28050-820-0 03 1 1501- ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1501- ● ●
172 PLATE; BAFFLE,CYL HD 8-98212-020-0 01 1 1503- ●
172 PLATE; BAFFLE,CYL HD 8-98250-484-0 01 1 1501-1502 ● ●
172 PLATE; BAFFLE,CYL HD 8-98250-484-0 01 1 1503- ●
221 BOLT; BRKT
(A) M6X30 FLANGE 		0-28050-630-0 08 1 1501- ● ●
221 BOLT; BRKT
(B) M8X85 		1-09044-074-0 21 1 1501- ● ●
224 NUT; COVER
M8 FLANGE 		0-91180-208-0 04 1 1501- ● ●
225 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1501- ●
225 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1501- ●
230 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1501- ●
230 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97943-955-0 04 1 1501- ●
244 PIN; HEAD GASKET
OD=5 L=10 		9-08150-510-0 01 1 1501- ● ●
262 COVER; CYL HEAD 8-98243-226-0 01 1 1501- ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE 		0-28050-860-0 01 1 1501- ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE 		0-28650-835-0 03 1 1501- ● ●
