◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#155321) — 31 parça
çizim 464459
450 450
BalonParca AdiParca NoAdetTipApplied Date A B
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1501- ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1501- ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1501- ●

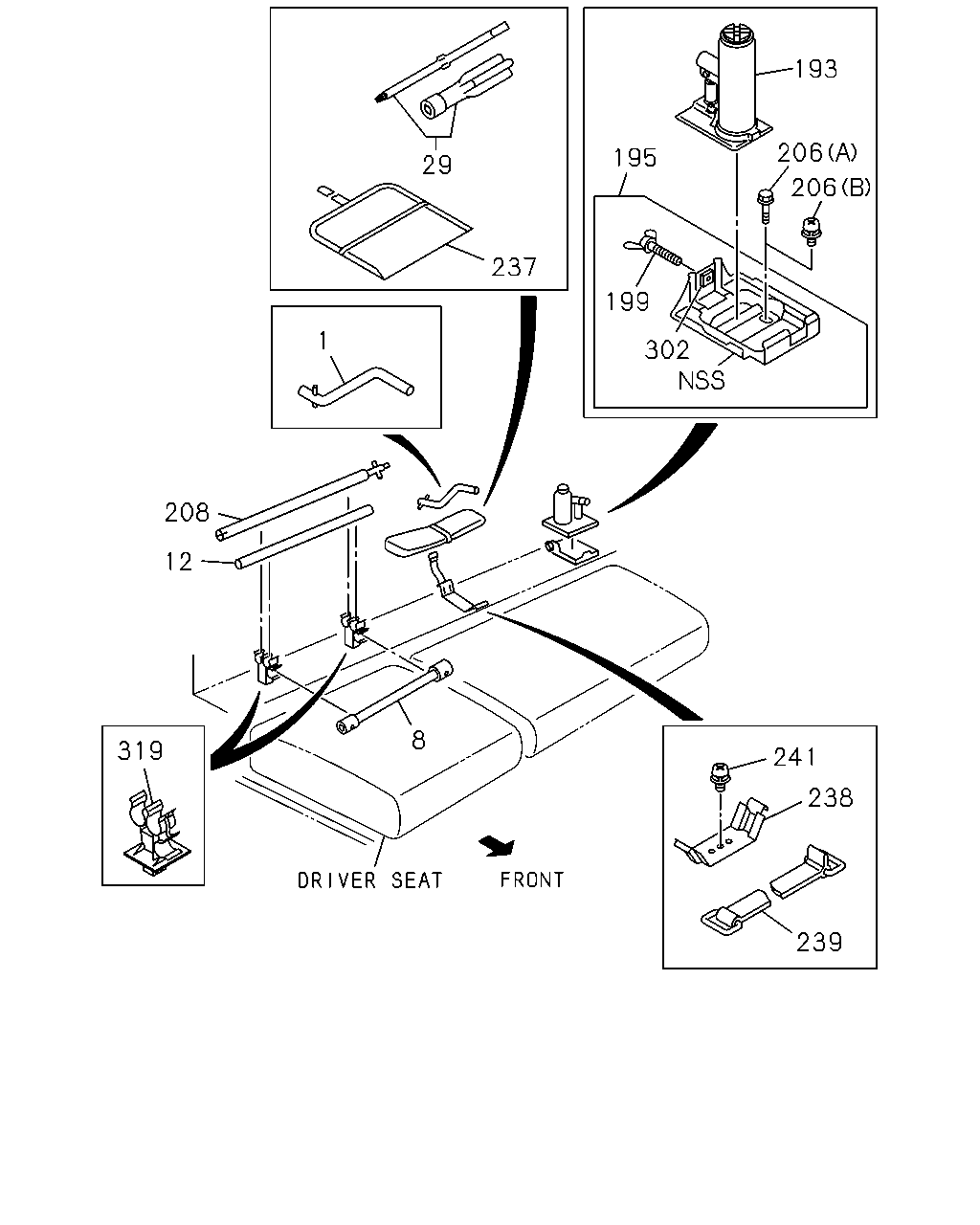

çizim 465066
29 237 1 208 12 195 193 206 206 199 319 241 238 239 8 302
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 1501- ● ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1501- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1501- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1501- ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 4TON 		8-94438-019-2 01 1 1504- ● ●
193 08.820 JACK ASM
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 5TON 		8-94438-021-2 01 1 1501-1503 ● ●
193 08.820 JACK ASM
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX),F&R225/80R17.5 17.5X6.00-127 BS 6-WHL/NUT(CZJ) 5TON 		8-94438-021-2 01 1 1504- ● ●
195 08.820 BRACKET; JACK
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 		8-98034-917-0 01 1 1501-1503 ●
195 08.820 BRACKET; JACK 8-98034-917-0 01 1 1504- ●
195 08.820 BRACKET; JACK
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 		8-94273-769-5 01 1 1501-1503 ●
195 08.820 BRACKET; JACK 8-94273-769-5 01 1 1504- ●
199 08.820 BOLT; JACK
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) M8X30 WING 		8-98005-536-0 01 1 1501-1503 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1504- ●
199 08.820 BOLT; JACK
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) M8X30 WING 		8-94279-018-1 01 1 1501-1503 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1504- ●
206 08.820 SCREW; OIL JACK BRKT
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1501-1503 ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1504- ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B) M6X16 		0-38050-616-0 01 1 1501- ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1501- ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1501- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1501- ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1501- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1501- ●
302 08.820 NUT; JACK BRKT
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 		8-98021-556-0 01 1 1501-1503 ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1504- ●
302 08.820 NUT; JACK BRKT
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 		8-94279-522-0 01 1 1501-1503 ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1504- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1501- ● ●
