◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#155313) — 32 parça

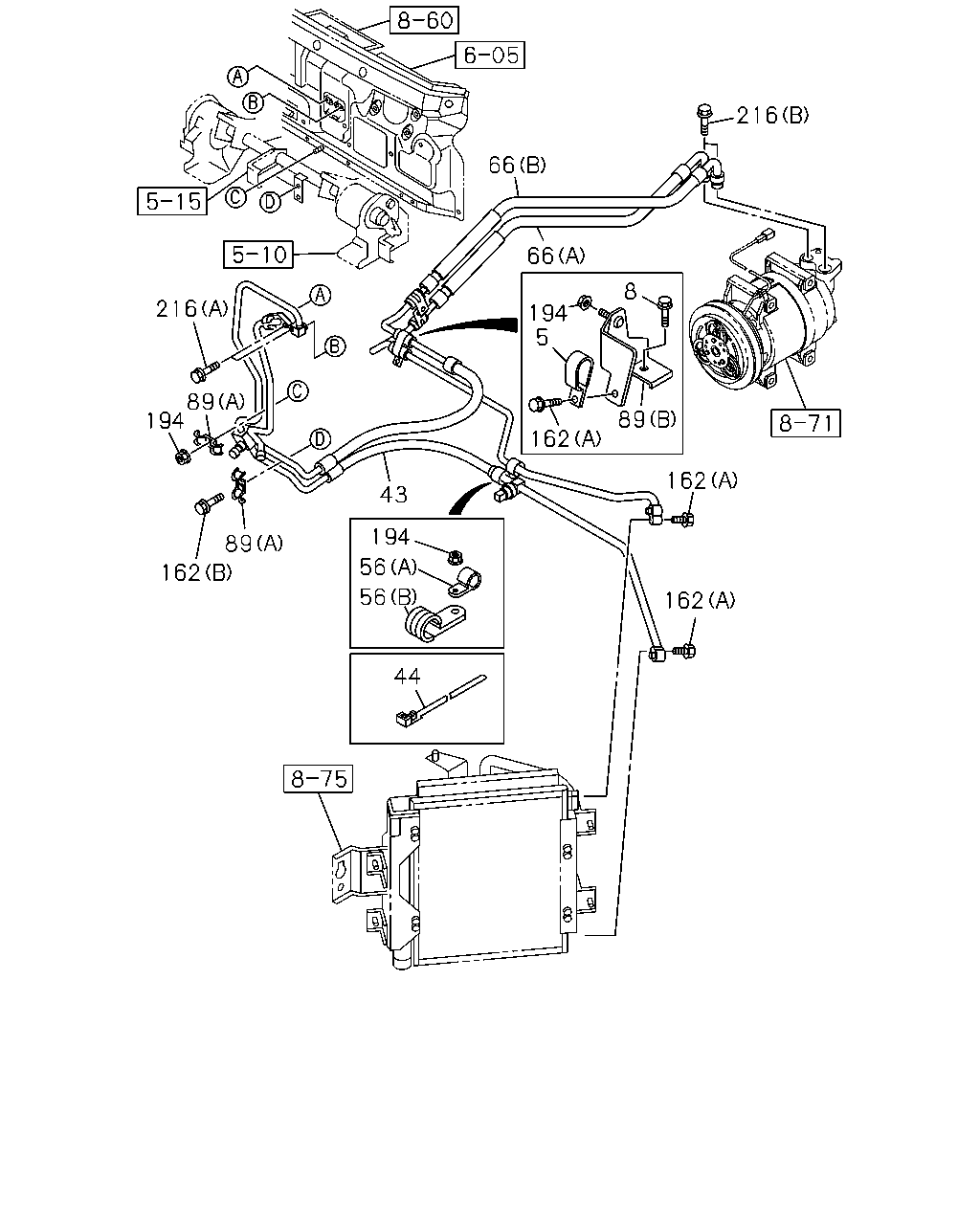

çizim 465028
216 89 194 89 162 43 56 56 194 66 66 216 8 194 89 162 162 162 5 44
BalonParca AdiParca NoAdetTipApplied Date A B
5 09.242 CLIP; FLEX HOSE,A/C 8-98052-857-0 01 1 1501- ● ●
8 09.242 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
HIGH PRESSURE 		8-98179-006-0 01 1 1501- ● ●
44 09.242 CLIP; FLEX HOSE
02.559 L=250 		5-09707-030-1 01 1 1501- ● ●
44 09.242 CLIP; FLEX HOSE
02.559 L=250 		5-09707-030-1 01 1 1501- ● ●
44 09.242 CLIP; FLEX HOSE
02.559 L=170.3 		1-09987-182-0 01 1 1501- ● ●
44 09.242 CLIP; FLEX HOSE
08.852 L=350 		8-94152-256-1 01 1 1501- ● ●
56 09.242 CLIP; PIPE,A/C
04.930 (A) ID=13 L=20 		0-95235-232-0 01 1 1501- ● ●
56 09.242 CLIP; PIPE,A/C
(B) 		8-98032-641-0 01 1 1501- ● ●
66 09.225 HOSE; FLEX,A/C
(A) HIGH PRESSURE 		8-98098-289-0 01 1 1501- ● ●
66 09.225 HOSE; FLEX,A/C
(B) LOW PRESSURE 		8-98159-629-1 01 1 1501- ● ●
89 09.242 BRACKET; A/C PIPE
(B) 		8-98002-365-2 01 1 1501- ● ●
89 09.242 BRACKET; A/C PIPE
(A) 		8-98151-264-0 02 1 1501- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1501-1504 ● ●
162 09.173 BOLT; FLEX HOSE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1505- ● ●
162 09.173 BOLT; FLEX HOSE
03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 1501- ● ●
162 09.173 BOLT; FLEX HOSE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 1501- ● ●
194 09.242 NUT; HOSE
01.062 M6 FLANGE 		0-91180-106-0 03 1 1501- ● ●
216 09.173 BOLT; HOSE FIX
03.680 (A) M6X30 FLANGE 		0-28650-630-0 02 1 1501- ● ●
216 09.173 BOLT; HOSE FIX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1501- ● ●
çizim 465046
43 66 66 148 67 67 147 67 67 50 202 50 148 147
BalonParca AdiParca NoAdetTipApplied Date A B
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
HIGH PRESSURE 		8-98179-006-0 01 1 1501- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
ID=7.5 		1-83539-316-0 02 1 1501- ● ●
66 09.225 HOSE; FLEX,A/C
(A) HIGH PRESSURE 		8-98098-289-0 01 1 1501- ● ●
66 09.225 HOSE; FLEX,A/C
(B) LOW PRESSURE 		8-98159-629-1 01 1 1501- ● ●
67 09.260 GASKET; FLEX HOSE
(A) ID=11.7 		8-97095-907-0 02 1 1501- ● ●
67 09.260 GASKET; FLEX HOSE
09.225 (B) ID=14.5 		8-97095-908-0 01 1 1501- ● ●
67 09.260 GASKET; FLEX HOSE
(C) ID=17.6 		8-98036-895-0 01 1 1501- ● ●
147 09.242 CAP; FLEX HOSE
(A) CAP MARK L 		1-83539-331-0 01 1 1501- ● ●
147 09.242 CAP; FLEX HOSE
(B) CAP MARK H 		8-97095-911-0 01 1 1501- ● ●
148 09.262 VALVE; FLEX HOSE
(A) 		8-97095-909-0 01 1 1501- ● ●
148 09.262 VALVE; FLEX HOSE
(B) 		8-98031-629-0 01 1 1501- ● ●
202 09.275 SWITCH; PRESSURE 1-83564-392-1 01 1 1501- ● ●
