Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#155310) — 36 parça
Tümü
A - NPS5SN
B - NPS5WN
◀
[840A] OTHER PARTS (3 parça)
[840A04] (3 parça)
[840A] DUCT;W/HEATER UNIT (23 parça)
[840A] DUCT;WO/HEATER UNIT (7 parça)
▶

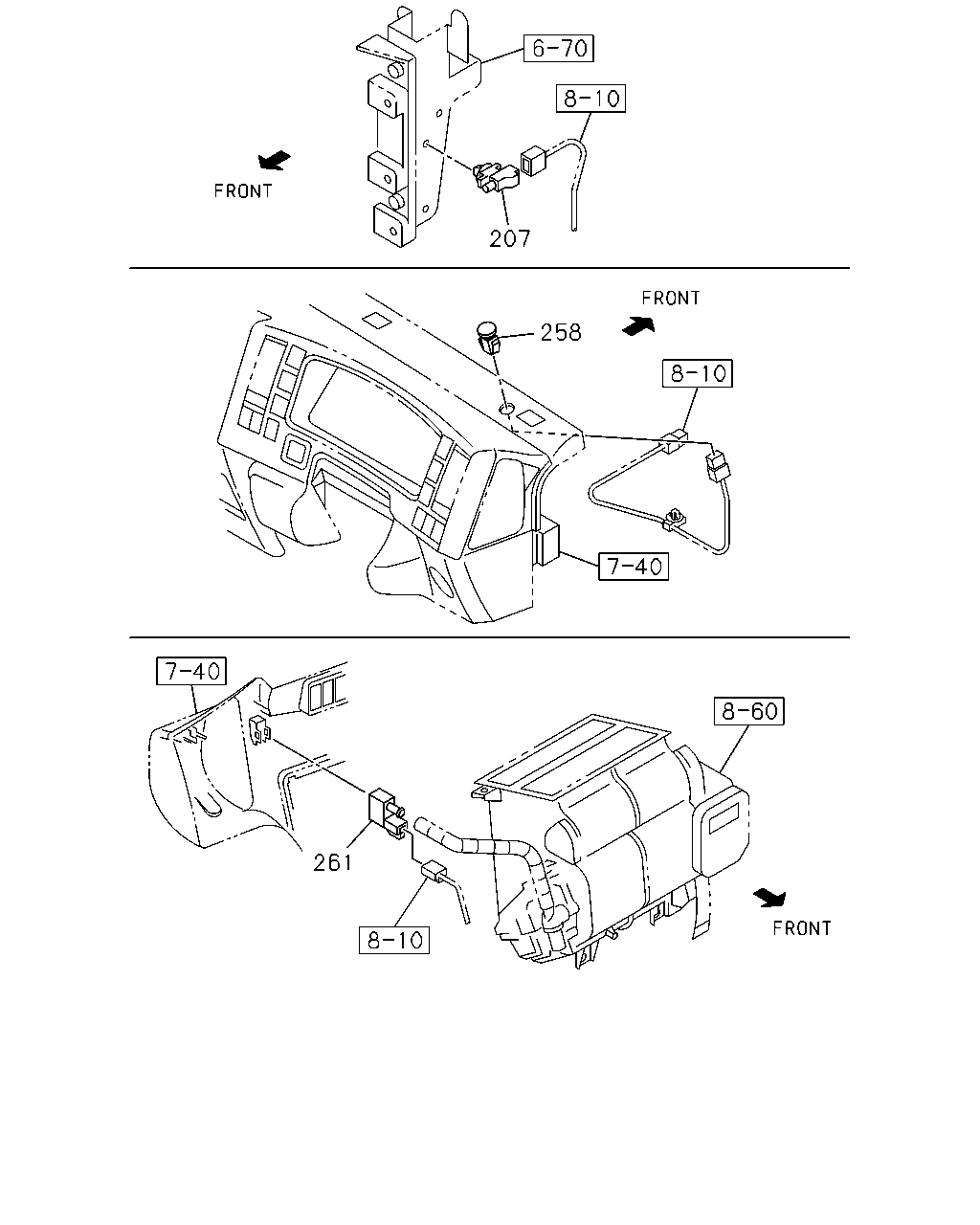

207
258
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
207
08.845 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 01.150
8-98008-687-0
01
1
1501-
●
●
258
08.845 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68)
8-97386-826-0
01
1
1501-
●
●
261
08.845 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68)
8-97386-701-0
01
1
1501-
●
●
207
258
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
207
08.845 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 01.150
8-98008-687-0
01
1
1501-
●
●
258
08.845 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68)
8-97386-826-0
01
1
1501-
●
●
261
08.845 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68)
8-97386-701-0
01
1
1501-
●
●

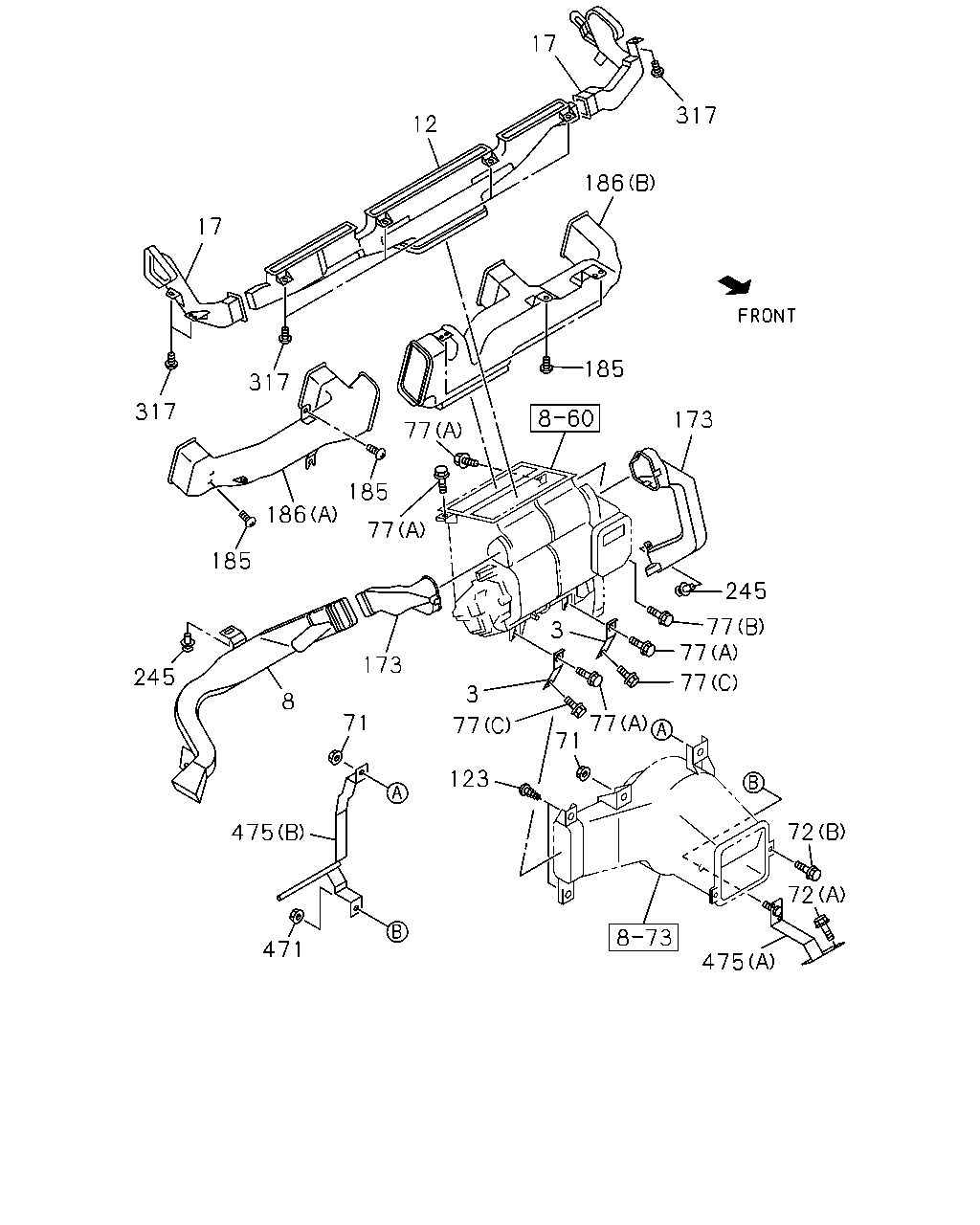

12
17
317
186
17
317
317
185
77
185
173
245
185
173
8
3
77
3
245
77
77
77
77
71
71
186
77
475
123
72
72
471
475
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
08.854 BRACKET; HTR UNIT
8-98082-473-1
02
1
1501-
●
●
8
09.786 DUCT; HTR AIR,DRIVER FOOT
8-98084-146-0
01
1
1501-
●
●
12
09.779 NOZZLE; DEFROSTER
8-97585-480-4
01
1
1501-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
8-97585-469-1
01
1
1501-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
8-97585-475-5
01
1
1501-
●
●
71
08.845 NUT; BLOWER UNIT TO DASH
01.062 M6 FLANGE
0-91180-106-0
02
1
1501-
●
●
72
08.857 BOLT; BLOWER UNIT
16.085 (A) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
1501-
●
●
72
08.857 BOLT; BLOWER UNIT
(B) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1501-
●
●
77
08.845 BOLT; HTR UNIT
02.343 (A) M6X16 FLANGE
0-28650-616-0
04
1
1501-
●
●
77
08.845 BOLT; HTR UNIT
08.857 (B) M6X20 W/LK&PL WASHER
8-98081-030-0
01
1
1501-
●
●
77
08.845 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1501-
●
●
123
09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1501-
●
●
173
09.786 DUCT; FOOT,HTR
8-98246-555-0
01
1
1501-
●
●
173
09.786 DUCT; FOOT,HTR
8-97585-504-3
01
1
1501-
●
●
185
09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1501-
●
●
186
09.786 DUCT; VENTILATOR
(A)
8-98285-582-0
01
1
1501-
●
●
186
09.786 DUCT; VENTILATOR
(B)
8-98285-585-0
01
1
1501-
●
●
245
09.786 CLIP; FOOT DUCT
09.264
1-09987-144-0
02
1
1501-
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1501-
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1501-
●
●
471
08.866 NUT; BLOWER
01.062 M6 FLANGE
0-91180-106-0
01
1
1501-
●
●
475
09.277 BRACKET; BLOWER
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (B)
8-98165-379-0
01
1
1501-
●
475
09.277 BRACKET; BLOWER
(A)
8-97387-092-2
01
1
1501-
●
●

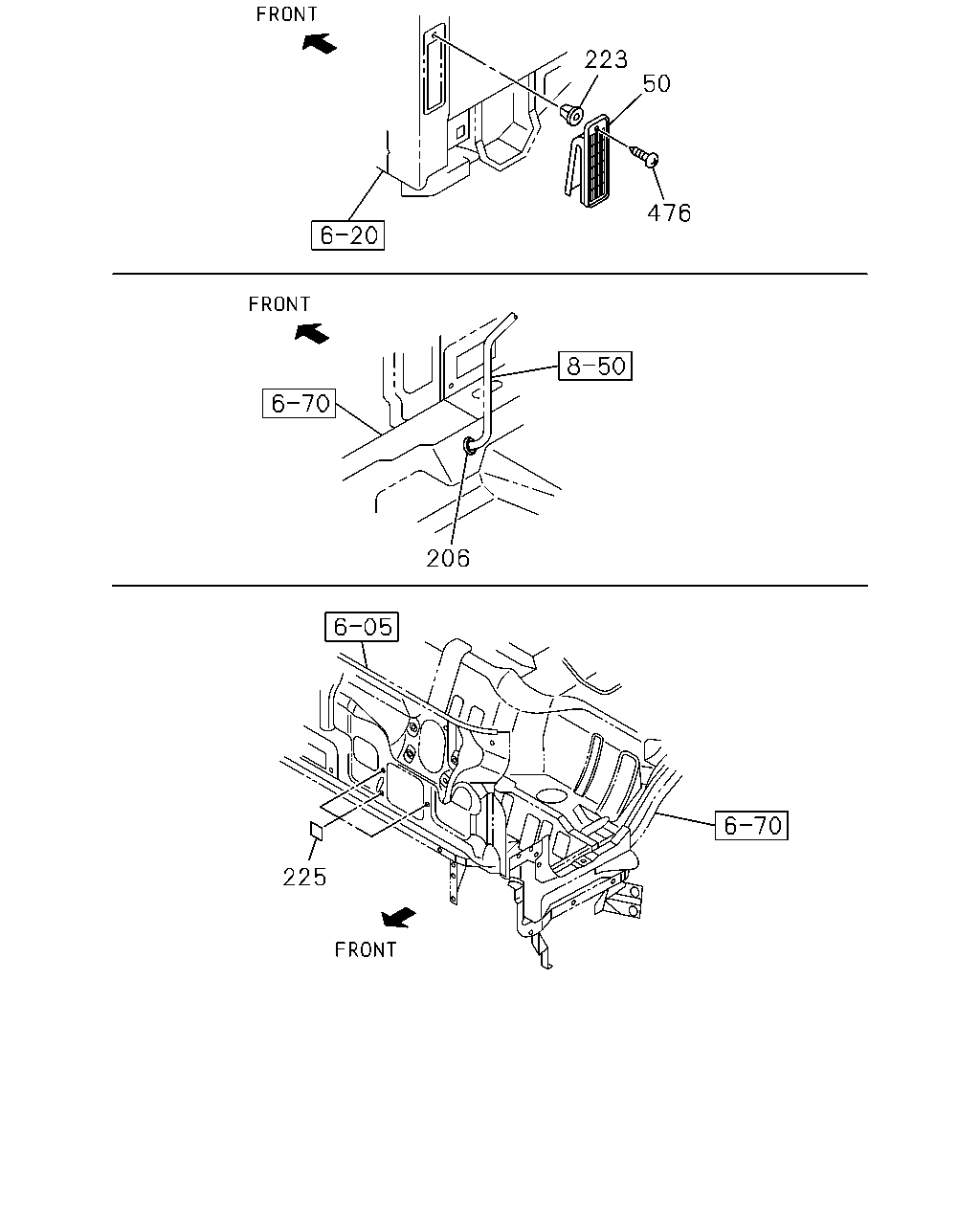

223
476
206
225
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
08.845 VALVE ASM; HTR
8-98080-998-1
01
1
1501-
●
50
08.845 VALVE ASM; HTR
8-98080-999-2
01
1
1501-
●
206
09.743 GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1501-
●
●
223
08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1501-
●
●
225
08.845 SEAL; WATER
8-97856-616-0
01
1
1501-
●
●
225
08.845 SEAL; WATER
8-97856-616-0
02
1
1501-
●
●
476
09.222 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1501-
●
●
