◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#155308) — 9 parça
çizim 464926
23 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97423-999-1 01 1 1501- ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97428-391-0 01 1 1501- ● ●

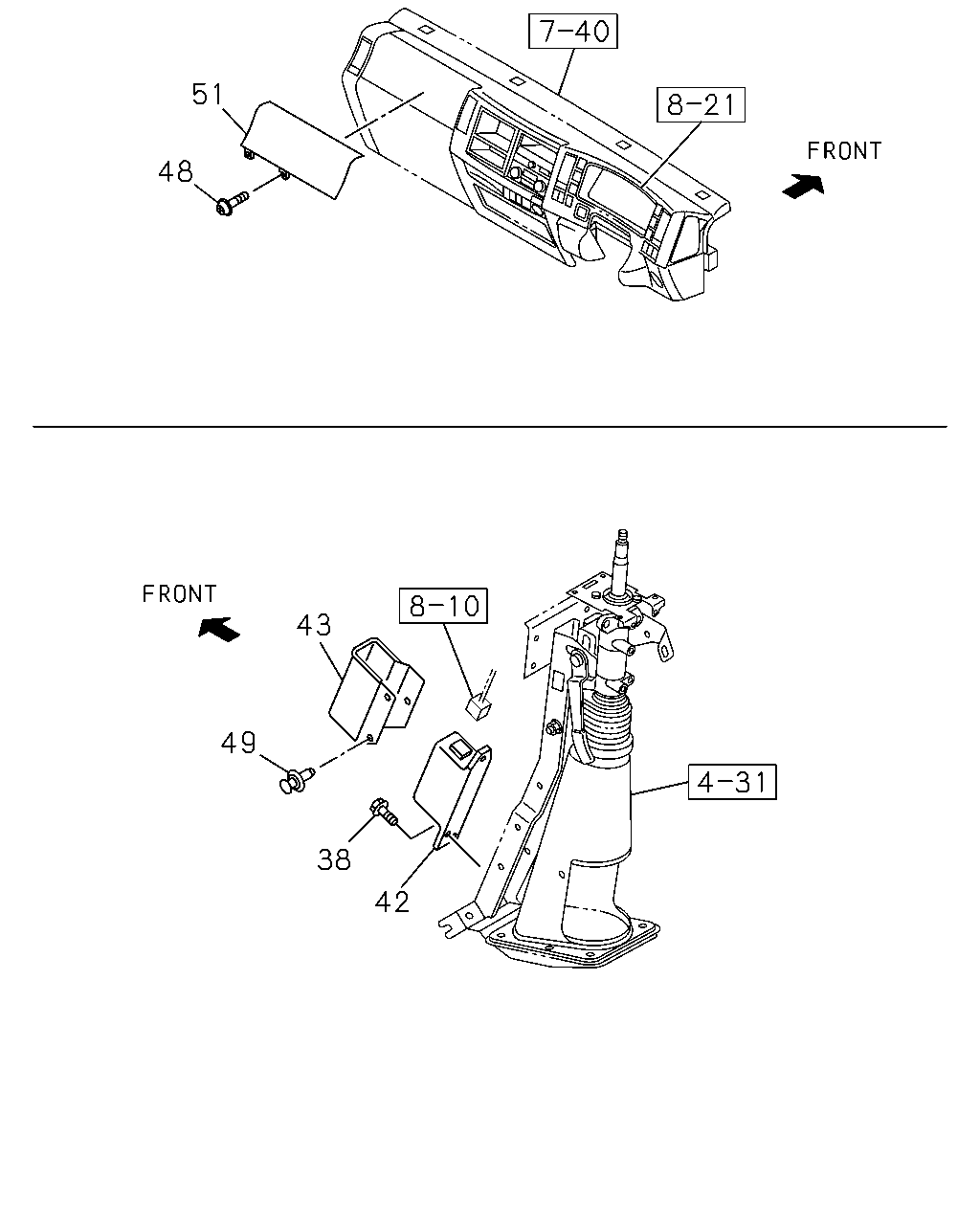

çizim 464927
51 48 43 49 38 42
BalonParca AdiParca NoAdetTipApplied Date A B
38 06.870 BOLT; CONT UNIT
M6X18 W/PL WASHER 		8-97105-796-1 03 1 1501- ● ●
42 02.510 CONTROL UNIT; SRS
AIR BAG DRIVER<AJ3> 		8-98302-338-0 01 1 1501- ● ●
42 02.510 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98302-339-0 01 1 1501- ● ●
43 02.559 PROTECTOR; CONTROL UNIT 8-98083-536-0 01 1 1501- ● ●
48 02.440 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> 08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 1501- ● ●
49 02.559 CLIP; PROTECTOR
16.320 OD=8.3 		8-97997-832-0 03 1 1501- ● ●
51 02.559 AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-266-4 01 1 1501- ● ●
