8-10 — WIRING HARNESS AND FUSE (#155303) — 120 parça

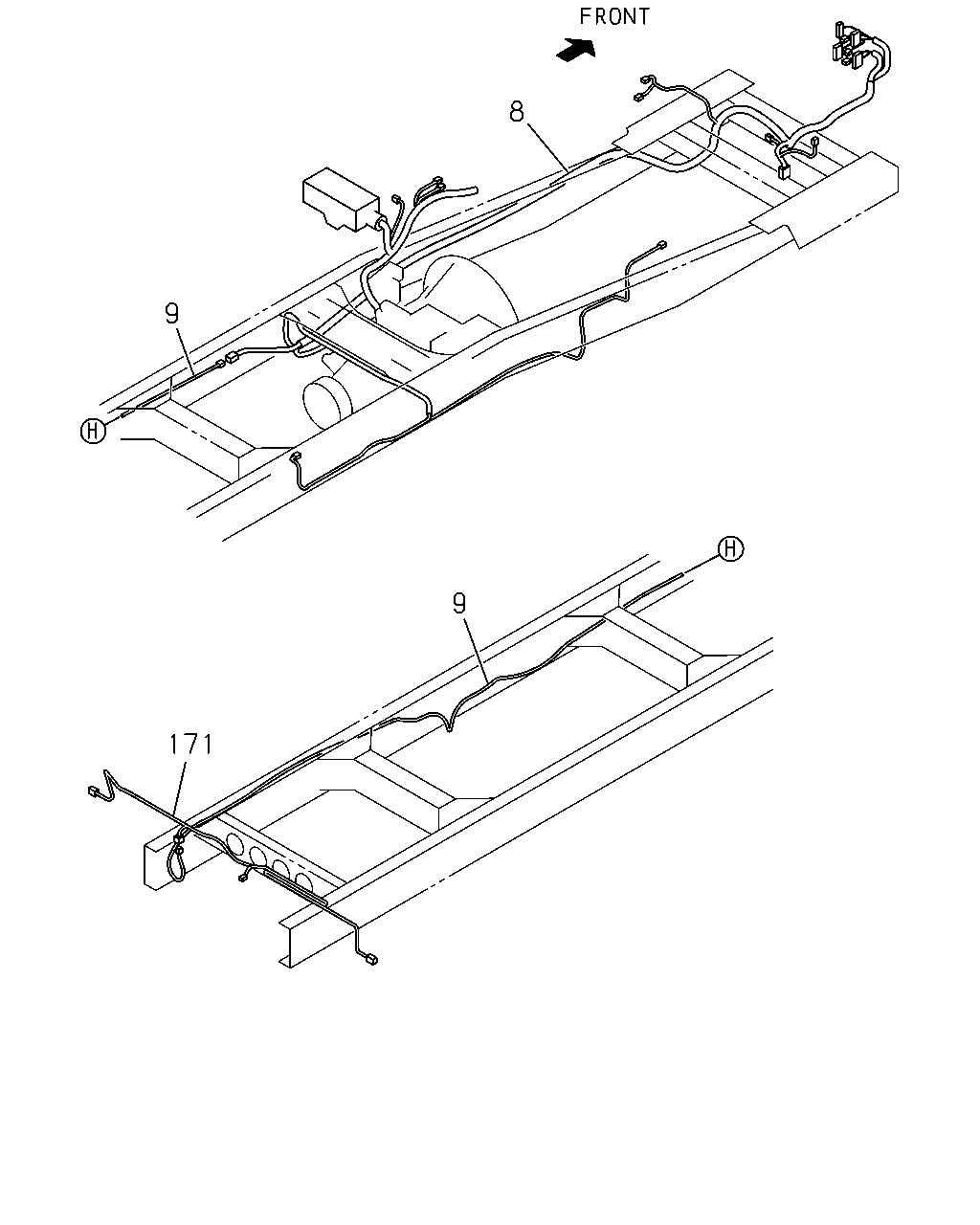

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-386-1	01	1	1501-1511	●
8	02.480 HARNESS; FRAME,FRT H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-386-1	01	1	1512-	●
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-387-2	01	1	1501-1511		●
8	02.480 HARNESS; FRAME,FRT H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-387-2	01	1	1512-		●
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-453-1	01	1	1501-1511	●
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-453-1	01	1	1512-	●
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-454-1	01	1	1501-1511		●
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-454-1	01	1	1512-		●
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98284-455-2	01	1	1501-	●	●
9	02.480 HARNESS; FRAME,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	1501-	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1501-	●	●

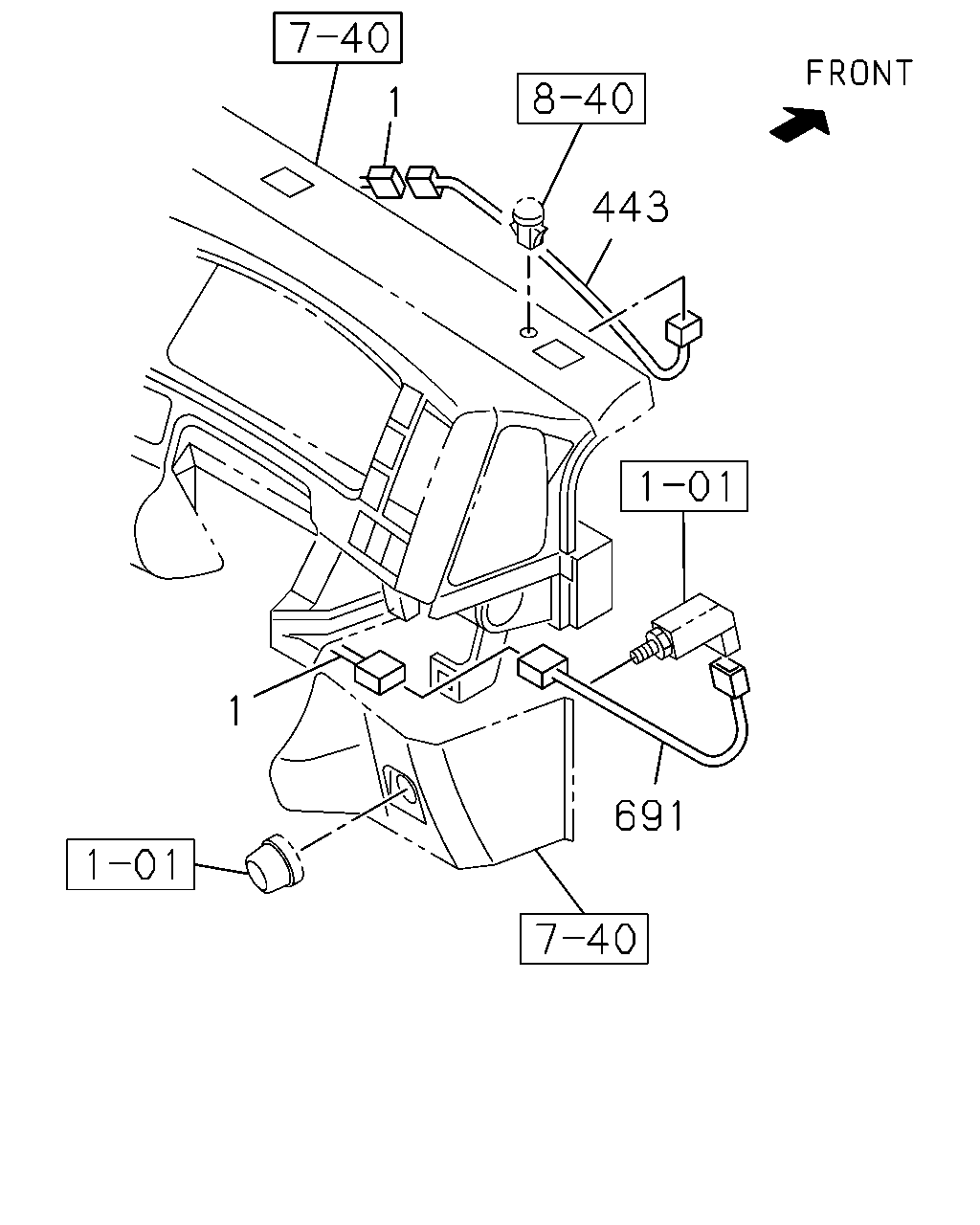

443 1 691 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-882-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-486-1	01	1	1504-	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-894-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-494-1	01	1	1504-	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-883-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-487-1	01	1	1504-	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-895-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-495-1	01	1	1504-	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-884-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-488-1	01	1	1504-		●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-896-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-496-1	01	1	1504-		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-885-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-489-1	01	1	1504-		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-897-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-497-1	01	1	1504-		●
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	1505-	●	●
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	1501-	●	●

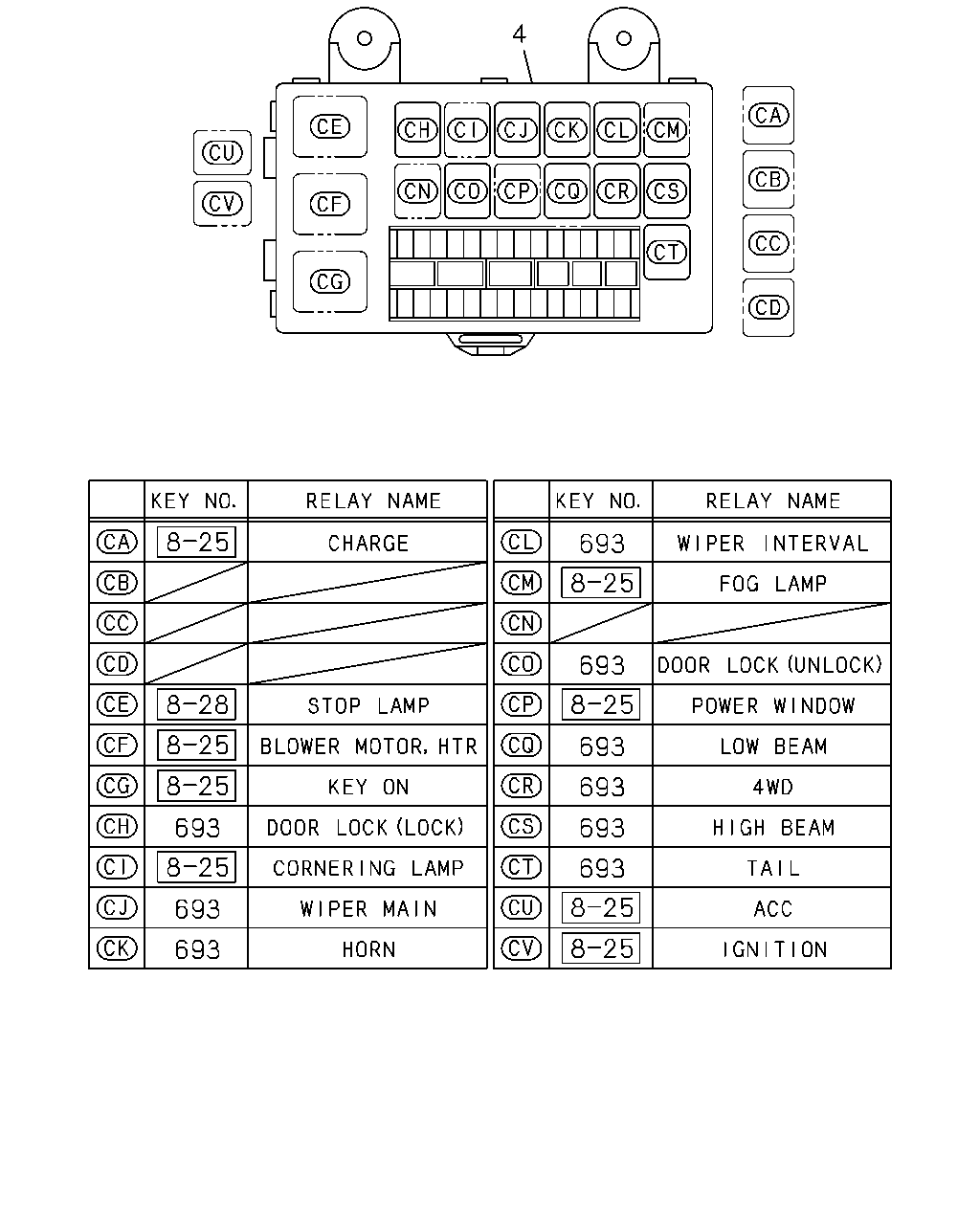

693 693 693 693 693 693 4 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1501-	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1501-	●	●

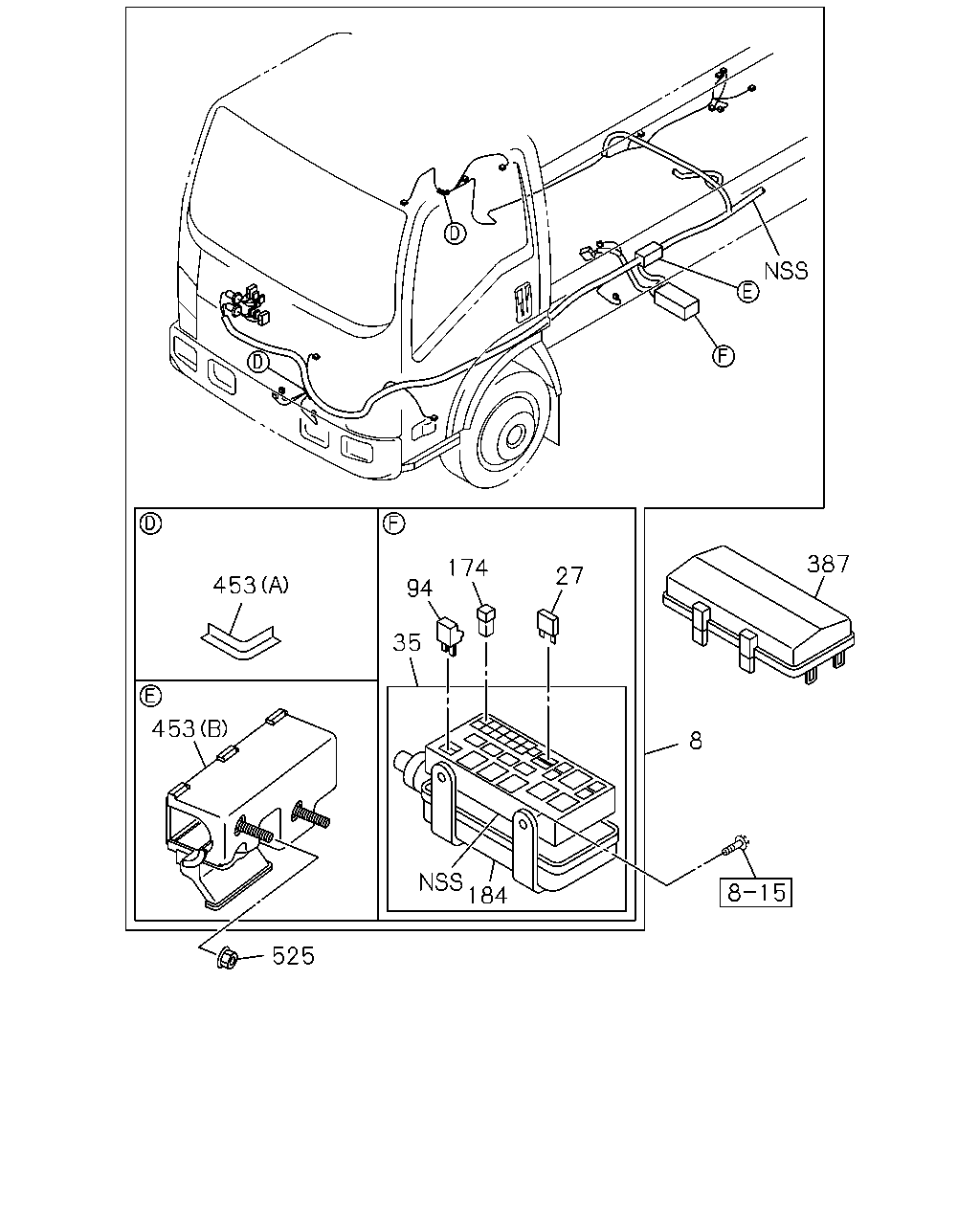

453 453 525 35 94 174 27 184 8 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-386-1	01	1	1501-1511	●
8	02.480 HARNESS; FRAME,FRT H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-386-1	01	1	1512-	●
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-387-2	01	1	1501-1511		●
8	02.480 HARNESS; FRAME,FRT H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98298-387-2	01	1	1512-		●
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-453-1	01	1	1501-1511	●
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-453-1	01	1	1512-	●
8	02.480 HARNESS; FRAME,FRT M/T MYY5T(RSM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-454-1	01	1	1501-1511		●
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98288-454-1	01	1	1512-		●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1501-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1501-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1501-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1501-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1501-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1501-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1501-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1501-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1501-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1501-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1501-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1501-	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1501-	●	●

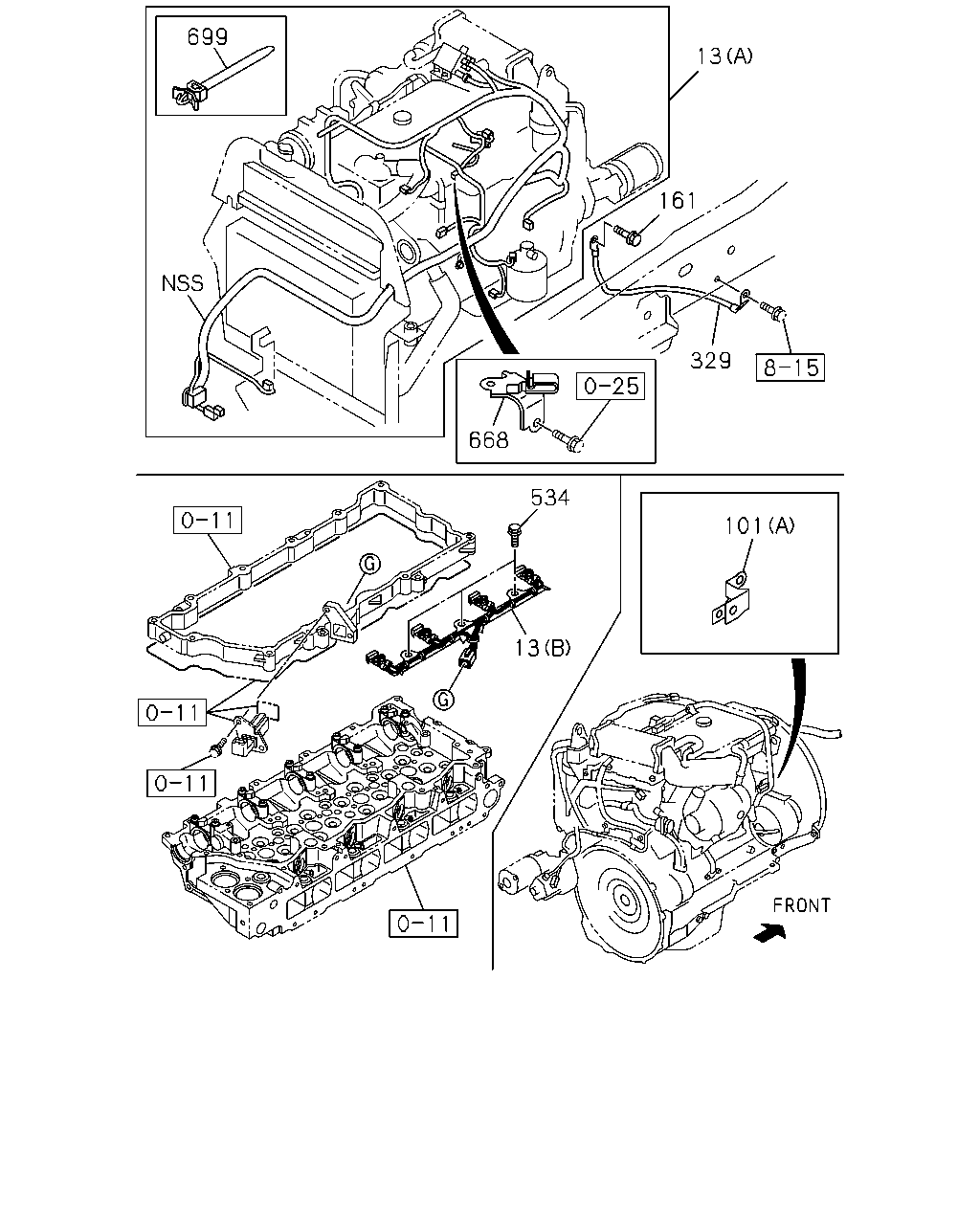

699 668 329 161 13 534 13 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A)	8-98303-762-0	01	1	1501-	●	●
13	02.525 HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98135-316-2	01	1	1501-	●	●
13	02.525 HARNESS; ENG GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-98171-638-0	01	1	1501-1501	●	●
13	02.525 HARNESS; ENG (B)	8-98171-638-0	01	1	1501-	●	●
13	02.525 HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98135-317-2	01	1	1501-1501	●	●
13	02.525 HARNESS; ENG GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) (A)	8-98135-317-2	01	1	1501-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	1501-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98283-525-0	01	1	1501-	●	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1501-	●	●
329	02.480 CABLE; ENG TO FRAME	8-98102-465-0	01	1	1501-	●	●
534	02.483 BOLT 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1501-	●	●
668	02.559 BRACKET; HARNESS	8-98061-780-0	01	1	1501-	●	●
699	02.559 CLIP; ENG HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) L=146.2	8-98052-677-0	01	1	1501-	●	●

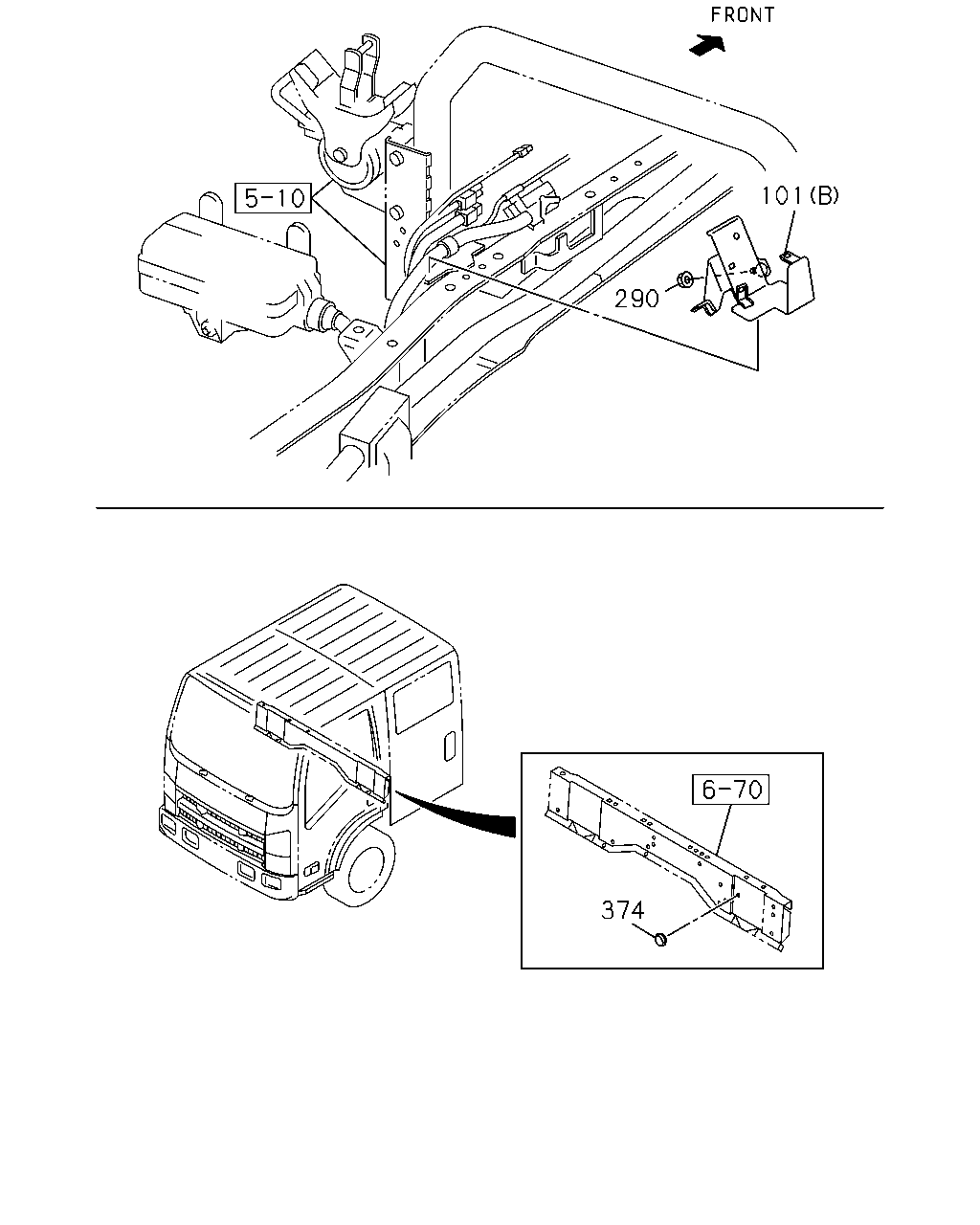

290 101 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	1501-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98283-525-0	01	1	1501-	●	●
290	02.483 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1501-	●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	1501-		●

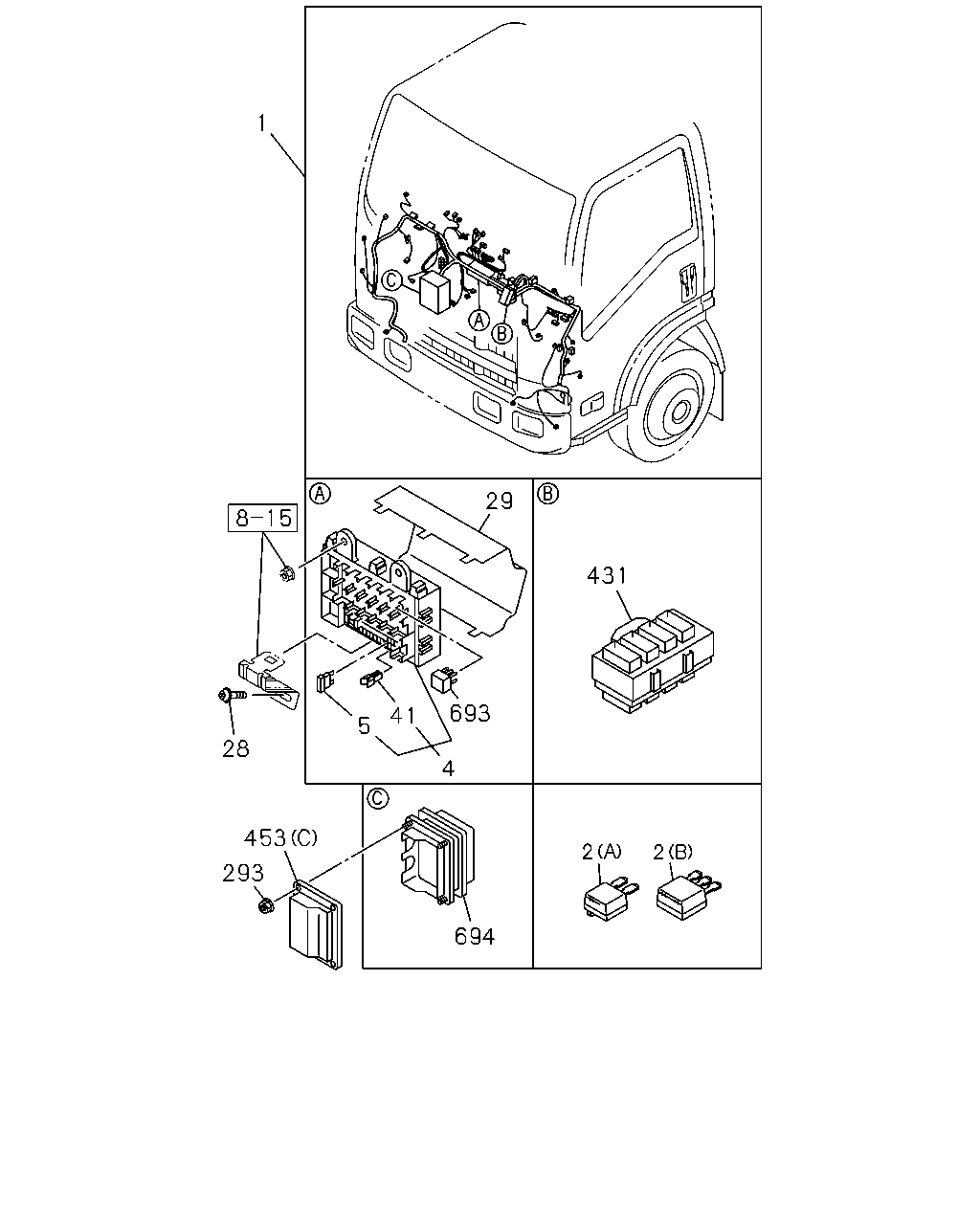

1 28 453 293 29 5 41 693 4 694 431 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-882-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-486-1	01	1	1504-	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-894-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-494-1	01	1	1504-	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-883-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-487-1	01	1	1504-	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-895-0	01	1	1501-1503	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-495-1	01	1	1504-	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-884-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-488-1	01	1	1504-		●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-896-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-496-1	01	1	1504-		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98285-885-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98300-489-1	01	1	1504-		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98285-897-0	01	1	1501-1503		●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98300-497-1	01	1	1504-		●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1501-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1501-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1501-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1501-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1501-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1501-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1501-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1501-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1501-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1501-	●	●
431	02.530 CONNECTOR; JOINT	8-98046-205-0	01	1	1501-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1501-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1501-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1501-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1501-	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1501-	●	●

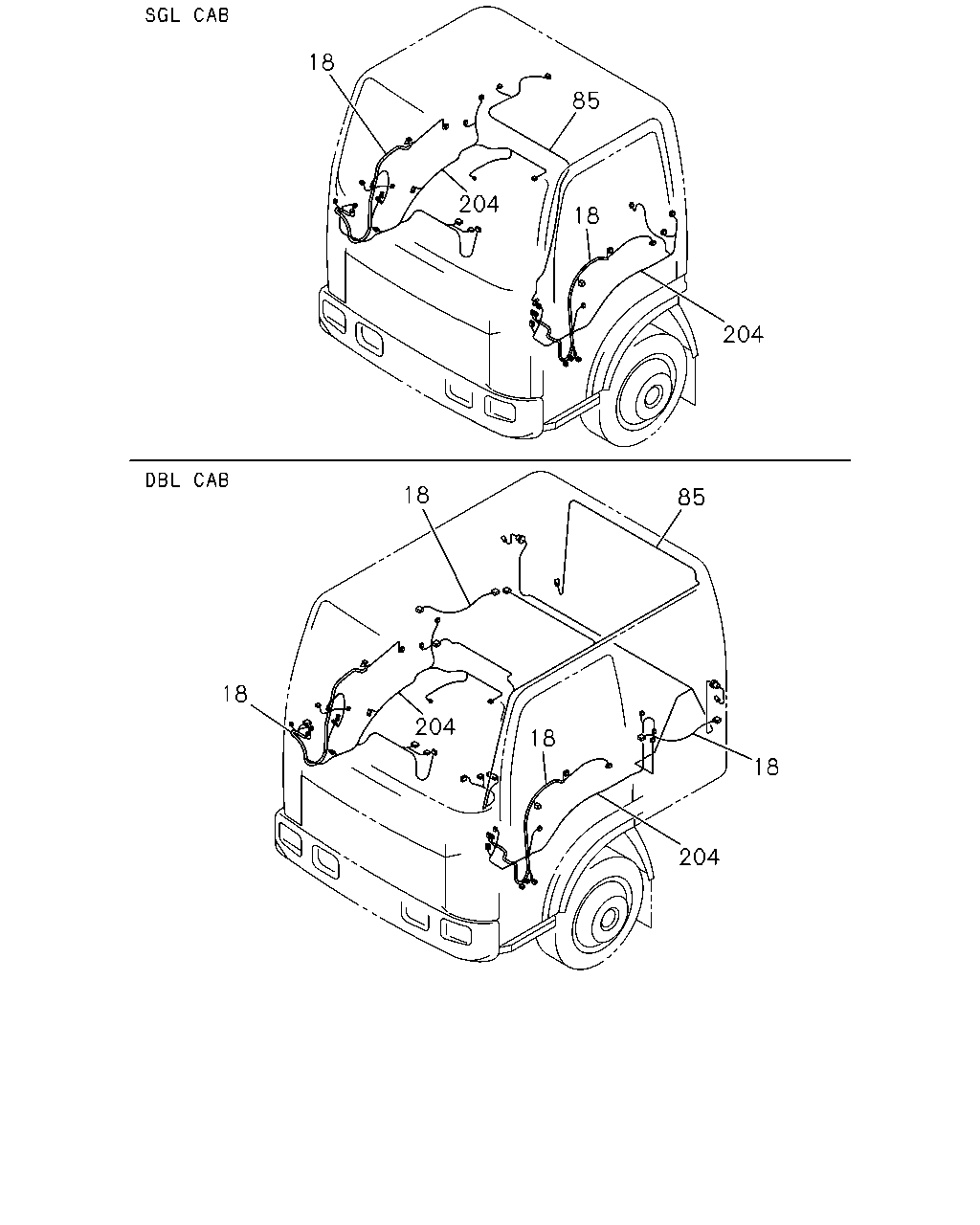

18 85 204 18 204 85 18 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> FRONT	8-98077-590-2	01	1	1501-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> FRONT	8-98286-563-0	01	1	1501-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT	8-98071-078-2	01	1	1501-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT	8-98286-568-0	01	1	1501-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98046-746-5	01	1	1501-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98286-562-0	01	1	1501-	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-076-2	01	1	1501-	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98286-565-0	01	1	1501-	●	●
18	02.480 HARNESS; DOOR REAR	8-98202-555-0	02	1	1501-		●
85	06.495 HARNESS; ROOM LAMP	8-98147-482-0	01	1	1501-	●
85	06.495 HARNESS; ROOM LAMP	8-98071-094-2	01	1	1501-		●
204	02.559 HARNESS; CABLE,FLOOR	8-98240-901-0	01	1	1501-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ>	8-98257-335-0	01	1	1501-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. MANUAL TILT CAB<RWZ>	8-98287-850-0	01	1	1501-	●
204	02.559 HARNESS; CABLE,FLOOR MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98047-164-4	01	1	1501-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, MANUAL TILT CAB<RWZ>	8-98070-807-3	01	1	1501-	●
204	02.559 HARNESS; CABLE,FLOOR	8-98240-906-0	01	1	1501-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98257-329-0	01	1	1501-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	1501-		●
