Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#155299) — 34 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

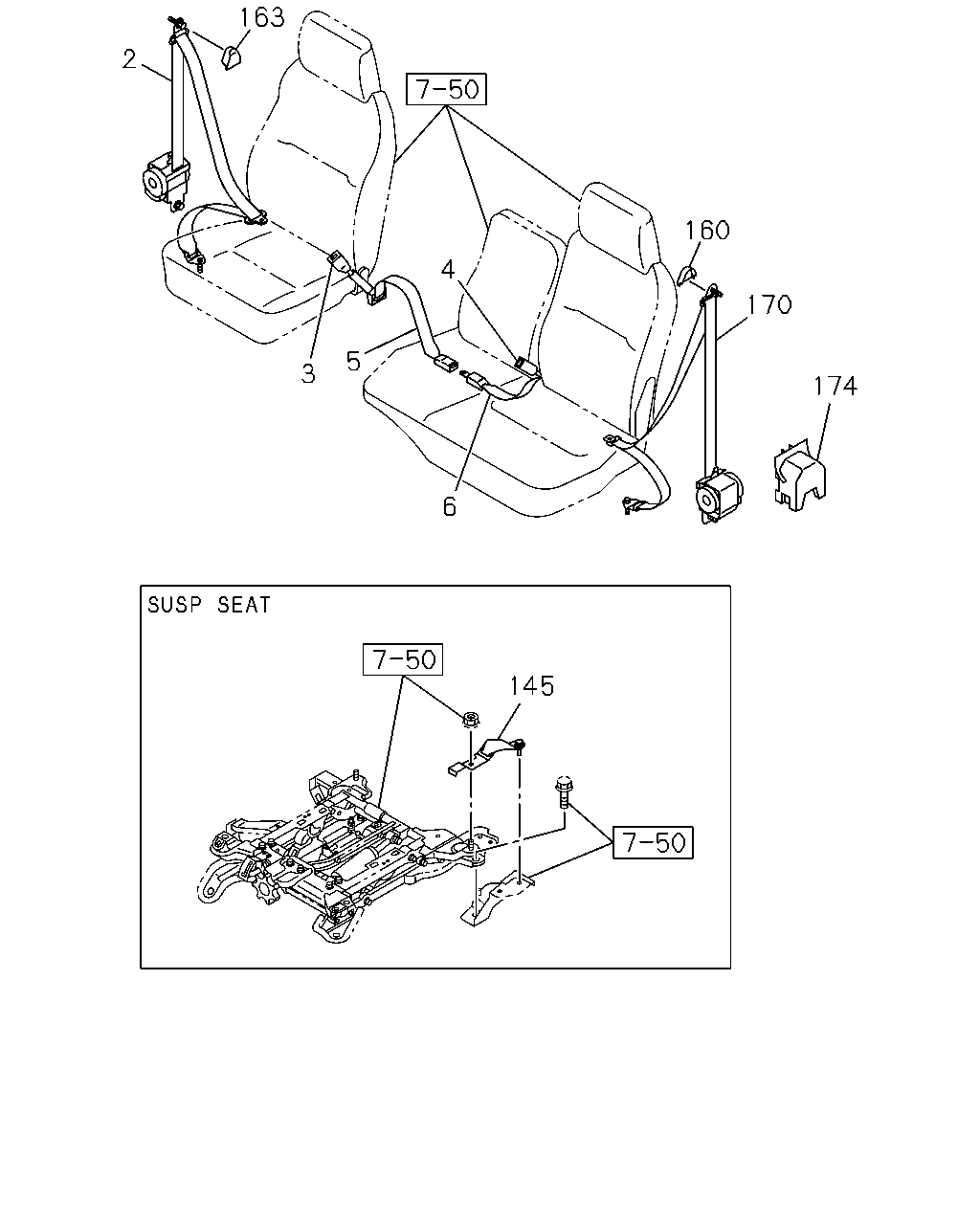

[760A] FRONT SEAT (13 parça)
[760A] SEAT BELT ANCHOR (12 parça)

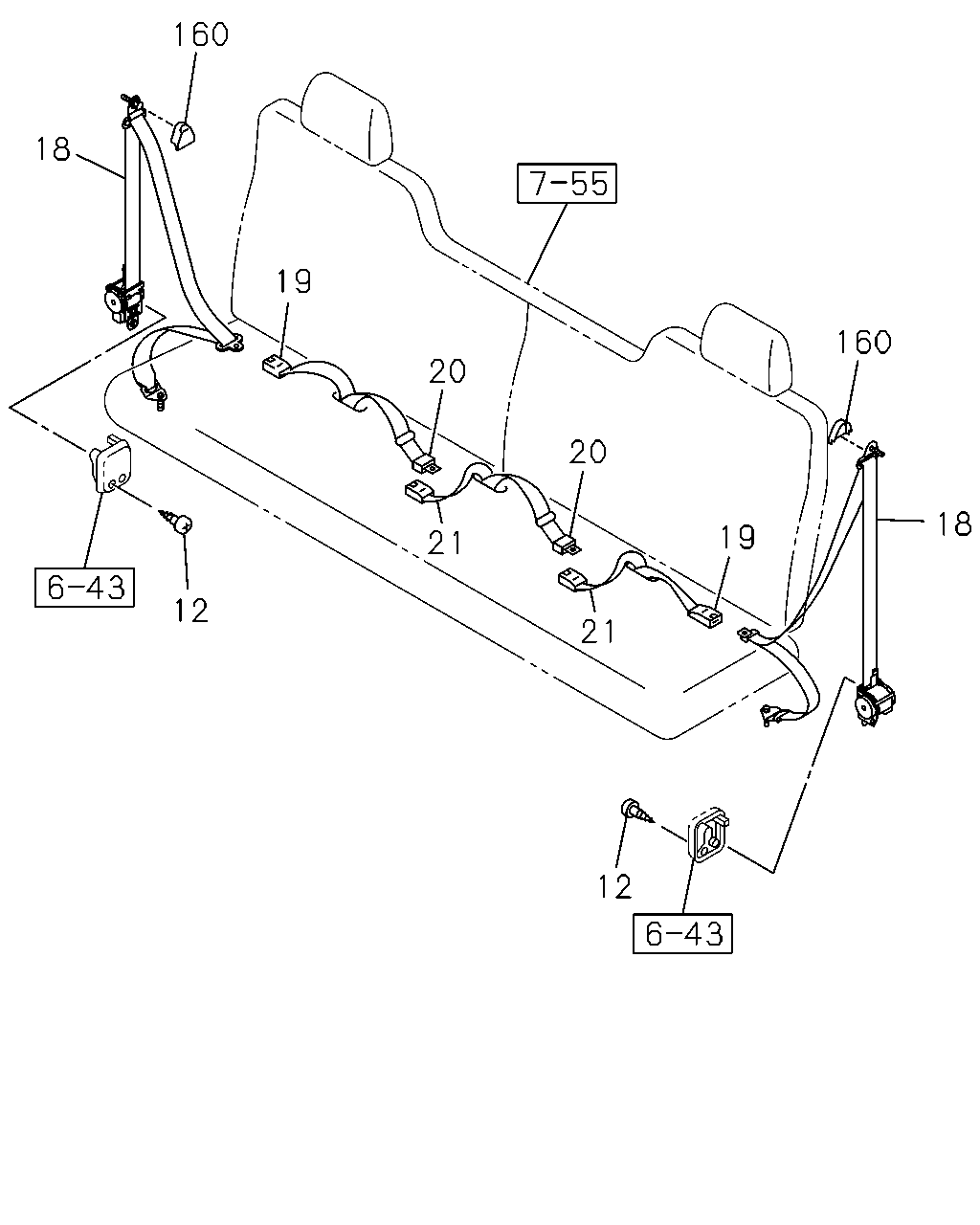

[760A] REAR SEAT (9 parça)
▶
2
3
5
4
160
170
174
145
6
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-456-0
01
1
1501-
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY
8-97428-457-1
01
1
1501-
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97405-175-2
01
1
1501-
●
●
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY
8-97405-178-0
01
1
1501-
●
●
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97405-182-1
01
1
1501-
●
●
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97411-507-2
01
1
1501-
●
●
145
16.714 BELT; TETHER,DRIVER
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY
8-97415-840-0
01
1
1501-
●
160
16.714 COVER; THROUGH ANCHOR
FRONT GRAY
8-97405-991-0
01
1
1501-
●
●
160
16.714 COVER; THROUGH ANCHOR
REAR GRAY
8-97405-991-0
02
1
1501-
●
163
16.714 COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
1501-
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-456-0
01
1
1501-
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-457-1
01
1
1501-
●
●
174
16.714 COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
1501-
●
165
166
169
168
167
166
161
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545
8-98015-216-2
01
1
1501-
●
165
16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA>
8-98040-143-0
01
1
1501-
●
165
16.714 HOOK; SEAT BELT ANCHOR
8-98040-143-0
01
1
1501-
●
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
05
1
1501-
●
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1501-
●
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1501-
●
166
16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE
0-28050-820-0
02
1
1501-
●
167
16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA>
8-97589-140-0
01
1
1501-
●
167
16.714 PLATE; ANCHOR
8-97589-140-0
01
1
1501-
●
168
16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE
0-91180-108-0
02
1
1501-
●
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
1501-
●
169
16.650 SEAL
02.580 OD=36 T=0.05 BLACK
5-76777-035-0
02
1
1501-
●
160
18
19
20
20
21
12
21
19
160
18
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING
0-74360-414-0
04
1
1501-
●
18
16.714 BELT; SEAT,RR
GRAY
8-97405-185-8
02
1
1501-
●
19
16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY
8-97405-992-3
02
1
1501-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97411-511-3
01
1
1501-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97411-512-3
01
1
1501-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY
8-97405-993-0
01
1
1501-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY
8-97407-144-0
01
1
1501-
●
160
16.714 COVER; THROUGH ANCHOR
FRONT GRAY
8-97405-991-0
01
1
1501-
●
●
160
16.714 COVER; THROUGH ANCHOR
REAR GRAY
8-97405-991-0
02
1
1501-
●
