Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#155282) — 23 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

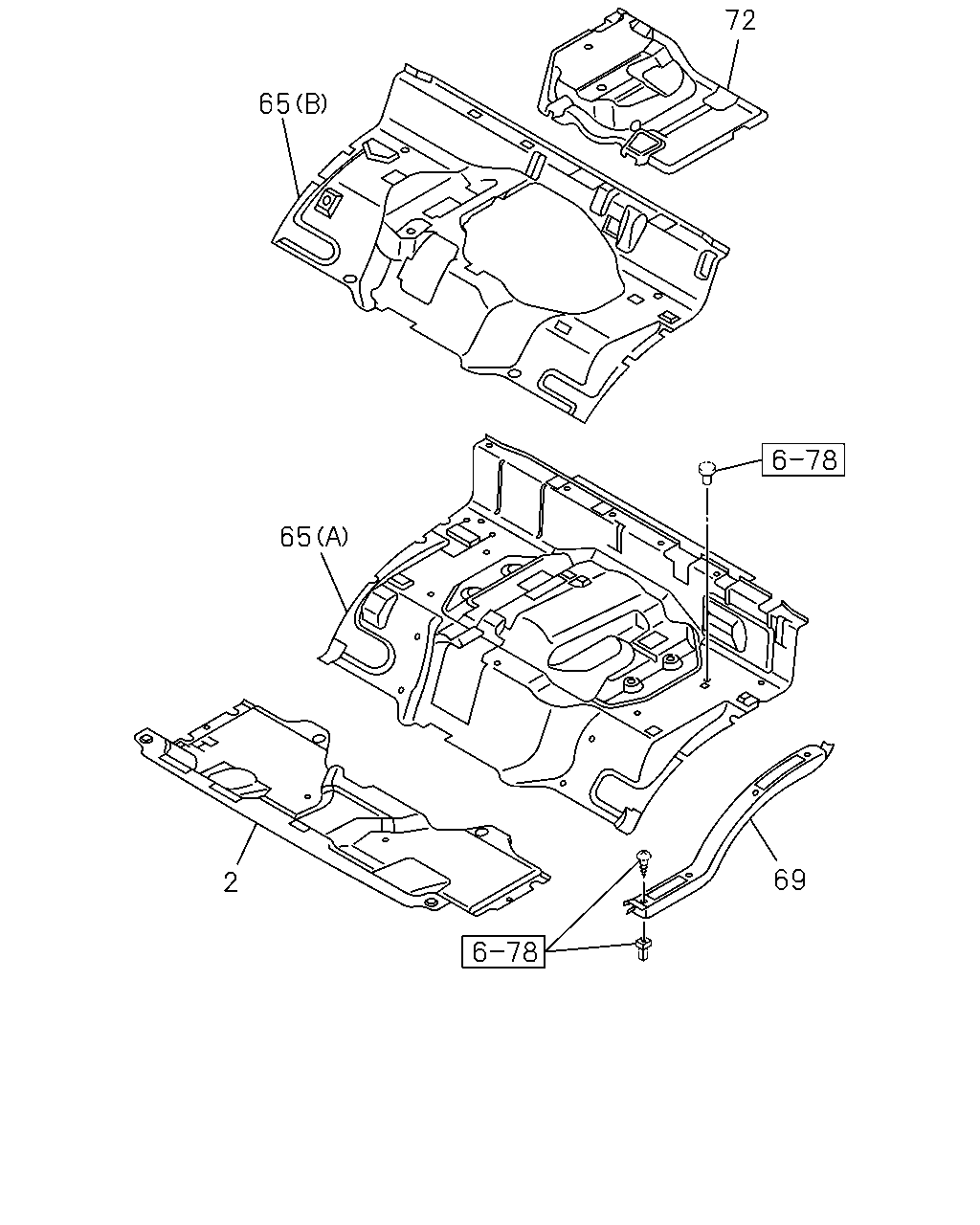

[675A] SGL CAB (9 parça)

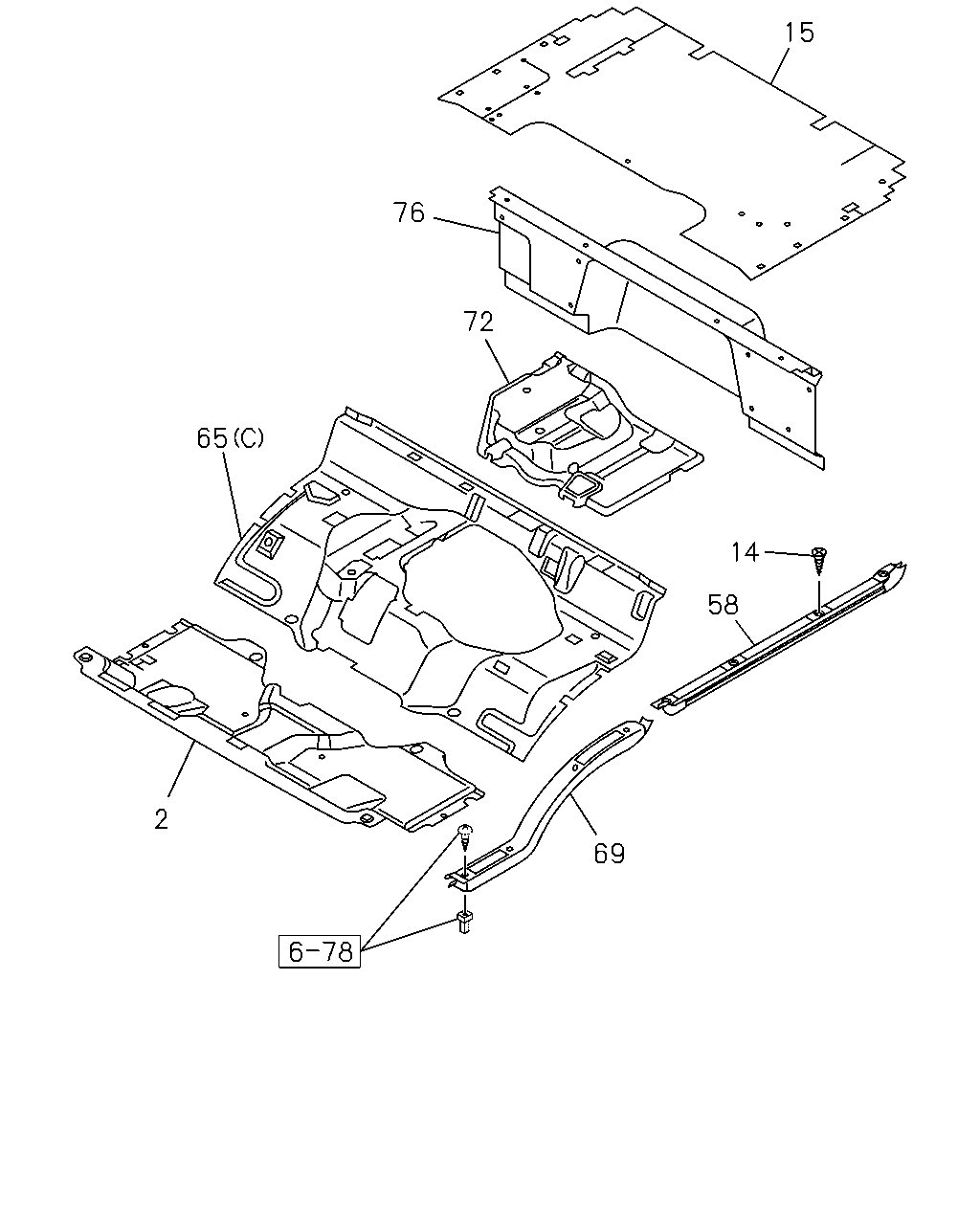

[675A] DBL CAB (14 parça)
▶
65
72
65
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.800 MAT; FLOOR
GRAY
8-97405-147-6
01
1
1501-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3> (B) GRAY
8-97425-110-1
01
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-119-1
01
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-122-1
01
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97425-111-1
01
1
1501-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1501-
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1501-
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
1501-
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97406-252-3
01
1
1501-
●
76
65
72
15
14
58
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.800 MAT; FLOOR
GRAY
8-97405-147-6
01
1
1501-
●
●
14
16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1501-
●
15
16.800 MAT; FLOOR REAR
GRAY
8-97412-602-1
01
1
1501-
●
58
08.153 PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3> (B) GRAY
8-97425-110-1
01
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-119-1
01
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-122-1
01
1
1501-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97425-111-1
01
1
1501-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1501-
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1501-
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
1501-
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97406-252-3
01
1
1501-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY
8-97412-600-1
01
1
1501-1511
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY
8-97467-183-0
01
1
1512-
●
