Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#155279) — 24 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

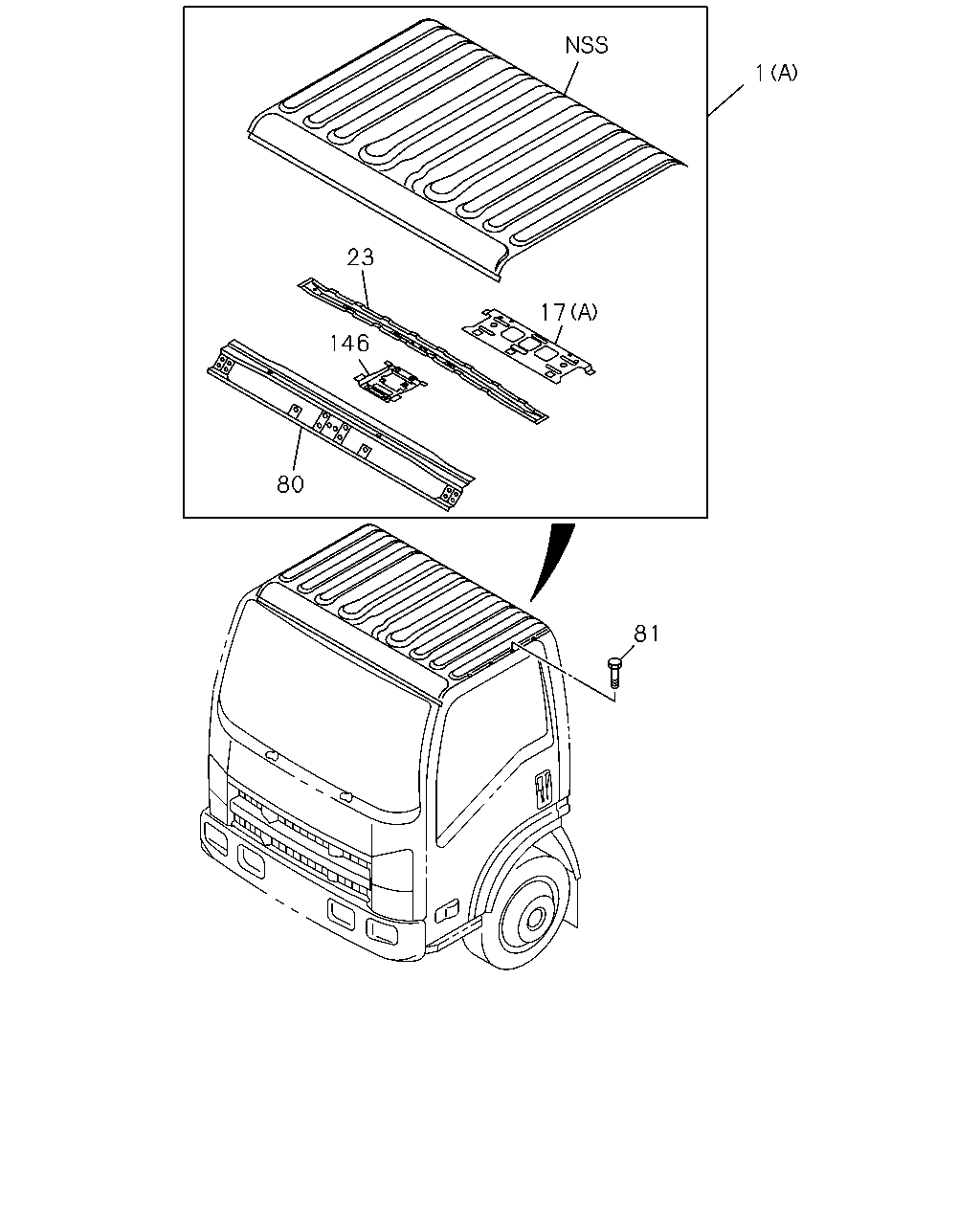

[660A] SGL CAB (9 parça)

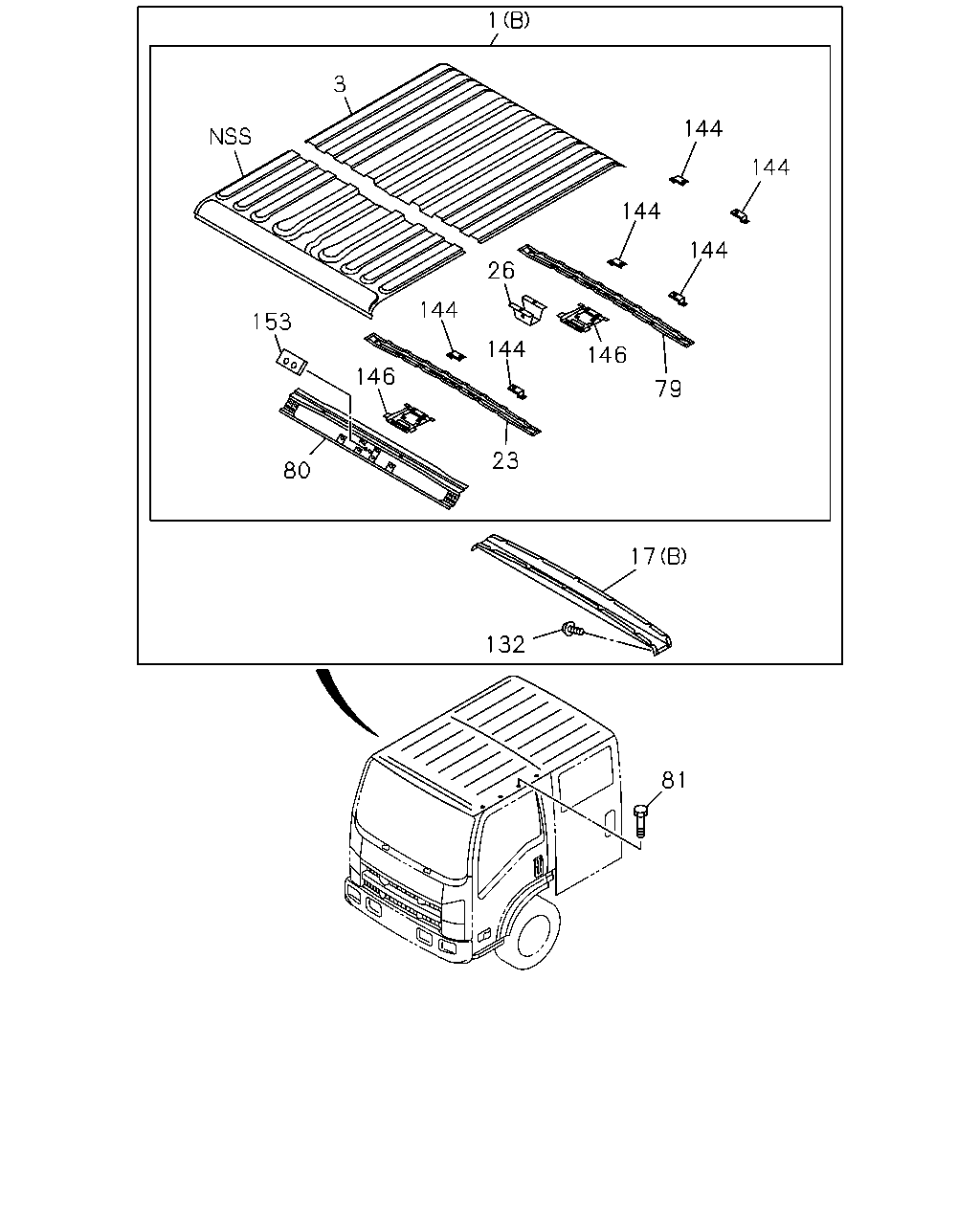

[660A] DBL CAB (15 parça)
▶
1
17
23
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
(A)
8-98287-349-0
01
1
1501-
●
1
16.585 PANEL; ROOF
(B)
8-98286-545-0
01
1
1501-
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
(A)
8-97584-203-5
01
1
1501-
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
(B)
8-97583-763-1
01
1
1501-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-359-0
01
1
1501-
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-354-0
01
1
1501-
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1501-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1501-
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
02
1
1501-
●
1
144
144
144
144
79
146
3
153
144
26
23
144
146
80
132
17
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
(A)
8-98287-349-0
01
1
1501-
●
1
16.585 PANEL; ROOF
(B)
8-98286-545-0
01
1
1501-
●
3
16.585 PANEL; ROOF,RR
8-98109-819-0
01
1
1501-
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
(A)
8-97584-203-5
01
1
1501-
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
(B)
8-97583-763-1
01
1
1501-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-359-0
01
1
1501-
●
●
26
16.570 BRACKET; ROOF REINF
8-98006-519-0
01
1
1501-
●
79
16.570 REINFORCEMENT; ROOF PANEL,RR
8-97583-761-2
01
1
1501-
●
80
16.585 PANEL; HEADER,ROOF
8-98287-354-0
01
1
1501-
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1501-
●
●
132
16.585 FASTENER; HEADER SHELF
16.650 T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
05
1
1501-
●
144
16.585 BRACKET; ROOF
8-98013-931-1
06
1
1501-
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1501-
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
02
1
1501-
●
153
16.570 STIFFENER; HEADER,ROOF
8-98094-096-0
01
1
1501-
●
