Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
5 - Frame, Cab Mounting
▶

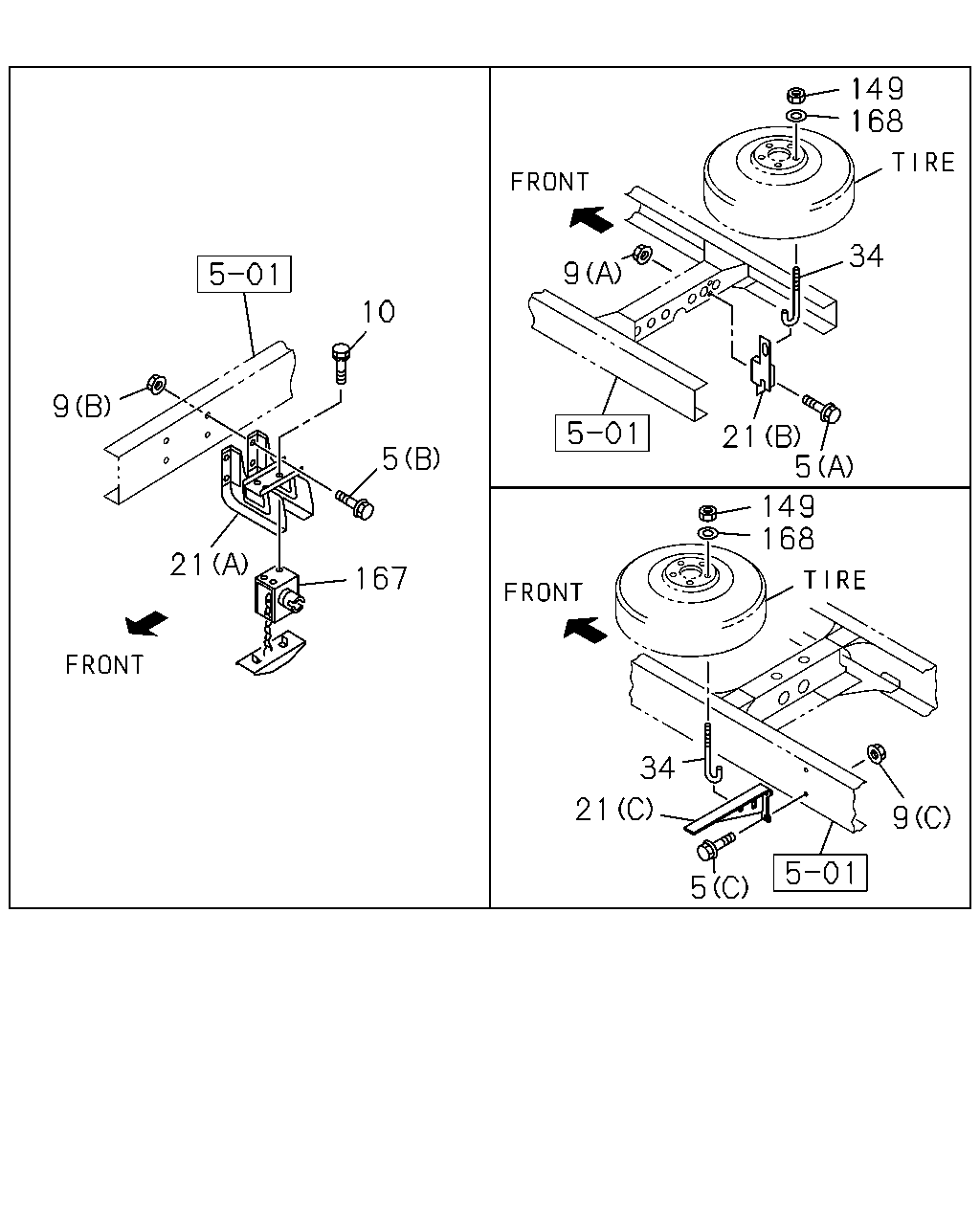

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#155262) — 16 parça
Tümü
A - NPS5SN
B - NPS5WN
149
9
168
9
34
10
21
5
167
21
149
168
34
21
5
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
07.632 BOLT; BRKT TO FRAME
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1501-
●
5
07.632 BOLT; BRKT TO FRAME
09.171 (B) M10X25 FLANGE
0-28051-025-0
04
1
1501-
●
●
5
07.632 BOLT; BRKT TO FRAME
00.029 (C) M10X30 FLANGE
0-28651-030-0
02
1
1501-
●
9
07.633 NUT; BRKT TO FRAME
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1501-
●
9
07.633 NUT; BRKT TO FRAME
03.162 (B) M10 FLANGE
0-91180-110-0
04
1
1501-
●
●
9
07.633 NUT; BRKT TO FRAME
03.162 (C) M10 FLANGE
0-91180-110-0
02
1
1501-
●
10
07.632 BOLT; TIRE HANGER
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) 01.531 M8X20 FLANGE
0-28650-820-0
03
1
1501-1503
●
●
10
07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE
0-28650-820-0
03
1
1504-
●
●
21
07.629 BRACKET; SPARE TIRE HANGER
(B)
8-98019-889-0
01
1
1501-
●
21
07.629 BRACKET; SPARE TIRE HANGER
(A)
8-98036-085-2
01
1
1501-
●
●
21
07.629 BRACKET; SPARE TIRE HANGER
(C)
8-98284-802-1
01
1
1501-
●
34
07.629 BOLT; SPARE TIRE
M12X330
8-98226-501-0
02
1
1501-
●
●
149
07.629 NUT; CARRIER
05.002 M12
0-91110-512-0
02
1
1501-
●
●
167
07.629 HANGER; TIRE
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX)
8-97010-955-1
01
1
1501-1503
●
●
167
07.629 HANGER; TIRE
8-97010-955-1
01
1
1504-
●
●
168
07.633 WASHER; SPARE TIRE
07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1501-
●
●
