5-20 — BATTERY CARRIER (#155261) — 46 parça

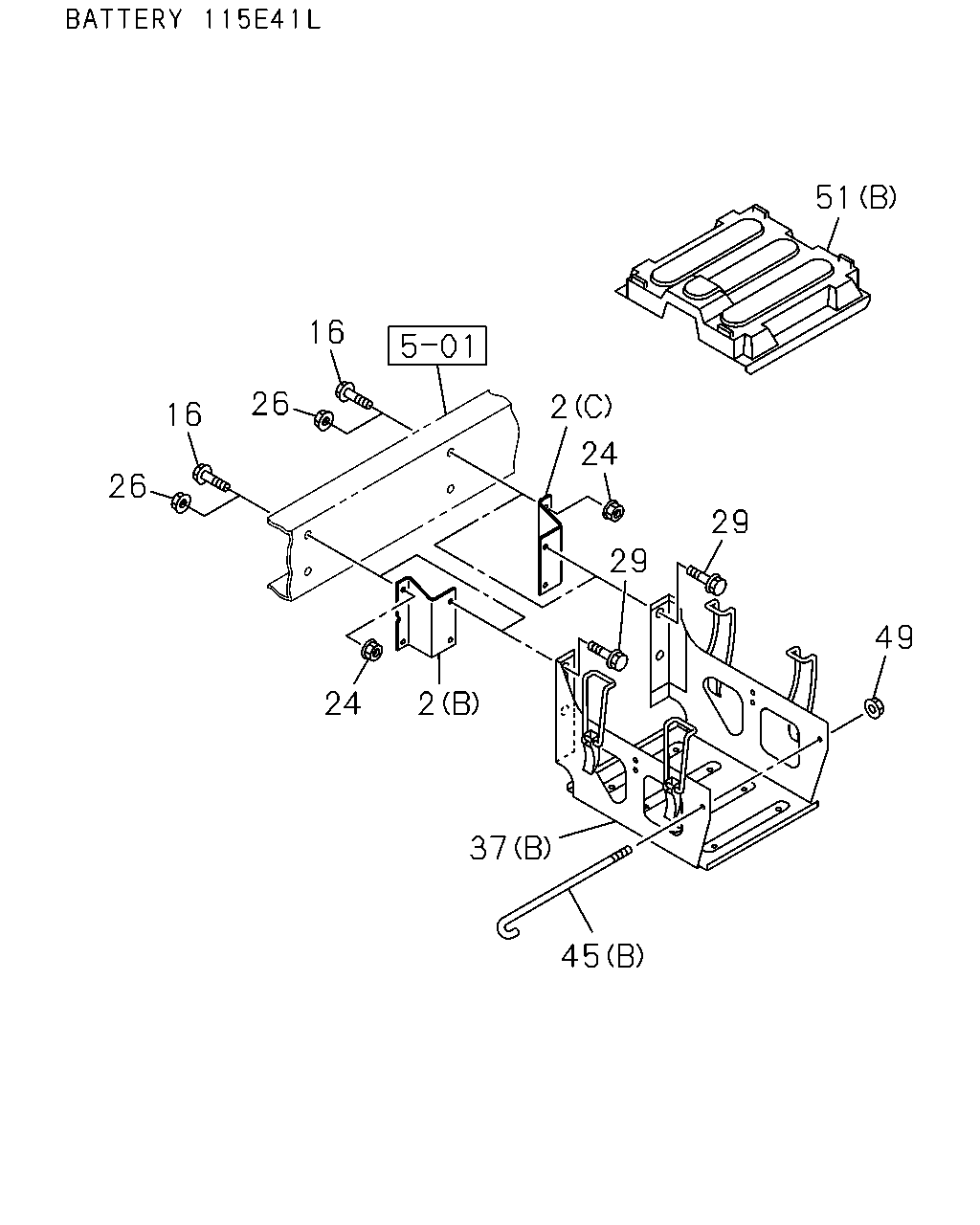

45 37 49 29 29 2 24 24 2 16 26 16 26 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-069-1	02	1	1501-	●
2	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98207-429-1	01	1	1501-	●
2	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98207-430-1	01	1	1501-	●
16	02.334 BOLT; BRKT TO FRAME 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1501-	●
24	02.334 NUT; BRKT TO FRAME BATTERY 80D26L<TM1> 03.162 M10 FLANGE	0-91180-110-0	03	1	1501-	●
24	02.334 NUT; BRKT TO FRAME BATTERY 115E41L<8MA> 03.162 M10 FLANGE	0-91180-110-0	04	1	1501-	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1501-		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1501-	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1501-	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1501-	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1501-1507	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (A) L=120	9-53616-615-0	02	1	1508-	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1501-1507	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 80D26L<TM1> (B) L=430	8-97134-740-0	02	1	1508-	●	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1501-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1501-1507	●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41L<8MA> (A)	8-97120-747-0	01	1	1508-	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1501-1507	●	●
51	02.335 COVER; BATTERY EXC. BATTERY 80D26L<TM1> (B)	1-53612-029-1	01	1	1508-	●	●

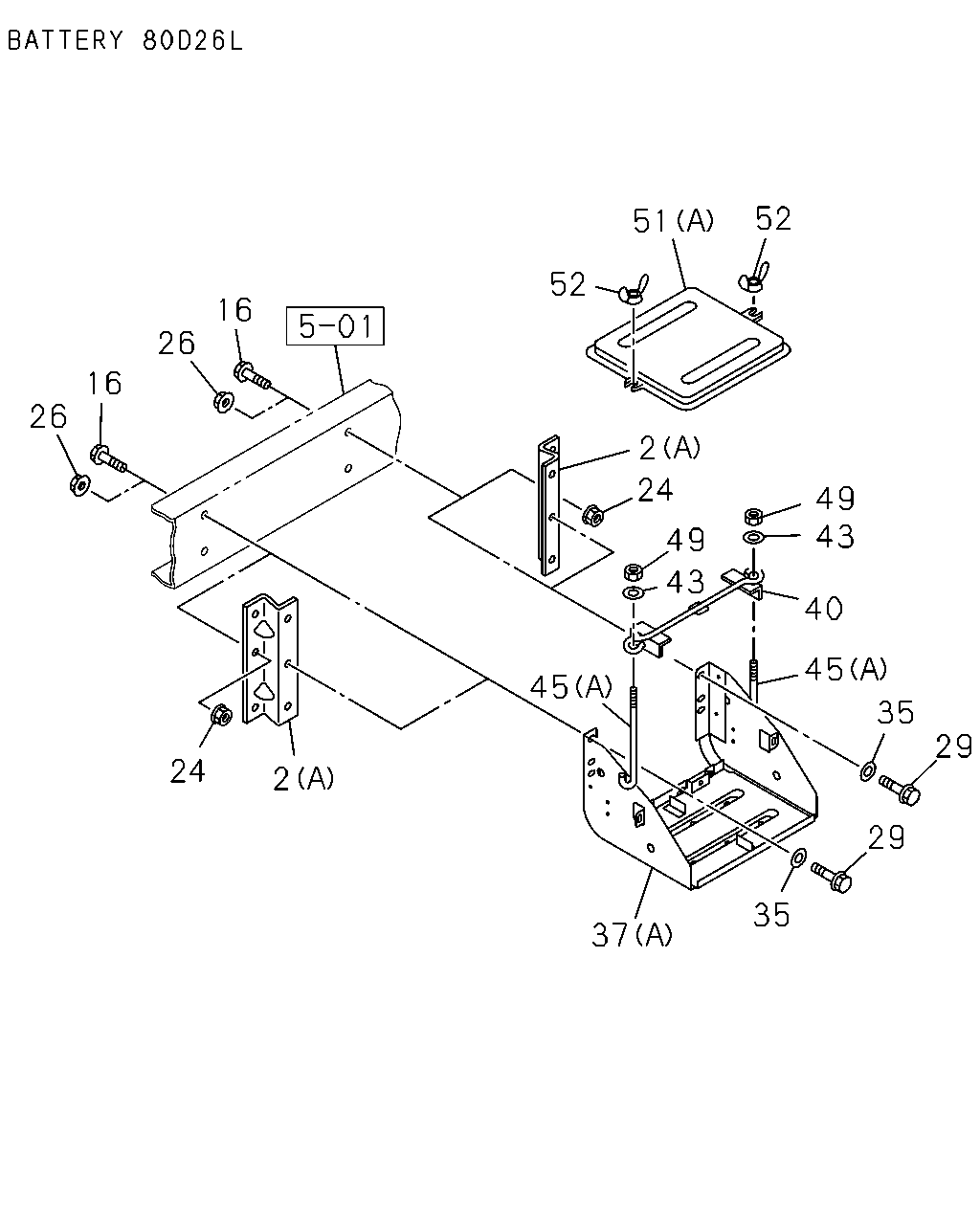

37 35 29 29 35 45 40 43 49 52 51 52 2 24 49 43 45 2 24 26 16 26 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-069-1	02	1	1501-	●
2	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98207-429-1	01	1	1501-	●
2	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98207-430-1	01	1	1501-	●
16	02.334 BOLT; BRKT TO FRAME 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1501-	●
24	02.334 NUT; BRKT TO FRAME BATTERY 80D26L<TM1> 03.162 M10 FLANGE	0-91180-110-0	03	1	1501-	●
24	02.334 NUT; BRKT TO FRAME BATTERY 115E41L<8MA> 03.162 M10 FLANGE	0-91180-110-0	04	1	1501-	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1501-		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1501-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1501-1507	●	●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41L<8MA> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1501-	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1501-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1501-1507	●	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1508-	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1501-1507	●	●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1501-1507	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (A) L=120	9-53616-615-0	02	1	1508-	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1501-1507	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 80D26L<TM1> (B) L=430	8-97134-740-0	02	1	1508-	●	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1501-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1501-1507	●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41L<8MA> (A)	8-97120-747-0	01	1	1508-	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1501-1507	●	●
51	02.335 COVER; BATTERY EXC. BATTERY 80D26L<TM1> (B)	1-53612-029-1	01	1	1508-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1501-1507	●	●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
