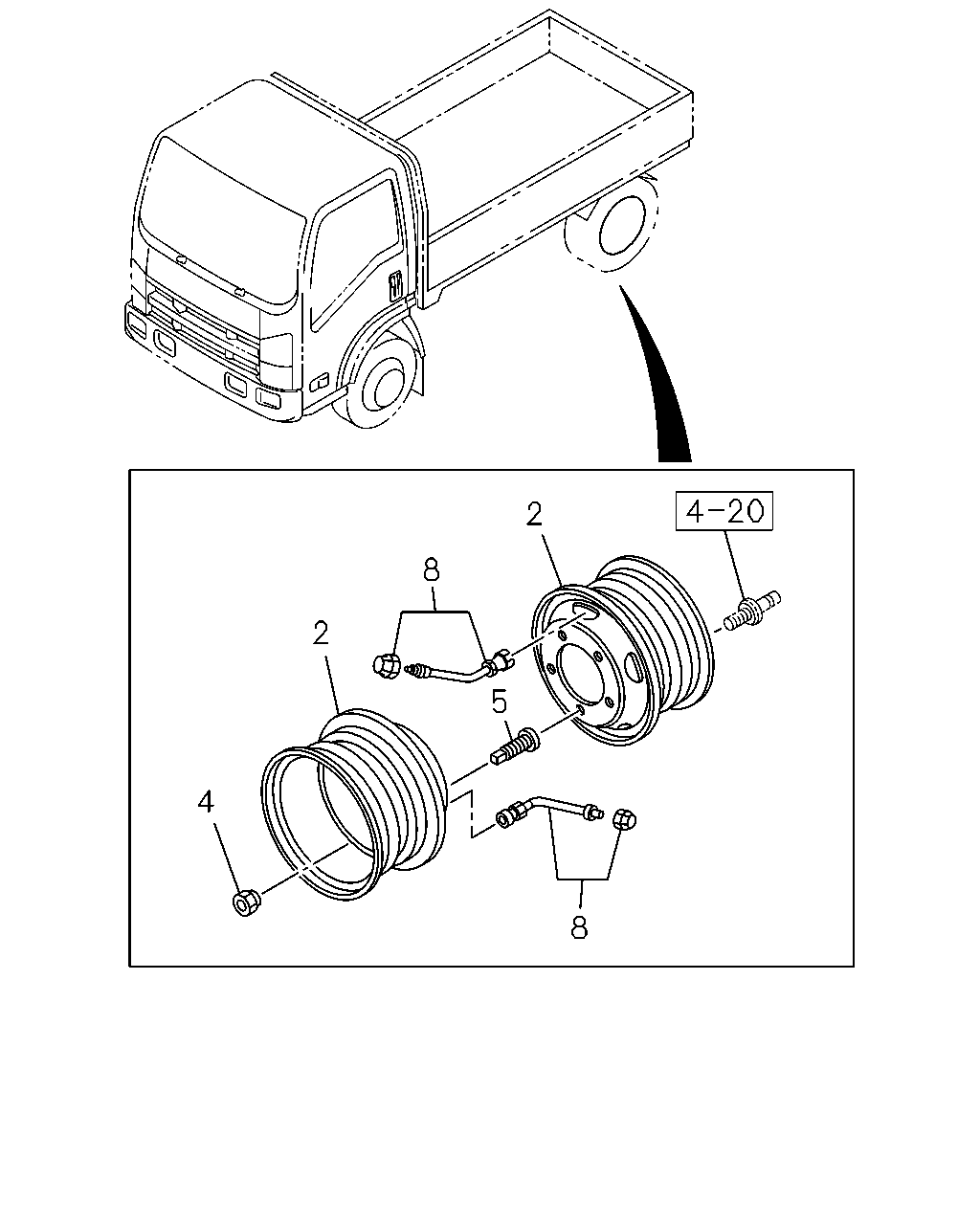

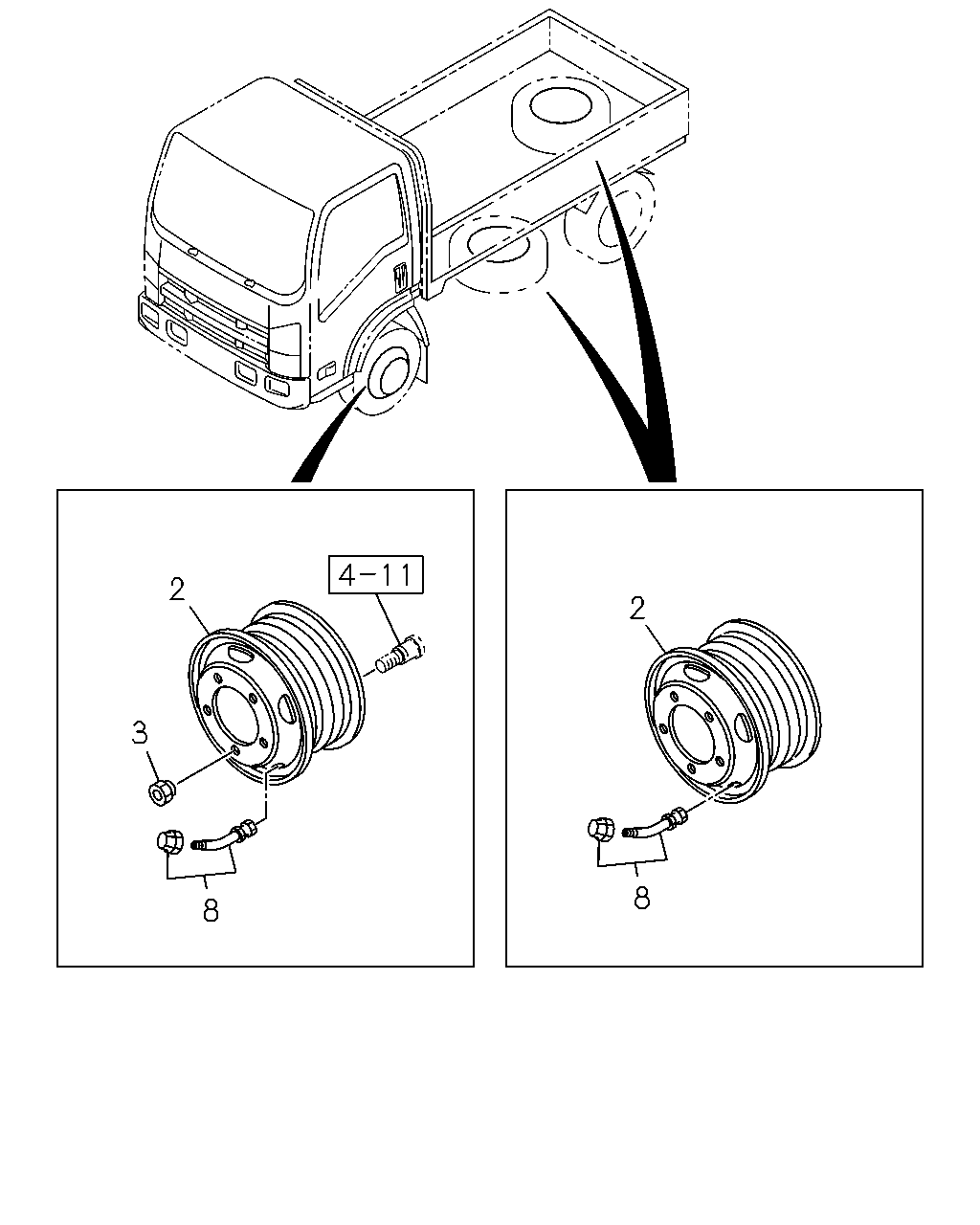

4-80 — ROAD WHEEL (#155257) — 26 parça

2 8 8 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1504-	●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X 6.00-127 6-WHL/NUT(CVX) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1504-	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1501-1503	●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1504-	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1501-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1501-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1501-	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) REAR	8-98221-112-0	04	1	1504-	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X 6.00-127 6-WHL/NUT(CVX) SPARE	8-98221-112-0	01	1	1504-	●	●
8	05.875 VALVE; TIRE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) SPARE	8-98221-112-0	01	1	1501-1503	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT	8-98221-112-0	02	1	1504-	●	●
8	05.875 VALVE; TIRE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) FRONT,REAR	8-98221-112-0	06	1	1501-	●	●

2 8 2 4 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1504-	●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X 6.00-127 6-WHL/NUT(CVX) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1504-	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1501-1503	●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1504-	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1501-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1501-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1501-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1501-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1501-	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) REAR	8-98221-112-0	04	1	1504-	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X 6.00-127 6-WHL/NUT(CVX) SPARE	8-98221-112-0	01	1	1504-	●	●
8	05.875 VALVE; TIRE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) SPARE	8-98221-112-0	01	1	1501-1503	●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT	8-98221-112-0	02	1	1504-	●	●
8	05.875 VALVE; TIRE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) FRONT,REAR	8-98221-112-0	06	1	1501-	●	●
