4-65 — REAR LEAF SPRING (#155256) — 87 parça

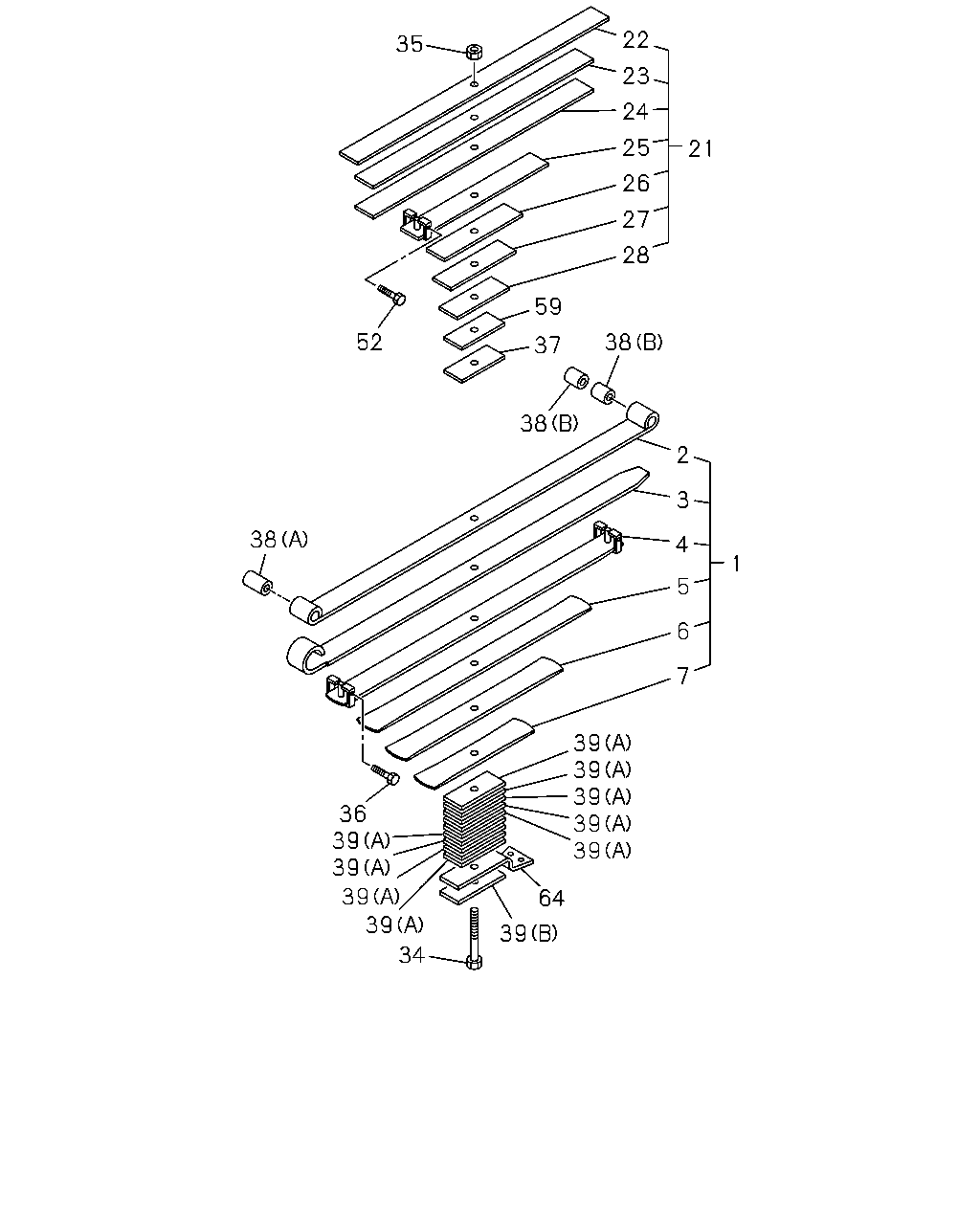

35 52 38 36 39 39 39 39 34 39 39 64 39 39 39 7 1 2 3 4 6 38 37 38 59 22 23 24 26 25 27 21 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-402-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-906-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-403-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-893-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-404-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-894-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-405-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-895-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-407-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-897-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-408-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-898-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-409-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-907-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-410-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-899-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-411-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-900-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-412-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-901-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-413-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-902-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-414-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-903-0	01	1	-
27	07.505 SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-415-0	01	1	-
27	07.505 SPRING; LEAF,NO 6,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-904-0	01	1	-
28	07.505 SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-416-0	01	1	-
28	07.505 SPRING; LEAF,NO 7,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-905-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-98095-022-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94407-133-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98089-683-1, 98089683	8-98095-025-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-98305-313-0, 98305313	8-98095-025-0	11	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98089-683-1, 98089683	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN (A), T=9 ASM PART: A = 8-98089-683-1, 98089683	1-51377-139-0	09	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN (A), T=8 ASM PART: B = 8-98305-313-0, 98305313	1-51377-146-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94367-965-0	01	1	-
52	07.506 BOLT; CLIP,LEAF SPR,RR SUB M8X90.5 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94407-133-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, T=6 ASM PART: A = 8-98089-683-1, 98089683	8-94367-965-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98089-683-1, 98089683	8-97044-353-2	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-98305-313-0, 98305313	8-98326-080-0	01	1	-

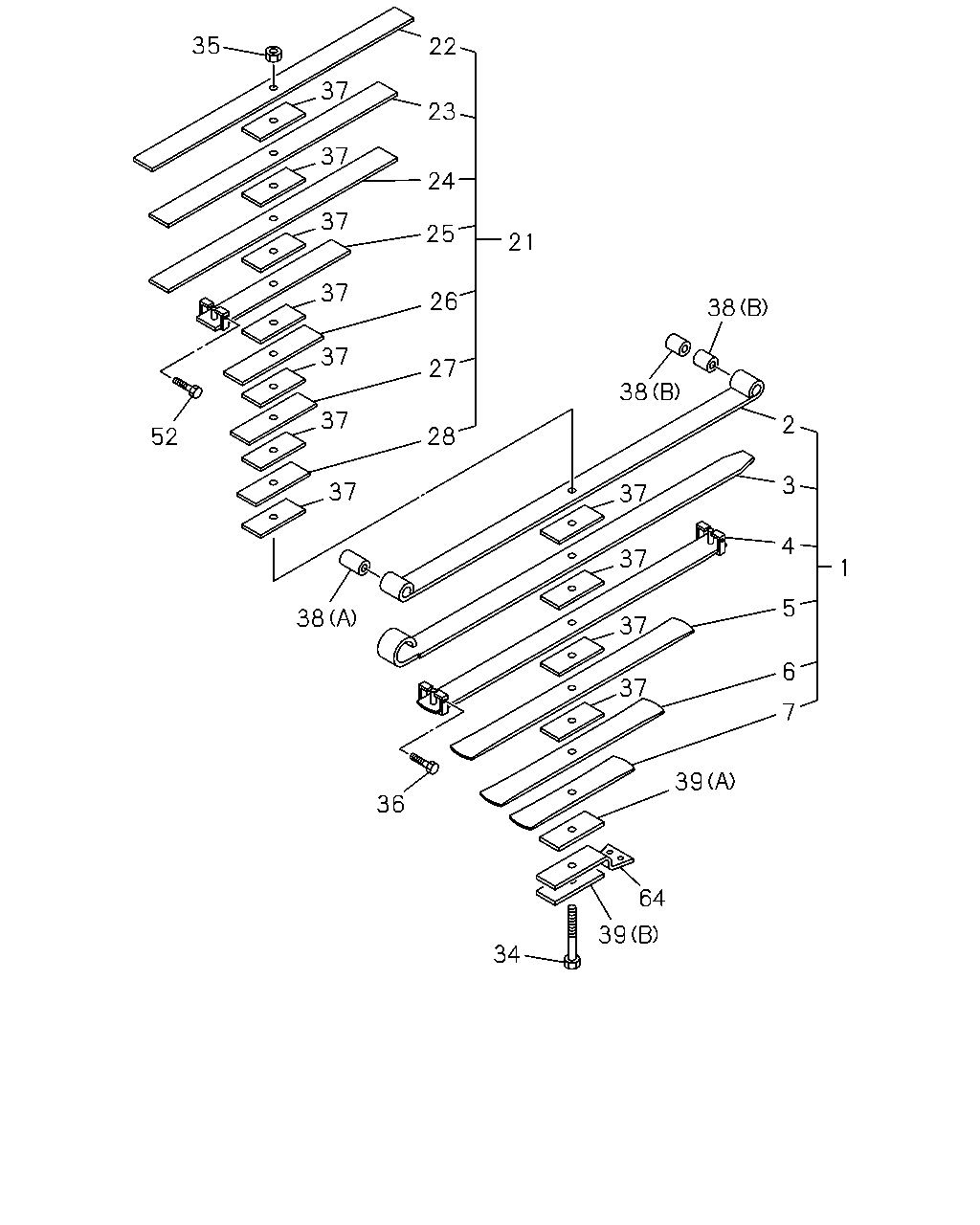

35 52 37 37 37 37 37 37 37 28 27 26 25 24 23 22 21 38 36 34 39 64 39 37 37 37 37 38 38 2 3 4 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-402-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-906-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-403-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-893-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-404-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-894-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-405-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-895-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-406-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-896-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-407-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-897-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98089-683-1, 98089683	8-98094-408-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98305-313-0, 98305313	8-98336-898-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-409-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-907-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-410-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-899-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-411-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-900-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-412-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-901-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-413-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-902-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-414-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-903-0	01	1	-
27	07.505 SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-415-0	01	1	-
27	07.505 SPRING; LEAF,NO 6,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-904-0	01	1	-
28	07.505 SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98089-683-1, 98089683	8-98094-416-0	01	1	-
28	07.505 SPRING; LEAF,NO 7,RR SUB ASM PART: B = 8-98305-313-0, 98305313	8-98336-905-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=240 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-98095-022-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94407-133-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98089-683-1, 98089683	8-98095-025-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-98305-313-0, 98305313	8-98095-025-0	11	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98089-683-1, 98089683	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN (A), T=9 ASM PART: A = 8-98089-683-1, 98089683	1-51377-139-0	09	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN (A), T=8 ASM PART: B = 8-98305-313-0, 98305313	1-51377-146-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94367-965-0	01	1	-
52	07.506 BOLT; CLIP,LEAF SPR,RR SUB M8X90.5 ASM PART: A = 8-98089-683-1, 98089683, B = 8-98305-313-0, 98305313	8-94407-133-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98089-683-1, 98089683	8-97044-353-2	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-98305-313-0, 98305313	8-98326-080-0	01	1	-
