◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#155252) — 31 parça

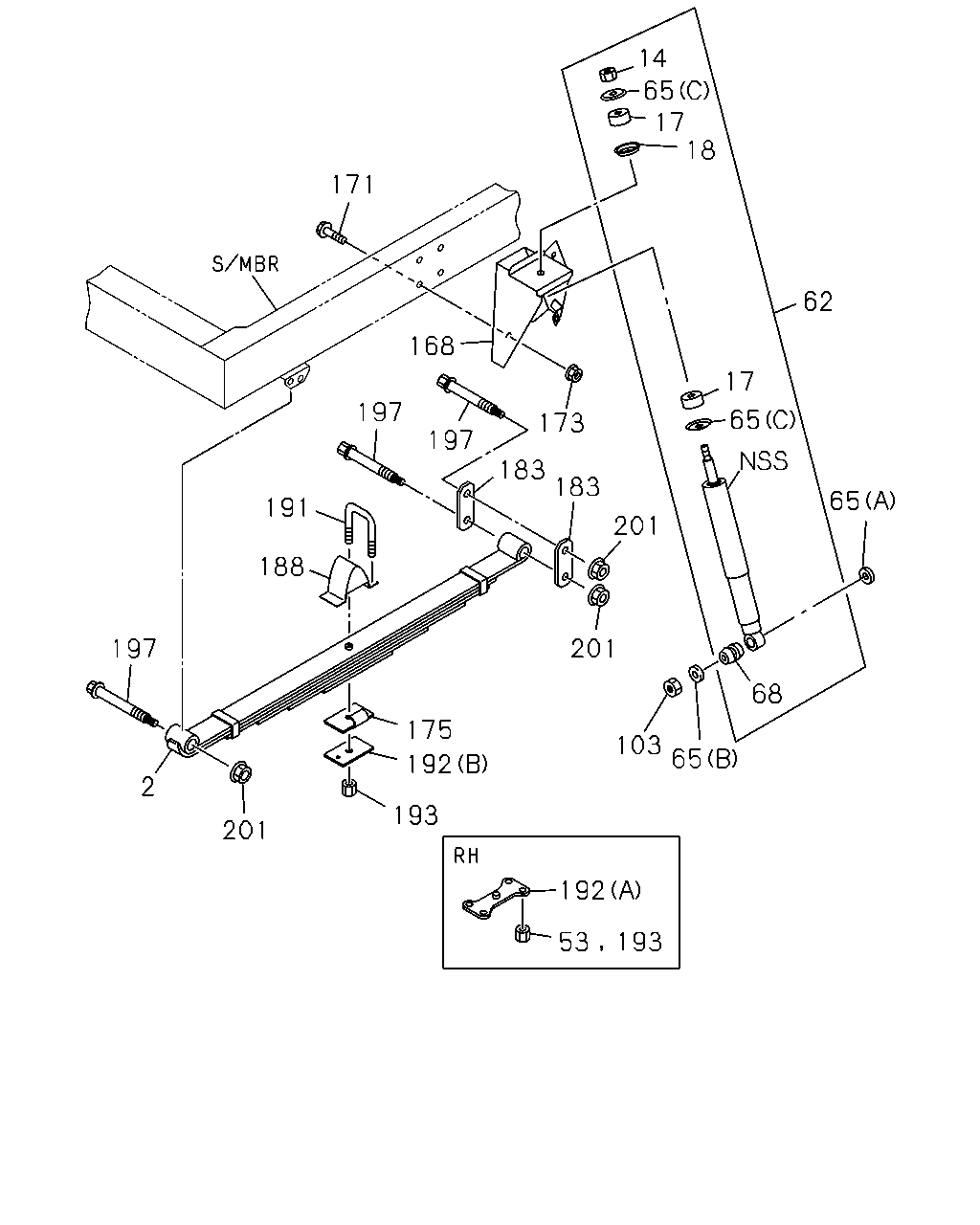

çizim 464954
14 18 65 17 62 17 65 65 68 65 192 53 193 193 201 175 192 2 197 191 188 197 168 173 197 183 183 201 201 103 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 5-LEAF 		8-98305-310-0 01 1 1504- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 5-LEAF 		8-98305-311-0 01 1 1504- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-401-0 01 1 1501-1503 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 5-LEAF 		8-98090-401-0 01 1 1504- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-402-0 01 1 1501-1503 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 5-LEAF 		8-98090-402-0 01 1 1504- ● ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1501- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1501- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1501- ● ●
53 06.174 NUT; LWR LINK
M14 FLANGE 		8-97360-124-0 02 1 1501- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97376-928-1 02 1 1501- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97367-351-1 02 1 1501- ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1501- ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1501- ● ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1501- ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1501- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1501- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98285-473-0 01 1 1501- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98049-995-4 01 1 1501- ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 04 1 1501- ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 03 1 1501- ● ●
175 06.170 SPACER; BRKT,S/ABS
07.518 		8-94311-841-2 02 1 1501- ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1501- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98090-443-0 02 1 1501- ● ●
191 07.417 U-BOLT; FRT SPR
L=185 		8-94461-227-4 02 1 1501- ● ●
191 07.417 U-BOLT; FRT SPR
L=275 		8-94461-228-2 02 1 1501- ● ●
192 07.436 PIECE; DIST
(A) 		8-94462-218-2 01 1 1501- ● ●
192 07.436 PIECE; DIST
(B) 		8-98049-991-0 02 1 1501- ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1501- ● ●
197 07.427 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 1501- ● ●
201 07.427 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 1501- ● ●
