Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#155245) — 31 parça
Tümü

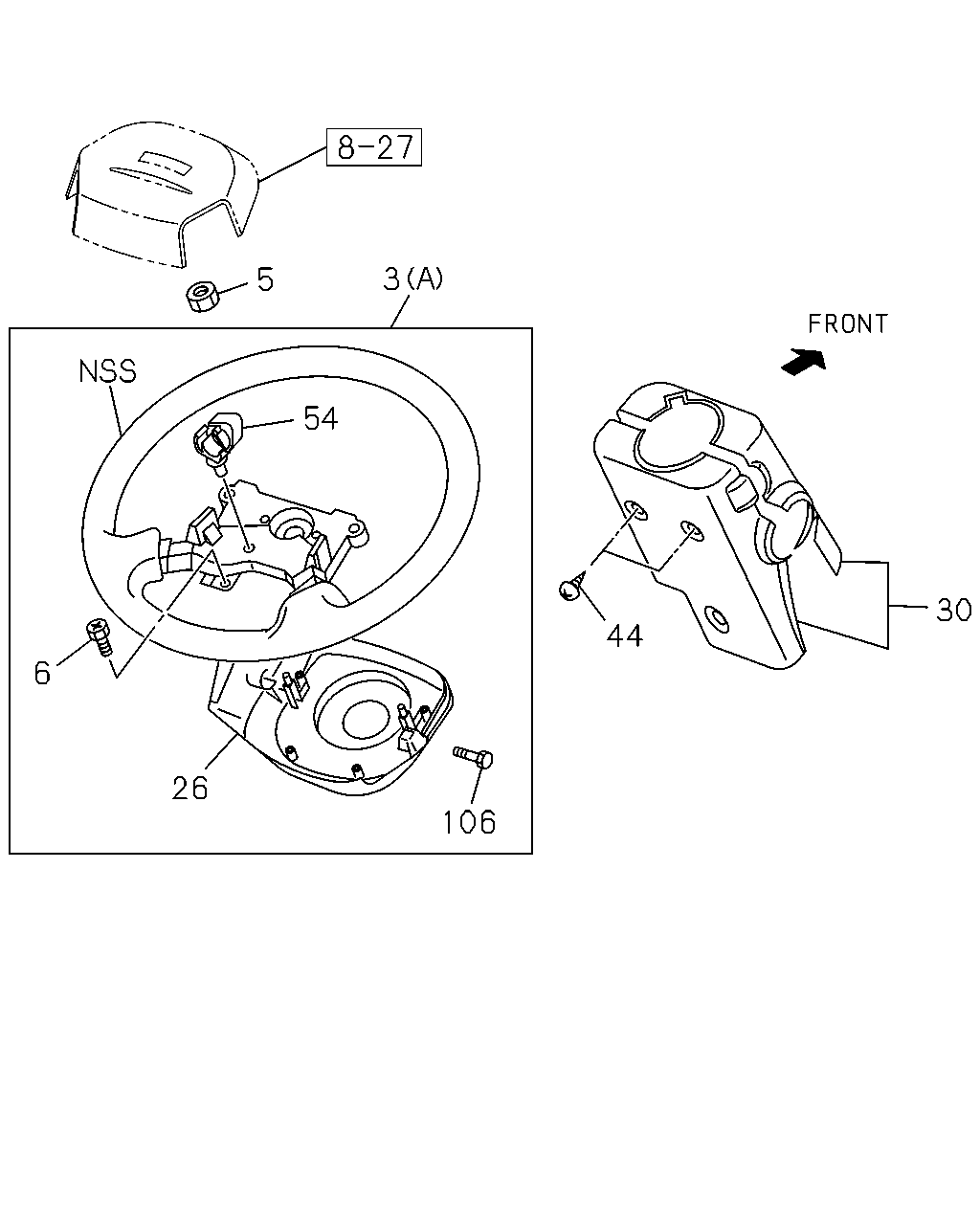

A - NPS5SN

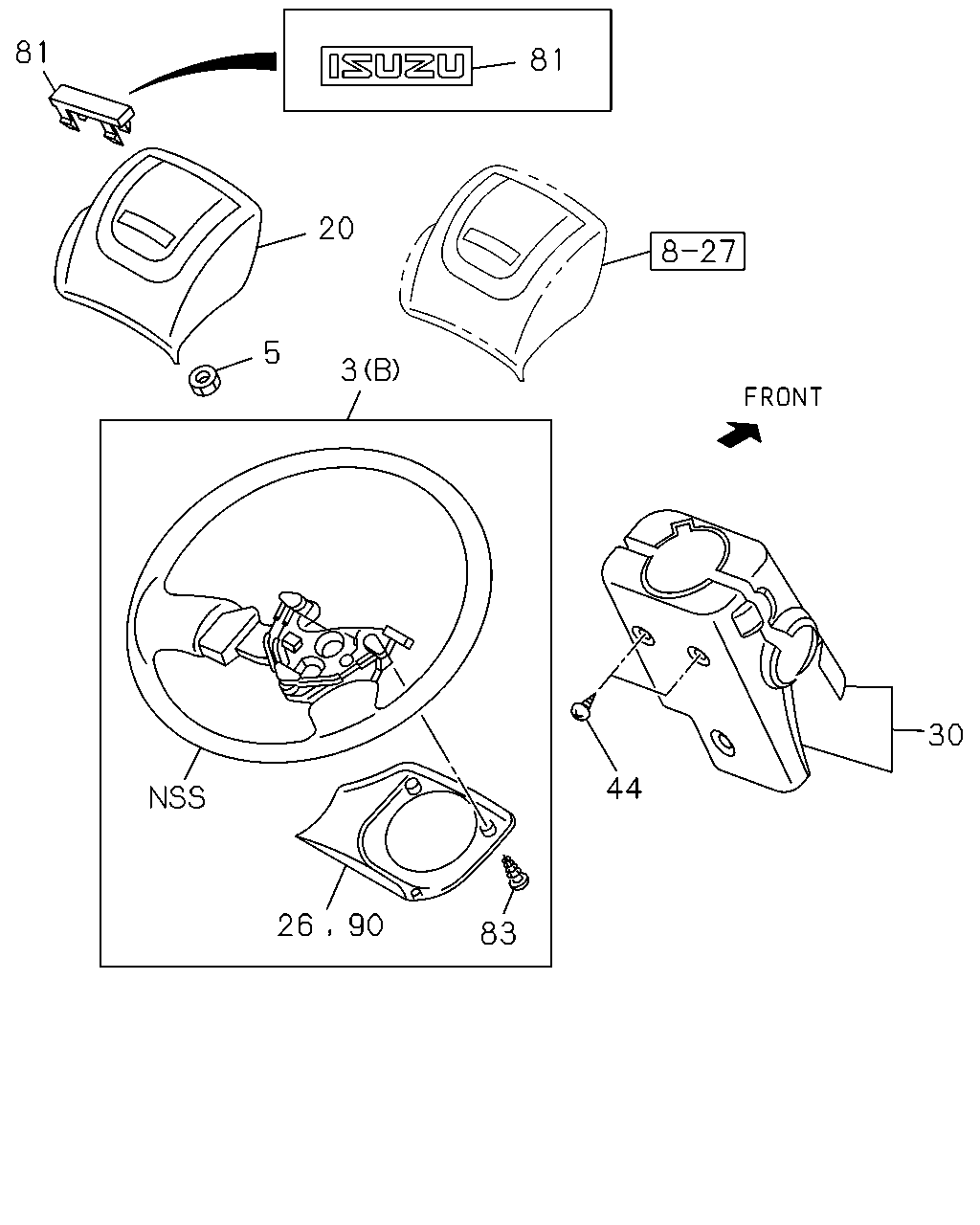

B - NPS5WN
◀
[430A] EXC.SPECIAL PACKAGE (15 parça)
[430A] SPECIAL PACKAGE (16 parça)
▶
5
3
54
6
26
106
44
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97412-556-1
01
1
1504-
●
●
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97423-997-0
01
1
1501-
●
●
3
06.513 WHEEL; STRG
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) DARK GRAY
8-97465-649-2
01
1
1501-
●
●
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (B) DARK GRAY
8-97428-464-5
01
1
1501-
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1501-
●
●
6
02.820 SCREW; HORN SPR CONTACT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> M4X12
8-97167-588-0
04
1
1501-1503
●
●
6
02.820 SCREW; HORN SPR CONTACT
EXC. SPECIAL PACKAGE<7BB> M4X12
8-97167-588-0
04
1
1504-
●
●
26
06.514 COVER; STRG WHEEL,LWR
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY
8-97465-650-0
01
1
1501-
●
●
26
06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY
8-97409-275-2
01
1
1504-
●
●
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> DARK GRAY
8-97421-978-0
01
1
1501-
●
●
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1501-
●
●
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1501-
●
●
54
02.559 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB>
8-98165-703-0
01
1
1501-
●
●
106
05.453 BOLT; TORX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB>
8-98231-397-0
02
1
1501-1503
●
●
106
05.453 BOLT; TORX
EXC. SPECIAL PACKAGE<7BB>
8-98231-397-0
02
1
1504-
●
●
81
20
81
26
90
83
44
30
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97412-556-1
01
1
1504-
●
●
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY
8-97423-997-0
01
1
1501-
●
●
3
06.513 WHEEL; STRG
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B) DARK GRAY
8-97465-649-2
01
1
1501-
●
●
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (B) DARK GRAY
8-97428-464-5
01
1
1501-
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1501-
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY
8-97465-647-0
01
1
1501-
●
●
26
06.514 COVER; STRG WHEEL,LWR
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY
8-97465-650-0
01
1
1501-
●
●
26
06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY
8-97409-275-2
01
1
1504-
●
●
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> DARK GRAY
8-97421-978-0
01
1
1501-
●
●
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1501-
●
●
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1501-
●
●
81
02.820 EMBLEM; STRG WHEEL
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY
8-97465-648-0
01
1
1501-
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> M4X10 TAPPING
8-98319-680-0
03
1
1504-
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
SPECIAL PACKAGE<7BB> 09.242 M4X10 TAPPING
0-71240-410-0
03
1
1501-1503
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 09.242 M4X10 TAPPING
0-71240-410-0
03
1
1504-
●
●
90
06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> DARK GRAY
8-97465-726-2
01
1
1501-
●
●
