4-10 — FRONT AXLE (#155238) — 122 parça

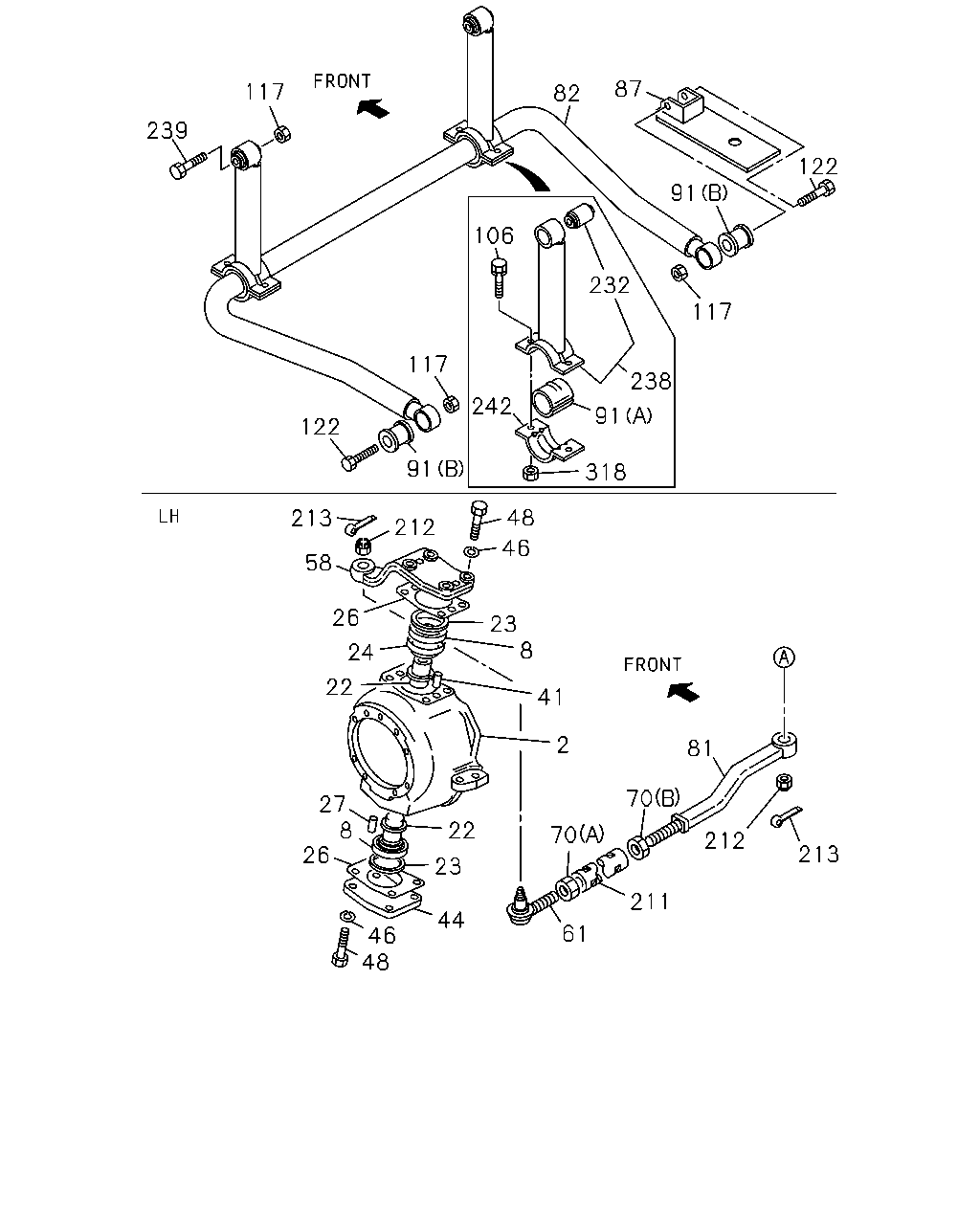

318 91 238 117 91 122 87 82 117 239 122 117 91 242 48 46 23 8 41 2 70 211 61 81 70 212 213 22 23 44 46 26 27 8 48 22 24 26 58 213 212 232 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-98316-045-0	01	1	1506-	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-98316-046-0	01	1	1506-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94458-330-2	01	1	1501-1503	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-94458-330-2	01	1	1504-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94458-331-2	01	1	1501-1503	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-94458-331-2	01	1	1504-	●	●
8	06.021 BEARING; NEEDLE,KING PIN G.V.W. 7.5-8.0TON(RPY)	8-98316-053-0	04	1	1506-	●	●
8	06.021 BEARING; NEEDLE,KING PIN	8-94440-901-0	04	1	1501-1503	●	●
8	06.021 BEARING; NEEDLE,KING PIN G.V.W. 6.0-6.5TON(RPV)	8-94440-901-0	04	1	1504-	●	●
22	06.203 PIN; KING,FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-98317-430-0	04	1	1506-	●	●
22	06.203 PIN; KING,FRT AXLE	8-94440-228-0	04	1	1501-1503	●	●
22	06.203 PIN; KING,FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-94440-228-0	04	1	1504-	●	●
23	07.242 COLLAR; DIST BRG G.V.W. 7.5-8.0TON(RPY)	8-98316-063-0	04	1	1506-	●	●
23	07.242 COLLAR; DIST BRG	8-94440-839-0	04	1	1501-1503	●	●
23	07.242 COLLAR; DIST BRG G.V.W. 6.0-6.5TON(RPV)	8-94440-839-0	04	1	1504-	●	●
24	06.210 RECEIVER; KING PIN G.V.W. 7.5-8.0TON(RPY)	8-98316-052-0	02	1	1506-	●	●
24	06.210 RECEIVER; KING PIN	8-94458-454-0	02	1	1501-1503	●	●
24	06.210 RECEIVER; KING PIN G.V.W. 6.0-6.5TON(RPV)	8-94458-454-0	02	1	1504-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) UPPER T=0.1	8-98316-055-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) UPPER T=0.2	8-98316-056-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) UPPER T=0.5	8-98316-057-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) LOWER T=0.1	8-98316-059-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) LOWER T=0.2	8-98316-060-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) LOWER T=0.5	8-98316-061-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.1	8-94440-840-0	AR	1	1501-1503	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 6.0-6.5TON(RPV) T=0.1	8-94440-840-0	AR	1	1504-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.2	8-94440-841-0	AR	1	1501-1503	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 6.0-6.5TON(RPV) T=0.2	8-94440-841-0	AR	1	1504-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.5	8-94440-842-0	AR	1	1501-1503	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 6.0-6.5TON(RPV) T=0.5	8-94440-842-0	AR	1	1504-	●	●
27	06.203 PIN; STRAIGHT,KING PIN 00.662 OD=4 L=8	9-08160-408-0	04	1	1501-	●	●
41	06.177 PIN; KNOCK,KNUCKLE ARM 00.669	9-08161-028-0	04	1	1501-	●	●
44	06.225 COVER; KING PIN G.V.W. 7.5-8.0TON(RPY)	8-98316-054-0	02	1	1506-	●	●
44	06.225 COVER; KING PIN	8-94440-230-0	02	1	1501-1503	●	●
44	06.225 COVER; KING PIN G.V.W. 6.0-6.5TON(RPV)	8-94440-230-0	02	1	1504-	●	●
46	07.347 WASHER; LK,COVER G.V.W. 7.5-8.0TON(RPY) LOWER ID=12.2	0-91510-812-0	08	1	1506-1509	●	●
46	07.347 WASHER; LK,COVER G.V.W. 7.5-8.0TON(RPY) 06.174 UPPER ID=14.2	0-91510-814-0	08	1	1506-	●	●
46	07.347 WASHER; LK,COVER 06.174 ID=14.2	0-91510-814-0	16	1	1501-1503	●	●
46	07.347 WASHER; LK,COVER G.V.W. 6.0-6.5TON(RPV) 06.174 ID=14.2	0-91510-814-0	16	1	1504-	●	●
48	06.225 BOLT; COVER G.V.W. 7.5-8.0TON(RPY) UPPER	8-98048-539-0	08	1	1506-	●	●
48	06.225 BOLT; COVER G.V.W. 7.5-8.0TON(RPY) LOWER	8-98316-099-0	08	1	1506-	●	●
48	06.225 BOLT; COVER	8-98048-539-0	16	1	1501-1503	●	●
48	06.225 BOLT; COVER G.V.W. 6.0-6.5TON(RPV)	8-98048-539-0	16	1	1504-	●	●
58	06.103 ARM; TIE ROD	8-94440-366-0	01	1	1501-	●	●
61	06.233 ROD END; TIE ROD LH THREAD	8-94419-609-3	02	1	1501-	●	●
70	06.234 NUT; TIE ROD END (B) M20	0-91111-520-0	02	1	1501-	●	●
70	06.234 NUT; TIE ROD END (A) M20 LH THREAD	8-94254-726-0	02	1	1501-	●	●
81	06.230 ROD; TIE	8-94440-365-0	02	1	1501-	●	●
82	07.241 BAR; STAB,FRT SUSP	8-94322-468-2	01	1	1501-	●	●
87	07.242 BRACKET; STABILIZER	8-94321-458-0	01	1	1501-	●	●
91	07.243 BUSHING; RUBBER,STAB BAR (A)	8-94440-793-0	02	1	1501-	●	●
91	07.243 BUSHING; RUBBER,STAB BAR (B)	8-97239-911-0	02	1	1501-	●	●
106	06.216 BOLT; CAP FIX 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1501-	●	●
117	06.174 NUT; STAB BAR BUSHING M14 FLANGE	8-97360-124-0	02	1	1501-	●	●
122	07.242 BOLT; BRKT M14X70 FLANGE	0-28851-470-0	02	1	1501-	●	●
193	06.216 WASHER; PL,STRG ARM BRKT ID=15	0-91614-614-0	01	1	1501-	●	●
211	06.233 ROD ASM; STEERING TIE ROD	8-94458-045-0	02	1	1501-	●	●
212	06.216 NUT; STRG ROD M16 SLOTTED	8-98049-689-0	02	1	1501-	●	●
213	06.203 PIN; COTTER,STRG ROD OD=3.7 L=25	0-81124-025-0	04	1	1501-	●	●
232	07.243 BUSHING; LINK ROD	8-97239-911-0	02	1	1501-	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT	8-97138-300-1	02	1	1501-	●	●
239	07.242 BOLT; LINK ROD M14X70 FLANGE	0-28851-470-0	02	1	1501-	●	●
242	07.242 CAP; LINK ROD	8-94178-430-2	02	1	1501-	●	●
318	07.242 NUT; CAP FIX 03.162 M10 FLANGE	0-91180-110-0	04	1	1501-	●	●

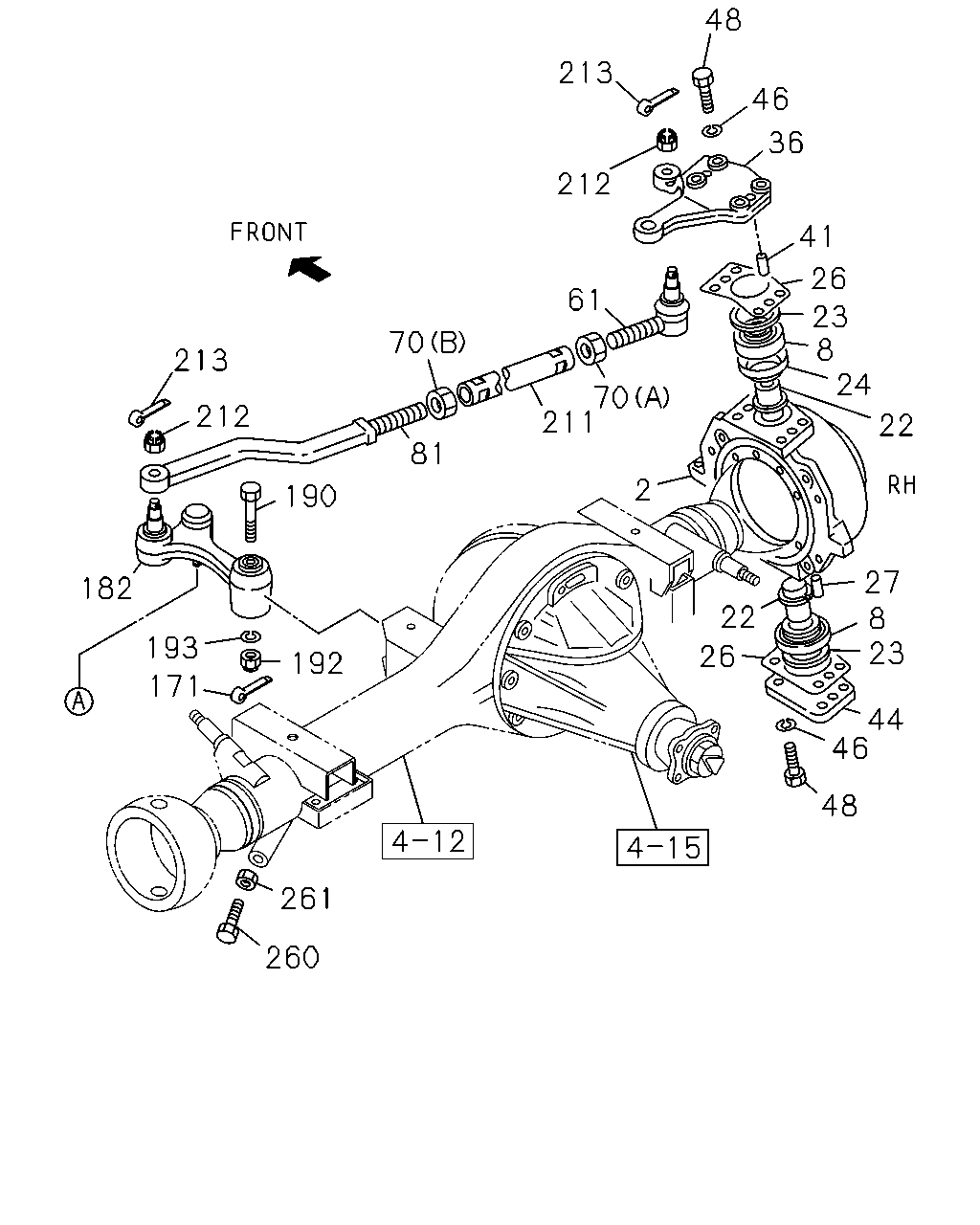

48 46 23 44 8 27 22 24 8 23 26 41 36 48 213 212 61 70 211 81 70 213 212 190 182 93 171 192 261 260 26 22 2 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-98316-045-0	01	1	1506-	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-98316-046-0	01	1	1506-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94458-330-2	01	1	1501-1503	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-94458-330-2	01	1	1504-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94458-331-2	01	1	1501-1503	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-94458-331-2	01	1	1504-	●	●
8	06.021 BEARING; NEEDLE,KING PIN G.V.W. 7.5-8.0TON(RPY)	8-98316-053-0	04	1	1506-	●	●
8	06.021 BEARING; NEEDLE,KING PIN	8-94440-901-0	04	1	1501-1503	●	●
8	06.021 BEARING; NEEDLE,KING PIN G.V.W. 6.0-6.5TON(RPV)	8-94440-901-0	04	1	1504-	●	●
22	06.203 PIN; KING,FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-98317-430-0	04	1	1506-	●	●
22	06.203 PIN; KING,FRT AXLE	8-94440-228-0	04	1	1501-1503	●	●
22	06.203 PIN; KING,FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-94440-228-0	04	1	1504-	●	●
23	07.242 COLLAR; DIST BRG G.V.W. 7.5-8.0TON(RPY)	8-98316-063-0	04	1	1506-	●	●
23	07.242 COLLAR; DIST BRG	8-94440-839-0	04	1	1501-1503	●	●
23	07.242 COLLAR; DIST BRG G.V.W. 6.0-6.5TON(RPV)	8-94440-839-0	04	1	1504-	●	●
24	06.210 RECEIVER; KING PIN G.V.W. 7.5-8.0TON(RPY)	8-98316-052-0	02	1	1506-	●	●
24	06.210 RECEIVER; KING PIN	8-94458-454-0	02	1	1501-1503	●	●
24	06.210 RECEIVER; KING PIN G.V.W. 6.0-6.5TON(RPV)	8-94458-454-0	02	1	1504-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) UPPER T=0.1	8-98316-055-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) UPPER T=0.2	8-98316-056-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) UPPER T=0.5	8-98316-057-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) LOWER T=0.1	8-98316-059-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) LOWER T=0.2	8-98316-060-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 7.5-8.0TON(RPY) LOWER T=0.5	8-98316-061-0	AR	1	1506-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.1	8-94440-840-0	AR	1	1501-1503	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 6.0-6.5TON(RPV) T=0.1	8-94440-840-0	AR	1	1504-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.2	8-94440-841-0	AR	1	1501-1503	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 6.0-6.5TON(RPV) T=0.2	8-94440-841-0	AR	1	1504-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.5	8-94440-842-0	AR	1	1501-1503	●	●
26	06.022 SHIM; KING PIN,BRG G.V.W. 6.0-6.5TON(RPV) T=0.5	8-94440-842-0	AR	1	1504-	●	●
27	06.203 PIN; STRAIGHT,KING PIN 00.662 OD=4 L=8	9-08160-408-0	04	1	1501-	●	●
36	06.103 ARM; KNUCKLE	8-97043-208-0	01	1	1501-	●	●
41	06.177 PIN; KNOCK,KNUCKLE ARM 00.669	9-08161-028-0	04	1	1501-	●	●
44	06.225 COVER; KING PIN G.V.W. 7.5-8.0TON(RPY)	8-98316-054-0	02	1	1506-	●	●
44	06.225 COVER; KING PIN	8-94440-230-0	02	1	1501-1503	●	●
44	06.225 COVER; KING PIN G.V.W. 6.0-6.5TON(RPV)	8-94440-230-0	02	1	1504-	●	●
46	07.347 WASHER; LK,COVER G.V.W. 7.5-8.0TON(RPY) LOWER ID=12.2	0-91510-812-0	08	1	1506-1509	●	●
46	07.347 WASHER; LK,COVER G.V.W. 7.5-8.0TON(RPY) 06.174 UPPER ID=14.2	0-91510-814-0	08	1	1506-	●	●
46	07.347 WASHER; LK,COVER 06.174 ID=14.2	0-91510-814-0	16	1	1501-1503	●	●
46	07.347 WASHER; LK,COVER G.V.W. 6.0-6.5TON(RPV) 06.174 ID=14.2	0-91510-814-0	16	1	1504-	●	●
48	06.225 BOLT; COVER G.V.W. 7.5-8.0TON(RPY) UPPER	8-98048-539-0	08	1	1506-	●	●
48	06.225 BOLT; COVER G.V.W. 7.5-8.0TON(RPY) LOWER	8-98316-099-0	08	1	1506-	●	●
48	06.225 BOLT; COVER	8-98048-539-0	16	1	1501-1503	●	●
48	06.225 BOLT; COVER G.V.W. 6.0-6.5TON(RPV)	8-98048-539-0	16	1	1504-	●	●
61	06.233 ROD END; TIE ROD LH THREAD	8-94419-609-3	02	1	1501-	●	●
70	06.234 NUT; TIE ROD END (B) M20	0-91111-520-0	02	1	1501-	●	●
70	06.234 NUT; TIE ROD END (A) M20 LH THREAD	8-94254-726-0	02	1	1501-	●	●
81	06.230 ROD; TIE	8-94440-365-0	02	1	1501-	●	●
171	06.104 PIN; SPLIT,STRG ARM 06.881 OD=2.8 L=25	0-81123-025-0	01	1	1501-	●	●
182	06.103 ARM; STRG,TIE ROD,FRT AXLE	8-94323-964-1	01	1	1501-	●	●
190	06.104 BOLT; STRG ARM TO BRKT,FRT AXLE	8-98049-687-0	01	1	1501-	●	●
192	06.216 NUT; STRG ARM BRKT M14 SLOTTED	0-91116-514-0	01	1	1501-	●	●
193	06.216 WASHER; PL,STRG ARM BRKT ID=15	0-91614-614-0	01	1	1501-	●	●
211	06.233 ROD ASM; STEERING TIE ROD	8-94458-045-0	02	1	1501-	●	●
212	06.216 NUT; STRG ROD M16 SLOTTED	8-98049-689-0	02	1	1501-	●	●
213	06.203 PIN; COTTER,STRG ROD OD=3.7 L=25	0-81124-025-0	04	1	1501-	●	●
260	07.240 BOLT; STOPPER,TIE ROD ARM	8-98049-680-0	03	1	1501-	●	●
261	07.242 NUT; STOPPER BOLT 05.002 M12	0-91110-512-0	03	1	1501-	●	●
