Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#155236) — 464 parça

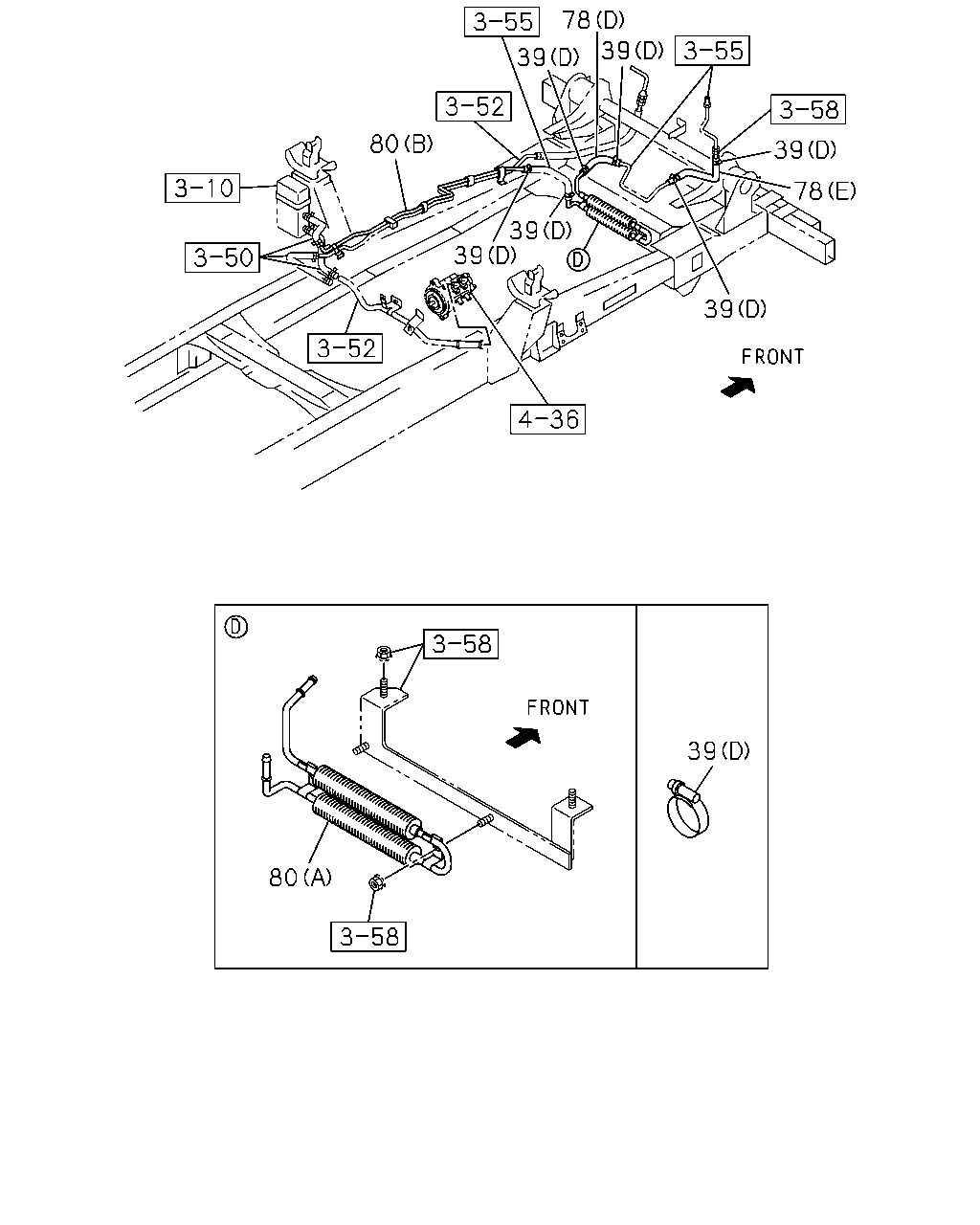

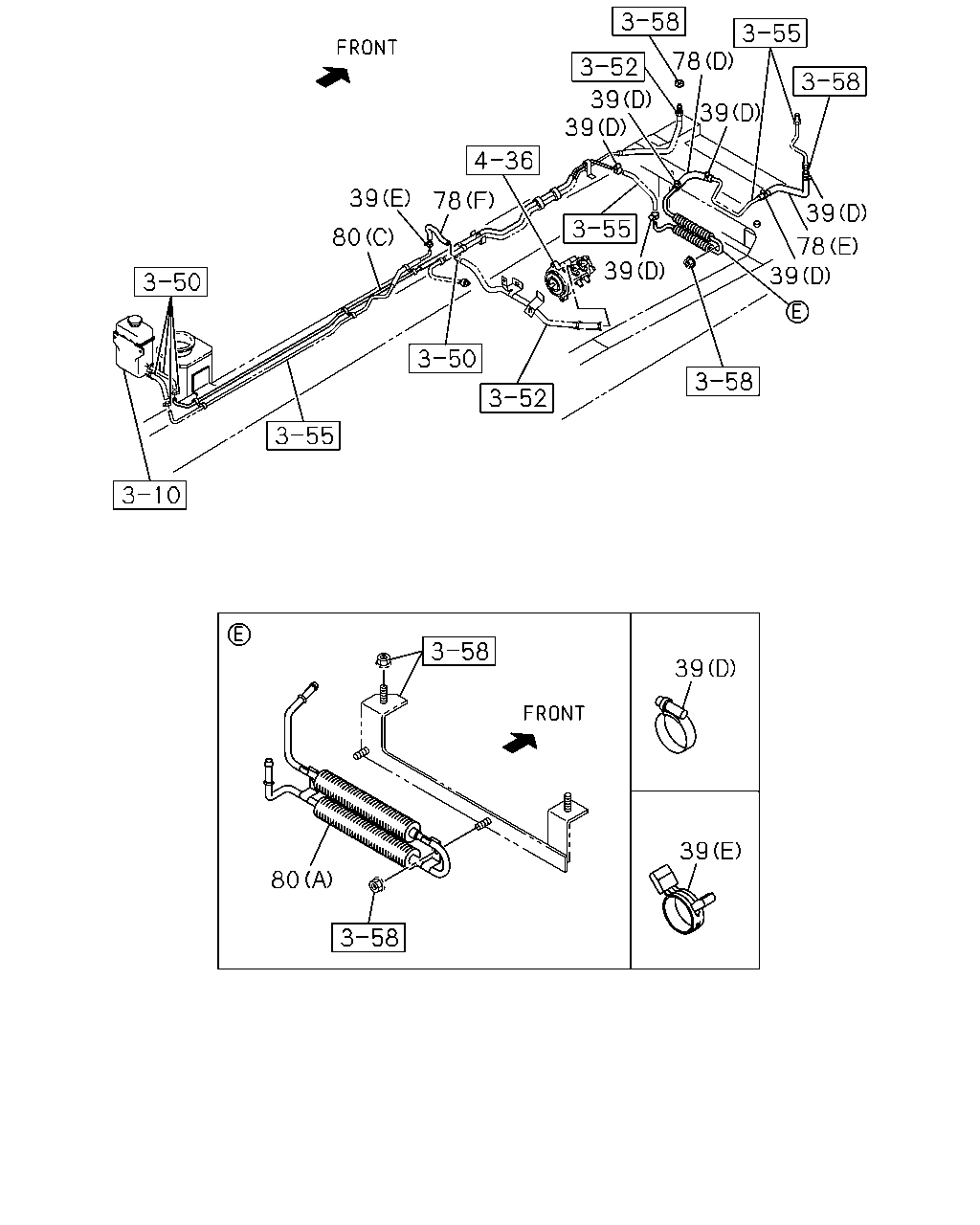

39 80 78 39 39 78 39 39 78 39 39 80 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) 04.686 (D)	8-97386-589-0	01	1	1501-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98136-613-0	01	1	1501-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1501-1503	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1501-	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) 04.681 (F)	8-98096-135-0	01	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1501-		●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98097-788-0	01	1	1501-	●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) 04.685 (A)	8-97386-605-0	01	1	1501-	●	●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-258-1	01	1	1501-1501		●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98308-378-0	01	1	1502-		●

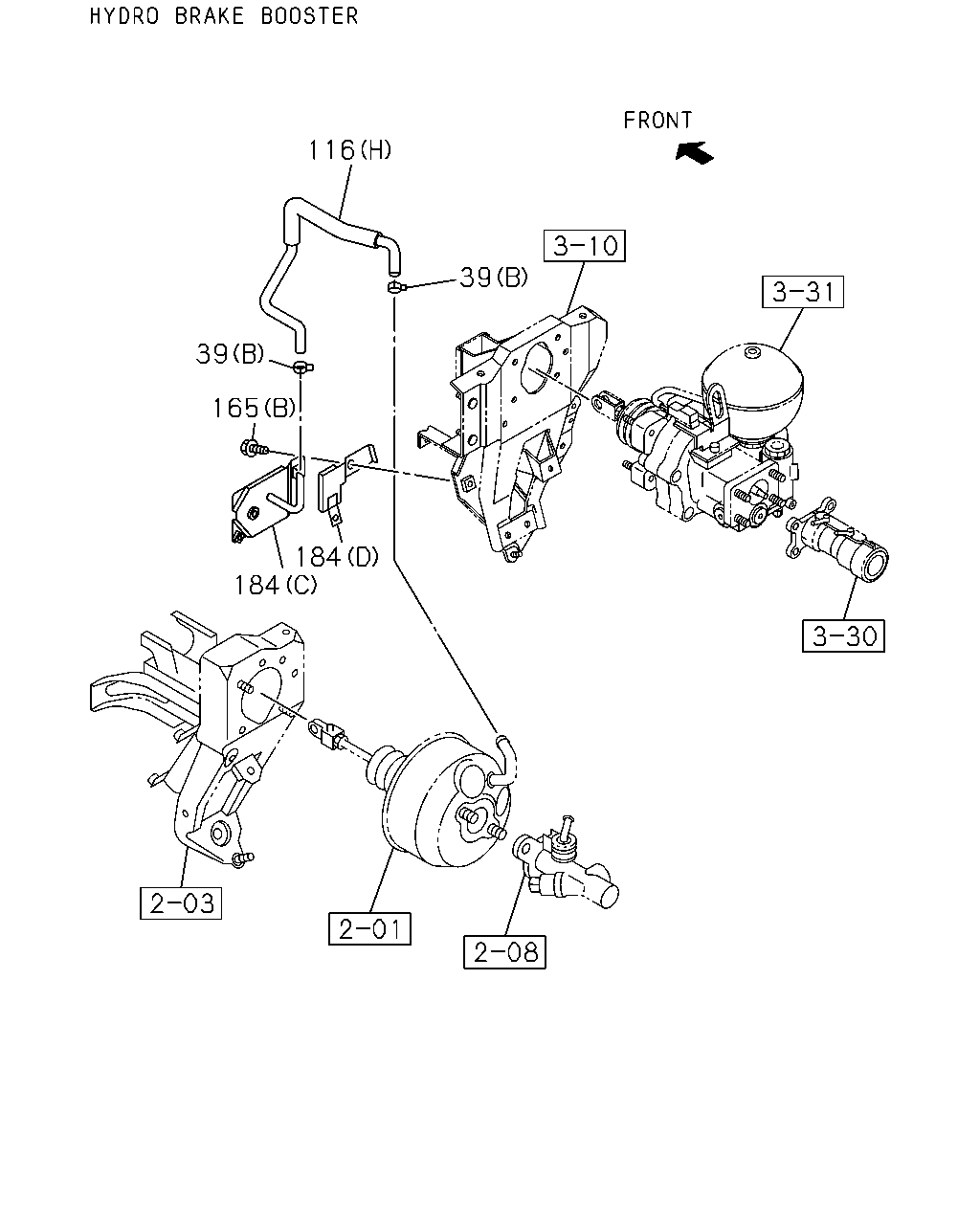

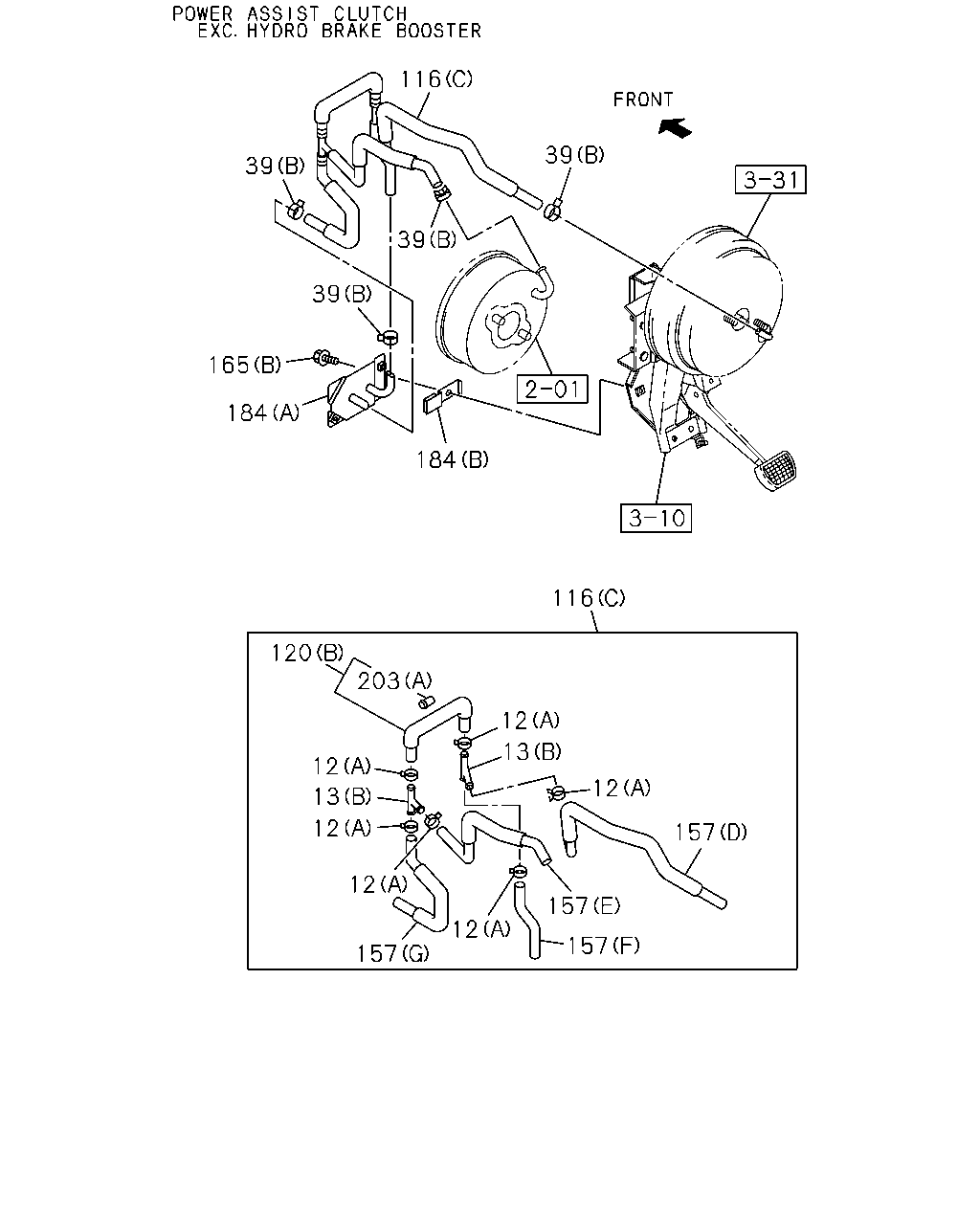

116 39 39 39 165 184 184 116 39 120 203 12 13 12 12 157 157 12 157 157 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1501-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1501-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	02	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98048-075-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-97389-696-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98017-168-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (E)	8-98027-351-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98027-353-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98027-354-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98125-532-1	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-671-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98022-868-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98125-849-1	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98255-539-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (D)	8-98255-541-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98017-628-1	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98255-535-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98255-548-0	01	1	1501-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-94104-021-0	01	1	1501-	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1501-	●	●

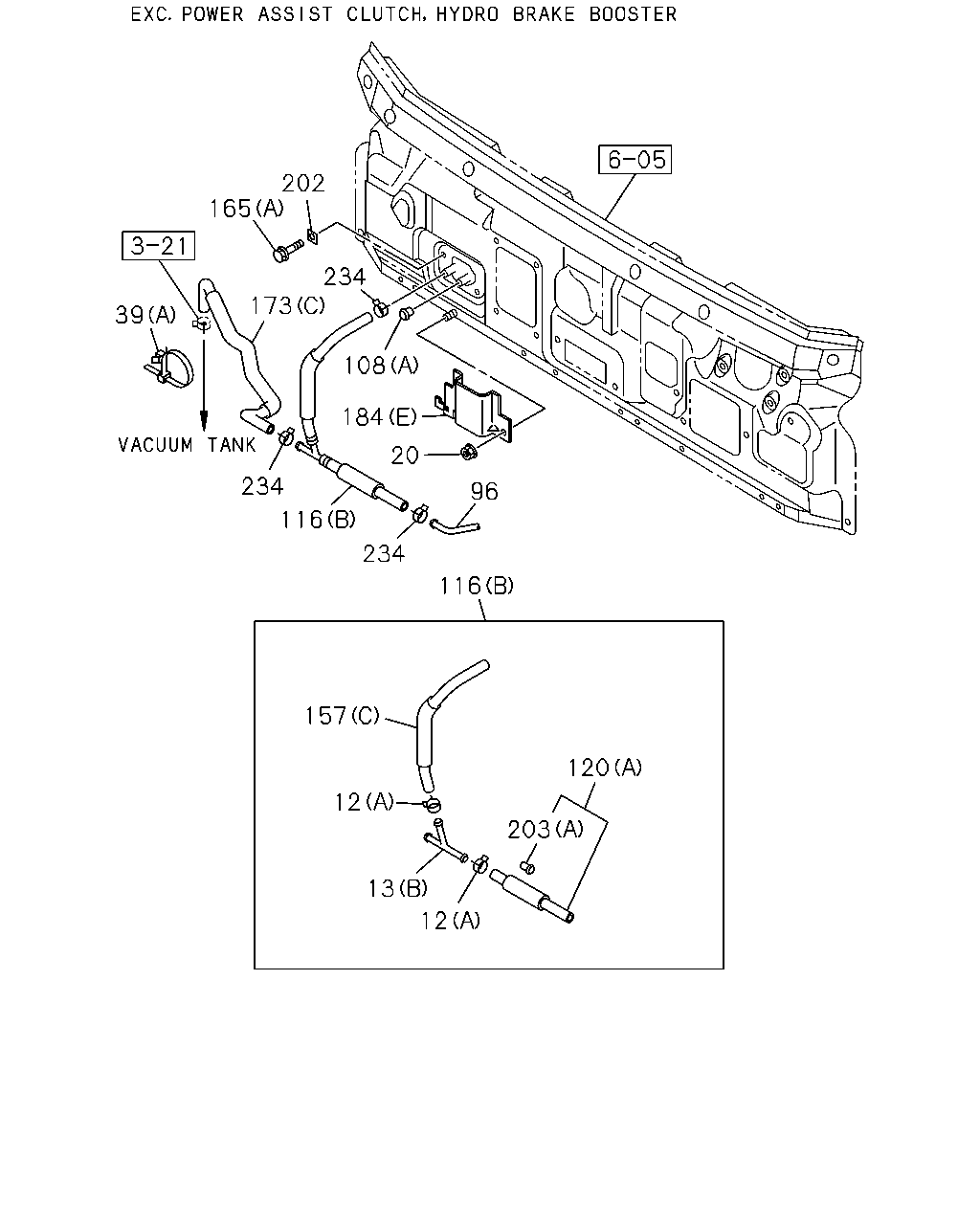

116 234 116 234 39 173 165 202 234 108 184 96 20 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1501-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1501-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	02	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98048-075-0	01	1	1501-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1501-1503	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1501-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-97389-696-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98017-168-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (E)	8-98027-351-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98027-353-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98027-354-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98125-532-1	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-671-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98022-868-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98125-849-1	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98121-940-0	01	1	1501-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98121-941-0	01	1	1501-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98107-558-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98255-539-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (D)	8-98255-541-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98017-628-1	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98255-535-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98255-548-0	01	1	1501-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1501-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-94104-021-0	01	1	1501-	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1501-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1501-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1501-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1501-	●	●

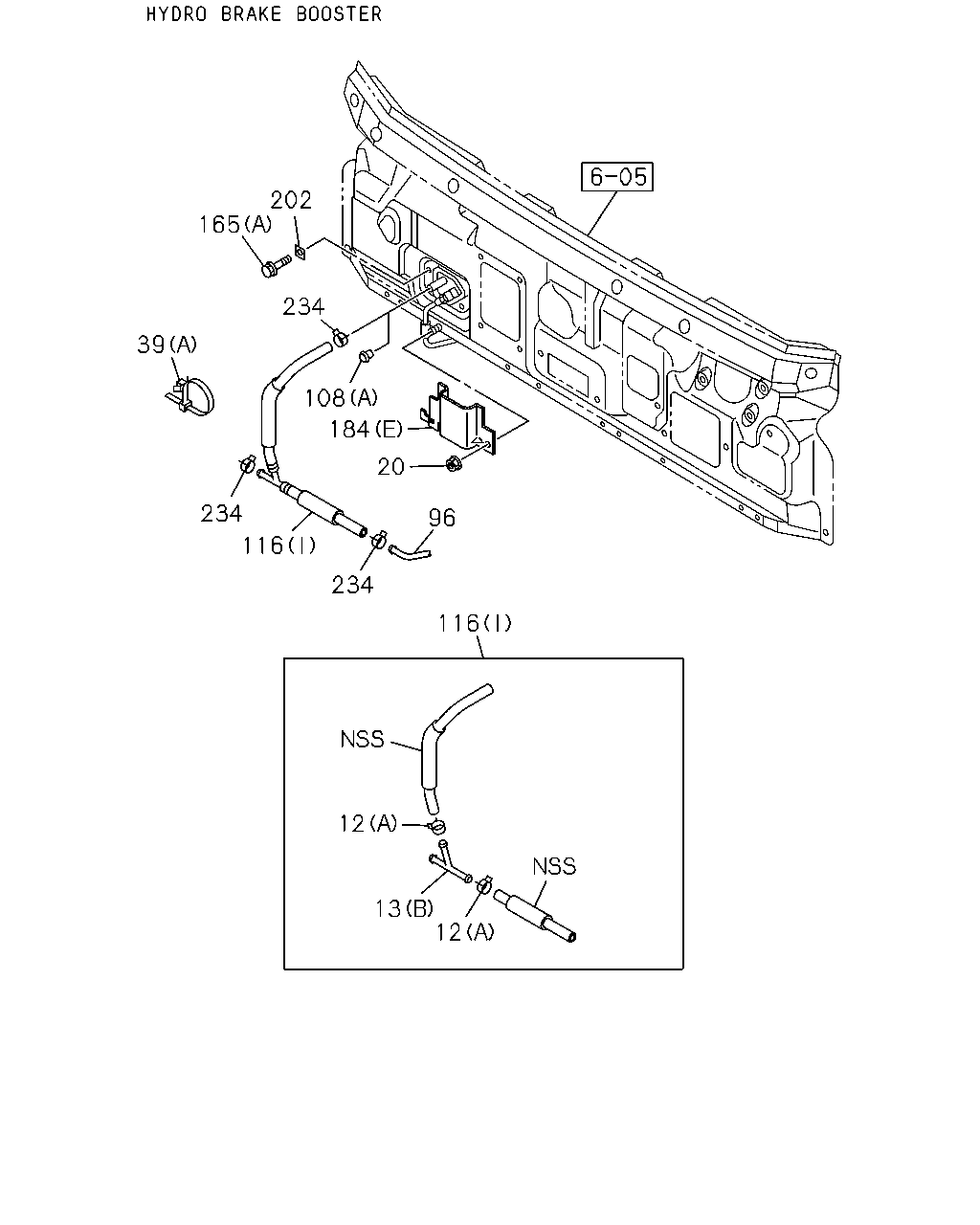

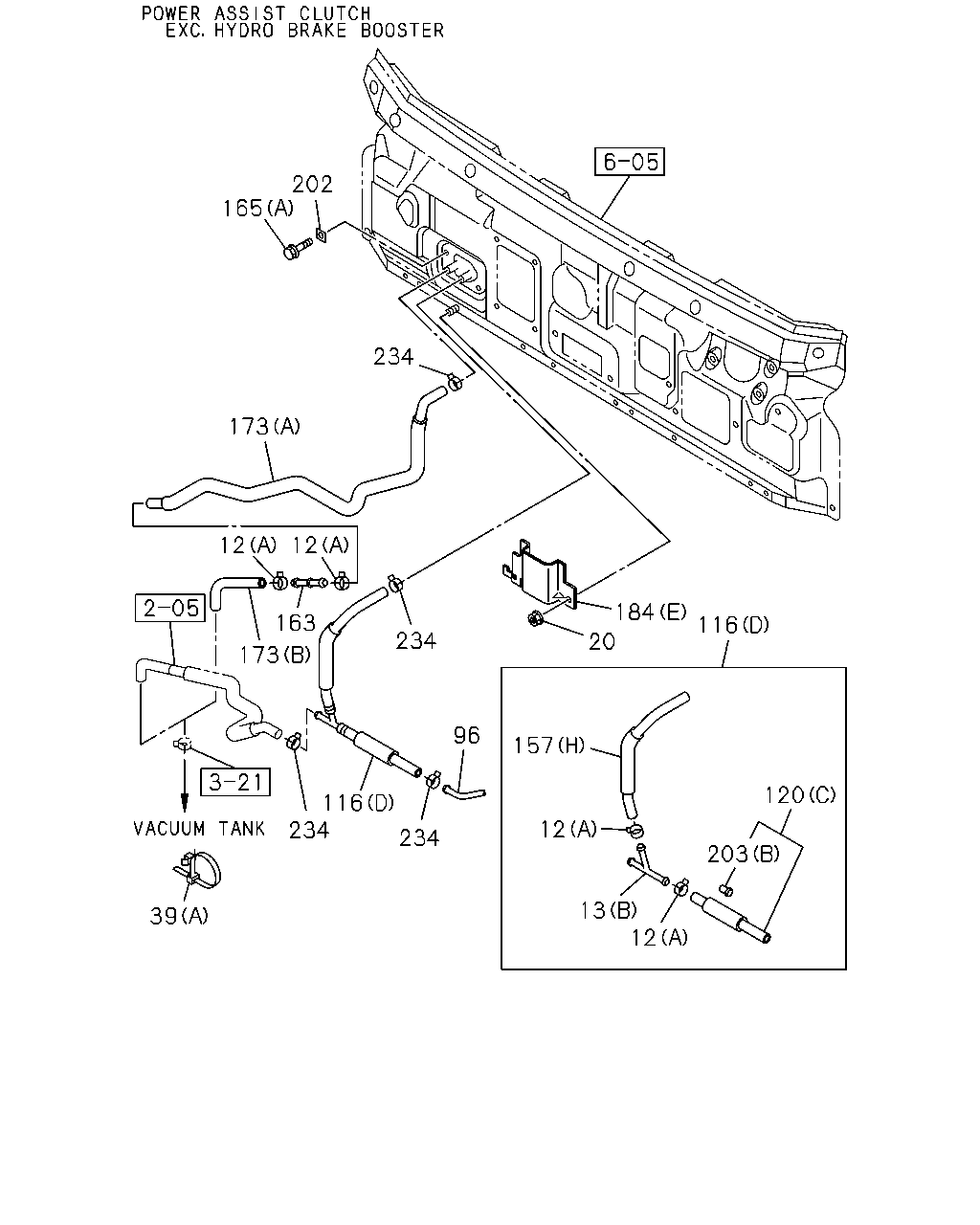

202 165 234 173 12 163 12 173 116 234 234 96 234 39 157 20 116 184 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1501-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1501-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	02	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98048-075-0	01	1	1501-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1501-1503	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	1501-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-97389-696-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98017-168-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (E)	8-98027-351-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98027-353-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98027-354-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98125-532-1	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-671-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98022-868-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98125-849-1	01	1	1501-	●	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.163	8-97353-668-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98121-940-0	01	1	1501-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98121-941-0	01	1	1501-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98107-558-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98255-539-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (D)	8-98255-541-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98017-628-1	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98255-535-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98255-548-0	01	1	1501-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1501-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-94104-021-0	01	1	1501-	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1501-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1501-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1501-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1501-	●	●

202 165 39 234 108 20 184 96 116 234 116 234 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1501-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1501-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	02	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98048-075-0	01	1	1501-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1501-1503	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1501-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98255-539-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (D)	8-98255-541-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98017-628-1	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98255-535-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98255-548-0	01	1	1501-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1501-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1501-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1501-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1501-	●	●

116 39 39 165 184 184 116 157 12 12 13 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1501-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1501-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	01	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98035-106-0	02	1	1501-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98048-075-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (H)	8-98017-168-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (E)	8-98027-351-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98027-353-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98027-354-2	01	1	1501-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98125-532-1	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-671-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98022-868-3	01	1	1501-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98125-849-1	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98255-539-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (D)	8-98255-541-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98017-628-1	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98255-535-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98255-548-0	01	1	1501-	●	●

39 116 184 165 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98255-539-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (D)	8-98255-541-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98017-628-1	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98255-535-0	01	1	1501-	●	●
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98255-548-0	01	1	1501-	●	●

80 39 78 39 39 78 39 39 39 80 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) 04.686 (D)	8-97386-589-0	01	1	1501-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98136-613-0	01	1	1501-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1501-1503	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1501-	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) 04.681 (F)	8-98096-135-0	01	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1501-		●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98097-788-0	01	1	1501-	●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) 04.685 (A)	8-97386-605-0	01	1	1501-	●	●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-258-1	01	1	1501-1501		●
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98308-378-0	01	1	1502-		●

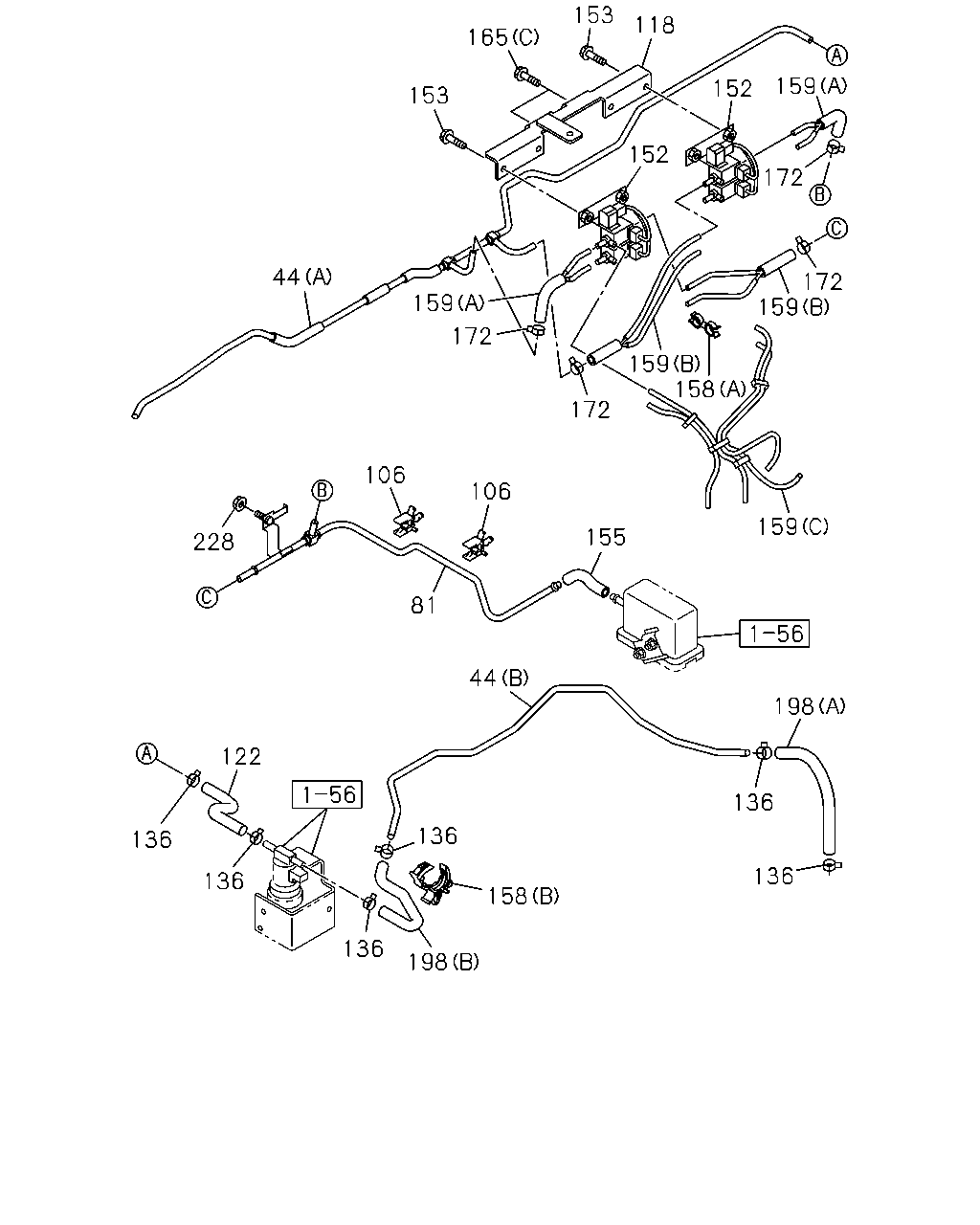

165 153 153 152 118 152 159 172 172 159 159 172 155 159 158 198 106 81 106 172 159 44 228 122 136 136 136 158 136 136 136 44 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV (C)	8-98070-194-0	01	1	1501-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98157-760-1	01	1	1501-	●	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98170-162-0	01	1	1501-	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-634-0	01	1	1501-		●
81	04.930 PIPE; VAC,VSV	8-98060-407-3	01	1	1501-	●	●
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	1501-	●	●
118	04.930 BRACKET; VSV	8-98069-541-3	01	1	1501-	●
118	04.930 BRACKET; VSV	8-98090-281-1	01	1	1501-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1501-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-105-0	01	1	1501-		●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1501-	●	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98256-404-0	02	1	1501-	●	●
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1501-	●	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
158	04.681 CLIP; HOSE 02.559 (B) ID=14-20	8-97061-603-0	01	1	1501-	●
158	04.681 CLIP; HOSE 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1501-	●	●
159	04.931 HOSE ASM; VAC (B)	8-98070-137-2	02	1	1501-	●	●
159	04.931 HOSE ASM; VAC (A)	8-98070-138-1	02	1	1501-	●	●
159	04.931 HOSE ASM; VAC (C)	8-98093-010-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1501-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1501-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1501-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
172	04.930 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	1501-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98125-507-0	01	1	1501-	●	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	1501-	●	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	1501-		●

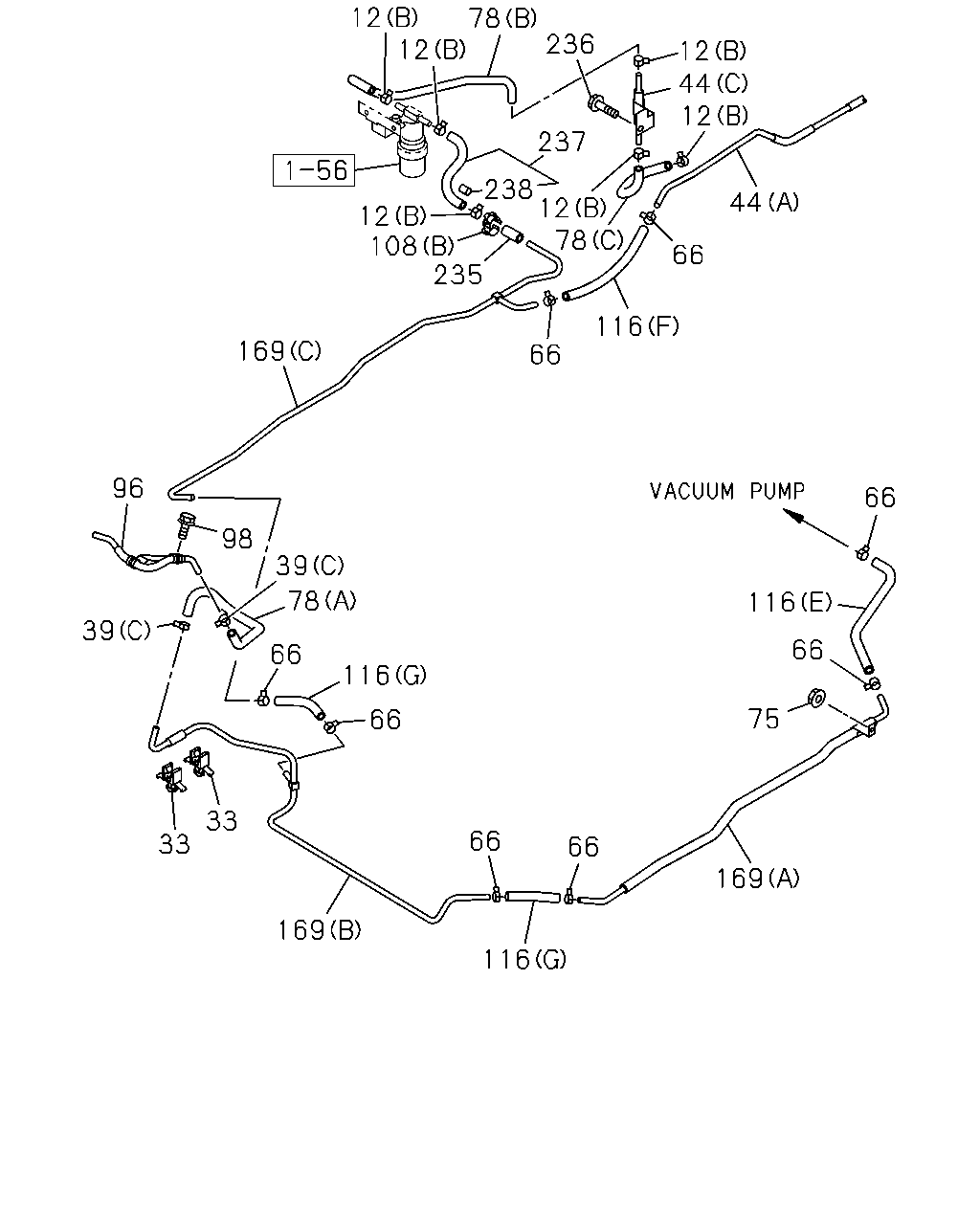

78 12 12 236 237 12 12 44 44 66 116 66 235 78 12 238 12 169 108 96 98 39 78 116 66 66 39 33 169 33 116 169 66 66 75 66 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1501-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1501-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1501-	●	●
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1501-	●	●
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1501-	●	●
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 08.846 (E) ID=21.7	8-97203-074-0	02	1	1501-		●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98070-194-0	01	1	1501-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98157-760-1	01	1	1501-	●	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98170-162-0	01	1	1501-	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-634-0	01	1	1501-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	08	1	1501-	●	●
75	04.930 NUT; CLIP,VAC HOSE HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
75	04.930 NUT; CLIP,VAC HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) 04.686 (D)	8-97386-589-0	01	1	1501-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98136-613-0	01	1	1501-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1501-1503	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1504-1507	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1508-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1501-	●
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) 04.681 (F)	8-98096-135-0	01	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1501-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1501-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1501-1503	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1504-1507	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1508-	●	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1501-1503	●	●
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1501-1503	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1504-1507	●	●
98	04.931 BOLT; VAC PIPE FIX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1504-1507	●	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1508-	●	●
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1508-	●
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1501-	●	●
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	03	1	1501-		●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1501-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98115-385-1	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B)	8-97389-690-3	01	1	1501-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A)	8-98115-399-1	01	1	1501-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T) (C)	8-98040-479-3	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98040-479-3	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T) (C)	8-98040-479-3	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T) 04.685 (B)	8-98048-901-0	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER ASSIST CLUTCH(S2T) 04.685 (B)	8-98048-901-0	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T) 04.685 (B)	8-98048-901-0	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98154-771-1	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98154-771-1	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-771-1	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE (A)	8-98222-219-0	01	1	1501-1503	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98222-219-0	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) (A)	8-98222-219-0	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98041-053-4	01	1	1501-1503	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-053-4	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98041-053-4	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-053-4	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-053-4	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-053-4	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98041-054-3	01	1	1501-1503	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-054-3	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98041-054-3	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-054-3	01	1	1504-1507	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-054-3	01	1	1508-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-054-3	01	1	1508-	●	●
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1501-	●	●
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1501-1503	●	●
236	04.930 BOLT; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1501-1503	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1501-1503	●
236	04.930 BOLT; PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1504-1507	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1504-1507	●
236	04.930 BOLT; PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
236	04.930 BOLT; PIPE 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1501-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98116-370-1	01	1	1501-	●	●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
