Sayfa 3-31 - Isuzu EPC

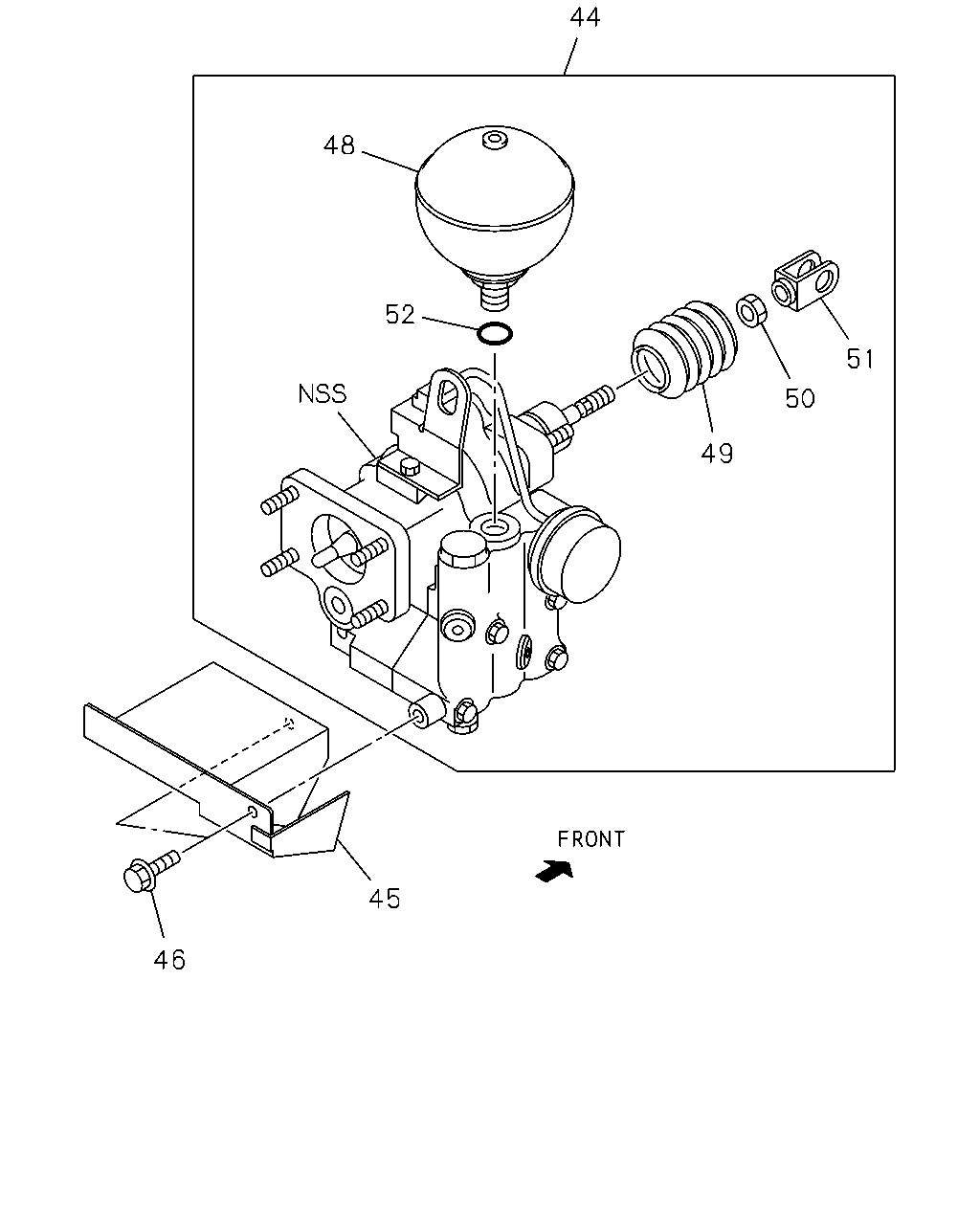

48 44 52 49 50 51 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER(7QQ)	8-98031-414-0	01	1	1501-	●	●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER(7QQ)	8-98031-415-1	01	1	1501-	●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1501-	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-346-0	01	1	1501-	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-97191-043-0	01	1	1501-	●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-349-0	01	1	1501-	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-347-0	01	1	1501-	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ) 04.910	8-97191-038-0	01	1	1501-	●	●

1 11 12 15 24 16 17 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.901 MASTER VAC ASM; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98234-822-0	01	1	1501-	●	●
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-576-0	01	1	1501-	●	●
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-577-0	01	1	1501-	●	●
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-94375-083-0	01	1	1501-	●	●
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) M10	1-52139-008-0	01	1	1501-	●	●
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-610-0	01	1	1501-	●	●
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98184-421-0	01	1	1501-	●	●
56	04.910 GASKET KIT; M/CYL TO SERVO UNIT EXC. HYDRO BRAKE BOOSTER(7QQ) W/GREASE	8-98184-424-0	01	1	1501-	●	●
