◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#155222) — 140 parça

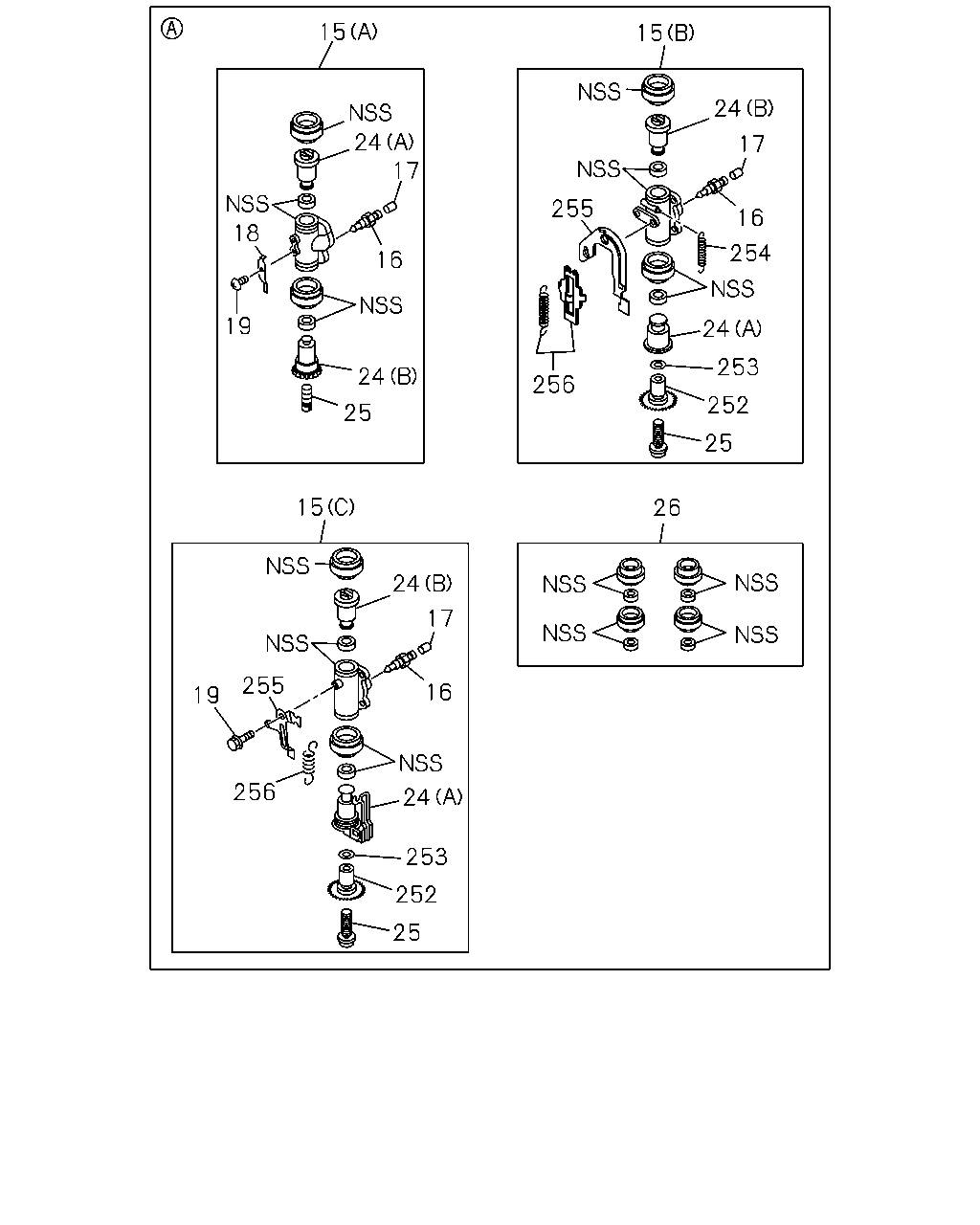

çizim 464303
15 255 256 25 252 253 24 254 17 24 15 24 16 17 24 25 19 18 15 24 17 16 24 253 252 25 256 19 255 26
BalonParca AdiParca NoAdetTipApplied Date A B
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (C) FRONT 		8-98139-201-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (C) FRONT 		8-98139-202-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (C) REAR 		8-98139-203-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (C) REAR 		8-98139-204-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97332-225-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97332-226-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97332-227-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-98326-102-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97192-142-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (B) FRONT 		8-97192-142-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97192-143-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (B) REAR 		8-97192-143-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97192-144-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (B) FRONT 		8-97192-144-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97192-145-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (B) REAR 		8-97192-145-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1504- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1501-1503 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1504- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1501- ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1501- ● ●
18 05.107 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-486-0 04 1 1501- ● ●
19 05.107 SCREW; STOPPER SETTING
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.666 		8-97349-747-0 04 1 1508- ● ●
19 05.107 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-727-0 04 1 1501- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-97349-731-0 02 1 1508- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) (A) 		8-97349-732-0 02 1 1508- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-043-0 04 1 1508- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97332-229-0 04 1 1508- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97078-043-0 02 1 1501-1503 ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97078-043-0 02 1 1504- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97078-044-0 02 1 1501-1503 ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97078-044-0 02 1 1504- ● ●
24 04.668 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 1501-1503 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (B) 		8-97078-045-0 04 1 1504- ● ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94414-700-1 04 1 1501-1503 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94414-700-1 04 1 1504- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.666 		8-97349-741-0 02 1 1508- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.666 		8-97349-742-0 02 1 1508- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 M12X30.2 RH THREAD 		5-47622-003-1 02 1 1501-1503 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 04.666 M12X30.2 RH THREAD 		5-47622-003-1 02 1 1504- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 M12X30.2 LH THREAD 		5-47622-004-1 02 1 1501-1503 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 04.666 M12X30.2 LH THREAD 		5-47622-004-1 02 1 1504- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 		8-94414-702-0 04 1 1501- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 04.665 		5-87832-051-0 02 1 1508- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-777-0 02 1 1501-1503 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		5-87831-777-0 02 1 1504- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 		5-87831-598-0 02 1 1501-1503 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 		5-87831-598-0 02 1 1504- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.110 		8-97349-738-0 02 1 1508- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.110 		8-97349-740-0 02 1 1508- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 05.110 		5-47623-005-0 02 1 1501-1503 ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.110 		5-47623-005-0 02 1 1504- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 05.110 		5-47623-006-0 02 1 1501-1503 ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.110 		5-47623-006-0 02 1 1504- ● ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.110 		8-97349-736-0 04 1 1508- ● ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> 05.110 		8-97029-304-0 04 1 1501-1503 ● ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.110 		8-97029-304-0 04 1 1504- ● ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 05.107 		5-09585-045-0 04 1 1501-1503 ● ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.107 		5-09585-045-0 04 1 1504- ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.103 		8-97349-743-0 02 1 1508- ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.103 		8-97349-744-0 02 1 1508- ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 05.103 		8-94366-173-0 02 1 1501-1503 ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.103 		8-94366-173-0 02 1 1504- ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 05.103 		8-94366-174-0 02 1 1501-1503 ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.103 		8-94366-174-0 02 1 1504- ● ●
256 04.665 SPRING; OVER TRAVEL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.107 		8-97349-745-0 04 1 1508- ● ●
256 04.665 SPRING; OVER TRAVEL
4 WHEEL ANTI LOCK BRAKE<JE5> 05.107 		5-47619-046-0 04 1 1501-1503 ● ●
256 04.665 SPRING; OVER TRAVEL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.107 		5-47619-046-0 04 1 1504- ● ●

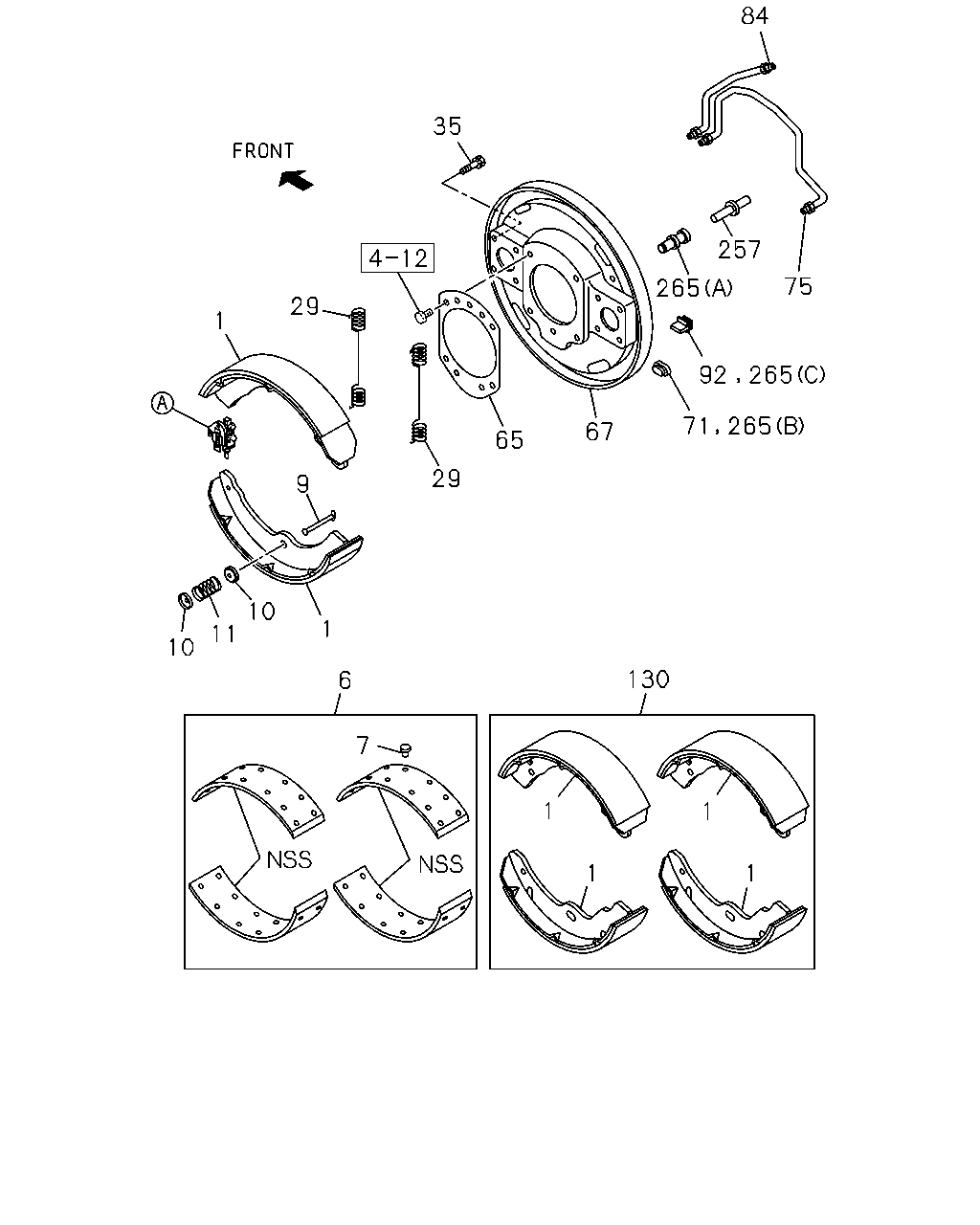

çizim 464307
84 35 257 265 75 265 92 71 265 67 65 29 9 29 1 1 10 11 10 130 1 1 1 1 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97201-061-0 04 1 1508- ● ●
1 05.017 SHOE; BRK,FRT 8-97287-778-0 04 1 1501-1503 ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) 		8-97287-778-0 04 1 1504- ● ●
6 05.018 LINING KIT; FRT BRK 5-87831-801-0 01 1 1501-1503 ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		5-87831-801-0 01 1 1504- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) 		5-87831-774-0 01 1 1508- ● ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1501-1503 ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS 		5-87610-121-0 01 1 1504- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS 		5-87610-120-0 01 1 1508- ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 48 1 1508- ● ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 1501-1503 ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 40 1 1504- ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) 05.043 		8-97022-089-0 04 1 1508- ● ●
9 05.026 PIN; SHOE HOLDER
05.043 		5-47162-001-0 04 1 1501-1503 ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 6.0-6.5TON(RPV) 05.043 		5-47162-001-0 04 1 1504- ● ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1501- ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1501- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) 		8-97022-087-0 04 1 1508- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 1501-1503 ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.0-6.5TON(RPV) 		5-09583-118-0 04 1 1504- ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97081-305-0 16 1 1508- ● ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-016-1 16 1 1501-1503 ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-09030-016-1 16 1 1504- ● ●
65 05.815 COVER; OIL SHIELD,FRT 8-94438-775-1 02 1 1501- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98324-718-0 01 1 1508- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-98324-719-0 01 1 1508- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98324-720-0 01 1 1508- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98324-721-0 01 1 1508- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97192-137-0 01 1 1501-1503 ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97192-137-0 01 1 1504- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97192-138-0 01 1 1501-1503 ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97192-138-0 01 1 1504- ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-595-0 01 1 1501-1503 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-595-0 01 1 1504- ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-596-0 01 1 1501-1503 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-596-0 01 1 1504- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) 		8-97017-507-0 02 1 1508- ● ●
71 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1501-1503 ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) 		8-94171-287-0 02 1 1504- ● ●
75 04.685 PIPE; OIL,FWD,FRT BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98324-722-0 02 1 1508- ● ●
75 04.685 PIPE; OIL,FWD,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-480-0 02 1 1501-1503 ● ●
75 04.685 PIPE; OIL,FWD,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97222-480-0 02 1 1504- ● ●
75 04.685 PIPE; OIL,FWD,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-818-0 02 1 1501-1503 ● ●
75 04.685 PIPE; OIL,FWD,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-818-0 02 1 1504- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) 		8-98300-308-0 01 1 1508- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) 		8-98300-309-0 01 1 1508- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-481-0 01 1 1501-1503 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97222-481-0 01 1 1504- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-482-0 01 1 1501-1503 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-97222-482-0 01 1 1504- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-819-1 01 1 1501-1503 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-819-1 01 1 1504- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-820-1 01 1 1501-1503 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-820-1 01 1 1504- ● ●
92 05.002 GROMMET; ADJ HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97044-742-1 04 1 1508- ● ●
92 05.002 GROMMET; ADJ HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-09756-034-0 04 1 1501-1507 ● ●
92 05.002 GROMMET; ADJ HOLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-09756-034-0 04 1 1508- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 1501-1503 ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) 		5-87832-047-0 01 1 1504- ● ●
257 04.665 PIN; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 05.020 		8-97078-700-0 04 1 1501-1503 ● ●
257 04.665 PIN; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.020 		8-97078-700-0 04 1 1504- ● ●
265 04.685 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 04.670 (C) 		1-47154-008-0 04 1 1508- ● ●
265 04.685 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 05.002 (B) 		8-97017-507-0 04 1 1508- ● ●
265 04.685 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 (B) 		8-94171-287-0 04 1 1501-1503 ● ●
265 04.685 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.002 (B) 		8-94171-287-0 04 1 1504- ● ●
265 04.685 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 (A) 		8-94366-295-0 04 1 1501-1503 ● ●
265 04.685 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 05.002 (A) 		8-94366-295-0 04 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
