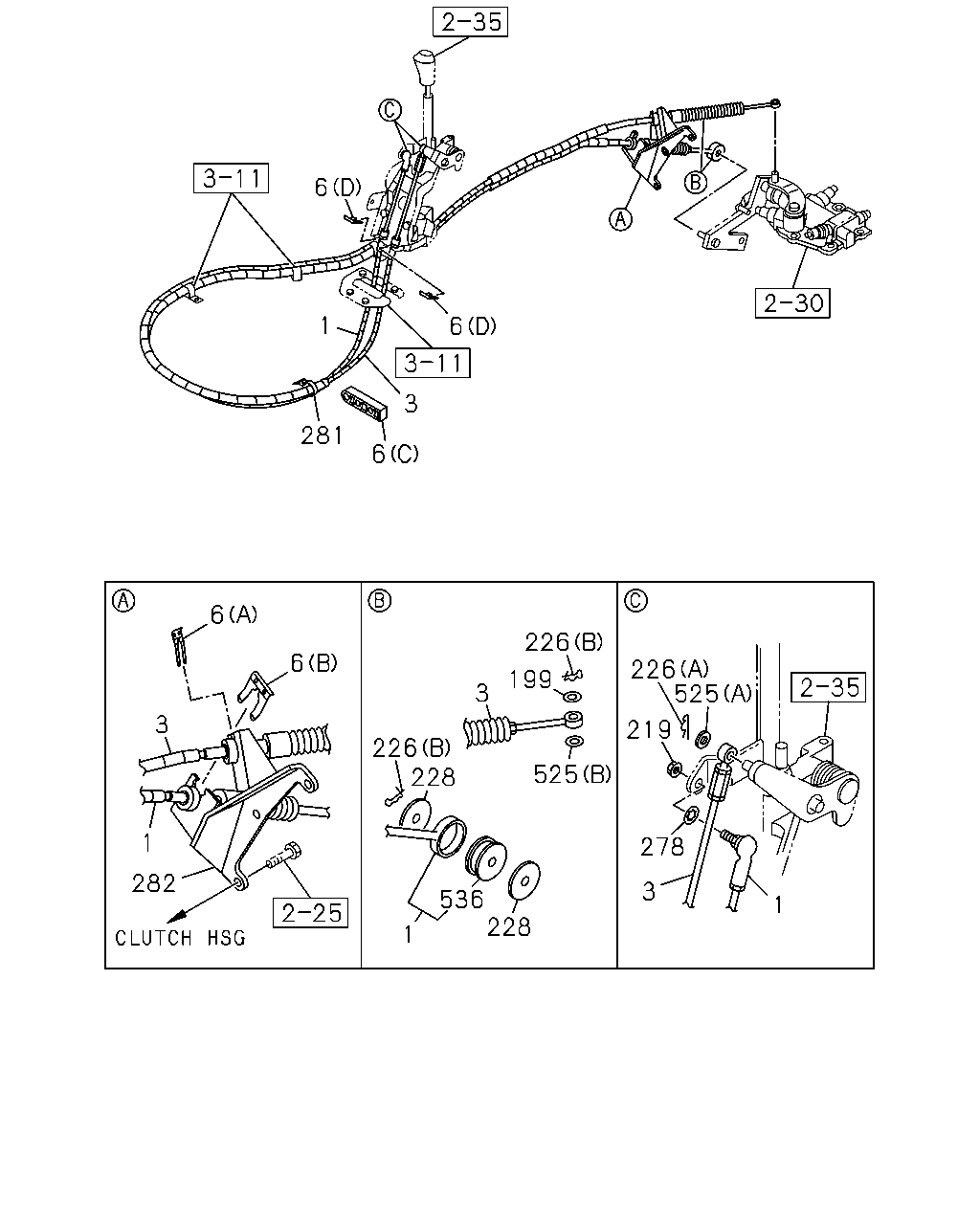

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#155216) — 34 parça

6 6 1 281 3 6 226 199 525 226 525 219 278 3 1 228 536 1 228 226 3 282 1 3 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT L=3090	8-98146-856-0	01	1	1501-1511	●
1	00.854 CABLE; SHIFT,TRANS CONT L=3090	8-98146-856-0	01	1	1512-	●	●
3	00.852 CABLE; SELECT,TRANS CONT L=3202	8-98025-442-3	01	1	1501-1511	●
3	00.852 CABLE; SELECT,TRANS CONT L=3202	8-98025-442-3	01	1	1512-	●	●
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1501-1511	●
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	1501-1511	●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	1512-	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1501-1511	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1501-1511	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1512-	●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1501-1511	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1512-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1501-1511	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1512-	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1501-1511	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1512-	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1501-1511	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1512-	●	●
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1501-1511	●
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1512-	●	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1501-1511	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1512-	●	●
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	1501-1511	●
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE	8-98032-395-1	01	1	1501-1511	●
282	04.010 BRACKET; TRANS SIDE	8-98032-395-1	01	1	1512-	●	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1501-1511	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1512-	●	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1501-1511	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1512-	●	●
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	1501-1511	●
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	1512-	●	●
