◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#155214) — 97 parça

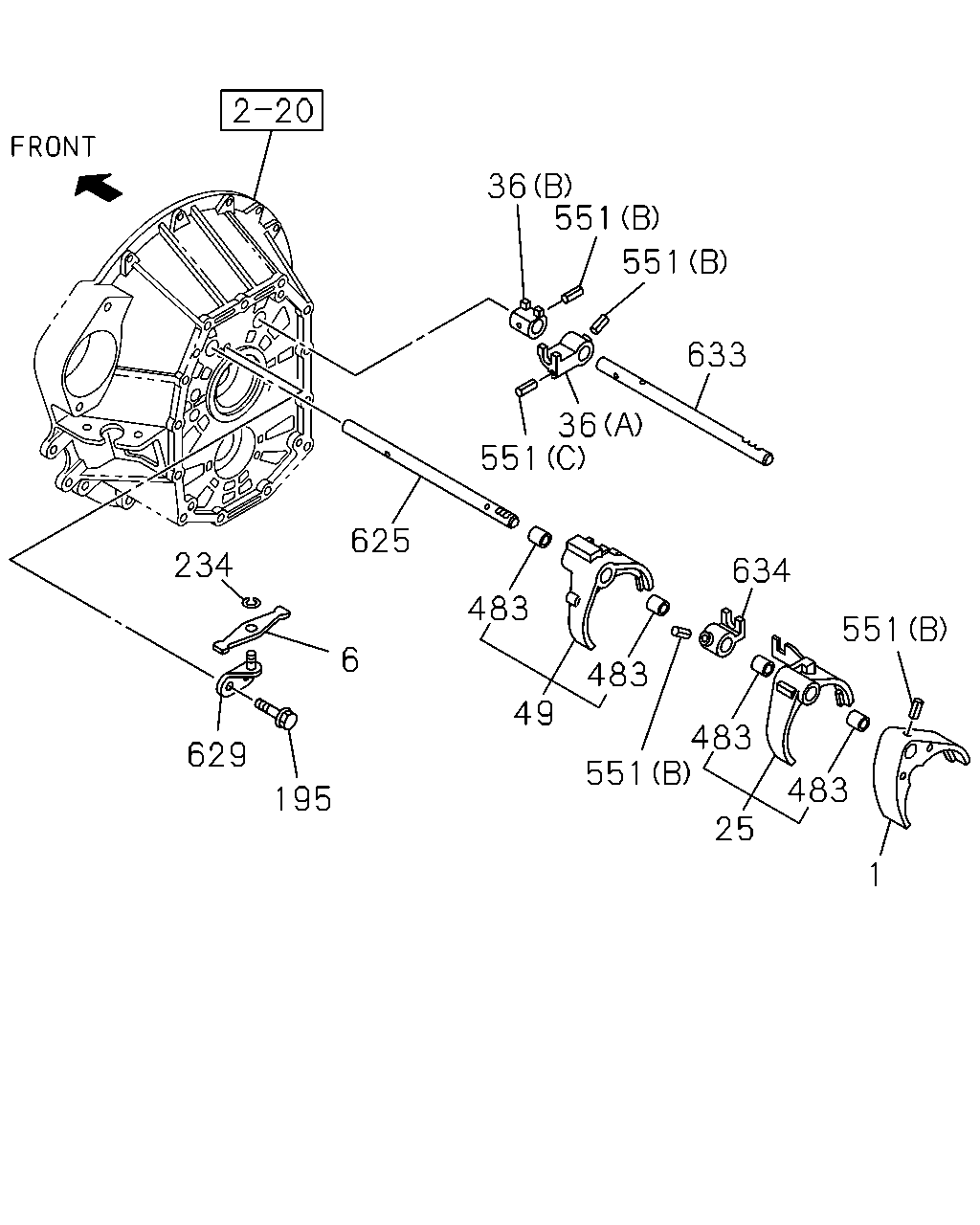

çizim 464292
551 1 483 25 483 551 483 634 483 49 36 633 551 551 36 551 625 6 195 629 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1501-1511 ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1512- ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1501-1511 ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1512- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1501-1511 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1512- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1501-1511 ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1512- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1501-1511 ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1512- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1501-1511 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1512- ● ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1501-1511 ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1512- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1501-1511 ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1512- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1501-1511 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1512- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1501-1511 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1501-1511 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1512- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1501-1511 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1512- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1501-1511 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1512- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1501-1511 ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1512- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1501-1511 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1512- ● ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1501-1511 ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1512- ● ●

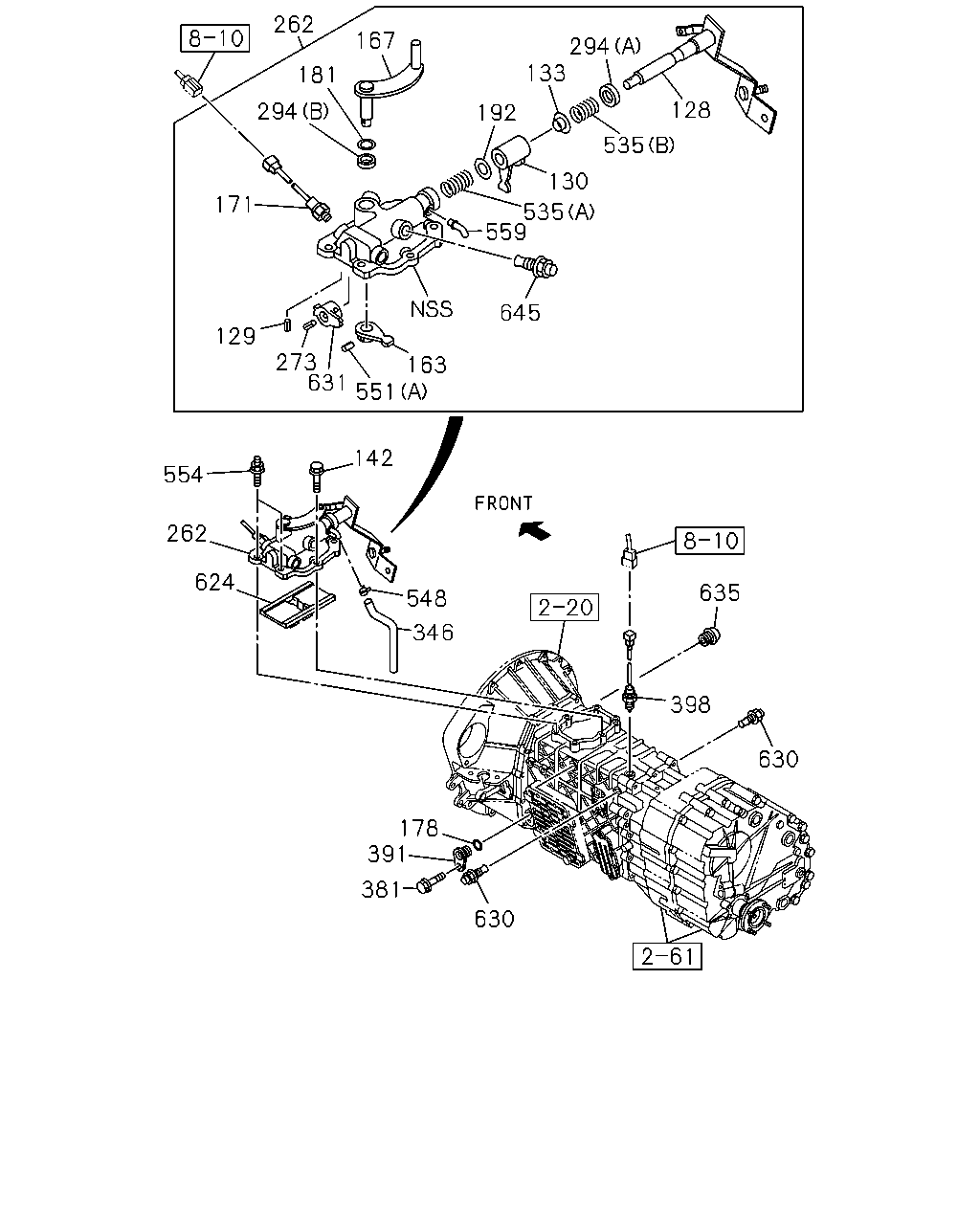

çizim 464309
262 181 167 294 171 129 273 631 551 163 645 535 559 130 535 192 133 294 128 142 554 262 624 548 346 398 635 630 630 178 391 381
BalonParca AdiParca NoAdetTipApplied Date A B
128 04.030 LEVER; SHIFT,EXTERNAL 8-98079-799-0 01 1 1501-1511 ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-98079-799-0 01 1 1512- ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1501-1511 ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1512- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1501-1511 ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1512- ● ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 1501-1511 ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 1512- ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1501-1511 ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1512- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1501-1511 ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1512- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1501-1511 ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1512- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1501-1509 ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-1511 ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1512- ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1501-1511 ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1512- ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1501-1511 ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1512- ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1501-1511 ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1512- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-003-2 01 1 1501-1511 ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-003-2 01 1 1512- ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1501-1511 ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1512- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1501-1511 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1512- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1501-1511 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1512- ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1501-1511 ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1512- ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1501-1511 ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1512- ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1501-1511 ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1512- ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1501-1511 ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1512- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1501-1511 ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1512- ● ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1501-1511 ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1512- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1501-1511 ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1501-1511 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1501-1511 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1512- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1501-1511 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1512- ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1501-1511 ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1512- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1501-1511 ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1512- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1501-1511 ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1512- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1501-1511 ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1512- ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1501-1511 ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1512- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1501-1511 ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1512- ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1501-1511 ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1512- ● ●
