2-26 — MANUAL TRANSMISSION GEAR (#155213) — 136 parça

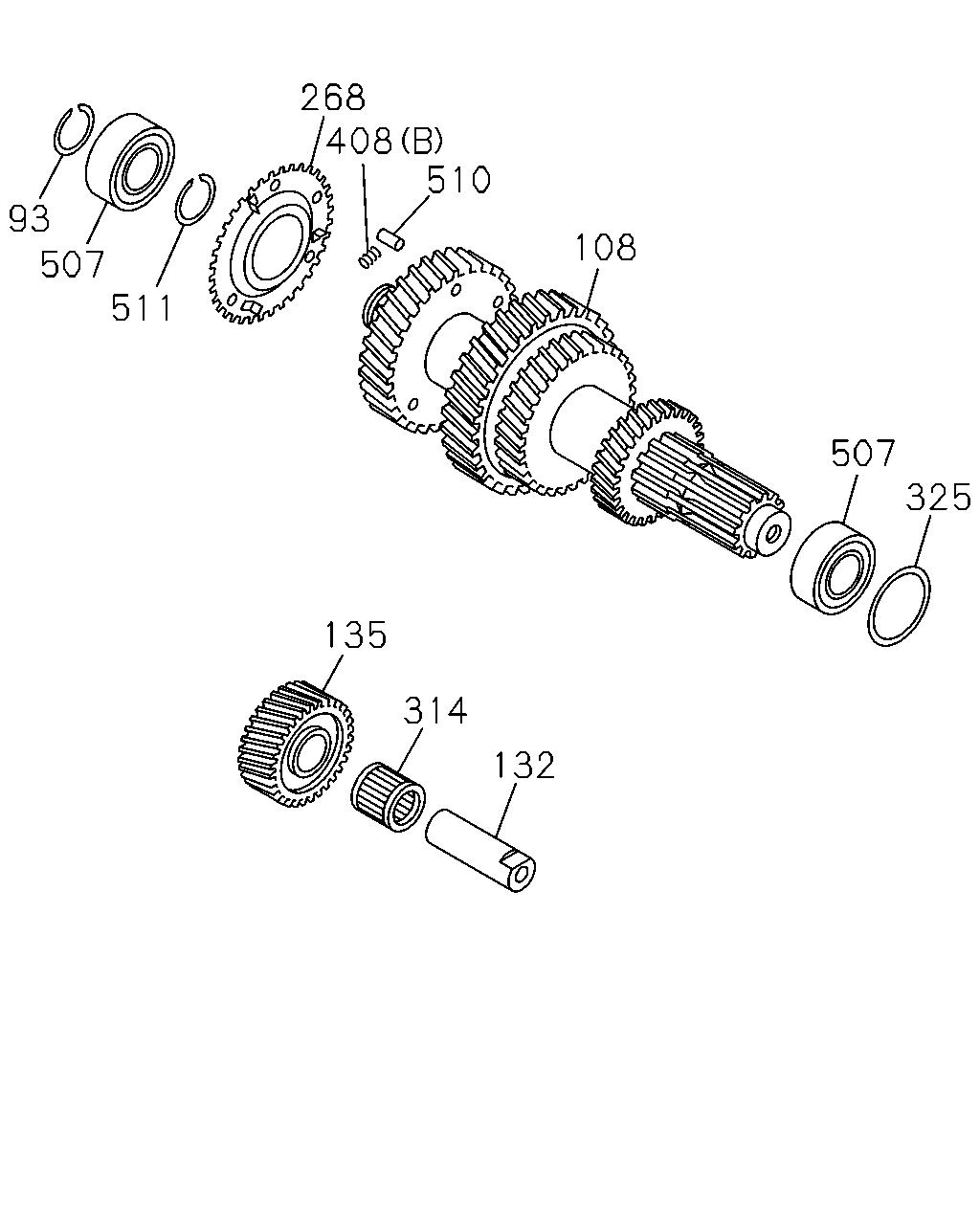

çizim 464264
511 507 93 135 314 132 325 507 108 510 408 268
BalonParca AdiParca NoAdetTipApplied Date A B
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1501-1511 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1512- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1501-1511 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1512- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1501-1511 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1512- ● ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-21 		8-97380-629-1 01 1 1512- ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1501- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1501-1511 ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1512- ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1501-1511 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1512- ● ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 1501-1511 ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 1512- ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1501-1511 ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1512- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1501-1511 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1512- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1501-1511 ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1512- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1501-1511 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1512- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1501-1511 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1512- ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1501-1511 ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1512- ● ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1501-1511 ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1512- ● ●

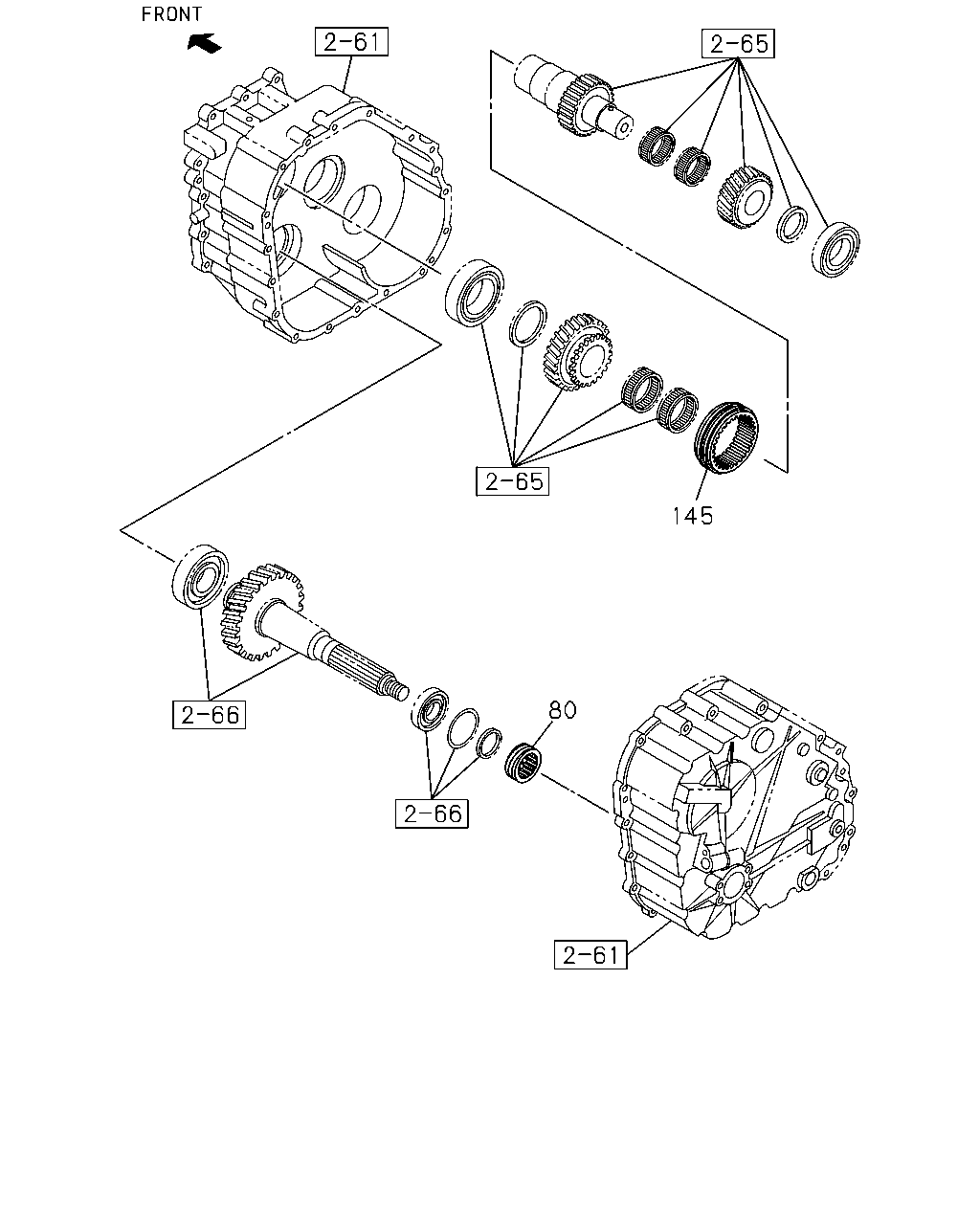

çizim 464412
145 80
BalonParca AdiParca NoAdetTipApplied Date A B
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97318-465-0 01 1 1501-1511 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97318-465-0 01 1 1512- ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
04.383 Z=45 		8-98258-279-0 01 1 1501-1511 ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
04.383 Z=45 		8-98258-279-0 01 1 1512- ● ●

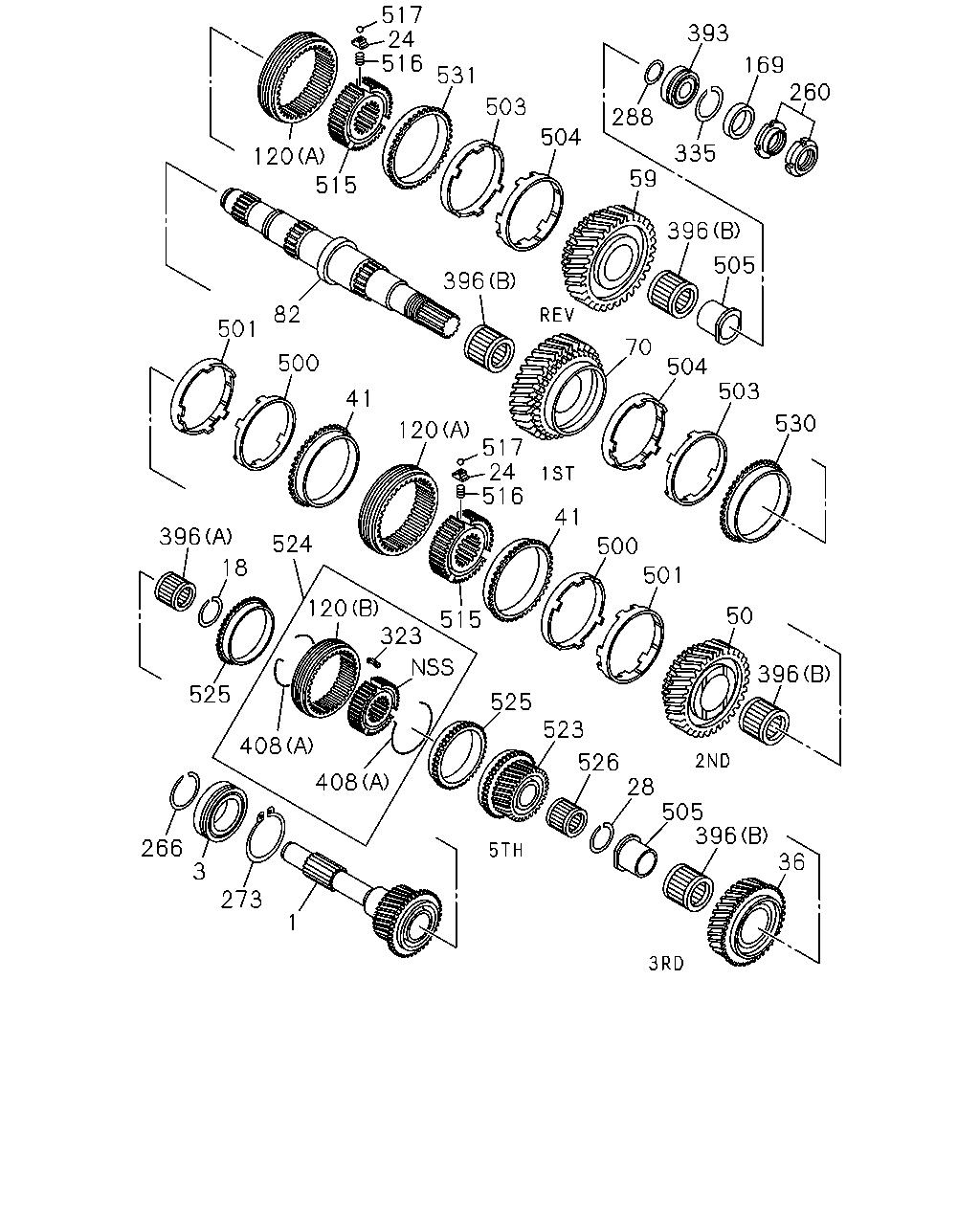

çizim 464513
393 260 169 335 288 59 504 396 503 505 531 516 24 517 515 120 396 70 503 504 530 50 396 501 500 41 516 24 517 120 41 500 501 82 524 18 396 525 120 323 408 408 525 515 523 526 28 505 396 36 1 273 3 266
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.351 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 1501-1511 ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 1512- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1501-1511 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1512- ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1501-1511 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1512- ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1501-1511 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1512- ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1501-1511 ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1512- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=32 		8-97241-235-0 01 1 1512- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1501- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1501-1511 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1512- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-239-1 01 1 1512- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1501- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1501-1511 ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1512- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1501-1511 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1512- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97314-394-1 01 1 1501-1511 ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97314-394-1 01 1 1512- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1501-1511 ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1512- ● ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1501-1511 ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1512- ● ●
169 04.419 COLLAR; MAINSHAFT 8-97314-455-0 01 1 1501-1511 ●
169 04.419 COLLAR; MAINSHAFT 8-97314-455-0 01 1 1512- ● ●
260 04.412 NUT; MAINSHAFT END 8-97314-121-1 01 1 1501-1511 ●
260 04.412 NUT; MAINSHAFT END 8-97314-121-1 01 1 1512- ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1501-1511 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1512- ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1501-1511 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1512- ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1501-1511 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1512- ● ●
323 04.384 INSERT 8-94448-202-2 03 1 1501-1511 ●
323 04.384 INSERT 8-94448-202-2 03 1 1512- ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1501-1511 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1512- ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1501-1511 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1512- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1501-1511 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1512- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1501-1511 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1512- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1501-1511 ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1512- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1501-1511 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1512- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1501-1511 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1512- ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1501-1511 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1512- ● ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1501-1511 ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1512- ● ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1501-1511 ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1512- ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1501-1511 ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1512- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1501-1511 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1512- ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1501-1511 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1512- ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1501-1511 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1512- ● ●
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 1501-1511 ●
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 1512- ● ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1501-1511 ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1512- ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1501-1511 ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1512- ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1501-1511 ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1512- ● ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1501-1511 ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1512- ● ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1501-1511 ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1512- ● ●
