2-25 — SPEEDOMETER DRIVEN GEAR (#155212) — 14 parça

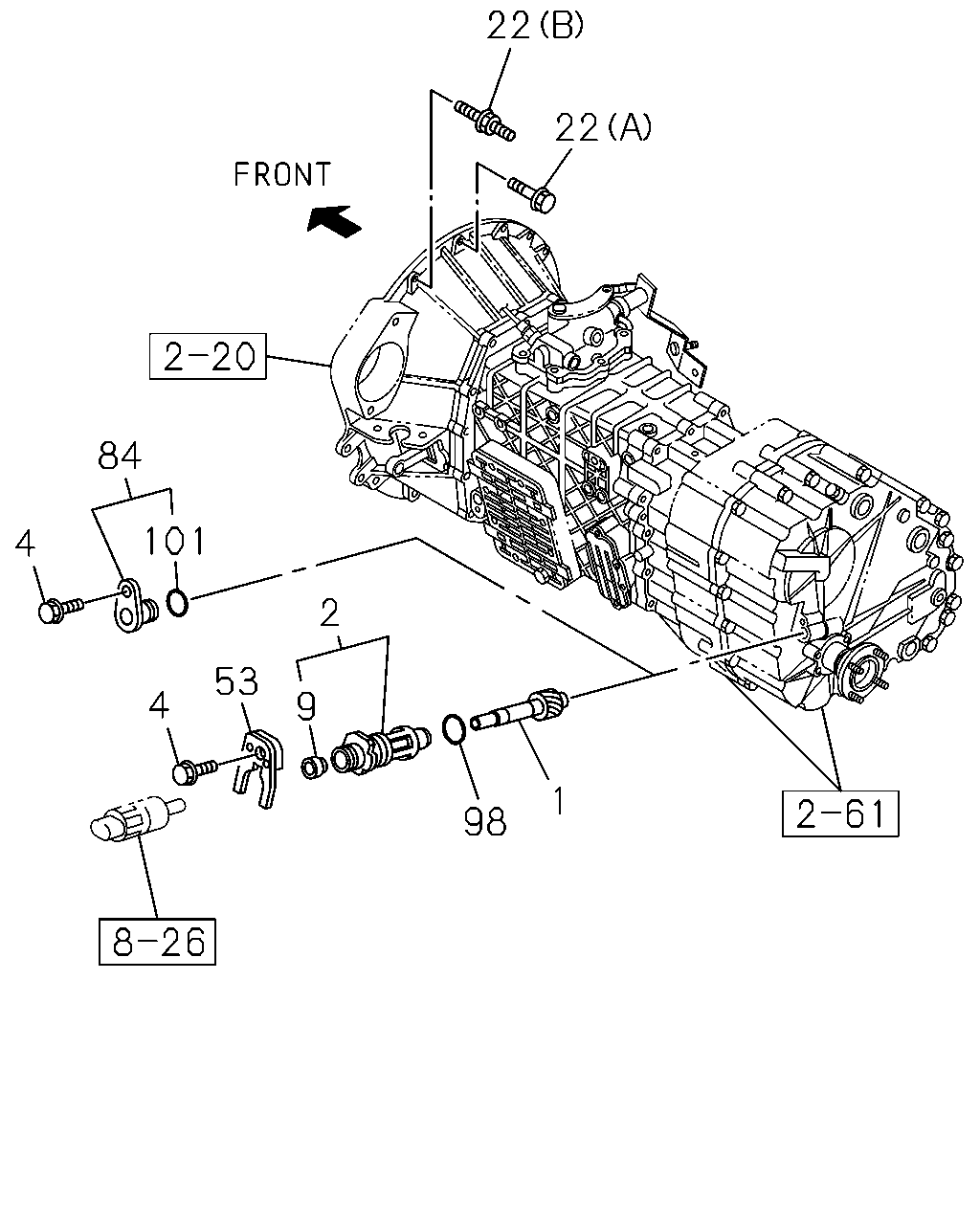

çizim 464234
22 22 84 101 2 9 53 4 4 98 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=14 		8-97253-561-1 01 1 1512- ● ●
1 04.337 GEAR; DRIVEN,SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=13 		8-97253-562-1 01 1 1501-1511 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=13 		8-97253-562-1 01 1 1512- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> MARK "12,13,14,15" 		8-97253-125-0 01 1 1501- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1501- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
09.171 (A) M10X30 FLANGE 		0-28151-030-0 04 1 1501- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
03.670 (A) M10X35 FLANGE 		0-28151-035-0 01 1 1501- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 (A) M10X50 FLANGE 		0-28151-050-0 02 1 1501- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
00.029 (B) M10X35 L=65 		8-97178-725-0 02 1 1501- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-217-0 01 1 1501- ● ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-151-1 01 1 1501- ● ●
98 04.338 SEAL; OIL,BUSH
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.439 		9-09561-324-0 01 1 1501- ● ●
101 04.338 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> 04.439 		9-09561-324-0 01 1 1501- ● ●
