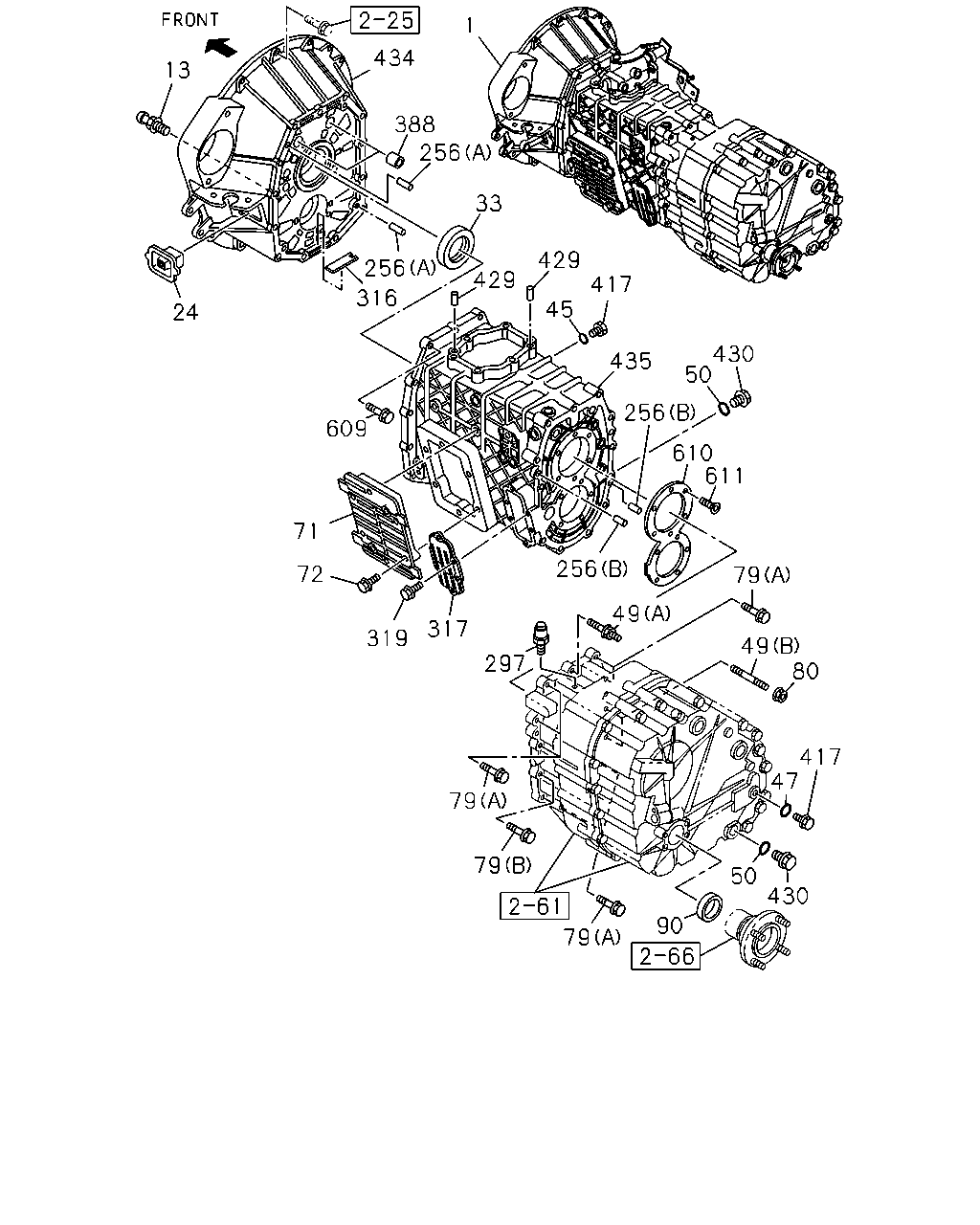

2-20 — MANUAL TRANSMISSION ASM AND CASE (#155211) — 60 parça

13 24 316 256 388 434 1 256 33 429 429 435 417 45 609 71 72 319 317 297 256 256 50 430 610 611 79 49 79 79 79 50 47 49 417 430 90 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL	8-98336-363-0	01	1	1512-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-98067-692-0	01	1	1501-		●
13	04.302 SUPPORT; SHIFT FORK	8-97255-385-1	01	1	1501-1511		●
13	04.302 SUPPORT; SHIFT FORK	8-97255-385-1	01	1	1512-	●	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1501-1511		●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1512-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1501-1511		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1512-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-1511		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1512-	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17	8-97115-712-0	01	1	1501-1511		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17 ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1512-	●	●
49	04.510 STUD; TRANSFER CASE 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	1501-1511		●
49	04.510 STUD; TRANSFER CASE 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	1512-	●	●
49	04.510 STUD; TRANSFER CASE (A) M10X15,M10X40 L=65	8-97365-379-0	02	1	1501-1511		●
49	04.510 STUD; TRANSFER CASE (A) M10X15,M10X40 L=65	8-97365-379-0	02	1	1512-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	03	1	1501-1511		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	03	1	1512-	●	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	1501-1511		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	1512-	●	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1501-1511		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1512-	●	●
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	07	1	1501-1511		●
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	07	1	1512-	●	●
79	04.510 BOLT; TRANSFER CASE (B) M10X40 FLANGE	8-97365-377-0	02	1	1501-1511		●
79	04.510 BOLT; TRANSFER CASE (B) M10X40 FLANGE	8-97365-377-0	02	1	1512-	●	●
80	04.510 NUT; TRANSFER CASE 04.085 M10 FLANGE	0-91180-210-0	02	1	1501-1511		●
80	04.510 NUT; TRANSFER CASE 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1501-1511		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1512-	●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1501-1511		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1512-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1501-1511		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1512-	●	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-98031-520-0	01	1	1501-1511		●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-98031-520-0	01	1	1512-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1501-1511		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1512-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1501-1511		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1512-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1501-1511		●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1512-	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1501-1511		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1512-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	02	1	1501-1511		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	02	1	1512-	●	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1501-1511		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1512-	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	03	1	1501-1511		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	03	1	1512-	●	●
434	00.683 HOUSING; CLU	8-97310-346-4	01	1	1501-1511		●
434	00.683 HOUSING; CLU	8-97310-346-4	01	1	1512-	●	●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1501-1511		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1512-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1501-1511		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1512-	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1501-1511		●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1512-	●	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1501-1511		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1512-	●	●
