2-08 — CLUTCH MASTER CYLINDER (#155209) — 48 parça

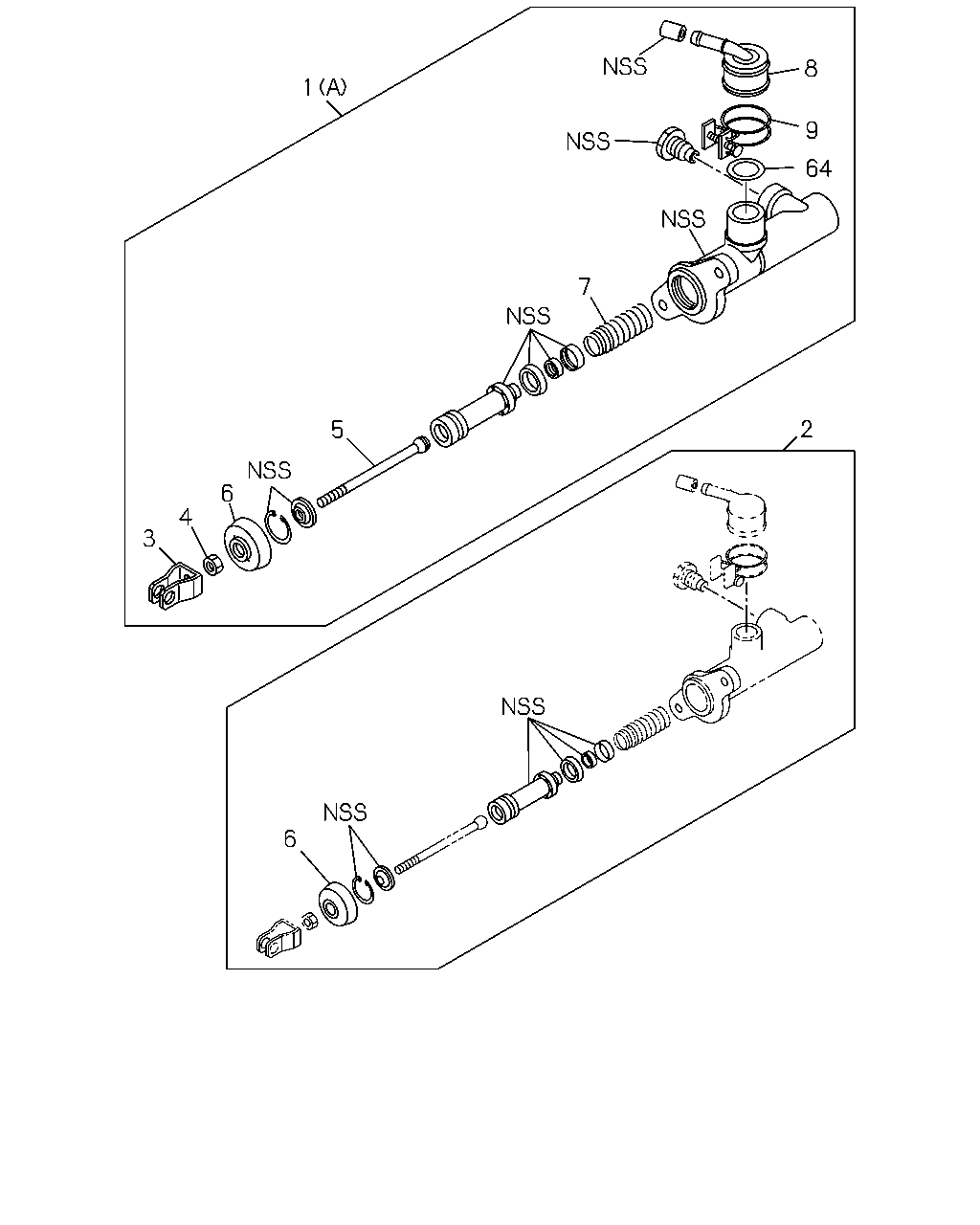

1 3 4 6 5 7 8 9 64 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> (B)	8-98062-277-0	01	1	1501-1511	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> (B)	8-98062-277-0	01	1	1512-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (B)	8-98062-276-0	01	1	1501-1511	●
1	00.775 CYLINDER ASM; CLUTCH MASTER H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (B)	8-98062-276-0	01	1	1512-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (A)	8-98117-639-0	01	1	1501-1511	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (A)	8-98117-639-0	01	1	1512-	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87832-221-0	01	1	1501-1511	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87832-221-0	01	1	1512-	●	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87832-226-0	01	1	1501-1511	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87832-226-0	01	1	1512-	●	●
3	00.777 JOINT; JAW,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-770-0	01	1	1501-1511	●
3	00.777 JOINT; JAW,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-770-0	01	1	1512-	●	●
4	00.777 NUT; JAW JOINT EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> M8	0-91111-508-0	01	1	1501-1511	●
4	00.777 NUT; JAW JOINT EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> M8	0-91111-508-0	01	1	1512-	●	●
5	00.775 ROD; PUSH,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-768-0	01	1	1501-1511	●
5	00.775 ROD; PUSH,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-768-0	01	1	1512-	●	●
6	00.775 BOOT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-94412-200-0	01	1	1501-1511	●
6	00.775 BOOT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-94412-200-0	01	1	1512-	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-98077-784-0	01	1	1501-1511	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-98077-784-0	01	1	1512-	●	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-780-0	01	1	1501-1511	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-780-0	01	1	1512-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL	8-97163-191-0	01	1	1501-1511	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL	8-97163-191-0	01	1	1512-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	1501-1511	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	1512-	●	●
64	00.777 GASKET; CONNECTOR	8-97167-767-0	01	1	1501-1511	●
64	00.777 GASKET; CONNECTOR	8-97167-767-0	01	1	1512-	●	●

1 2 7 7 64 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> (B)	8-98062-277-0	01	1	1501-1511	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> (B)	8-98062-277-0	01	1	1512-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (B)	8-98062-276-0	01	1	1501-1511	●
1	00.775 CYLINDER ASM; CLUTCH MASTER H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (B)	8-98062-276-0	01	1	1512-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (A)	8-98117-639-0	01	1	1501-1511	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (A)	8-98117-639-0	01	1	1512-	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87832-221-0	01	1	1501-1511	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87832-221-0	01	1	1512-	●	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87832-226-0	01	1	1501-1511	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87832-226-0	01	1	1512-	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-98077-784-0	01	1	1501-1511	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-98077-784-0	01	1	1512-	●	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-780-0	01	1	1501-1511	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-780-0	01	1	1512-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL	8-97163-191-0	01	1	1501-1511	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL	8-97163-191-0	01	1	1512-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	1501-1511	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	1512-	●	●
64	00.777 GASKET; CONNECTOR	8-97167-767-0	01	1	1501-1511	●
64	00.777 GASKET; CONNECTOR	8-97167-767-0	01	1	1512-	●	●
