2-03 — CLUTCH PEDAL AND CONTROL (#155205) — 95 parça

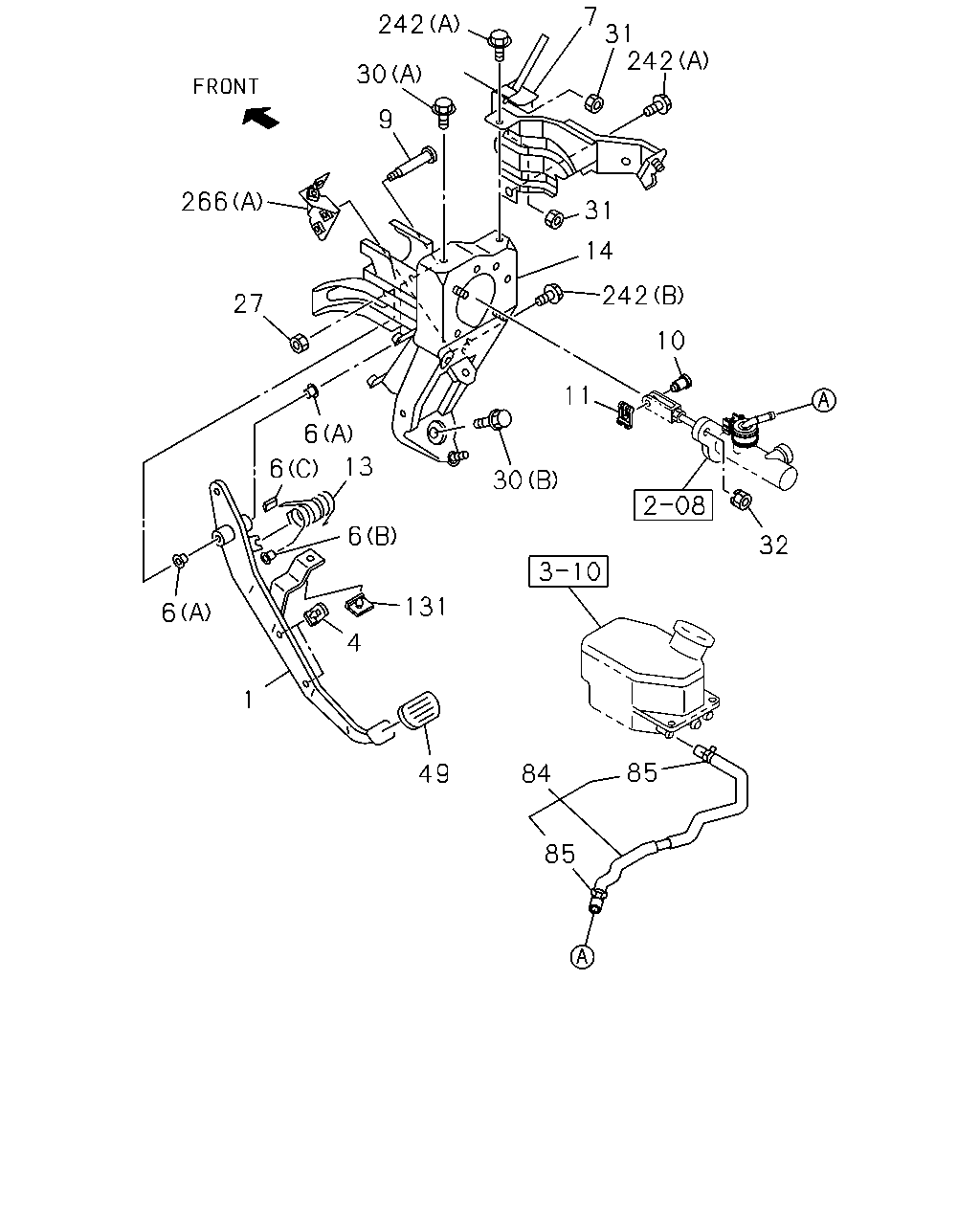

242 30 266 27 9 7 31 242 31 242 14 11 10 32 30 131 49 84 85 85 4 1 6 6 13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>	8-98074-429-0	01	1	1501-	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98290-991-0	01	1	1501-1507	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP>	8-98290-991-0	01	1	1508-	●	●
1	00.830 PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98074-430-0	01	1	1501-	●	●
4	00.829 STOPPER; CLU PEDAL	8-97853-534-1	02	1	1501-	●	●
6	00.831 BUSHING; CLU PEDAL 04.792 (A)	8-94238-596-0	02	1	1501-	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (B)	8-97853-619-0	02	1	1501-	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C)	8-97853-620-0	01	1	1501-	●	●
7	00.829 BRACKET; CLU PEDAL	8-98029-186-4	01	1	1501-	●	●
9	00.833 PIN; CLU PEDAL 04.634	8-97866-667-0	01	1	1501-	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-98147-657-0	01	1	1501-	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1501-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1501-1507	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>	8-98023-621-1	01	1	1508-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL H.S.A SYSTEM<6EP>	8-98023-621-1	01	1	1508-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-014-0	01	1	1501-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98290-990-1	01	1	1501-1507	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP>	8-98290-990-1	01	1	1508-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG EXC. H.S.A SYSTEM<6EP>	8-98074-425-0	01	1	1501-	●	●
27	00.833 NUT; FULCRUM PIN 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1501-	●	●
30	00.829 BOLT; CLU MTG BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1501-	●	●
30	00.829 BOLT; CLU MTG BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1501-	●	●
31	01.153 NUT; MTG BRKT TO BODY 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
49	00.829 RUBBER; PAD,CLU PEDAL	8-97853-413-2	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98218-205-1	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98153-001-5	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ)	8-98217-270-1	01	1	1501-	●	●
85	00.785 CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1501-	●	●
131	00.829 STOPPER; CLU SW H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 03.459	8-97302-305-0	01	1	1501-1507	●	●
131	00.829 STOPPER; CLU SW H.S.A SYSTEM<6EP> 03.459	8-97302-305-0	01	1	1508-	●	●
131	00.829 STOPPER; CLU SW EXC. H.S.A SYSTEM<6EP> 03.459	8-97302-305-0	02	1	1501-	●	●
242	00.785 BOLT; BRKT,CLUTCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1501-1507	●	●
242	00.785 BOLT; BRKT,CLUTCH H.S.A SYSTEM<6EP> 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1508-	●	●
242	00.785 BOLT; BRKT,CLUTCH 03.604 (A) M8X16 FLANGE	0-28450-816-0	02	1	1501-	●	●
242	00.785 BOLT; BRKT,CLUTCH EXC. H.S.A SYSTEM<6EP> 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1501-	●	●
266	04.054 BRACKET; CLU SWITCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (B)	8-98290-992-1	01	1	1501-1507	●	●
266	04.054 BRACKET; CLU SWITCH H.S.A SYSTEM<6EP> (B)	8-98290-992-1	01	1	1508-	●	●
266	04.054 BRACKET; CLU SWITCH (A)	8-98079-100-0	01	1	1501-	●	●

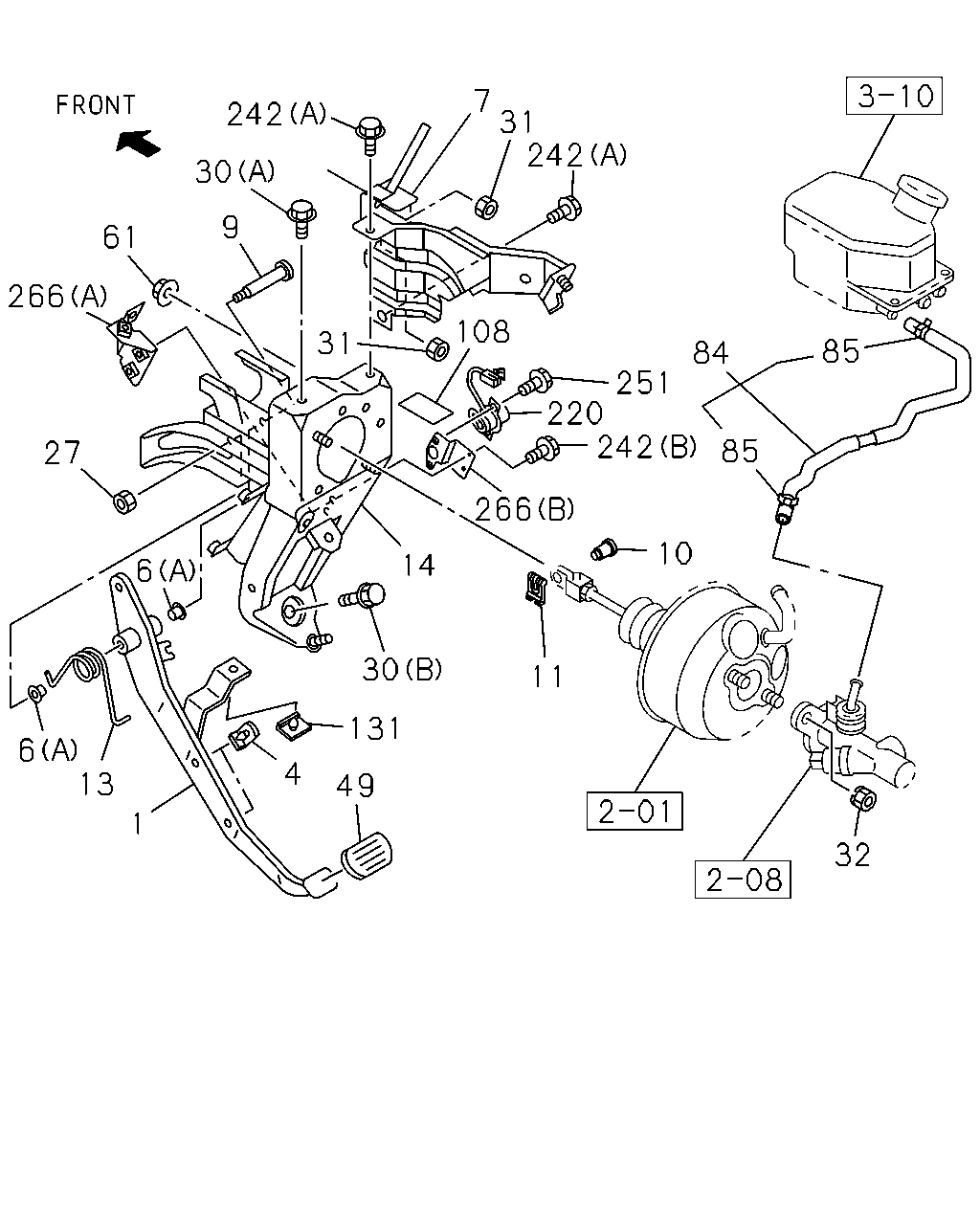

242 7 31 242 30 61 266 27 6 6 13 1 4 49 131 30 11 32 10 266 14 242 85 85 84 251 220 108 31 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>	8-98074-429-0	01	1	1501-	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98290-991-0	01	1	1501-1507	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP>	8-98290-991-0	01	1	1508-	●	●
1	00.830 PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98074-430-0	01	1	1501-	●	●
4	00.829 STOPPER; CLU PEDAL	8-97853-534-1	02	1	1501-	●	●
6	00.831 BUSHING; CLU PEDAL 04.792 (A)	8-94238-596-0	02	1	1501-	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (B)	8-97853-619-0	02	1	1501-	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C)	8-97853-620-0	01	1	1501-	●	●
7	00.829 BRACKET; CLU PEDAL	8-98029-186-4	01	1	1501-	●	●
9	00.833 PIN; CLU PEDAL 04.634	8-97866-667-0	01	1	1501-	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-98147-657-0	01	1	1501-	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1501-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1501-1507	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>	8-98023-621-1	01	1	1508-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL H.S.A SYSTEM<6EP>	8-98023-621-1	01	1	1508-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-014-0	01	1	1501-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98290-990-1	01	1	1501-1507	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP>	8-98290-990-1	01	1	1508-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG EXC. H.S.A SYSTEM<6EP>	8-98074-425-0	01	1	1501-	●	●
27	00.833 NUT; FULCRUM PIN 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1501-	●	●
30	00.829 BOLT; CLU MTG BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1501-	●	●
30	00.829 BOLT; CLU MTG BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1501-	●	●
31	01.153 NUT; MTG BRKT TO BODY 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1501-	●	●
49	00.829 RUBBER; PAD,CLU PEDAL	8-97853-413-2	01	1	1501-	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER	8-94279-050-0	04	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98218-205-1	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98153-001-5	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1501-	●	●
84	00.785 HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ)	8-98217-270-1	01	1	1501-	●	●
85	00.785 CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1501-	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 16.742 L=30	1-73948-004-0	01	1	1501-1507	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP> 16.742 L=30	1-73948-004-0	01	1	1508-	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98304-448-0	01	1	1501-1507	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP>	8-98304-448-0	01	1	1508-	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98304-450-0	01	1	1501-1507	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP>	8-98304-450-0	01	1	1508-	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98304-451-0	01	1	1501-1507	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP>	8-98304-451-0	01	1	1508-	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98304-452-0	01	1	1501-1507	●	●
108	00.829 PROTECTOR; EDGE,CLU PEDAL H.S.A SYSTEM<6EP>	8-98304-452-0	01	1	1508-	●	●
131	00.829 STOPPER; CLU SW H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 03.459	8-97302-305-0	01	1	1501-1507	●	●
131	00.829 STOPPER; CLU SW H.S.A SYSTEM<6EP> 03.459	8-97302-305-0	01	1	1508-	●	●
131	00.829 STOPPER; CLU SW EXC. H.S.A SYSTEM<6EP> 03.459	8-97302-305-0	02	1	1501-	●	●
220	04.329 SENSOR; CLUTCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	1-80250-014-0	01	1	1501-1507	●	●
220	04.329 SENSOR; CLUTCH H.S.A SYSTEM<6EP>	1-80250-014-0	01	1	1508-	●	●
242	00.785 BOLT; BRKT,CLUTCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1501-1507	●	●
242	00.785 BOLT; BRKT,CLUTCH H.S.A SYSTEM<6EP> 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1508-	●	●
242	00.785 BOLT; BRKT,CLUTCH 03.604 (A) M8X16 FLANGE	0-28450-816-0	02	1	1501-	●	●
242	00.785 BOLT; BRKT,CLUTCH EXC. H.S.A SYSTEM<6EP> 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1501-	●	●
251	04.054 BOLT; SENSOR H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 02.500 M6X16	0-52000-616-0	02	1	1501-1507	●	●
251	04.054 BOLT; SENSOR H.S.A SYSTEM<6EP> 02.500 M6X16	0-52000-616-0	02	1	1508-	●	●
266	04.054 BRACKET; CLU SWITCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (B)	8-98290-992-1	01	1	1501-1507	●	●
266	04.054 BRACKET; CLU SWITCH H.S.A SYSTEM<6EP> (B)	8-98290-992-1	01	1	1508-	●	●
266	04.054 BRACKET; CLU SWITCH (A)	8-98079-100-0	01	1	1501-	●	●
