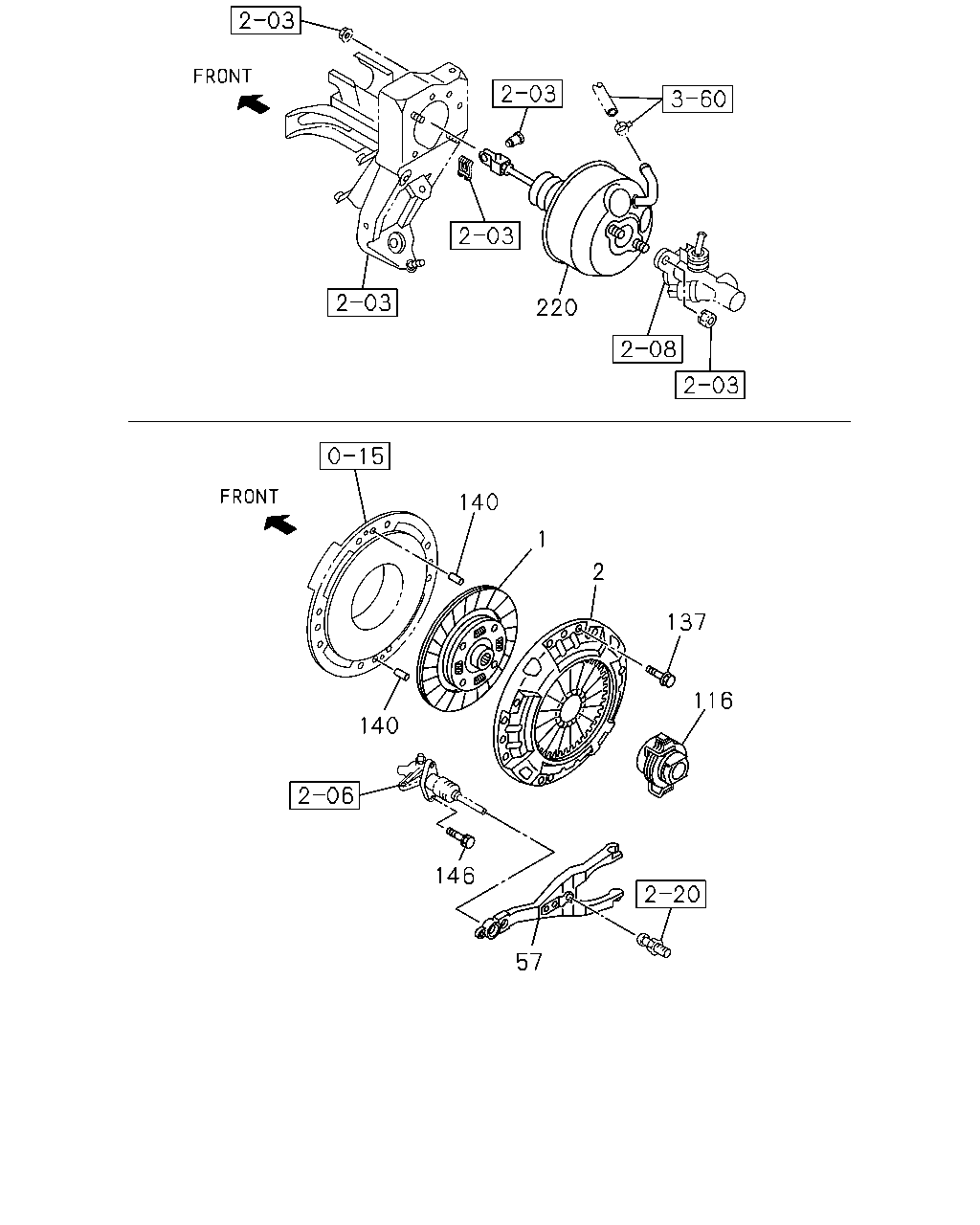

2-01 — CLUTCH (#155204) — 22 parça

57 146 140 116 137 2 1 140 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.886 DISC; CLUTCH	8-98255-140-1	01	1	1501-1511	●
1	00.886 DISC; CLUTCH	8-98255-140-1	01	1	1512-	●	●
1	00.886 DISC; CLUTCH BEST VALUE PARTS	5-87610-080-1	01	1	1501-1511	●
1	00.886 DISC; CLUTCH BEST VALUE PARTS	5-87610-080-1	01	1	1512-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	1501-1511	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	1512-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	1501-1511	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	1512-	●	●
57	00.795 FORK; SHIFT,CLU	8-97255-303-0	01	1	1501-1511	●
57	00.795 FORK; SHIFT,CLU	8-97255-303-0	01	1	1512-	●	●
116	00.799 BLOCK; SHIFT,CLU	8-97255-313-0	01	1	1501-1511	●
116	00.799 BLOCK; SHIFT,CLU	8-97255-313-0	01	1	1512-	●	●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-110-0	01	1	1501-1511	●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-110-0	01	1	1512-	●	●
137	00.862 BOLT; CLU COVER 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1501-1511	●
137	00.862 BOLT; CLU COVER 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1512-	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	1501-1511	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	1512-	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1501-1511	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1512-	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-98033-837-0	01	1	1501-1511	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-98033-837-0	01	1	1512-	●	●
