Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#155203) — 26 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

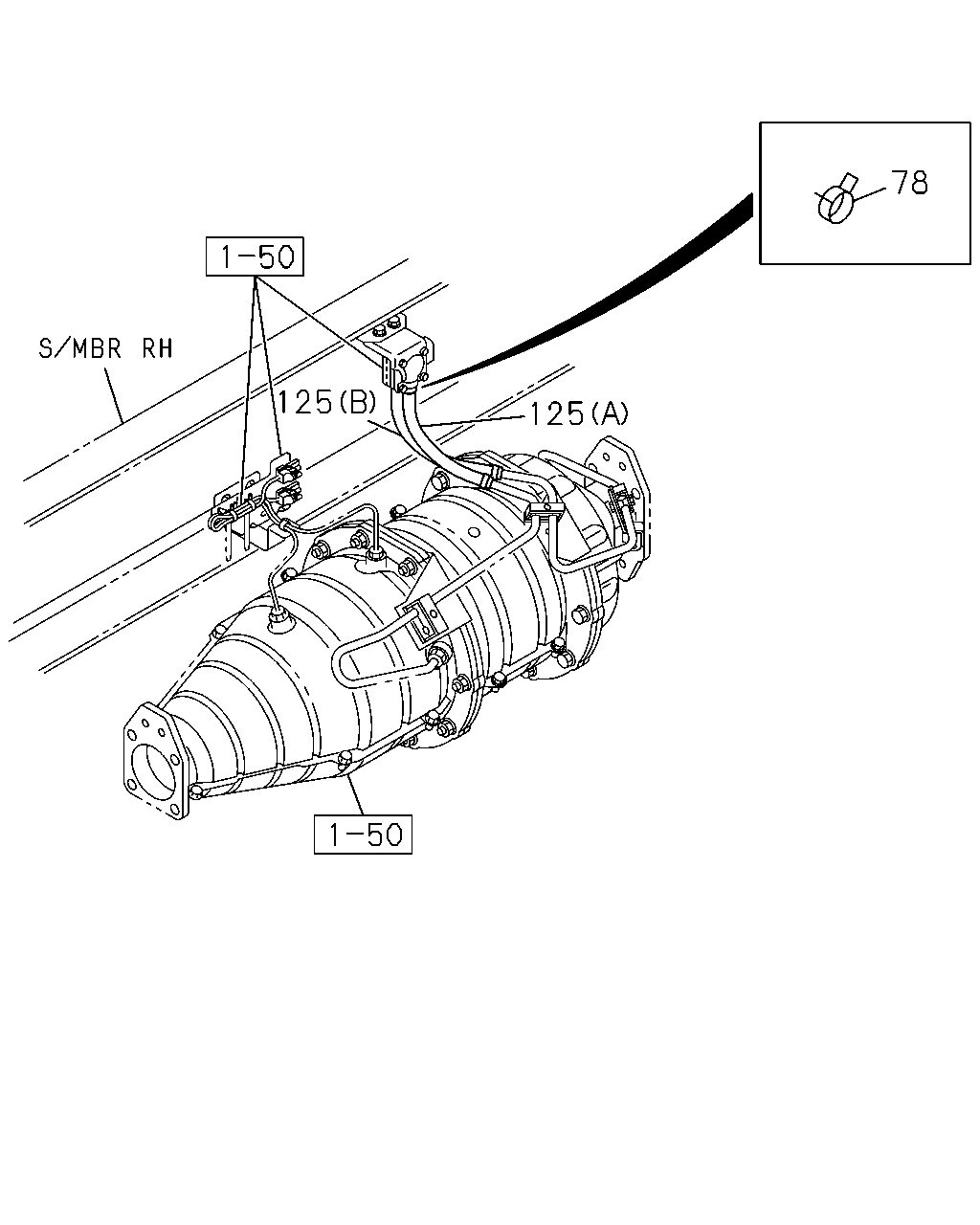

[156A] NO.2 (3 parça)
[156A] NO.3 (9 parça)
[156A] NO.4 (9 parça)
[156A] NO.1 (5 parça)
▶
125
78
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
78
03.636 CLIP; HOSE
03.162 ID=13
8-97329-627-0
04
1
1501-
●
●
125
03.630 HOSE; DPD
03.163 (B) L=200 SERVICED BY L=3000
0-01558-300-0
01
1
1501-
●
●
125
03.630 HOSE; DPD
(A) L=170
8-98068-068-0
01
1
1501-
●
●
96
15
14
94
95
124
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
03.632 BOLT; EXH BRAKE UNIT FIX
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1501-
●
●
14
03.634 FILTER; AIR,EXH BRAKE
8-97033-888-0
01
1
1501-
●
●
15
03.634 NUT; AIR FILTER
01.062 M8 FLANGE
0-91180-108-0
02
1
1501-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98034-053-3
01
1
1501-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98125-497-0
01
1
1501-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-98040-636-1
01
1
1501-
●
95
03.636 BOLT; BRKT,MAG VLV,EXH BRAKE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1501-
●
●
96
03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE
0-91180-108-0
02
1
1501-
●
●
124
03.636 VALVE; MAG,DPD EXH THROTTLE
8-98043-344-0
01
1
1501-
●
●

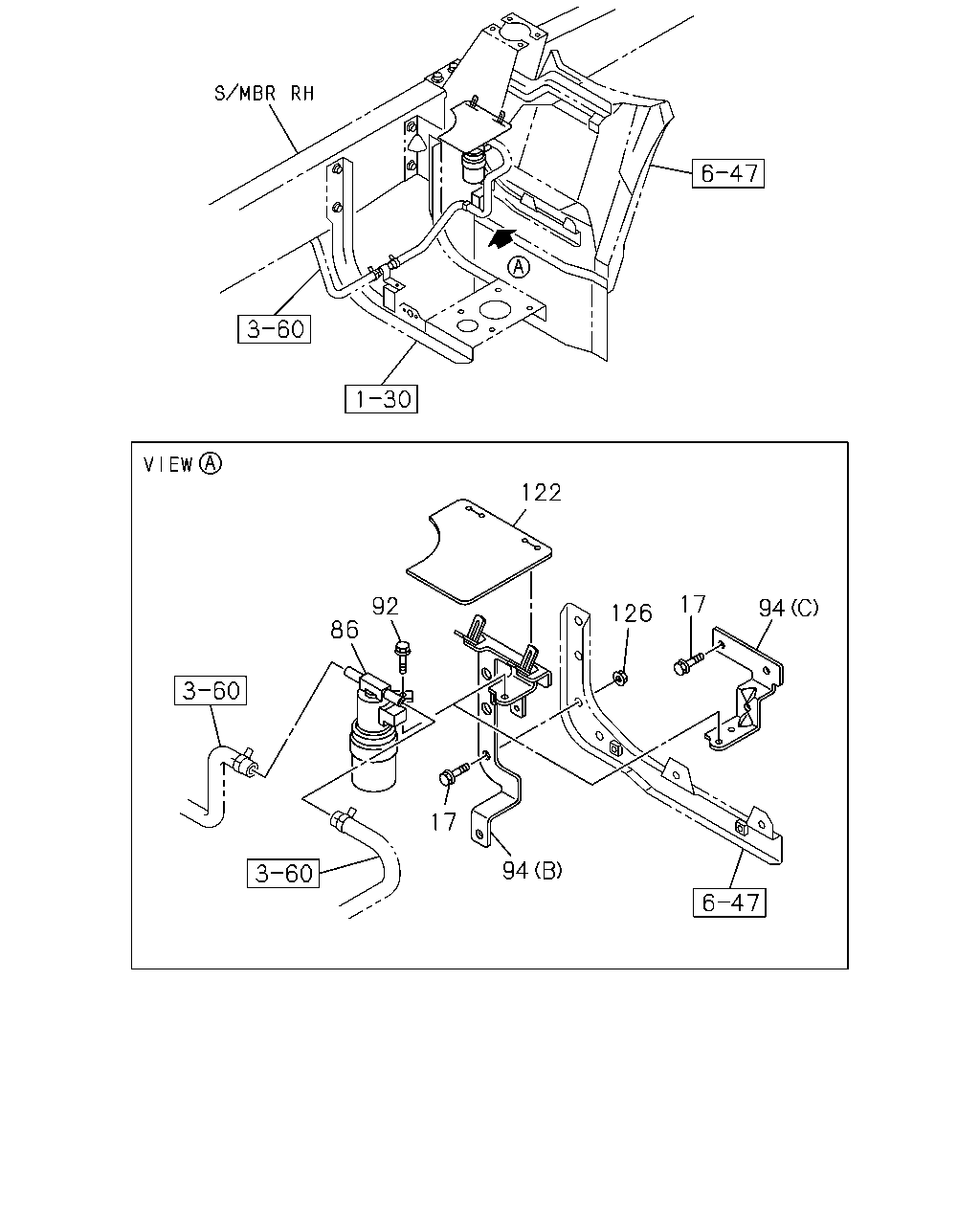

122
126
17
94
94
17
92
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1501-
●
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1501-
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
1501-
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1501-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98034-053-3
01
1
1501-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98125-497-0
01
1
1501-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-98040-636-1
01
1
1501-
●
122
03.640 PROTECTOR; MAG VLV
8-98087-988-0
01
1
1501-
●
126
03.634 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1501-
●
8
1
5
1
5
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.632 BRAKE UNIT; EXH
(A)
8-98227-170-0
01
1
1501-
●
●
1
03.632 BRAKE UNIT; EXH
(B)
8-98258-269-0
01
1
1501-
●
●
5
03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64
8-97373-108-0
02
1
1501-
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1501-
●
●
10
03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1501-
●
●
