1-41 — FUEL PIPING; CHASSIS (#155200) — 95 parça

66 124 47 124 29 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98139-113-1	01	1	1501-	●	●
29	03.163 HOSE; FUEL (B)	8-98155-188-1	01	1	1501-	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98120-960-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-2	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1501-	●	●
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	1501-	●	●
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1501-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	06	1	1501-1507	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE M/T MYY5T(RSM) (A) ID=16	8-98008-098-0	02	1	1501-1507	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE M/T MYY5T(RSM) (A) ID=16	8-98008-098-0	02	1	1501-1507	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	06	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1501-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1501-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	04	1	1501-	●	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1501-	●	●

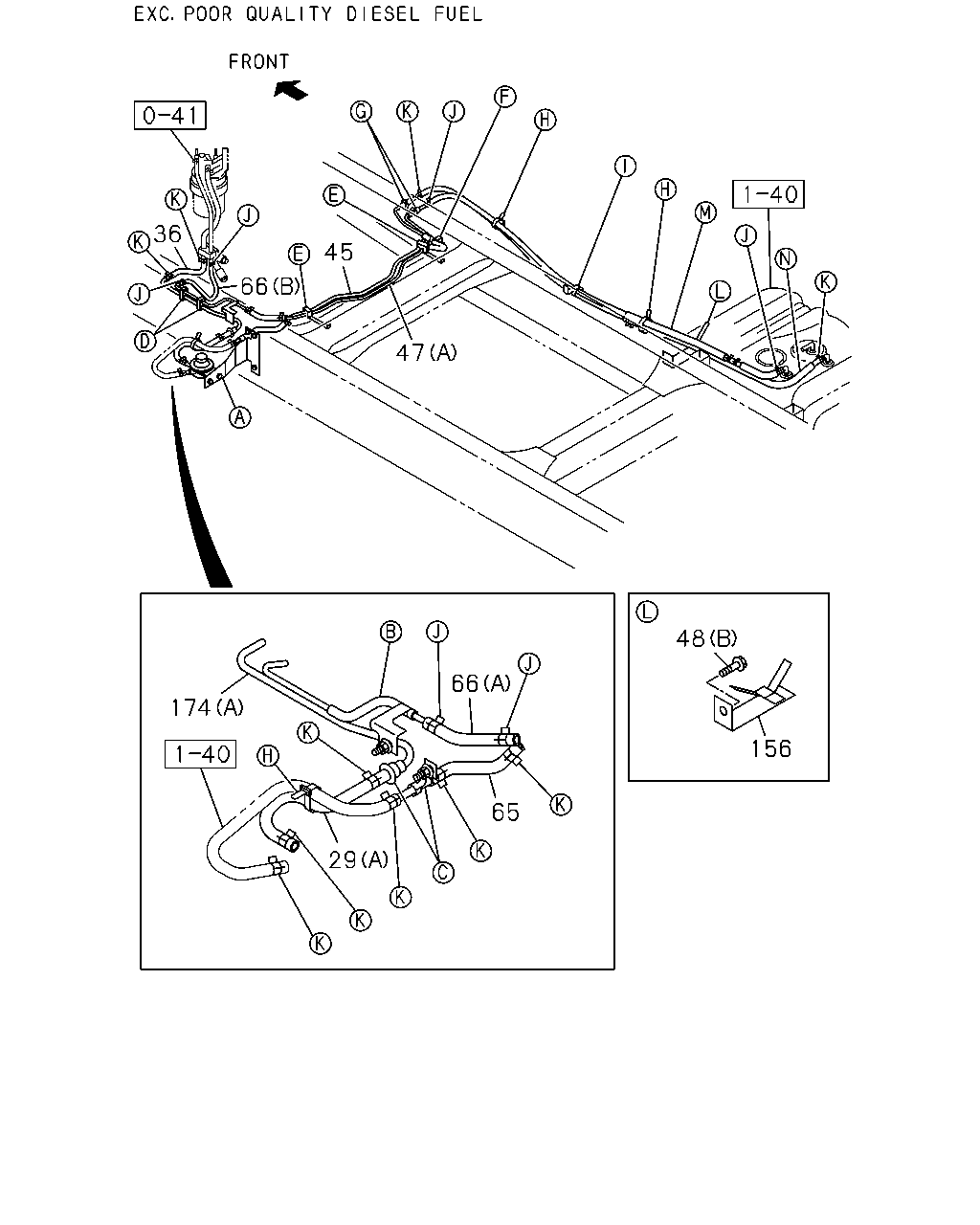

36 66 45 47 66 65 29 48 156 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98139-113-1	01	1	1501-	●	●
29	03.163 HOSE; FUEL (B)	8-98155-188-1	01	1	1501-	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98120-960-1	01	1	1501-	●	●
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98120-957-1	01	1	1501-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98043-681-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1501-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1501-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1501-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE L=140	8-98133-837-0	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-2	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1501-	●	●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	1501-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1501-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98158-899-0	01	1	1501-	●	●

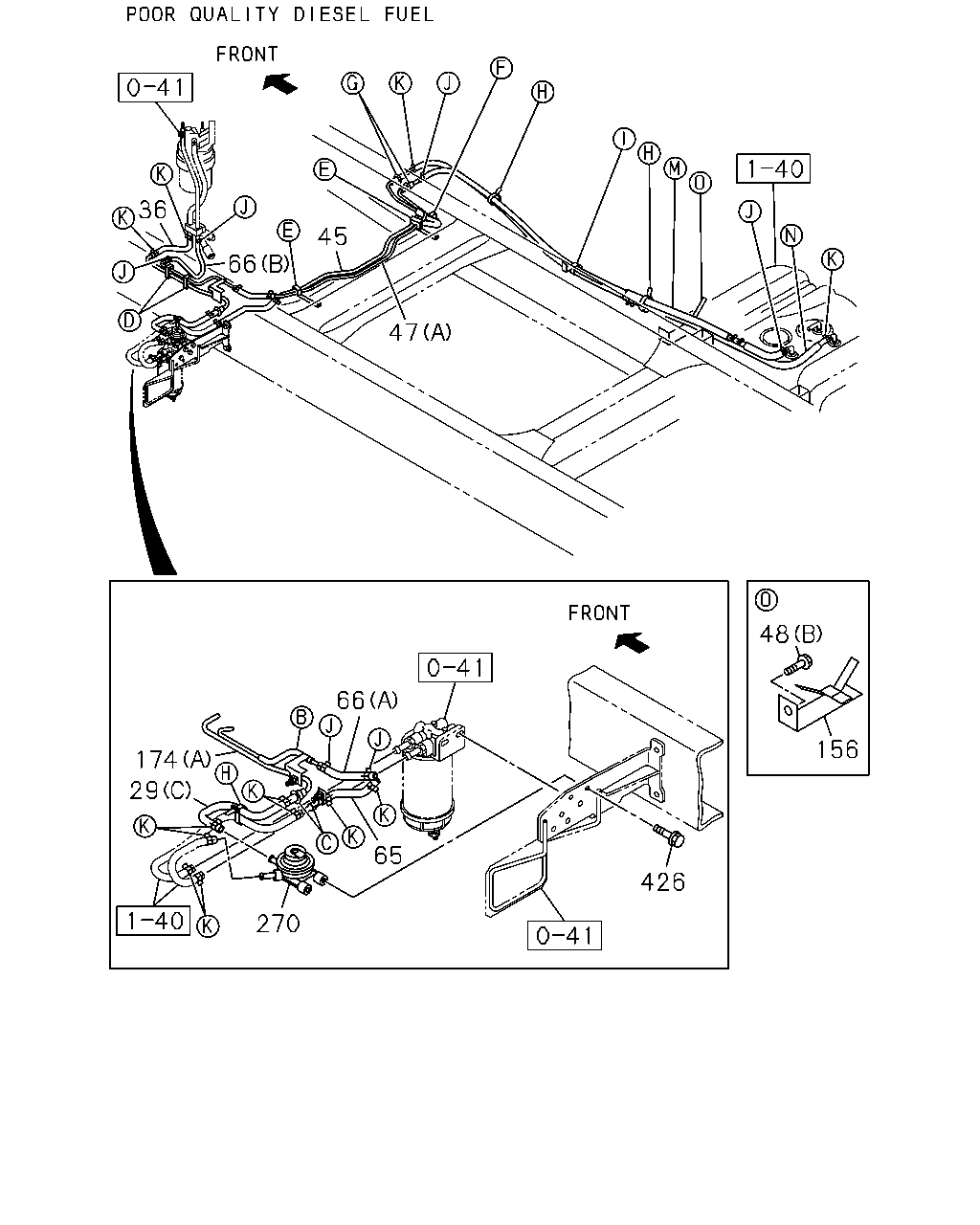

36 66 45 47 48 156 66 174 29 270 65 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98139-113-1	01	1	1501-	●	●
29	03.163 HOSE; FUEL (B)	8-98155-188-1	01	1	1501-	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98120-960-1	01	1	1501-	●	●
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98120-957-1	01	1	1501-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98043-681-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1501-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1501-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1501-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE L=140	8-98133-837-0	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-2	01	1	1501-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1501-	●	●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	1501-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1501-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98158-899-0	01	1	1501-	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1501-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1501-	●	●

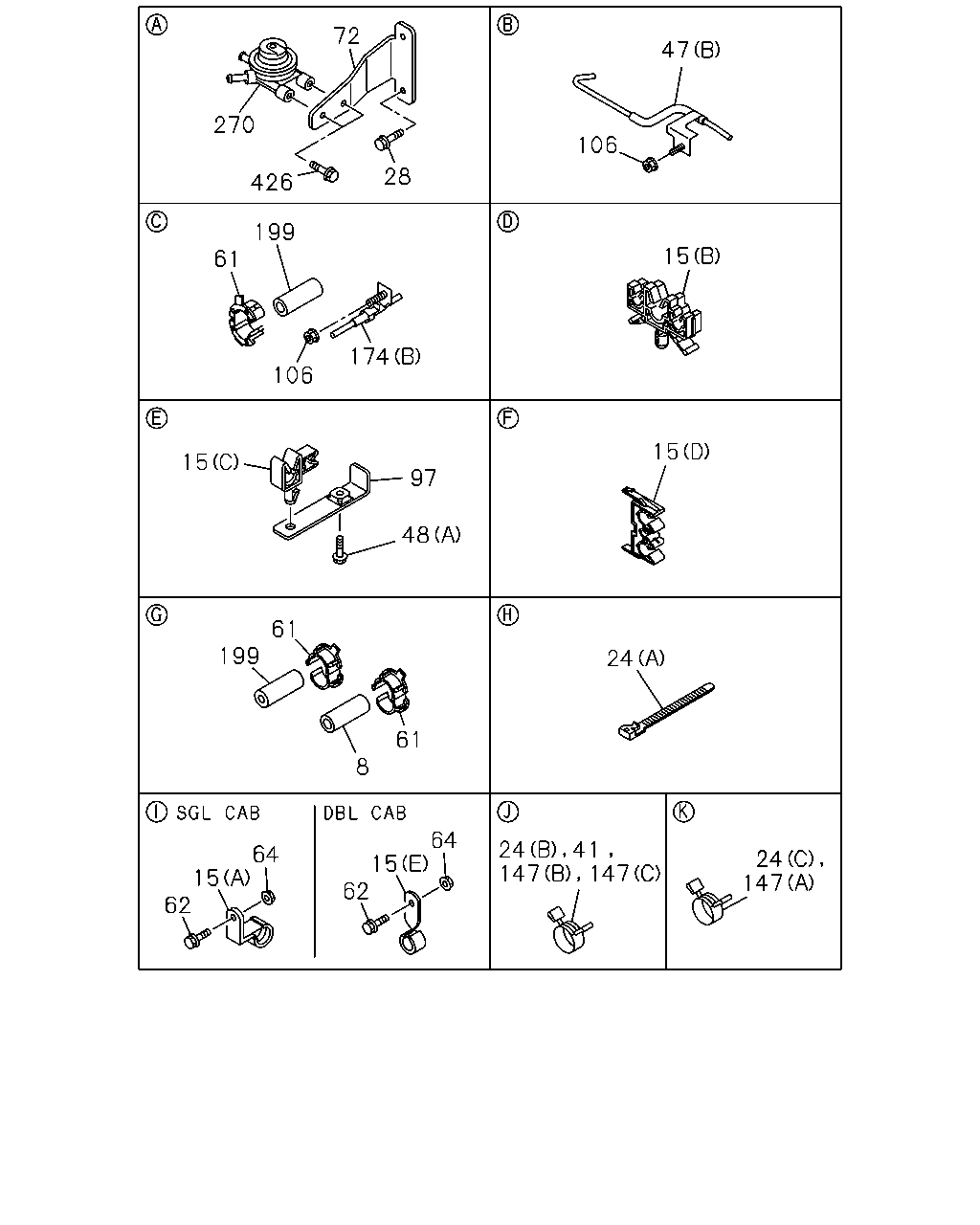

270 426 28 72 47 106 15 15 24 24 147 147 147 24 41 64 15 62 64 15 62 8 61 61 199 48 97 15 106 174 199 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	1501-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1501-1507	●
15	03.162 CLIP; FUEL PIPE 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	1501-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1501-	●	●
15	03.162 CLIP; FUEL PIPE (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	02	1	1501-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (E) ID=28 L=60	1-09700-585-1	01	1	1501-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	1501-	●	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	1501-	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1501-	●	●
24	03.162 CLIP; FUEL HOSE 03.483 (A) L=450	1-09707-142-1	01	1	1501-		●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1501-	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1501-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1501-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1501-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1501-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	03	1	1501-	●	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1501-	●	●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1501-	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1501-	●	●
97	03.162 BRACKET; CLIP	8-98041-203-0	02	1	1501-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	02	1	1501-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	06	1	1501-1507	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE M/T MYY5T(RSM) (A) ID=16	8-98008-098-0	02	1	1501-1507	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE M/T MYY5T(RSM) (A) ID=16	8-98008-098-0	02	1	1501-1507	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	06	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1501-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1501-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	04	1	1501-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1501-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98158-899-0	01	1	1501-	●	●
199	03.162 PROTECTOR; FUEL PIPE OD=16.5 L=50	8-97214-235-0	02	1	1501-	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1501-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1501-	●	●
