Sayfa 0-32 - Isuzu EPC

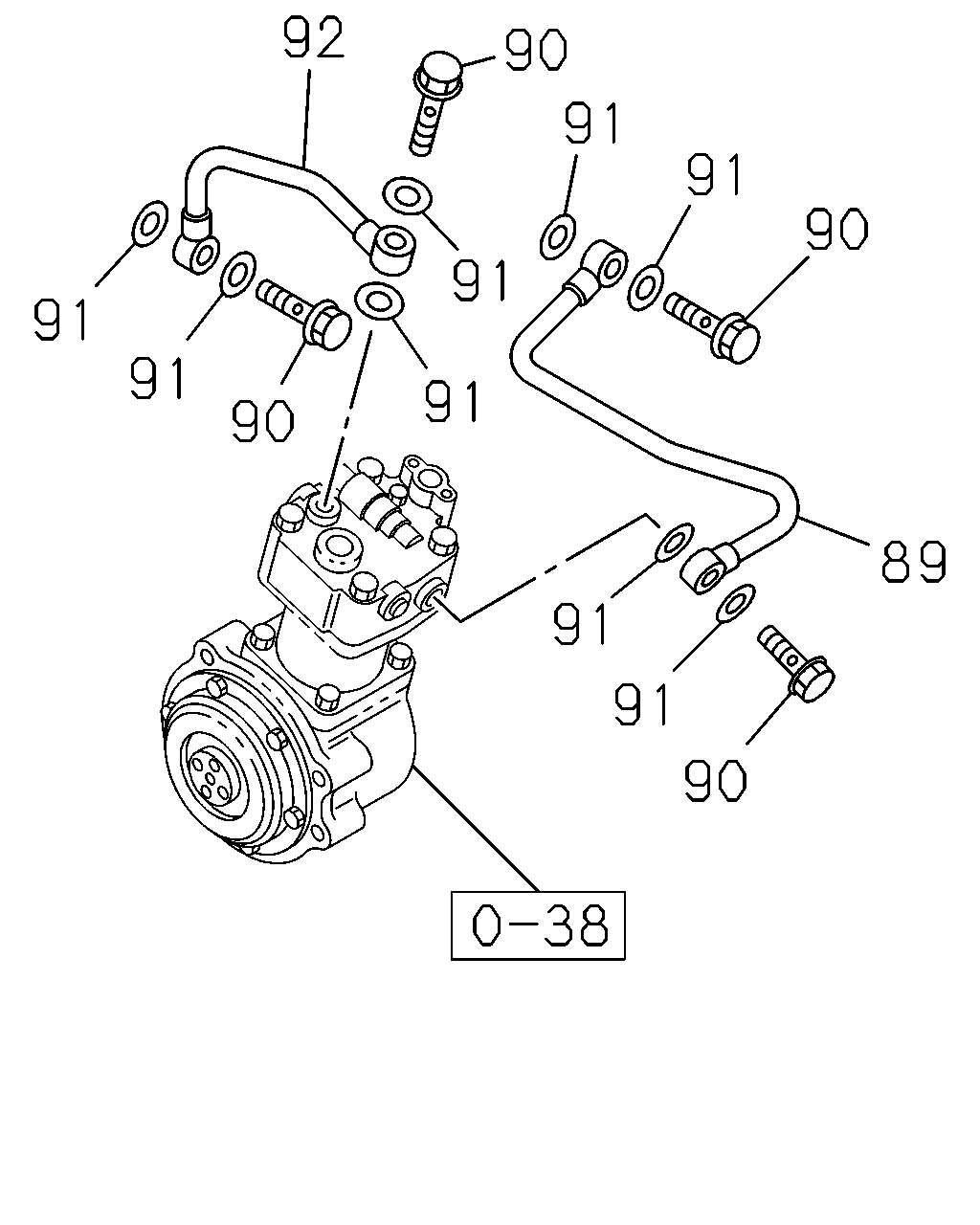

92 90 91 91 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN	1-13721-794-0	01	1	0611-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0611-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0611-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0611-

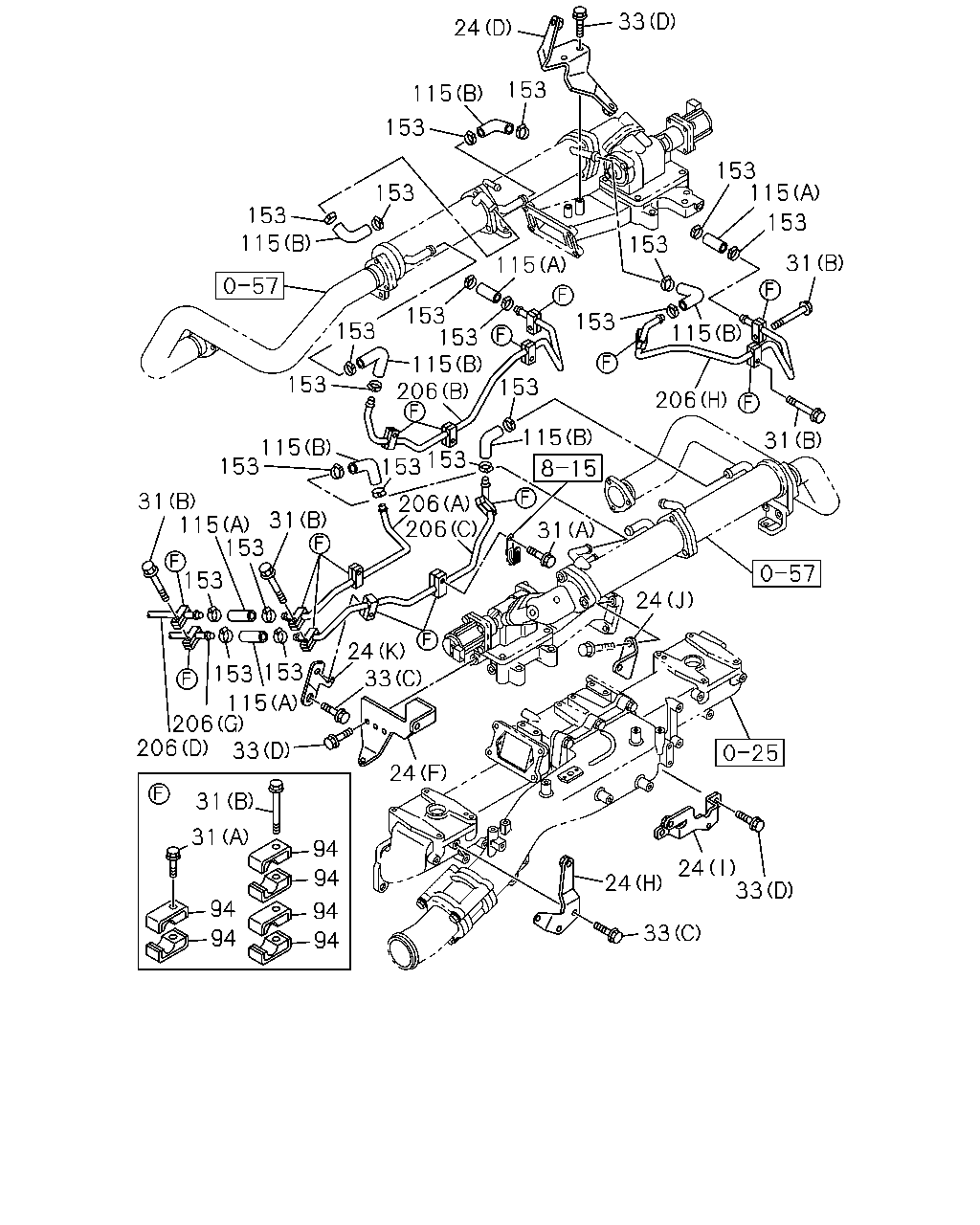

24 33 153 115 153 153 153 115 153 115 153 31 153 115 31 206 153 115 153 153 115 206 153 153 153 115 153 31 115 153 31 153 153 115 206 206 153 153 153 115 206 206 33 31 31 94 94 94 94 94 94 24 33 24 31 24 24 33 33 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0611-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0611-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0611-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0611-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0611-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0611-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0611-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0611-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0611-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0611-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0611-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	0611-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0611-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0611-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0611-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0611-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0611-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0611-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0611-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0611-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0611-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0611-0805
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0611-0805
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0611-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0611-

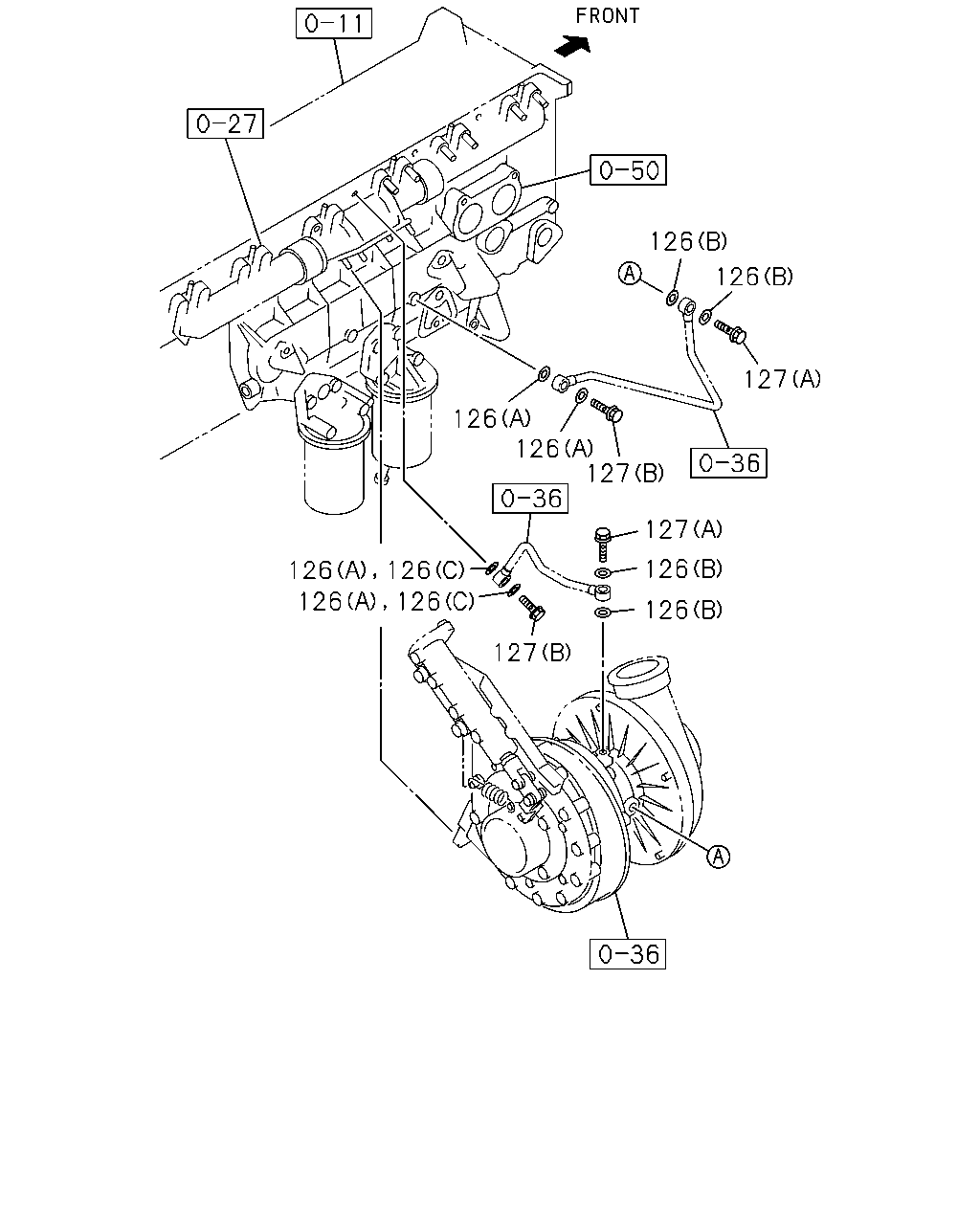

126 126 127 126 126 127 127 126 126 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0704-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0611-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0611-0703
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0704-
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	0611-
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0611-

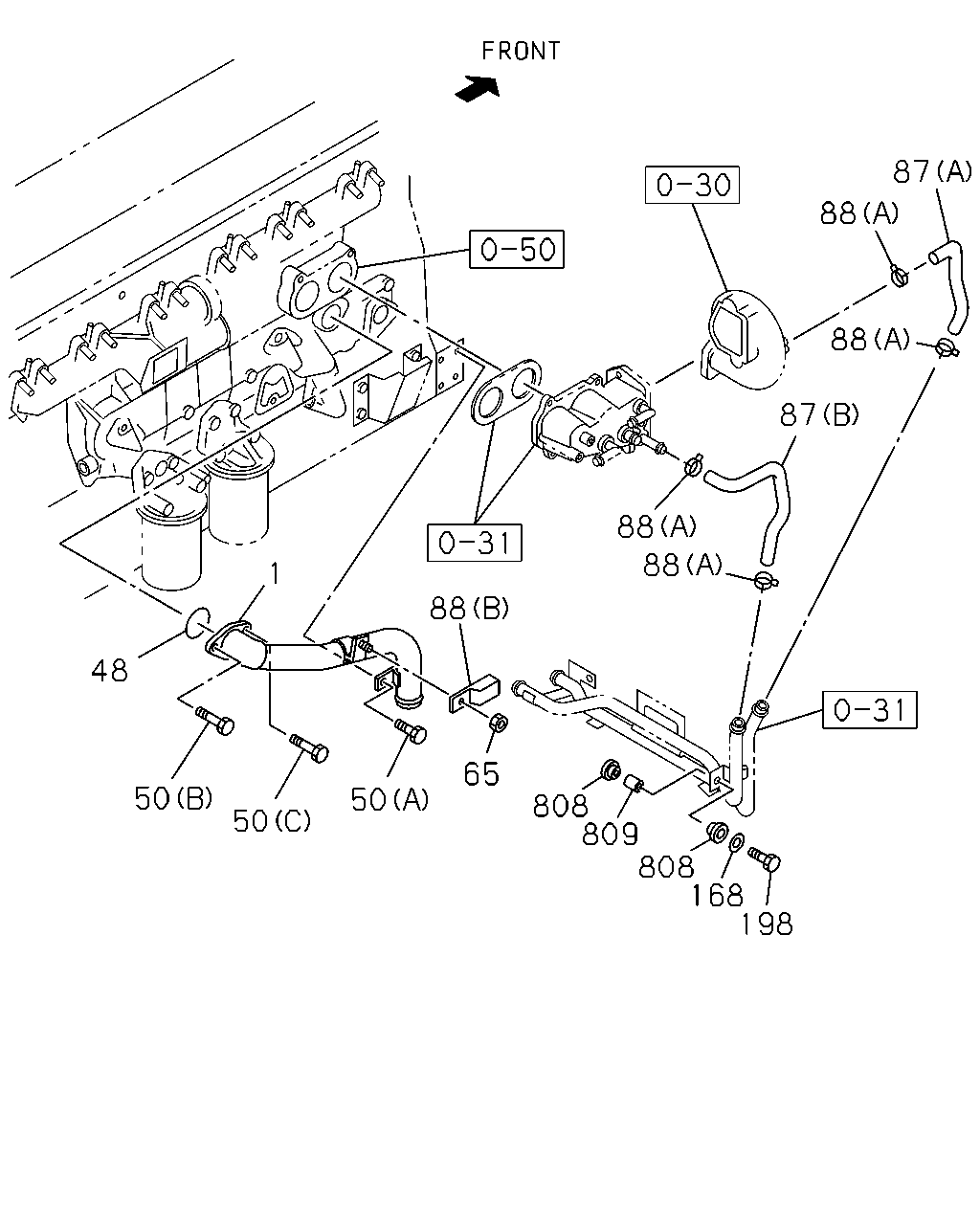

87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0611-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0611-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0611-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0611-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0611-
65	NUT M10 FLANGE	0-91180-110-0	01	1	0611-
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0611-
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0611-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0611-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0611-1206
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0611-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0611-
808	RUBBER; MTG	1-09337-017-0	04	1	0611-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0611-

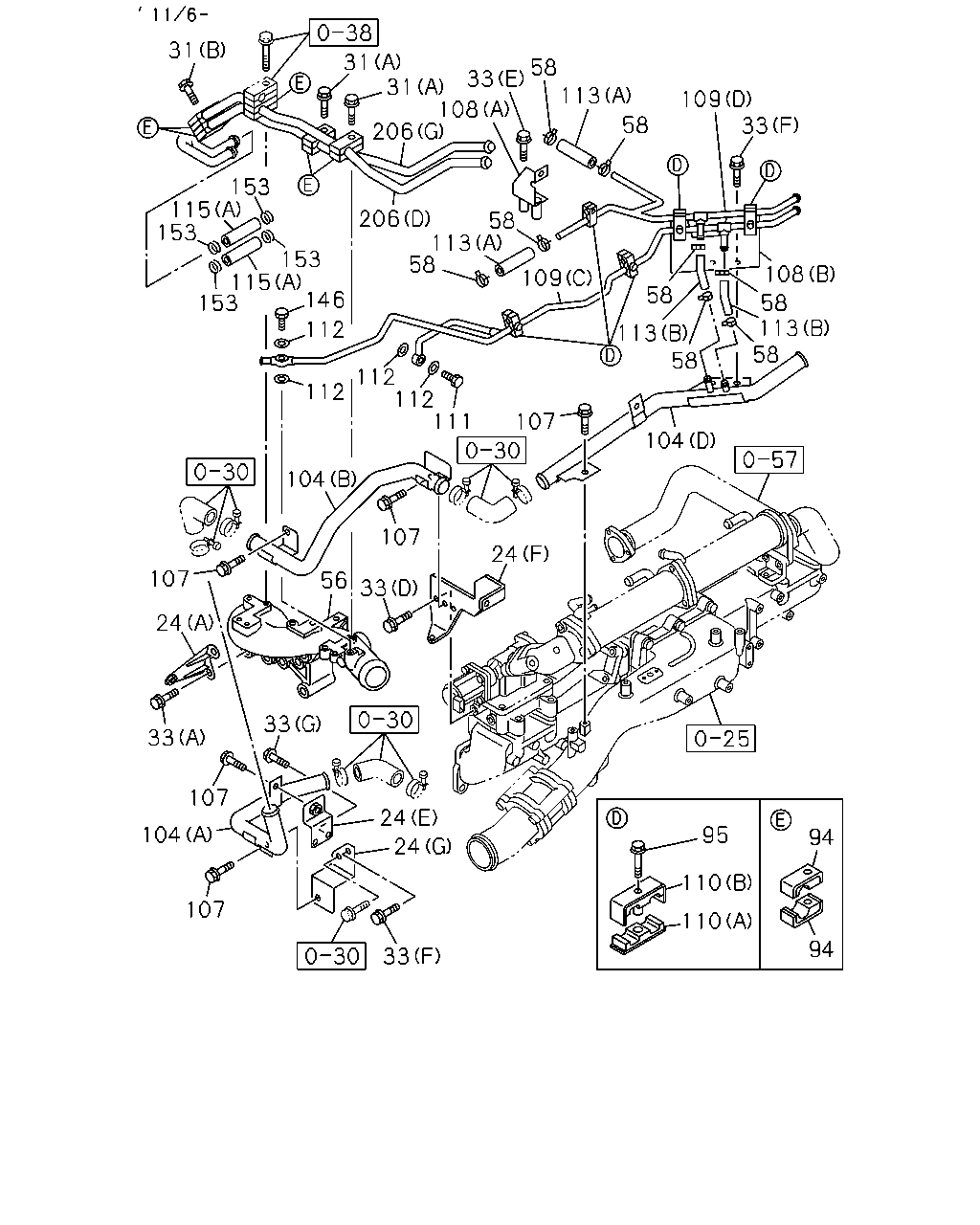

31 31 31 33 58 113 108 206 58 109 33 108 58 113 109 58 206 153 115 153 153 115 153 146 112 112 112 112 111 107 104 24 104 107 56 33 107 24 33 33 107 104 107 33 24 24 95 110 110 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0611-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0611-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0611-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0611-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0611-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0611-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0611-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0611-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0611-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0611-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0611-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	0611-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0611-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0611-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0611-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0611-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0611-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0611-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0611-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0611-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	0611-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0611-1105
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0611-
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	05	1	0611-0707
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	0708-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	0611-
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	0611-1105
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1106-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	0611-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	0611-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	0611-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	0611-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	0611-1105
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-495-0	01	1	1106-1209
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98226-681-0	01	1	1210-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	0611-1105
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-496-0	01	1	1106-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0611-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0611-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0611-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0611-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0611-0805
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0611-0805
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0611-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0611-

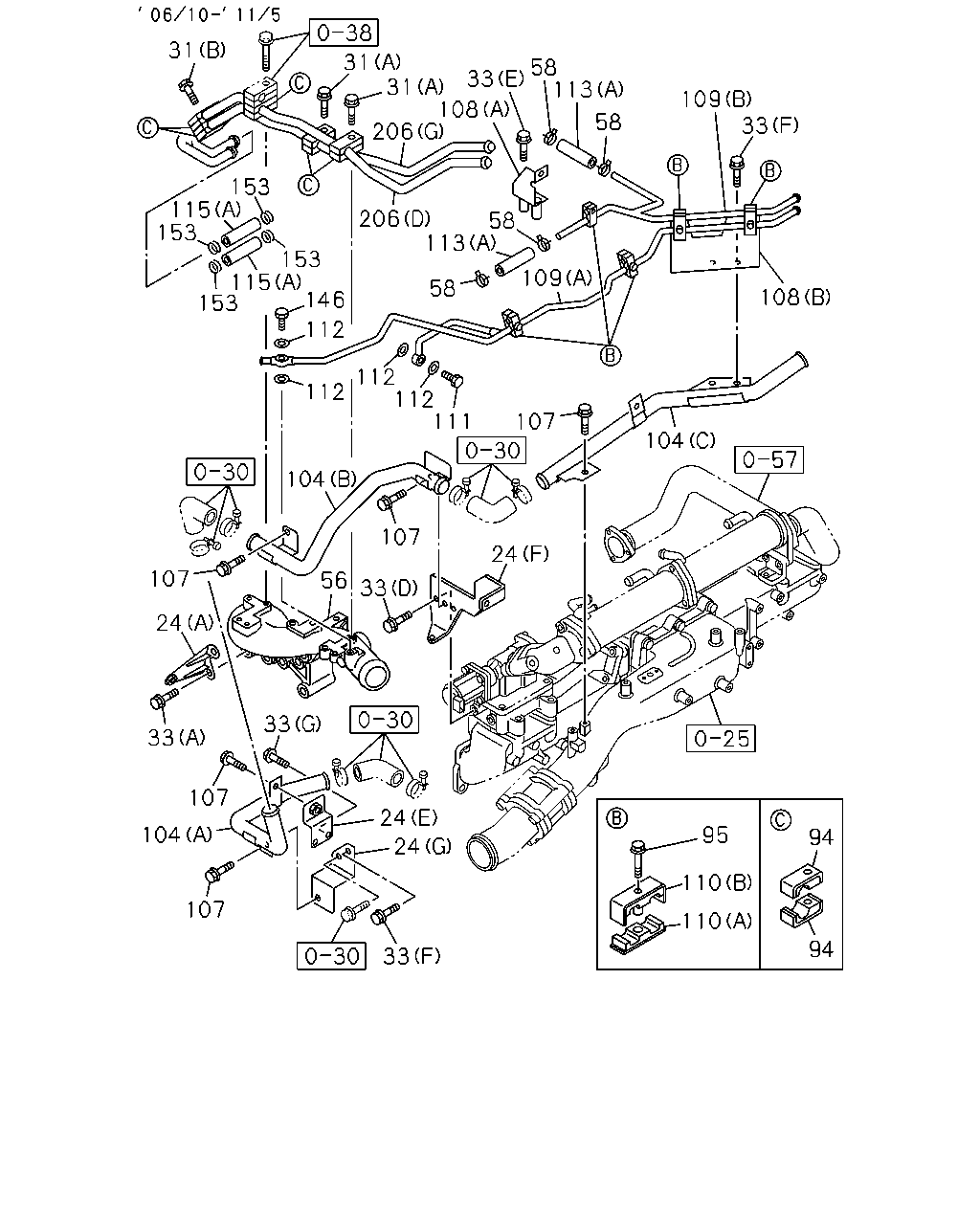

31 31 31 33 58 113 109 58 33 108 206 108 153 115 153 153 206 115 153 146 112 58 113 58 109 58 58 113 113 58 58 104 107 111 112 112 112 104 107 24 33 56 107 24 33 33 107 104 107 24 24 33 95 110 110 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0611-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0611-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0611-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0611-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0611-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0611-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0611-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0611-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0611-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0611-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0611-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	0611-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0611-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0611-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0611-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0611-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0611-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0611-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0611-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0611-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	0611-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0611-1105
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0611-
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	05	1	0611-0707
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	0708-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	0611-
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	0611-1105
104	PIPE; WATER CHARGE (D)	8-98191-341-0	01	1	1106-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	0611-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	0611-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	0611-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	0611-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	0611-1105
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98191-495-0	01	1	1106-1209
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	8-98226-681-0	01	1	1210-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	0611-1105
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	8-98191-496-0	01	1	1106-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0611-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0611-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0611-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0611-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0611-0805
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0611-0805
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0611-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0611-

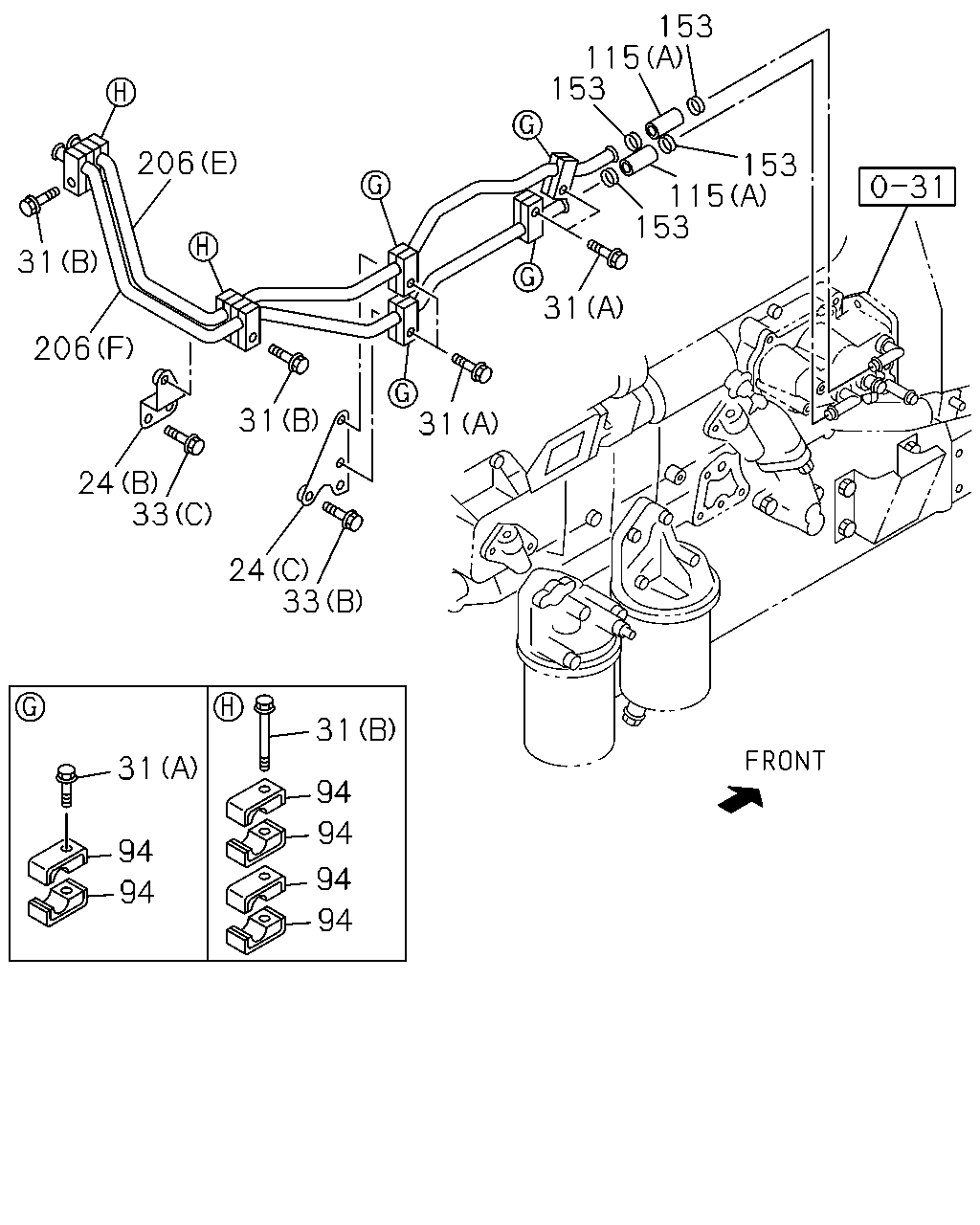

153 115 153 153 115 153 31 31 33 24 33 24 31 206 31 206 31 94 94 94 94 31 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0611-
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0611-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0611-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0611-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0611-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0611-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0611-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0611-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0611-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0611-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0611-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	0611-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0611-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0611-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0611-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0611-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0611-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0611-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0611-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0611-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0611-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0611-0805
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0611-0805
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0611-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0611-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0611-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0611-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
