0-52 — OIL AND VACUUM PIPING; ENGINE (#1552) — 34 parça

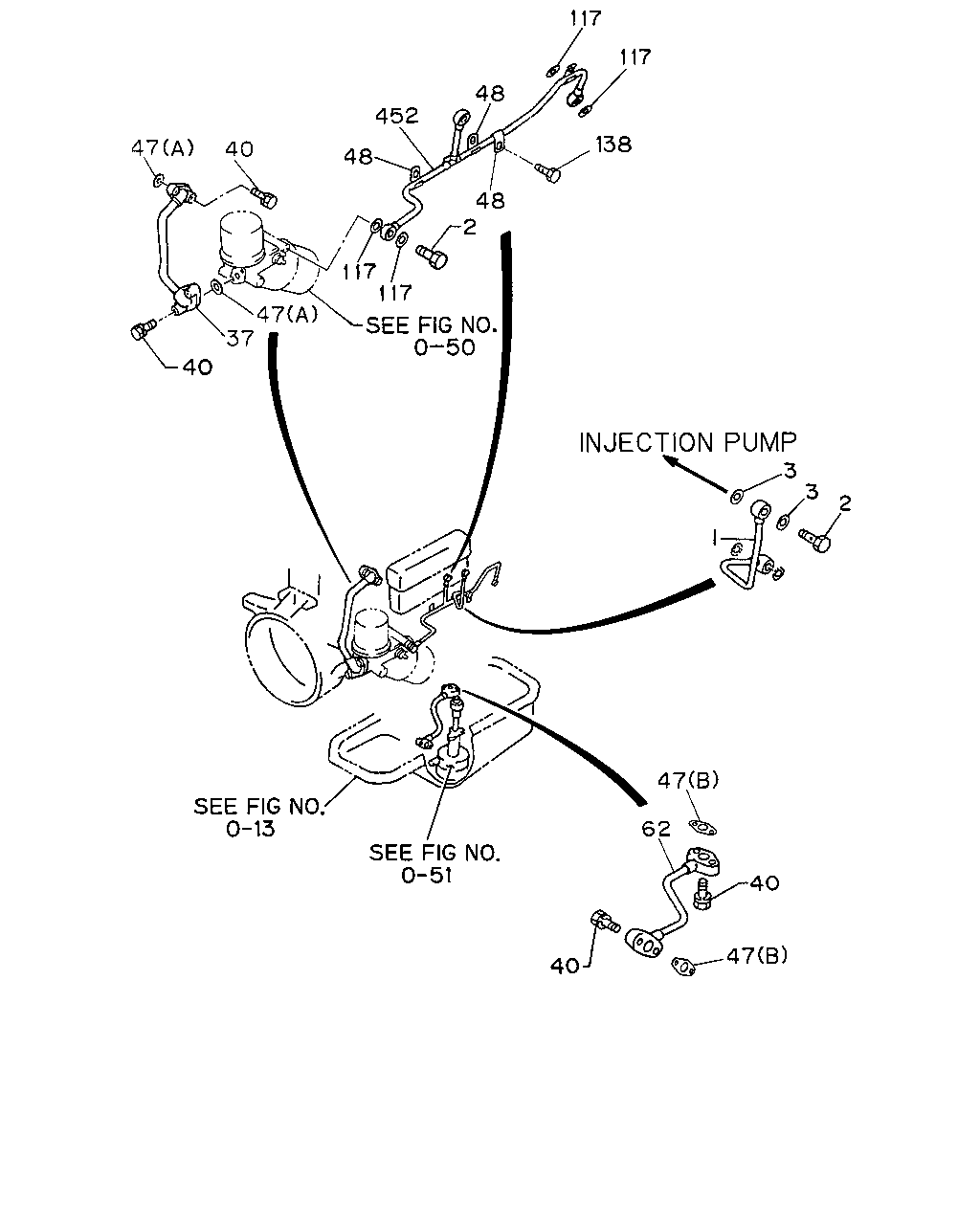

çizim 93842
40 47 62 40 47 1 2 3 3 117 117 2 48 138 117 117 48 452 48 40 47 47 37 40
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-765-0 01 1 9207-
2 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9207-
2 BOLT; EYE,OIL PIPE
M12X24 EYE-BOLT 		1-09675-081-0 01 1 9207-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9207-
37 PIPE; OIL,FILTER TO COOLER
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		5-13311-119-0 01 1 9207-
37 PIPE; OIL,FILTER TO COOLER
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-13312-523-0 01 1 9207-
40 BOLT; OIL PIPE
M8X40 W/LK WASHER 		0-50040-840-0 08 1 9207-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=22.8 		1-09623-462-0 02 1 9207-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=18 		9-09921-188-0 02 1 9207-
48 CLIP; OIL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09700-960-0 04 1 9207-
62 PIPE; OIL,PUMP TO C/BL 1-13311-532-2 01 1 9207-
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9207-
138 BOLT; CLIP FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9207-
452 PIPE; OIL,OIL FILTER TO AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-075-1 01 1 9207-
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-090-0 01 1 9207-

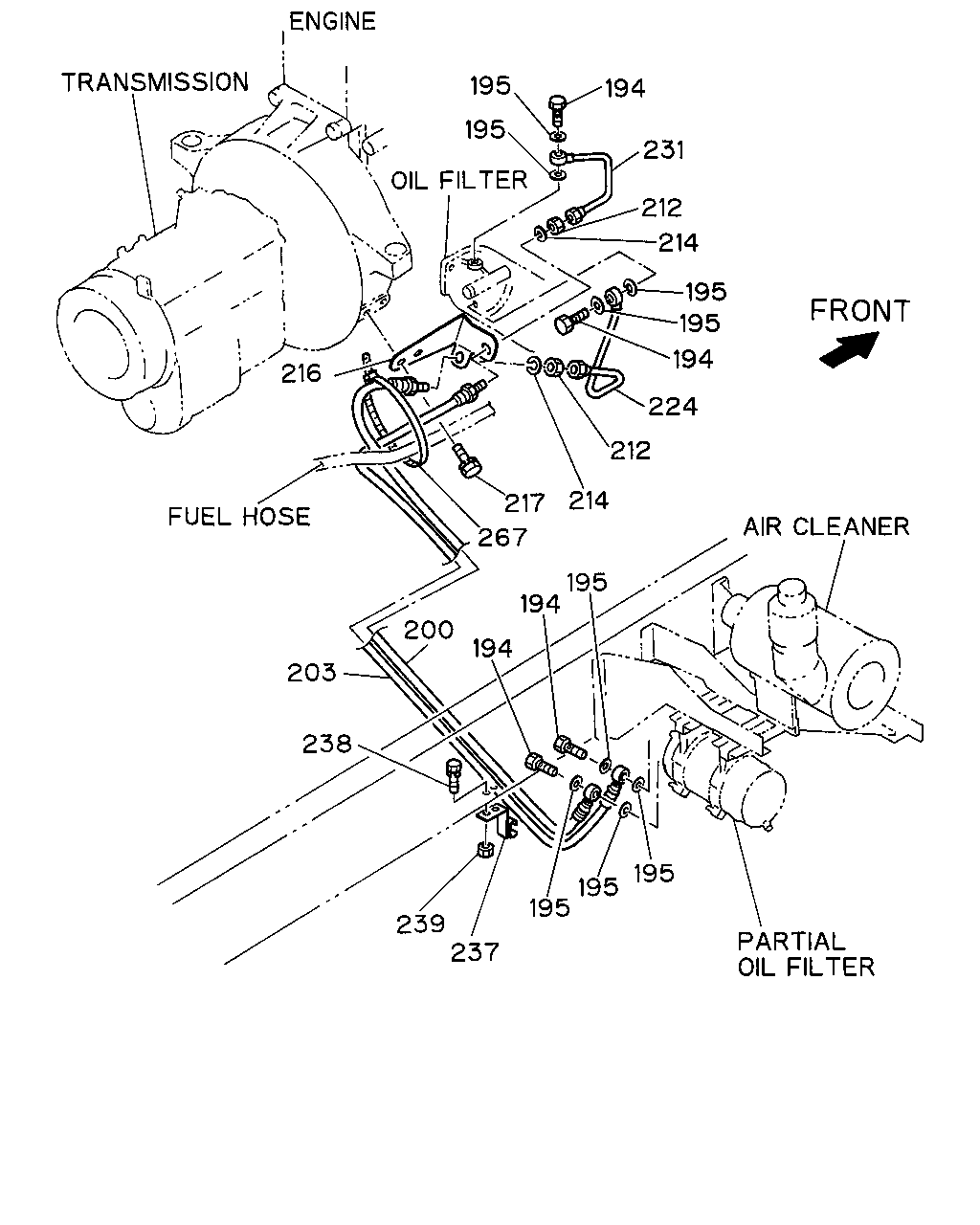

çizim 94400
1 195 194 195 231 212 214 194 195 195 224 212 214 217 267 194 195 194 195 195 195 237 239 238 203 200 216
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-765-0 01 1 9207-
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> M14X30 EYE-BOLT 		1-09675-146-0 04 1 9207-
195 GASKET; EYE BOLT,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> ID=14.2 OD=19.2 		1-09630-085-0 08 1 9207-
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
FSS ALL(FSS***) PARTIAL OIL FILTER<KC1> L=670 		1-09364-573-0 01 1 9207-
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
FTS ALL(FTS***) PARTIAL OIL FILTER<KC1> L=850 		1-09364-639-0 01 1 9207-
203 HOSE; FLEX,PARTIAL FILTER,RETURN
FSS ALL(FSS***) PARTIAL OIL FILTER<KC1> L=650 		1-09364-532-0 01 1 9207-
203 HOSE; FLEX,PARTIAL FILTER,RETURN
FTS ALL(FTS***) PARTIAL OIL FILTER<KC1> L=850 		1-09364-639-0 01 1 9207-
212 NUT; FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> M16 		9-99111-416-0 02 1 9207-
214 WASHER; LK,FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> ID=16.2 		9-09150-516-0 02 1 9207-
216 BRACKET; FLEX HOSE,PARTIAL OIL FILTER
PARTIAL OIL FILTER<KC1> 		1-47465-979-0 01 1 9207-
217 BOLT; BRKT
PARTIAL OIL FILTER<KC1> M10X20 W/LK WASHER 		0-50051-020-0 02 1 9207-
224 PIPE; OIL,DELIVERY
PARTIAL OIL FILTER<KC1> 		1-13311-588-2 01 1 9207-9212
224 PIPE; OIL,DELIVERY
PARTIAL OIL FILTER<KC1> 		1-13313-296-0 01 1 9301-
231 PIPE; OIL,RETURN
PARTIAL OIL FILTER<KC1> 		1-13311-589-2 01 1 9207-9212
231 PIPE; OIL,RETURN
PARTIAL OIL FILTER<KC1> 		1-13313-299-0 01 1 9301-
237 CLIP; FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> 		1-09709-149-0 01 1 9207-
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> M8X25 FLANGE 		0-28080-825-0 02 1 9207-
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER<KC1> M8 		9-09110-408-0 02 1 9207-
267 CLIP; HOSE
PARTIAL OIL FILTER<KC1> L=250 		5-09707-030-1 01 1 9207-
