Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#155199) — 47 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

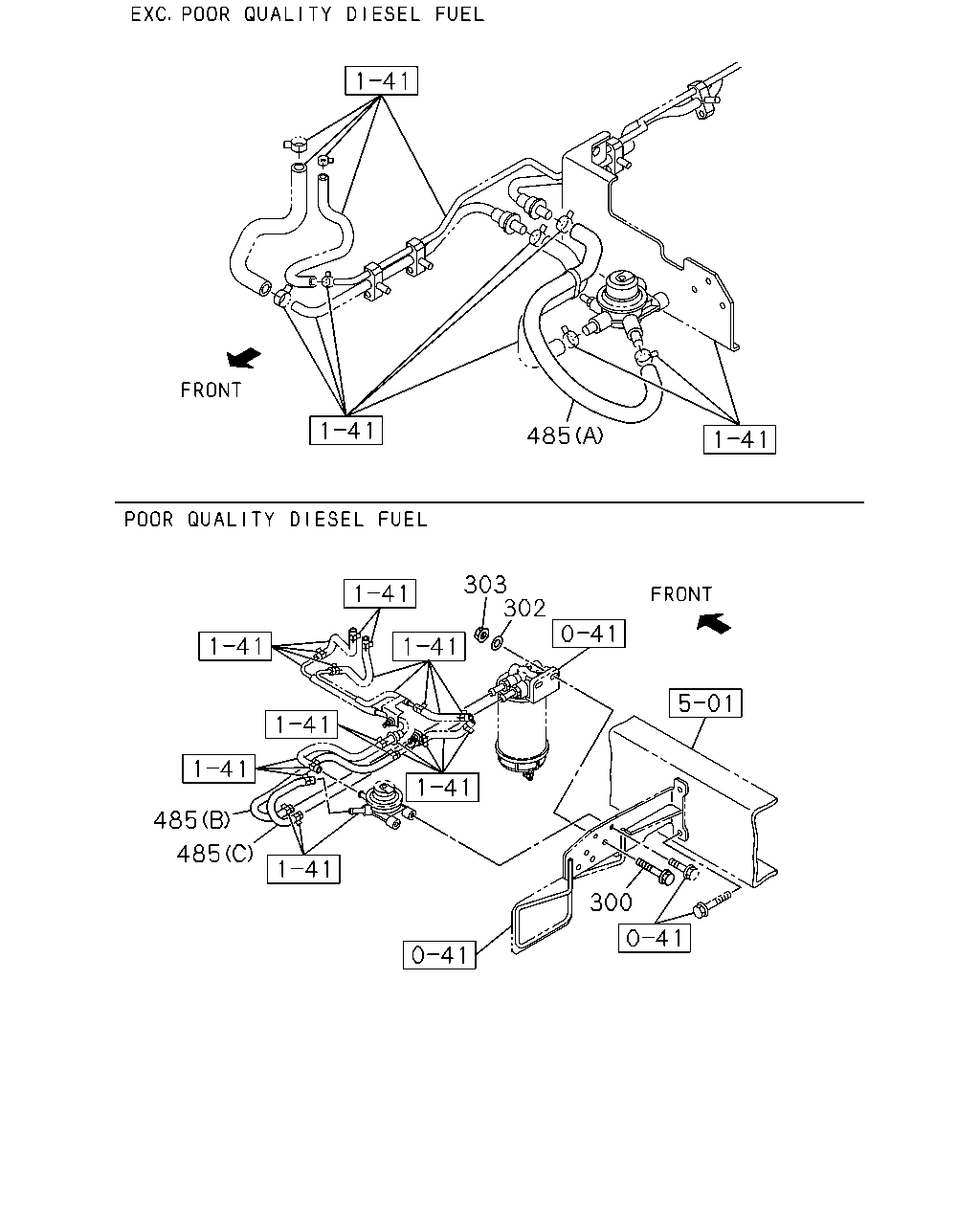

[140A] FUEL HOSE (6 parça)
[140A] -'15/3 COMPONENT (13 parça)
[140A] '15/4- COMPONENT (15 parça)
[140A] FIXING (7 parça)

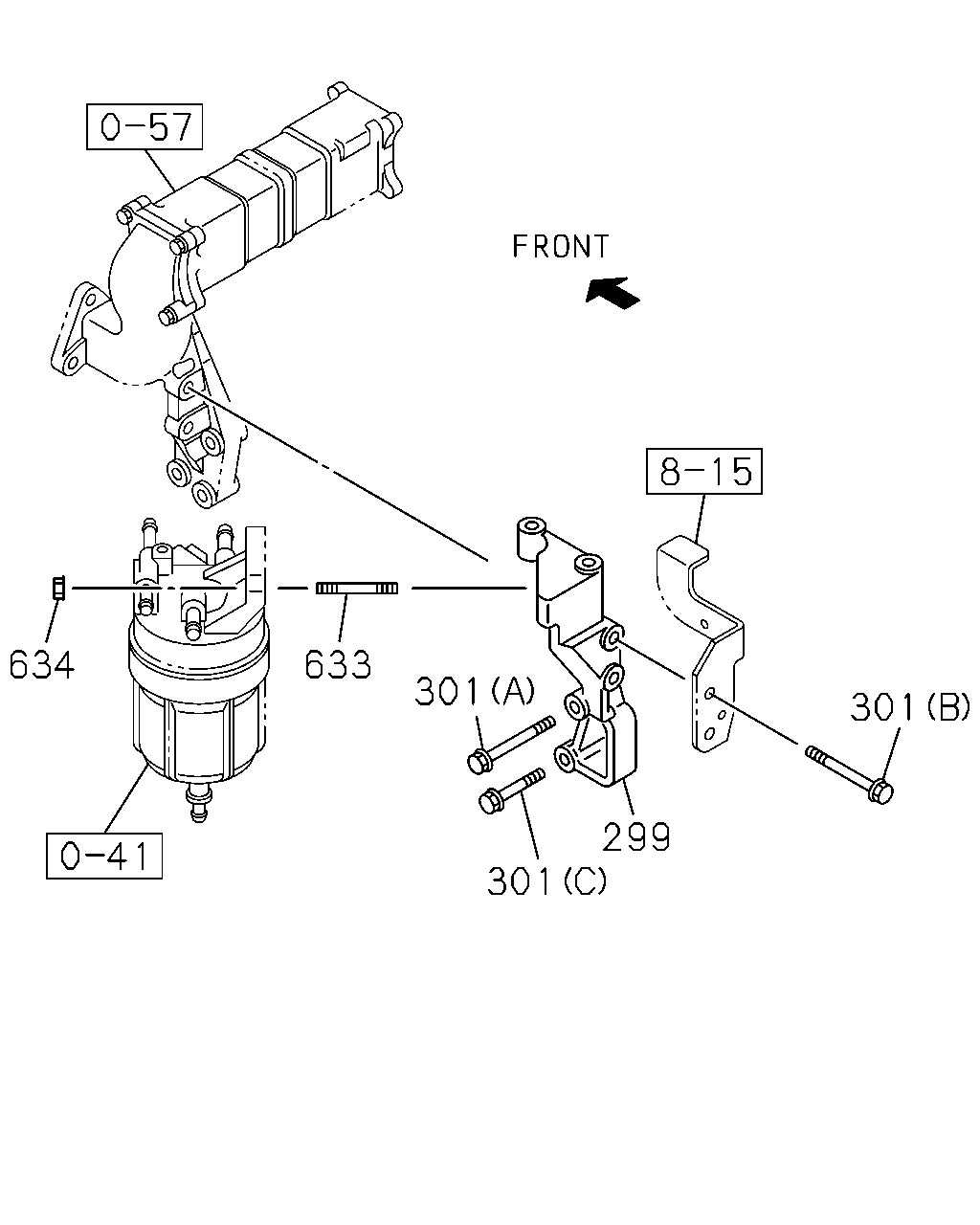

[140A] FUEL FILTER BRACKET (6 parça)
▶
303
302
485
485
485
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
300
03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE
0-28651-040-0
02
1
1501-
●
●
302
03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26
0-91614-710-0
02
1
1501-
●
●
303
03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE
0-91180-110-0
02
1
1501-
●
●
485
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C)
8-98138-300-0
01
1
1501-
●
●
485
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B)
8-98139-112-1
01
1
1501-
●
●
485
03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A)
8-98120-959-1
01
1
1501-
●
●
411
635
3
19
640
14
6
1
158
159
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.001 TANK; FUEL
820X500X400 140L
8-98051-031-4
01
1
1501-
●
●
3
03.107 UNIT; FUEL TANK,SUB
8-98065-304-0
01
1
1501-
●
●
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER
0-36220-512-0
05
1
1501-
●
●
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (B) ID=18.2 OD=26.0
9-09571-418-0
01
1
1504-
●
●
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
1501-
●
●
11
03.890 PLUG; DRAIN,FUEL TANK
M18
8-98068-006-0
01
1
1501-
●
●
14
03.163 HOSE; BREATHER,OUTLET
L=460
8-98082-184-1
01
1
1501-
●
●
19
03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1501-
●
●
158
03.164 VALVE; ROLL OVER & FLOAT
8-98095-223-0
01
1
1501-
●
●
159
03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
01
1
1501-
●
●
411
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140
5-09707-031-1
03
1
1501-
●
●
635
03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER
0-36220-510-0
05
1
1501-
●
●
640
03.164 VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1501-
●
●
411
1
635
3
19
14
656
6
656
640
158
159
8
422
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.001 TANK; FUEL
820X500X400 140L
8-98051-031-4
01
1
1501-
●
●
3
03.107 UNIT; FUEL TANK,SUB
8-98065-304-0
01
1
1501-
●
●
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER
0-36220-512-0
05
1
1501-
●
●
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (B) ID=18.2 OD=26.0
9-09571-418-0
01
1
1504-
●
●
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
1501-
●
●
11
03.890 PLUG; DRAIN,FUEL TANK
M18
8-98068-006-0
01
1
1501-
●
●
14
03.163 HOSE; BREATHER,OUTLET
L=460
8-98082-184-1
01
1
1501-
●
●
19
03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1501-
●
●
158
03.164 VALVE; ROLL OVER & FLOAT
8-98095-223-0
01
1
1501-
●
●
159
03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
01
1
1501-
●
●
411
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140
5-09707-031-1
03
1
1501-
●
●
422
03.023 PLUG; FUEL TANK
03.890 M30
8-98067-038-0
01
1
1504-
●
●
635
03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER
0-36220-510-0
05
1
1501-
●
●
640
03.164 VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1501-
●
●
656
03.023 CLAMP; FUEL TANK
8-98304-416-0
02
1
1504-
●
●
322
322
43
1
44
44
42
42
42
42
43
49
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.001 TANK; FUEL
820X500X400 140L
8-98051-031-4
01
1
1501-
●
●
42
03.023 NUT; SUPPORT BELT
00.833 M10
0-91110-510-0
04
1
1501-
●
●
43
03.015 BRACKET; FUEL TANK
(A)
8-98049-768-1
01
1
1501-
●
●
43
03.015 BRACKET; FUEL TANK
(B)
8-98127-229-0
01
1
1501-
●
●
44
03.023 BAND; FUEL TANK
L=925
8-98049-769-1
02
1
1501-
●
●
49
03.023 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
08
1
1501-
●
●
322
03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE
0-28661-040-0
08
1
1501-
●
●
634
633
301
299
301
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
299
03.162 BRACKET; FUEL FILTER
8-98023-175-3
01
1
1501-
●
●
301
03.162 BOLT; BRKT TO SEDIMENTER
02.510 (A) M12X100 FLANGE
0-28151-200-0
01
1
1501-
●
●
301
03.162 BOLT; BRKT TO SEDIMENTER
00.685 (B) M12X50 FLANGE
0-28151-250-0
01
1
1501-
●
●
301
03.162 BOLT; BRKT TO SEDIMENTER
09.181 (C) M12X80
0-28151-280-0
01
1
1501-
●
●
633
03.162 STUD; BRKT TO SEDIMENTER
03.275 M8X25 L=37
0-41010-825-0
02
1
1501-
●
●
634
03.162 NUT; BRKT TO SEDIMENTER
01.062 M8 FLANGE
0-91180-108-0
02
1
1501-
●
●
