◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#155197) — 231 parça

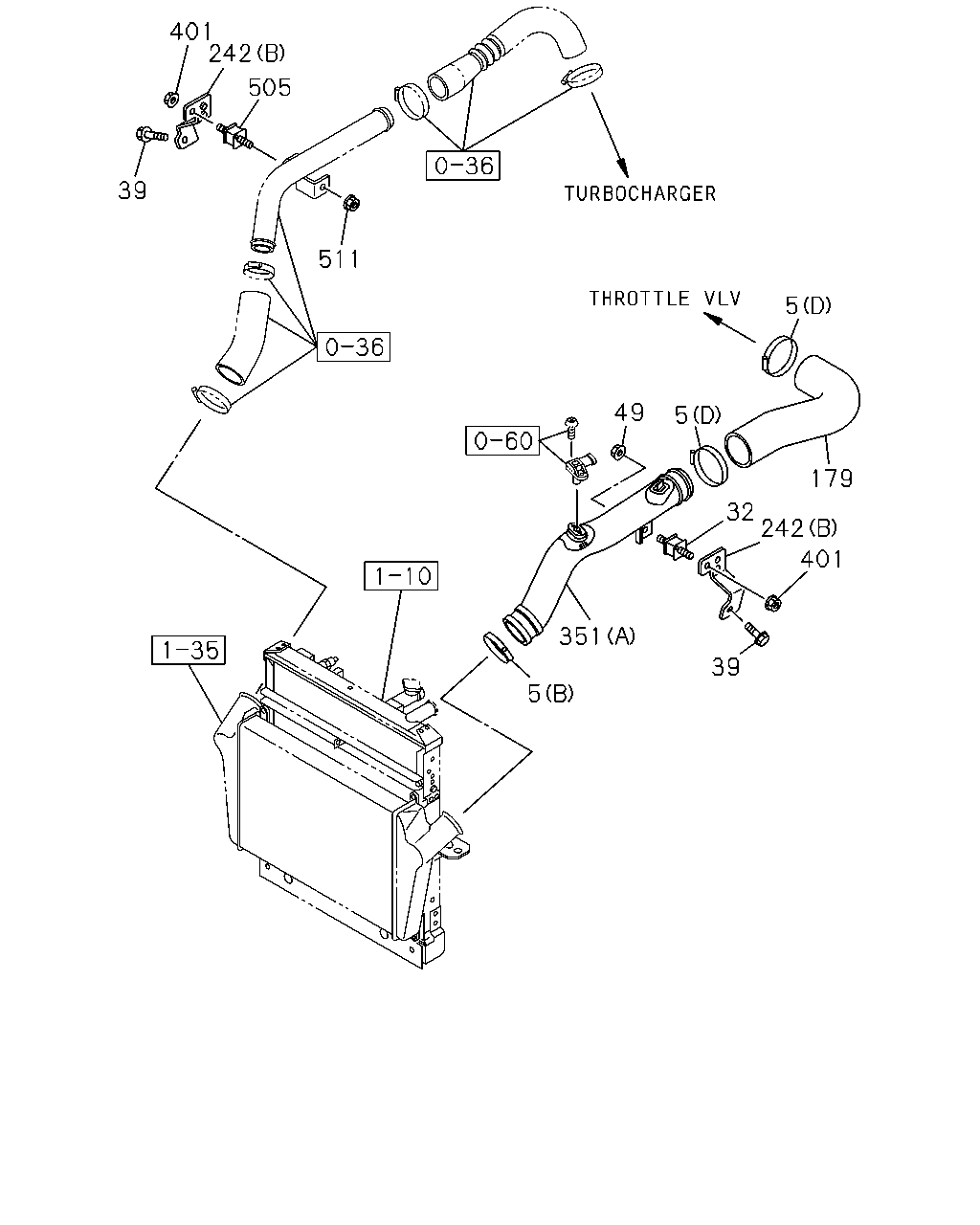

çizim 464182
401 242 505 39 511 49 5 5 179 32 401 242 39 351 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 02 1 1501- ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1501- ●
32 03.417 RUBBER; AIR DUCT MTG 8-97081-886-0 01 1 1501- ● ●
39 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ● ●
39 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1501- ● ●
179 03.417 HOSE; AIR INT 8-98117-928-2 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98059-995-2 01 1 1501- ● ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> 03.417 (C) 		8-98021-485-1 01 1 1501- ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1501- ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1501- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1501- ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1501- ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1501- ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1501- ● ●

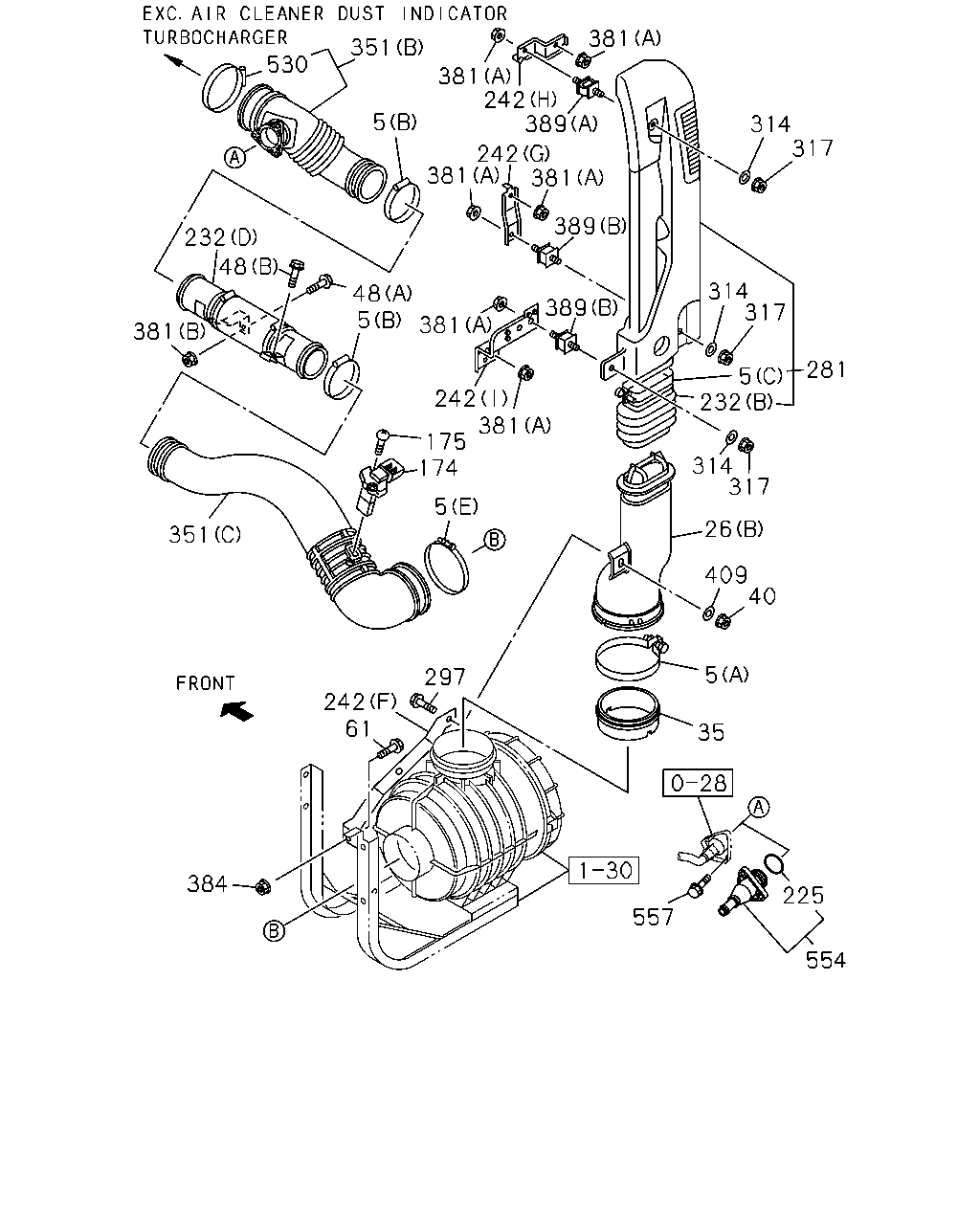

çizim 464411
389 381 242 389 242 381 381 314 317 37 314 281 5 232 314 317 26 409 40 5 35 225 554 557 297 242 61 384 48 5 48 232 381 530 351 5 381 381 242 175 174 381 5 389 351
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 02 1 1501- ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1501- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1501- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1501- ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1501- ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1501- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1501- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1502- ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98281-173-0 01 1 1501- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1501- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98281-176-0 01 1 1501- ●
232 03.417 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1501- ●
297 03.417 BOLT; DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1501- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98059-995-2 01 1 1501- ● ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> 03.417 (C) 		8-98021-485-1 01 1 1501- ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1501- ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1501- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1501- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1501- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1501- ● ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1501- ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1502- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 1501- ● ●

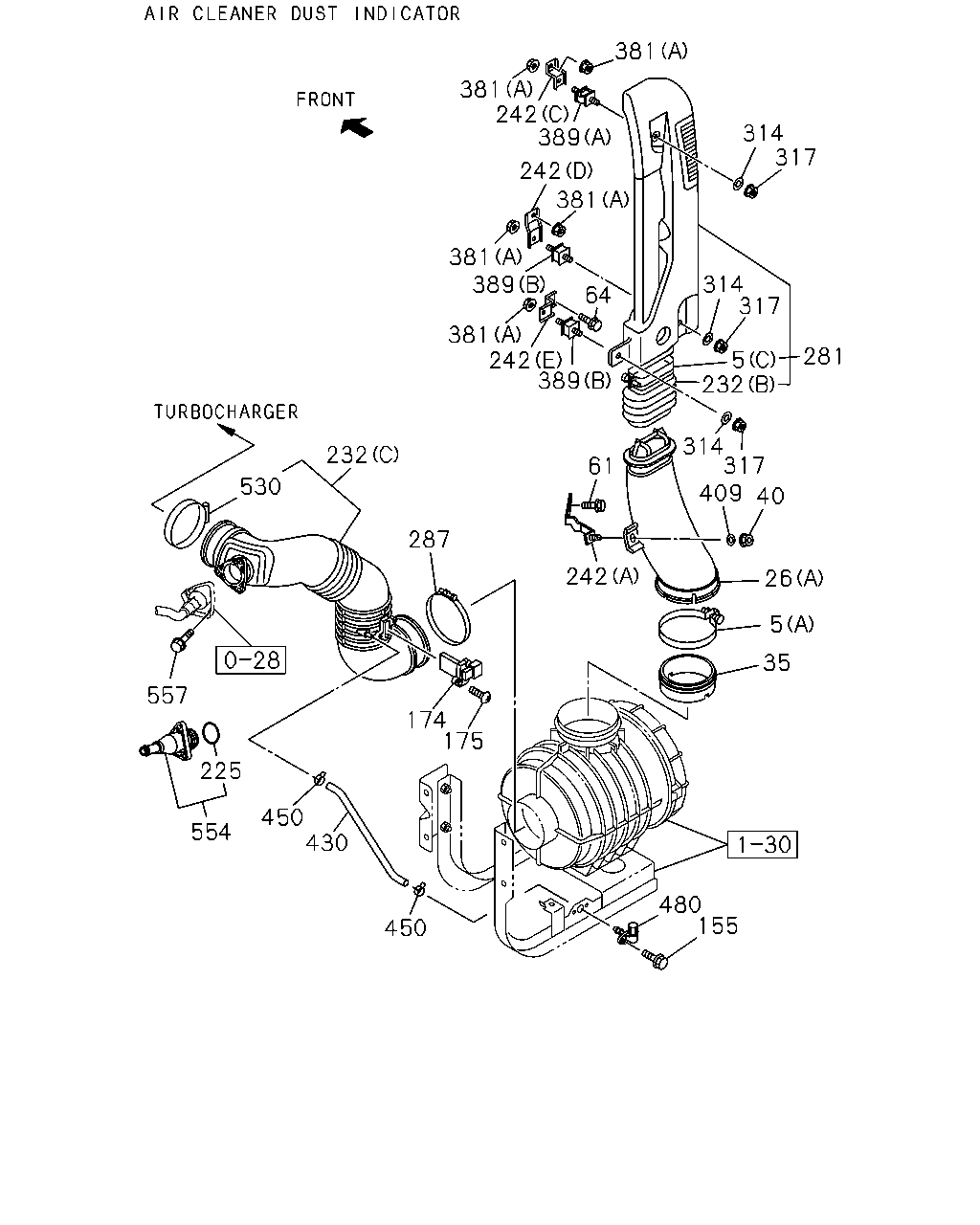

çizim 464540
281 5 317 314 317 314 381 242 381 389 242 381 64 389 381 389 242 314 232 317 409 40 26 5 35 242 61 287 232 530 557 225 554 430 174 175 450 480 155 381 450
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 02 1 1501- ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1501- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1501- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1501- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1501- ●
155 03.417 BOLT; BRKT
AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1501- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1501- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1501- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1502- ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98281-173-0 01 1 1501- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1501- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98281-176-0 01 1 1501- ●
232 03.417 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1501- ●
287 03.417 CLIP; AIR DUCT
03.407 ID=112 		9-09915-074-1 01 1 1501- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1501- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1501- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1501- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1501- ● ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1501- ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1501- ●
450 03.417 CLAMP; HOSE
AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1501- ● ●
480 03.417 ADAPTER
AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1501- ● ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1501- ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1502- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 1501- ● ●

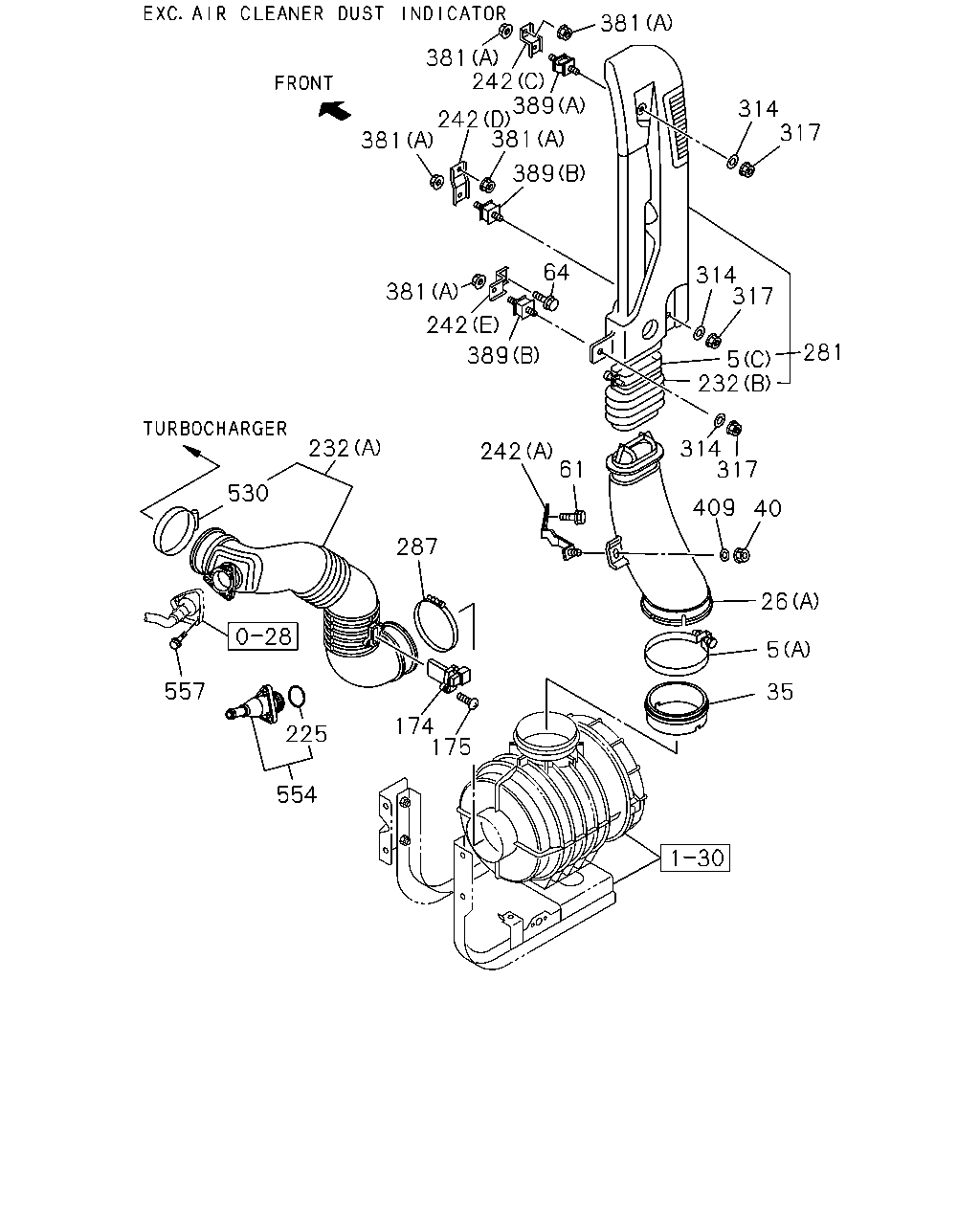

çizim 464590
175 174 225 554 557 530 287 232 242 61 389 242 381 64 314 317 281 5 232 314 317 409 40 26 5 35 317 314 389 381 242 381 389 242 381 381
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 02 1 1501- ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1501- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1501- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1501- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1501- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1501- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1501- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1502- ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98281-173-0 01 1 1501- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1501- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98281-176-0 01 1 1501- ●
232 03.417 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1501- ●
287 03.417 CLIP; AIR DUCT
03.407 ID=112 		9-09915-074-1 01 1 1501- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1501- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1501- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1501- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1501- ● ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1501- ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1502- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 1501- ● ●

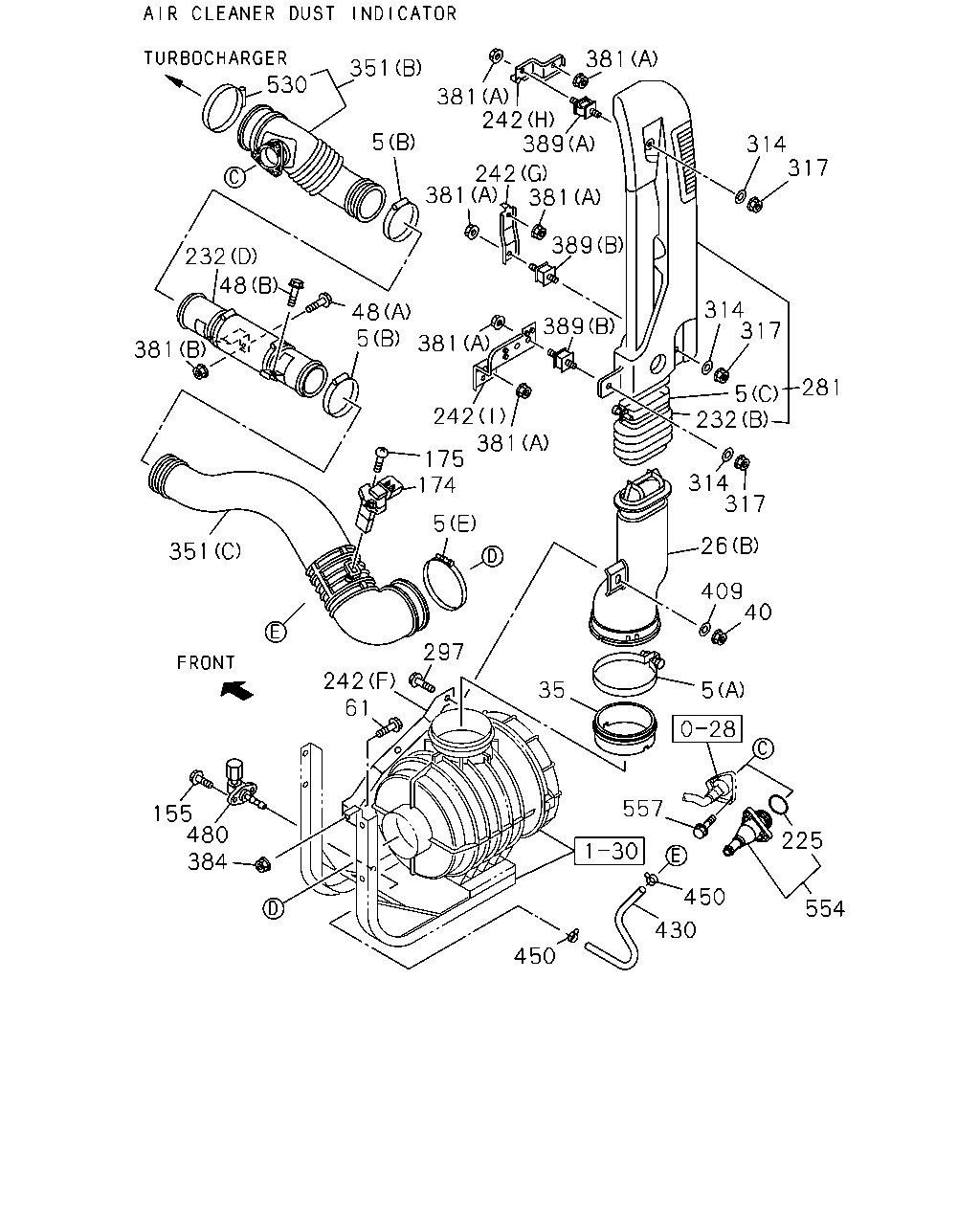

çizim 464669
317 314 381 242 381 351 530 5 389 242 381 381 389 314 317 281 5 232 314 26 317 409 40 5 554 225 450 430 450 297 242 61 480 384 155 242 175 381 174 5 35 48 5 232 381 48 381 389 351 557
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1501- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 02 1 1501- ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1501- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1501- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1501- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1501- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1501- ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1501- ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1501- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
155 03.417 BOLT; BRKT
AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1501- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1501- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1501- ● ●
225 03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1502- ● ●
232 03.417 HOSE; CONN
AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98281-173-0 01 1 1501- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1501- ● ●
232 03.417 HOSE; CONN
EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98281-176-0 01 1 1501- ●
232 03.417 HOSE; CONN
(D) 		8-98094-582-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1501- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 1501- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1501- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 1501- ●
297 03.417 BOLT; DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1501- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1501- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98059-995-2 01 1 1501- ● ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> 03.417 (C) 		8-98021-485-1 01 1 1501- ●
351 03.407 DUCT; AIR
(B) 		8-98281-177-0 01 1 1501- ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1501- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1501- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1501- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1501- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1501- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1501- ● ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1501- ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1501- ●
450 03.417 CLAMP; HOSE
AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1501- ● ●
480 03.417 ADAPTER
AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1501- ● ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1501- ● ●
554 04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1502- ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
