0-66 — GENERATOR (#155190) — 63 parça

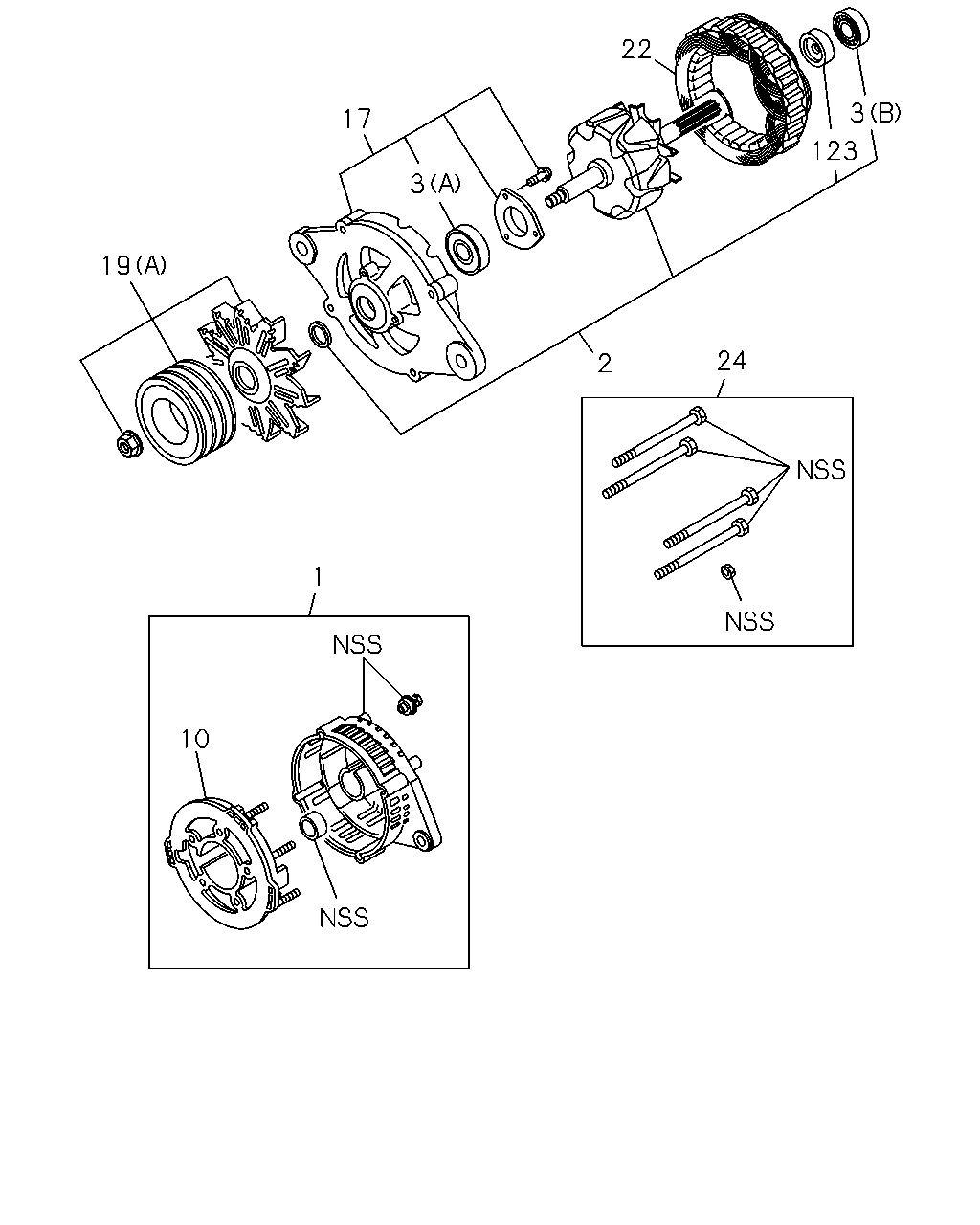

3 123 22 24 2 3 17 19 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-98075-026-0, 98075026	8-98230-316-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-98029-892-2, 98029892	8-98230-317-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-821-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-929-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-816-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-914-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-98029-892-2, 98029892, B = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-98029-892-2, 98029892, B = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-814-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-817-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-98075-026-0, 98075026	8-98230-326-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-98029-892-2, 98029892	8-98230-327-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-823-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-931-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-813-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98268-792-1, 98268792	8-98292-305-0	01	1	-
19	02.274 PULLEY; GEN (A) ASM PART: B = 8-98075-026-0, 98075026	8-98038-926-1	01	1	-
19	02.274 PULLEY; GEN (A) ASM PART: A = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
19	02.274 PULLEY; GEN (B) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98278-932-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-819-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-915-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-98029-892-2, 98029892, B = 8-98075-026-0, 98075026	8-97062-644-0	01	1	-

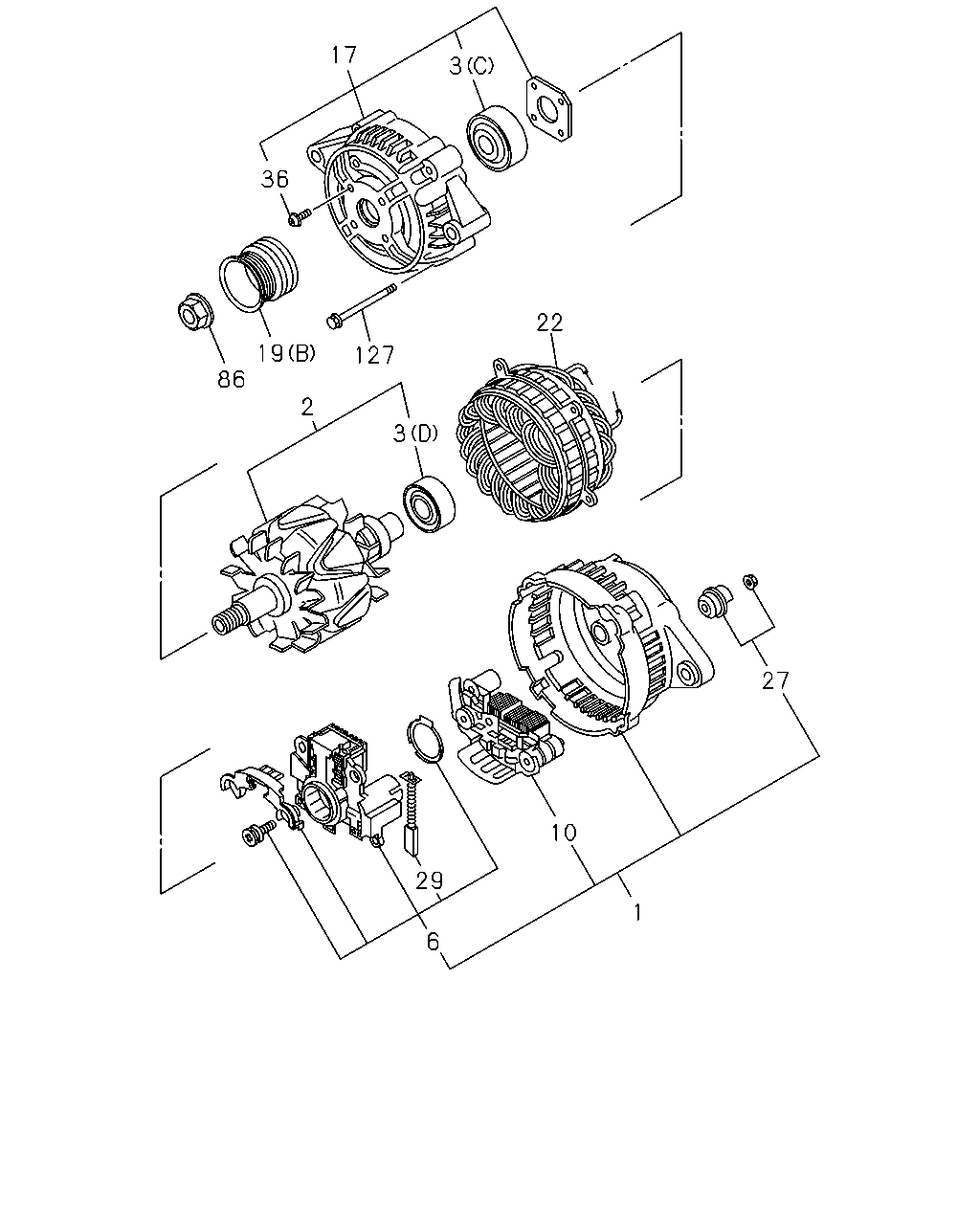

17 3 36 19 2 127 3 86 22 10 29 6 1 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-98075-026-0, 98075026	8-98230-316-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-98029-892-2, 98029892	8-98230-317-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-821-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-929-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-816-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-914-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-98029-892-2, 98029892, B = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-98029-892-2, 98029892, B = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-814-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-817-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-825-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-98075-026-0, 98075026	8-98230-326-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-98029-892-2, 98029892	8-98230-327-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-823-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-931-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-813-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98268-792-1, 98268792	8-98292-305-0	01	1	-
19	02.274 PULLEY; GEN (A) ASM PART: B = 8-98075-026-0, 98075026	8-98038-926-1	01	1	-
19	02.274 PULLEY; GEN (A) ASM PART: A = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
19	02.274 PULLEY; GEN (B) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98278-932-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-98268-793-0, 98268793	8-98273-819-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-98268-792-1, 98268792	8-98278-915-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-824-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-98273-826-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-97178-136-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-97145-327-0	01	1	-
127	02.277 BOLT SET; GEN ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793	8-97145-328-0	01	1	-
