0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#155188) — 34 parça

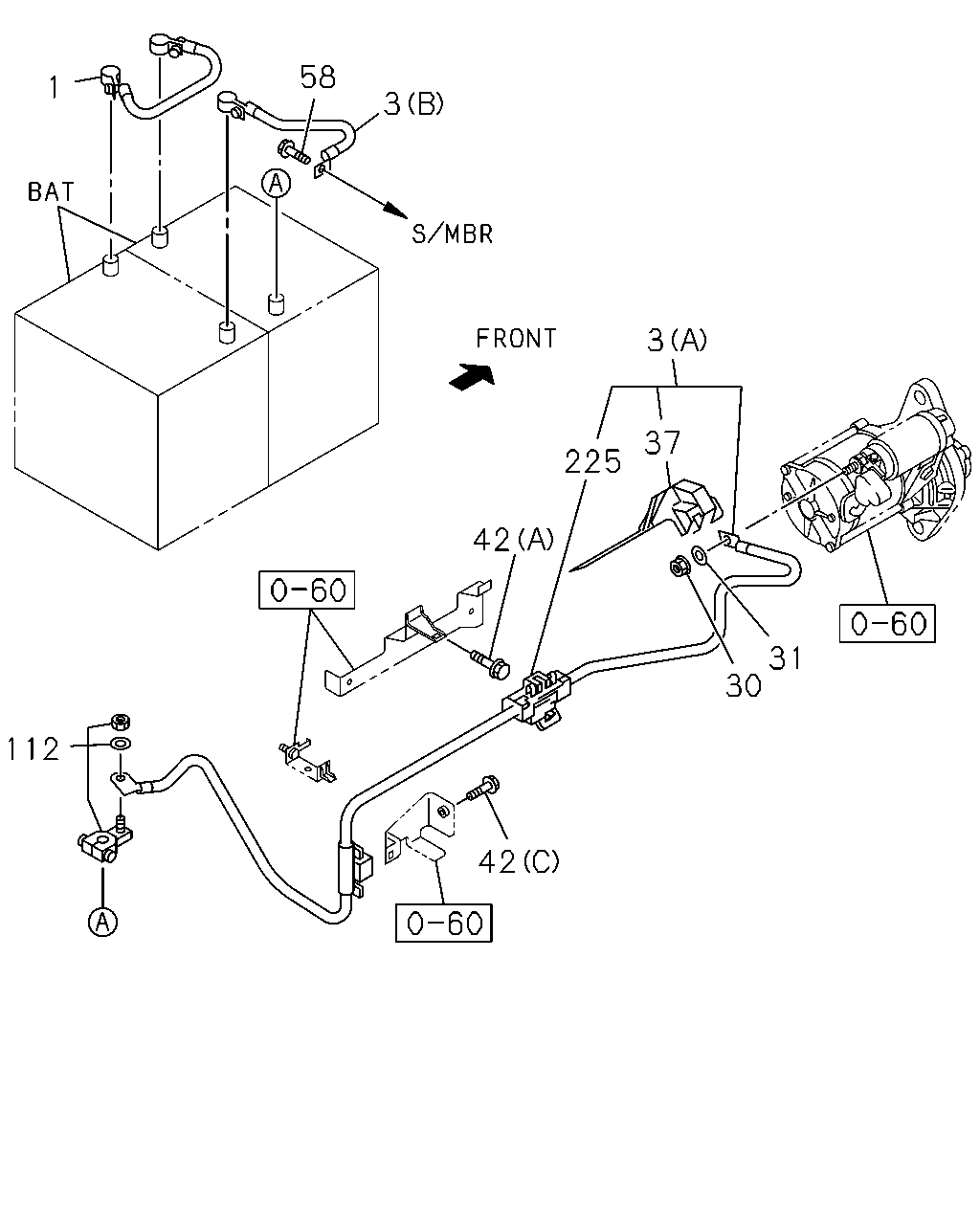

çizim 464127
3 37 31 30 225 42 42 112 3 58 1
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 80D26L<TM1> (B) L=200 		8-98056-337-1 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 80D26L<TM1> (A) 		8-98294-718-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 80D26L<TM1> (A) 		8-98294-793-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 80D26L<TM1> (B) L=230 		8-98220-520-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98294-794-0 01 1 1501-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1501-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1501-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1501-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS DBL CAB(NP**W*) BATTERY 80D26L<TM1> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1501-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1501-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1501-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1501-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1501-
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1501-

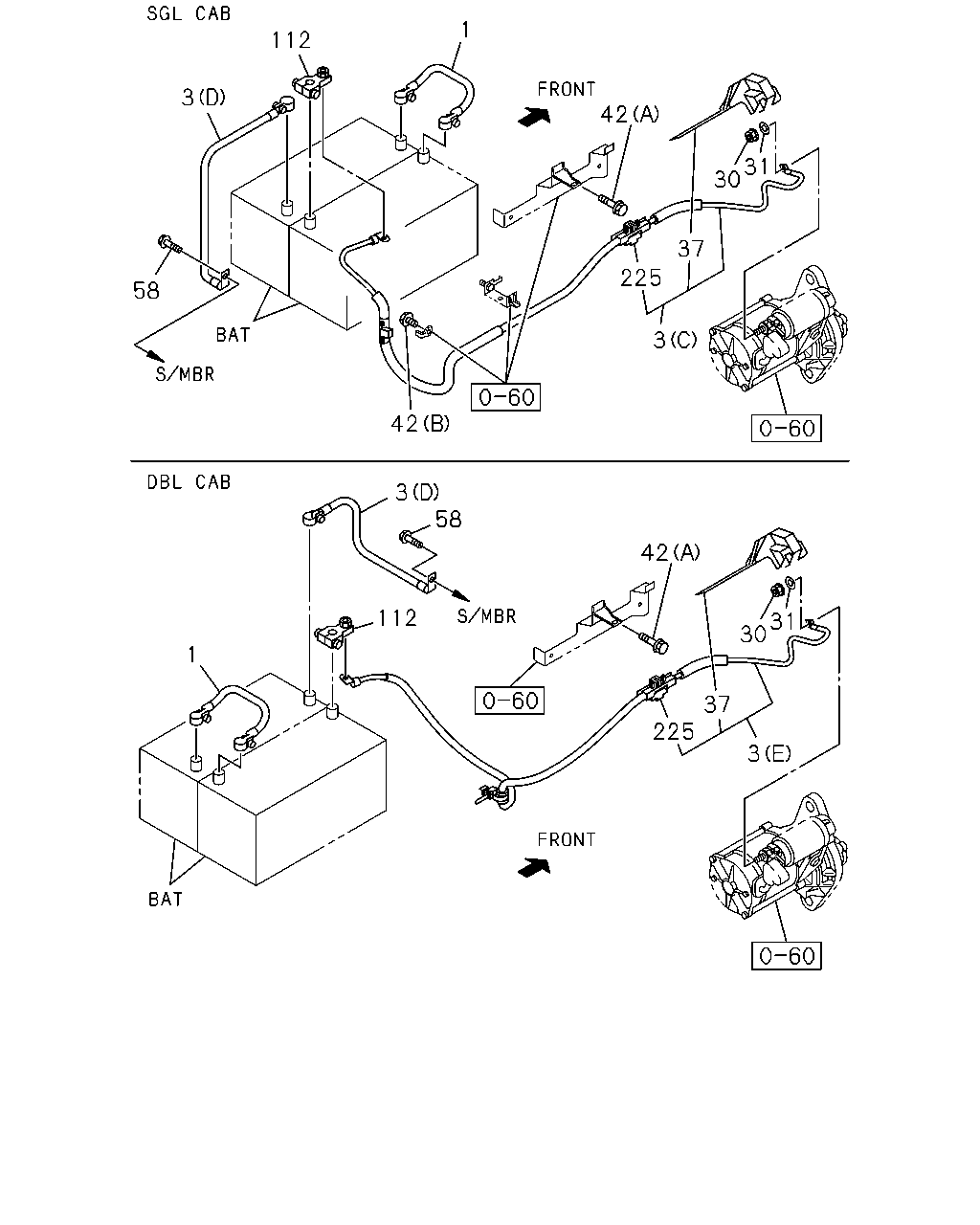

çizim 464134
3 225 42 37 31 30 112 58 3 1 42 225 37 3 31 30 42 1 112 3 58
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 80D26L<TM1> (B) L=200 		8-98056-337-1 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 80D26L<TM1> (A) 		8-98294-718-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 80D26L<TM1> (A) 		8-98294-793-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 80D26L<TM1> (B) L=230 		8-98220-520-0 01 1 1501-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98294-794-0 01 1 1501-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1501-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1501-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1501-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS DBL CAB(NP**W*) BATTERY 80D26L<TM1> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1501-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1501-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1501-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1501-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1501-
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1501-
