◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51607 - NPS EURO5 AUST/NZ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#155185) — 15 parça

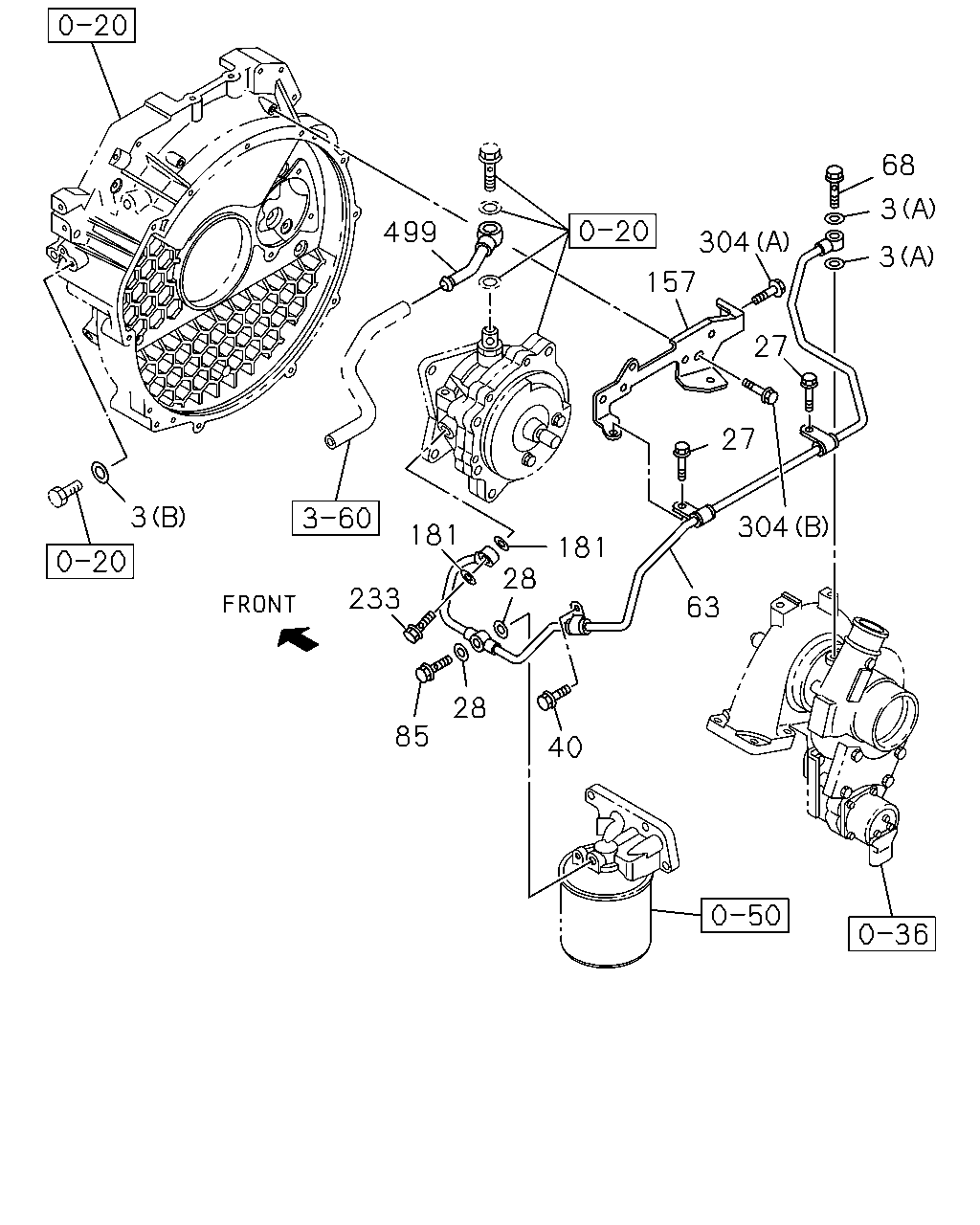

çizim 464108
3 499 233 181 28 85 28 181 157 304 27 27 68 3 3 40 63 304
BalonParca AdiParca NoAdetTipApplied Date
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1501-
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1501-
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1501-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 1501-
40 01.531 BOLT; OIL PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1501-
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97386-643-2 01 1 1501-1509
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98328-013-0 01 1 1510-
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M10X26 		8-98037-825-0 01 1 1501-
85 01.531 BOLT; EYE,OIL PIPE FIX
M10X28 		8-98037-823-0 01 1 1501-
157 01.519 BRACKET; OIL PIPE 8-98036-534-0 01 1 1501-
181 01.531 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 1501-
233 01.531 BOLT; EYE
M10X22 		1-09675-028-0 01 1 1501-
304 01.540 BOLT; BRKT,OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1501-
304 01.540 BOLT; BRKT,OIL PIPE
00.029 (B) M10X16 FLANGE 		0-28151-016-0 02 1 1501-
499 04.681 PIPE; VACUUM 8-98040-104-2 01 1 1501-
