Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

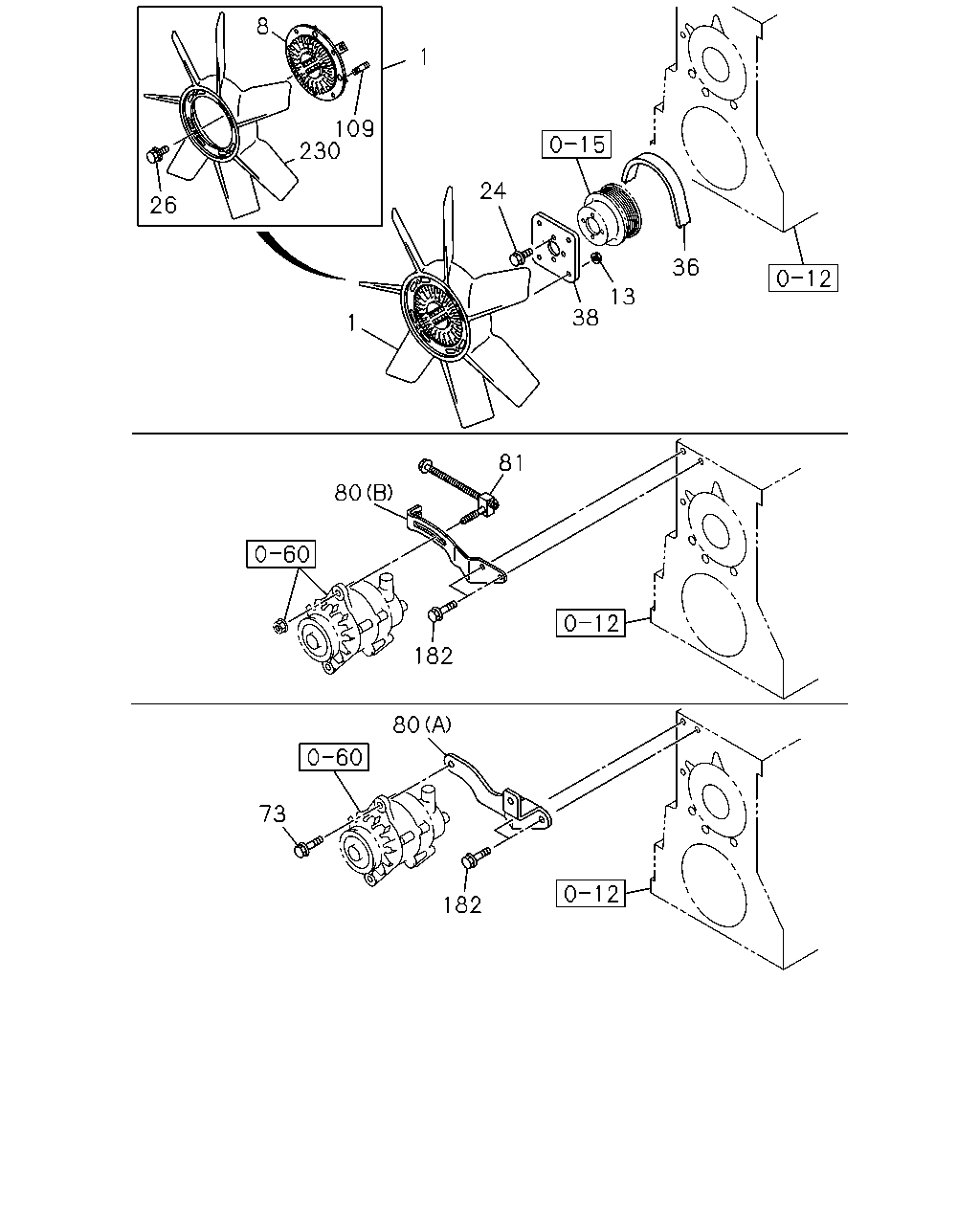

0-33 — FAN AND FAN BELT
(#155177) — 27 parça
◀
[033A] COOLING FAN AND ADJ PLATE (21 parça)
[033A] DRIVE BELT TENSIONER (6 parça)
▶
26
8
230
109
1
1
24
38
13
36
80
182
81
73
182
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.064 FAN; COOLING
OD=510
8-98190-148-1
01
1
1501-
8
01.064 CLUTCH; COOLING FAN
8-98019-743-0
01
1
1501-
13
01.062 NUT; COOLING FAN
M8 FLANGE
0-91180-108-0
04
1
1501-
24
01.062 BOLT; FAN
08.900 M8X18 FLANGE
0-28080-818-0
04
1
1501-
26
01.062 BOLT; FAN TO CLU
8-94389-764-0
04
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) L=1046
8-98003-187-0
01
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) L=1121
8-98038-423-0
01
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) BEST VALUE PARTS
5-87610-101-0
01
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) BEST VALUE PARTS
5-87610-102-0
01
1
1501-
38
01.062 SPACER; FAN
8-97108-643-0
01
1
1501-
73
02.277 BOLT; GEN TO ADJ PLATE
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE
0-28650-835-0
01
1
1501-
80
02.317 PLATE; ADJ
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A)
8-98288-436-1
01
1
1501-1507
80
02.317 PLATE; ADJ
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) (A)
8-98288-436-1
01
1
1508-
80
02.317 PLATE; ADJ
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B)
8-98288-434-1
01
1
1501-
80
02.317 PLATE; ADJ
GENERATOR 24V50A(6QN) (B)
8-98035-085-1
01
1
1501-
80
02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 02.277 (A)
8-98036-550-1
01
1
1501-1507
81
02.317 PIECE; SLIDING
GENERATOR 24V50A(6QN)
8-98075-762-0
01
1
1501-1501
81
02.317 PIECE; SLIDING
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN)
8-98075-762-0
01
1
1502-
109
01.062 STUD; FAN CLU
M8X13.5 L=22
8-97049-577-1
04
1
1501-
182
01.062 BOLT; BRKT
01.060 M8X35 FLANGE
0-28650-835-0
02
1
1501-
230
01.055 FAN; COOLING
8-98190-058-0
01
1
1501-
36
144
147
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) L=1046
8-98003-187-0
01
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) L=1121
8-98038-423-0
01
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ), GENERATOR 24V50A(6QN) BEST VALUE PARTS
5-87610-101-0
01
1
1501-
36
01.066 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) BEST VALUE PARTS
5-87610-102-0
01
1
1501-
144
01.060 TENSIONER; DRIVE BELT
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) 09.180 1-GROOVE
8-98031-811-1
01
1
1501-
147
01.060 BOLT; BELT TENSIONER
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU), GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE
0-28151-020-0
03
1
1501-
